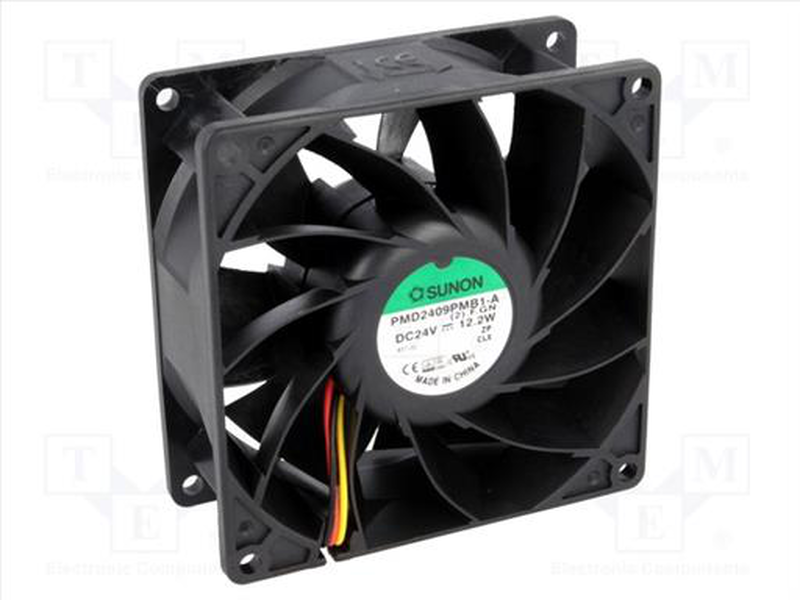

24vdc fan axial 92x92x38mm 57.6db
SUNON
24vdc fan axial 92x92x38mm 57.6db
SUNON
24vdc fan axial 92x92x38mm 57.6db
[{"value":"1","selected":true,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=1"},{"value":"2","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=2"},{"value":"3","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=3"},{"value":"4","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=4"},{"value":"5","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=5"},{"value":"6","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=6"},{"value":"7","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=7"},{"value":"8","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=8"},{"value":"9","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=9"},{"value":"10","selected":false,"url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-Variation?pid=47d3ddc6-ebf0-439e-ae46-49c402999700&quantity=10"}]
–+
The price is not available
Choose from available options.
Description
Item No.
47d3ddc6-ebf0-439e-ae46-49c402999700
- Manufacturer: SUNON
- Type of fan: DC
- Kind of fan: axial
- Supply voltage: 24V DC
- Fan dimensions: 92x92x38mm
- Power consumption: 12.2W
- Current rating: 0.51A
- Fan efficiency: 204.21m3/h
- Noise level: 57.6dBA
- Kind of Bearing: ball bearing
- Signal output: F type
- Rotational rate/speed: 4900 ±10rpm
- Weight: 190g
- Current and power consumption tolerance: ±15
- Min. insulation resistance: 10MΩ
- Impeller material: thermoplastic
- Enclosure material: thermoplastic
- Insulation class: A
- Leads: 3 leads
- Operating temperature: -10...70°C
- Cable length: 300mm
- Flammability rating: UL94V-0
- Additional functions: Autorestart
- Fan motor: brushless DC
- Static pressure: 18.03mm H2O
- Operating voltage: 10...27.6V
- Wire size: 24AWG
Additional information
- Gross weight: 188.3 g
Attributes
Basic Characteristics
- Manufacturer: SUNON
