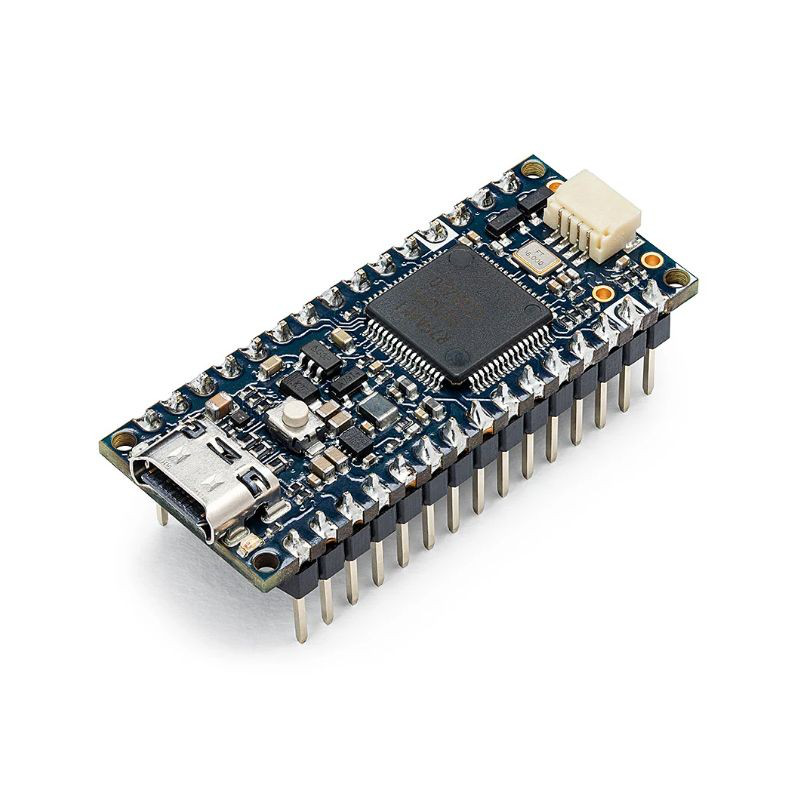

Elevate your projects with ultimate convenience! The Arduino Nano R4 with Headers (ABX00143) combines the revolutionary power of a 32-bit Renesas RA4M1 microcontroller (ARM Cortex-M4) with the practicality of pre-soldered headers. This means you can take it straight out of the box and plug it immediately into any breadboard or perfboard, making the prototyping process cleaner and significantly faster than ever before.

Maintaining the classic, small Nano form factor, this board is fully compatible with existing Nano shields and accessories, allowing for a seamless transition from older boards. However, the R4 delivers dramatically enhanced performance, including larger FLASH/SRAM memory and a core clocked at 48 MHz, enabling you to implement more complex functions and sophisticated algorithms.

Beyond the boosted power, the Nano R4 introduces modern features essential for today's projects. It includes CAN Bus support for industrial applications, HID (Human Interface Device) functionality over USB, a Real-Time Clock (RTC), and a wide 6-21V input voltage range. The "with headers" version is the ideal choice for educators, hobbyists, and professionals who want to focus on code development rather than component soldering.

Key Features (Features/Benefits)

• Pre-soldered Headers: Ready for immediate plug-and-play use on a breadboard, saving time and simplifying wiring.

• Powerful 32-bit Processor: Features the Renesas RA4M1 (ARM Cortex-M4) clocked at 48 MHz for high-performance computing.

• Next-Generation Peripherals: Built-in CAN Bus, Real-Time Clock (RTC), and HID over USB functionality.

• Expanded Memory: 256 kB FLASH and 32 kB SRAM to support demanding applications and larger code bases.

• Wide Input Voltage (VIN): Accepts 6-21V, providing flexibility in power sourcing.

• USB Type-C: Modern and robust connection for power and programming (a significant upgrade from older Micro USB).
