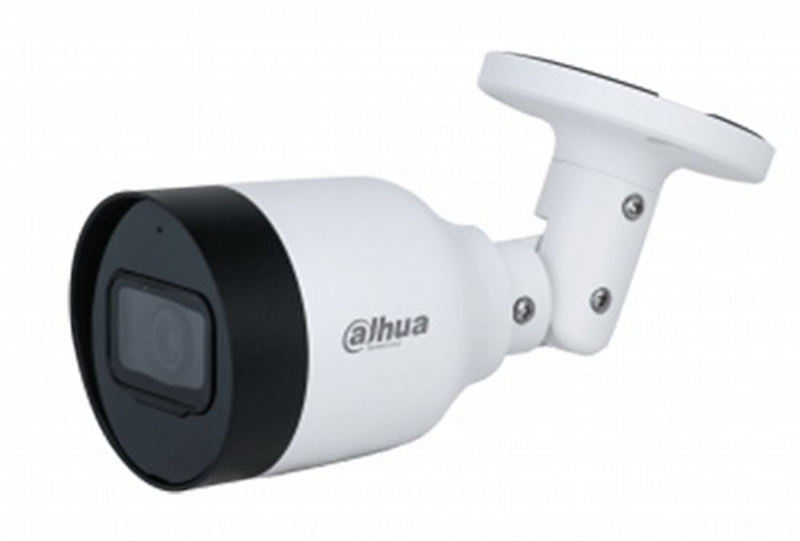

Dahua ip 5.0mp bullet 2.8mm wdr hfw1530s-s6
🔥Selling fast!
Dahua ip 5.0mp bullet 2.8mm wdr hfw1530s-s6
€85.00
Only 1 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6414845&productId=cacd9465-56f0-489d-a8e3-ad90c0b8b107&quantity=1"}]
–+
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6414845&productId=cacd9465-56f0-489d-a8e3-ad90c0b8b107&quantity=1"}]
–+
170
Points earned
From
SVACO
Low stock
Delivery options
Pick-up points / Lockers
Est. delivery: 31 Mar - 02 Apr
Free
Delivery to your door
FREE shipping on orders over €65.00 from SVACO
Est. delivery: 02 Apr - 06 Apr
Free
Description
Item No.
cacd9465-56f0-489d-a8e3-ad90c0b8b107
Camera
- Image Sensor : 1/2.7" CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- ROM : 16 MB
- RAM : 128 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination : 0.03 Lux@F2.0 (Color, 30 IRE) / 0.003 Lux@F2.0 (B/W, 30 IRE) / 0 Lux (Illuminator on)
- S/N Ratio : > 56 dB
- Illumination Distance : 30 m (IR)
- Illuminator On/Off Control : Auto/Manual
- Illuminator Number : 1 (IR LED)
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : 2.8 mm: F2.0
- Field of View : 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.8 m
- Video Compression : H.265; H.264; H.264B; MJPEG (only supported by the substream)
- Smart Codec : Smart H.265+; Smart H.264+
- Video Frame Rate : Main stream: 2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) / Sub stream : 704 × 576 (1 fps–25 fps) / 704 × 480 (1 fps–30 fps)
- Stream Capability : 2 streams
- Resolution : 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520);
- 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 ×
- 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×
- 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA
- (640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control : CBR/VBR
- Video Bit Rate : H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps
- Day/Night : Auto (ICR)/Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : DWDR
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Auto; manual
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Region of Interest (RoI) : Yes (4 areas)
- Smart Illumination : Yes : Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
- resolution and lower)
- Mirror : Yes
- Privacy Masking : 4 areas
- Built-in MIC : Yes
- Audio Compression : G.711a; G.711Mu; G.726; PCM
- Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
- Network Port : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Cyber Security : Video encryption; configuration encryption; Digest; WSSE;
- account lockout; security logs; Generation and importing
- of X.509 certification; HTTPS; trusted boot; trusted
- execution; trusted upgrade
- Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
- Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
- User/Host : 6 (Total bandwidth: 48 M)
- Storage : FTP
- Browser : IE / Chrome / Firefox
- Management Software : Smart PSS; DSS; DMSS
- Mobile Client : iOS; Android
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- 12V DC/PoE (802.3af)
- Basic: 1.9W (12V DC); 2.3W (PoE)
- Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.9W (12V DC); 4.5W (PoE)
- Operating Temperature : –40°C to +60°C
- Operating Humidity : ≤95%
- Storage Temperature : –40°C to +60°C
- Protection : IP67
- Casing : Metal
- Product Dimensions : 162.1 mm × Φ70.1 mm
- Net Weight : 0.32 kg
- Gross Weight : 0.45 kg
Details
Camera
<ul>
<li>Image Sensor : 1/2.7" CMOS</li>
<li>Max. Resolution : 2880 (H) × 1620 (V)</li>
<li>ROM : 16 MB</li>
<li>RAM : 128 MB</li>
<li>Scanning System : Progressive</li>
<li>Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s</li>
<li>Min. Illumination : 0.03 Lux@F2.0 (Color, 30 IRE) / 0.003 Lux@F2.0 (B/W, 30 IRE) / 0 Lux (Illuminator on)</li>
<li>S/N Ratio : > 56 dB</li>
<li>Illumination Distance : 30 m (IR)</li>
<li>Illuminator On/Off Control : Auto/Manual</li>
<li>Illuminator Number : 1 (IR LED)</li>
</ul>
Lens
<ul>
<li>Lens Type : Fixed-focal</li>
<li>Lens Mount : M12</li>
<li>Focal Length : 2.8 mm</li>
<li>Max. Aperture : 2.8 mm: F2.0</li>
<li>Field of View : 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125°</li>
<li>Iris Control : Fixed</li>
<li>Close Focus Distance : 2.8 mm: 0.8 m</li>
</ul>
Video
<ul>
<li>Video Compression : H.265; H.264; H.264B; MJPEG (only supported by the substream)</li>
<li>Smart Codec : Smart H.265+; Smart H.264+</li>
<li>Video Frame Rate : Main stream: 2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) / Sub stream : 704 × 576 (1 fps–25 fps) / 704 × 480 (1 fps–30 fps)</li>
<li>Stream Capability : 2 streams</li>
<li>Resolution : 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520);</li>
<li>2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 ×</li>
<li>1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×</li>
<li>960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA</li>
<li>(640 × 480); CIF (352 × 288/352 × 240)</li>
<li>Bit Rate Control : CBR/VBR</li>
<li>Video Bit Rate : H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps</li>
<li>Day/Night : Auto (ICR)/Color/B/W</li>
<li>BLC : Yes</li>
<li>HLC : Yes</li>
<li>WDR : DWDR</li>
<li>White Balance : Auto; natural; street lamp; outdoor; manual; regional custom</li>
<li>Gain Control : Auto; manual</li>
<li>Noise Reduction : 3D NR</li>
<li>Motion Detection : OFF/ON (4 areas, rectangular)</li>
<li>Region of Interest (RoI) : Yes (4 areas)</li>
<li>Smart Illumination : Yes : Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520</li>
<li>resolution and lower)</li>
<li>Mirror : Yes</li>
<li>Privacy Masking : 4 areas</li>
</ul>
Audio
<ul>
<li>Built-in MIC : Yes</li>
<li>Audio Compression : G.711a; G.711Mu; G.726; PCM</li>
</ul>
Alarm
<ul>
<li>Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception</li>
</ul>
Network
<ul>
<li>Network Port : RJ-45 (10/100 Base-T)</li>
<li>SDK and API : Yes</li>
<li>Cyber Security : Video encryption; configuration encryption; Digest; WSSE;</li>
<li>account lockout; security logs; Generation and importing</li>
<li>of X.509 certification; HTTPS; trusted boot; trusted</li>
<li>execution; trusted upgrade</li>
<li>Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast</li>
<li>Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone</li>
<li>User/Host : 6 (Total bandwidth: 48 M)</li>
<li>Storage : FTP</li>
<li>Browser : IE / Chrome / Firefox</li>
<li>Management Software : Smart PSS; DSS; DMSS</li>
<li>Mobile Client : iOS; Android</li>
</ul>
Certifications
<ul>
<li>CE-LVD: EN62368-1</li>
<li>CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU</li>
<li>FCC: 47 CFR FCC Part 15, Subpart B</li>
</ul>
Power
Power Supply
<ul>
<li>12V DC/PoE (802.3af)</li>
</ul>
Power Consumption
<ul>
<li>Basic: 1.9W (12V DC); 2.3W (PoE)</li>
<li>Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.9W (12V DC); 4.5W (PoE)</li>
</ul>
Environment
<ul>
<li>Operating Temperature : –40°C to +60°C</li>
<li>Operating Humidity : ≤95%</li>
<li>Storage Temperature : –40°C to +60°C</li>
<li>Protection : IP67</li>
</ul>
Structure
<ul>
<li>Casing : Metal</li>
<li>Product Dimensions : 162.1 mm × Φ70.1 mm</li>
<li>Net Weight : 0.32 kg</li>
<li>Gross Weight : 0.45 kg</li>
</ul>
