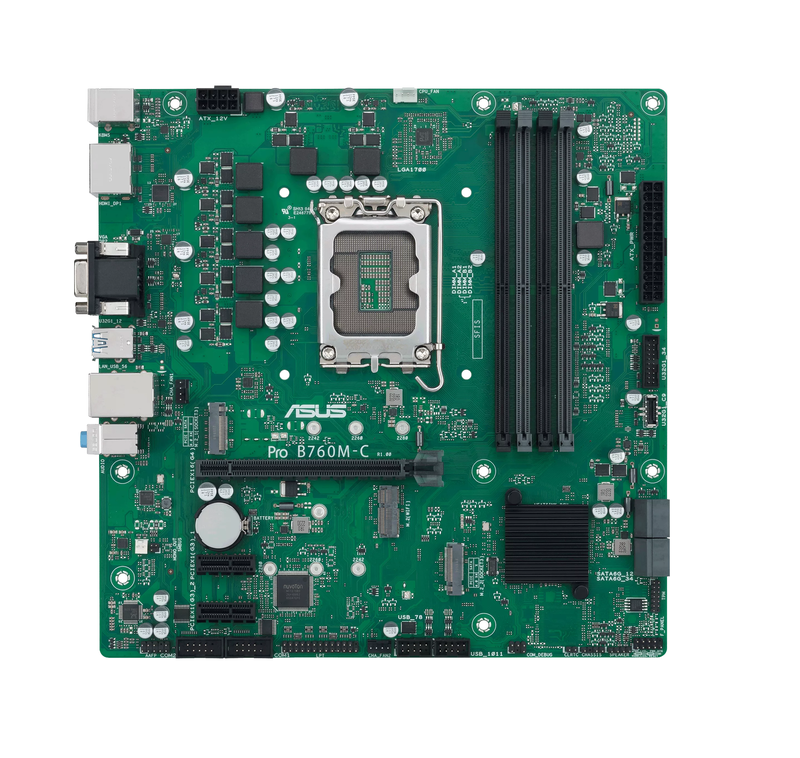

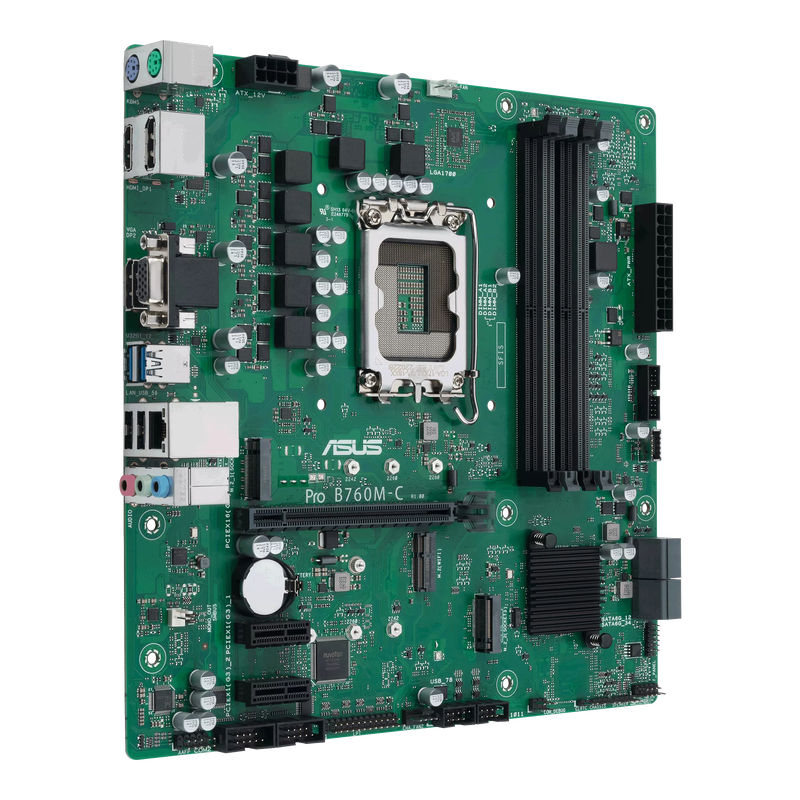

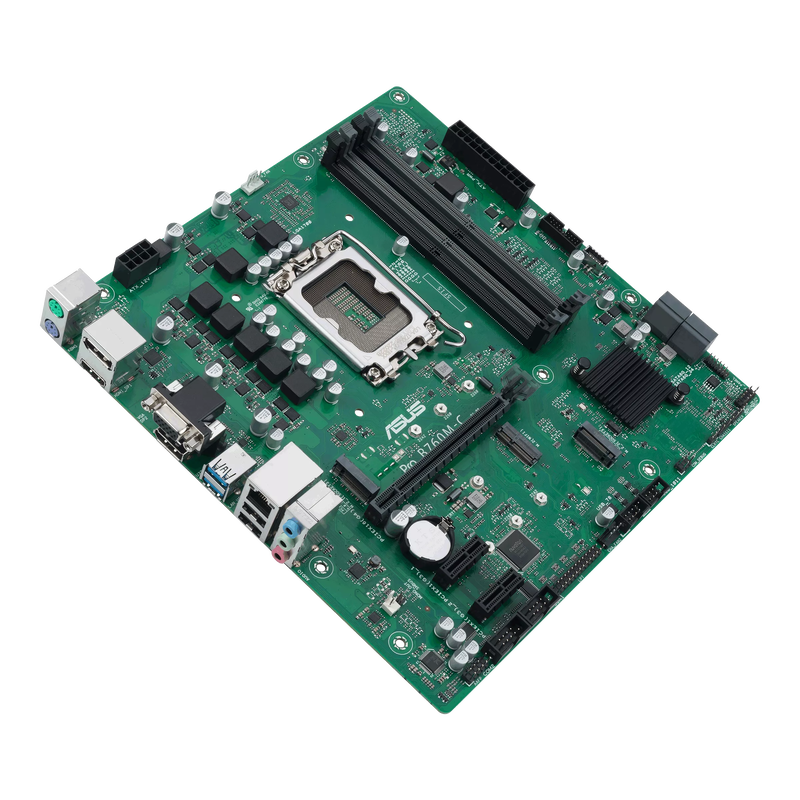

Performance Core

• CPU (Processor): Supports Intel Core 14th, 13th, and 12th Generation processors in the LGA 1700 socket.

• Memory (RAM): Uses the newest DDR5 RAM.

  • It has 4 slots and supports a massive 192GB total capacity.

  • It handles very fast speeds (up to 6200 MHz with overclocking).

• Chipset: Uses the Intel B760 chipset, which provides good features and connectivity.

Storage and Expansion

• Fast Storage: Includes 2 slots for super-fast PCIe 4.0 M.2 SSDs. These are the fastest drives available, making your PC boot and load programs quickly.

• Standard Storage: Has 4 SATA ports for traditional hard drives (HDDs) or slower SSDs.

• Graphics Card Slot: One main PCIe 4.0 x16 slot for a modern graphics card.

• Other Slots: Two smaller PCIe 3.0 x1 slots for expansion cards (like sound or capture cards).

Connectivity (Ports)

• Video: It supports connecting to three different types of monitors: 2 DisplayPorts, 1 HDMI port, and 1 older VGA port (helpful for business/legacy setups).

• Internet: A reliable Intel 1 Gigabit Ethernet port. (Note: Wi-Fi requires a separate card).

• USB Ports:

  • Rear: 2 fast USB 3.2 ports and 2 standard USB 2.0 ports.

  • Front: Headers to connect additional ports on the PC case, including a connector for a modern USB Type-C port.

• Legacy Connections: Includes ports for PS/2 keyboard/mouse and internal headers for COM and LPT ports, which are essential for some specialized business equipment.
