Zebra DS2278
Black · Cordless 2D Imager · Bluetooth 4.0 · Scan-to-Connect · Wi-Fi Friendly · Cradle Kit
The Zebra DS2278 is a cordless 2D area imager that brings essential Bluetooth scanning capability to retail, hospitality, and General-purpose environments at an outstanding price point. Pre-configured and ready to use out of the box, it pairs with any Bluetooth host in a single scan using Zebra's Scan-to-Connect technology — no complex setup required. PRZM decode algorithms handle damaged, low-contrast, and poorly printed barcodes effortlessly, and a 2,400mAh battery powers a full 14-hour shift on a single 4-hour charge. Wi-Fi Friendly Mode ensures Bluetooth operation only on channels isolated from your WLAN infrastructure. This Pearl White kit includes the scanner, CR2278 cradle, and USB cable.
| Part Number | DS2278-SR7U2100PRW |
| EAN | 4060533180224 |
| Colour | Black |
| Scanning Technology | 2D Area Imager · SR (Standard Range) · PRZM Intelligent Imaging · Omnidirectional |
| Barcode Support | 1D: Code 39/128/93, UPC/EAN, Codabar, I 2/5, GS1 DataBar, Italian Pharma + 2D: PDF417, QR, Data Matrix, Aztec, MaxiCode, Han Xin + Postal codes |
| Scan Speed | 762 mm/sec (30 in/sec) |
| Scan Range | 1.23 cm to 36.8 cm (0.5" to 14.5") |
| Wireless | Bluetooth 4.0 · Class 2 · ≥10m (33ft) range |
| Pairing | Scan-to-Connect — single-scan pairing with any BT host · Also pairs via CR2278 cradle |
| Wi-Fi Friendly Mode | Yes — BT operates only on channels not shared with WLAN |
| Battery | 2400mAh Li-ion · Full 14-hour shift · 4h charge time · Designed to last the product lifetime |
| Interface (via cradle) | USB · RS-232 · KBW · IBM — auto-host detect |
| Configuration | Zebra 123Scan (free) · Scanner Management Service (remote) · Scanner Control App (iOS/Android/Windows) |
| Dimensions | 17.5 × 6.6 × 9.9 cm (6.9 × 2.6 × 3.9 in) |
| Cable Compatibility | Backward compatible with Zebra LS2208 series cables |
| Certification | RoHS |

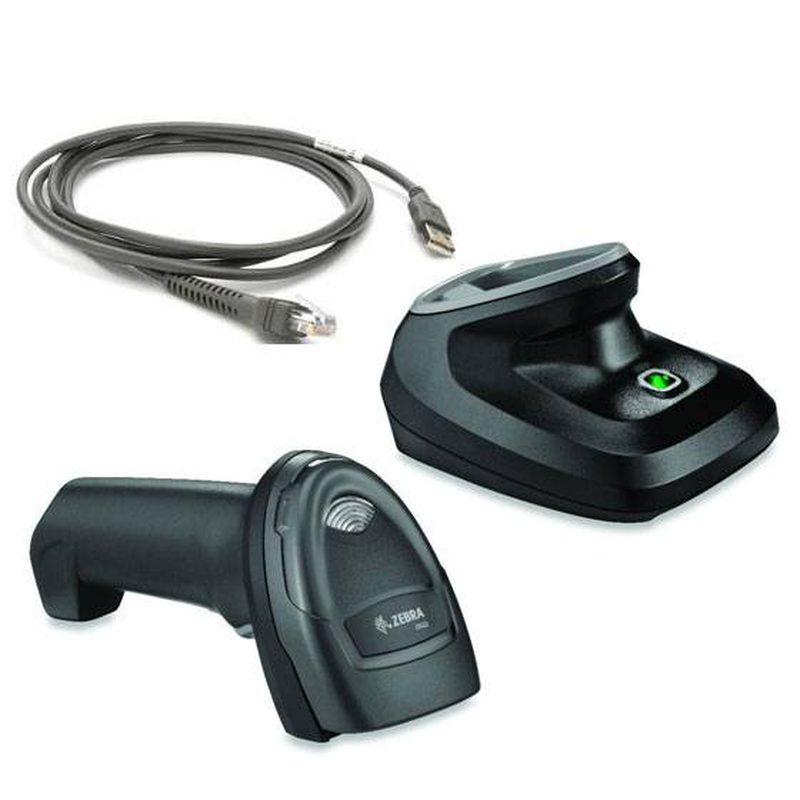

| In the Box | DS2278-SR Scanner (Black) · CR2278-PC10004WW Cradle · CBA-U21-S07ZBR Shielded USB Cable |
BUYER'S GUIDE
Best for: Retail POS, hospitality, transportation, and logistics operations that want to add cordless 2D scanning without a large investment — particularly businesses upgrading from the Zebra LS2208 or similar corded scanners, where cable reuse and familiar form factor reduce transition costs.
Why buy it: The combination of Scan-to-Connect one-step pairing, Wi-Fi Friendly Mode, a lifetime battery (no pool management), PRZM decode performance, and free 123Scan + remote management tools makes the DS2278 one of the easiest cordless scanners to deploy and manage — even across multiple store locations. Twilight Black colour integrates cleanly with standard POS hardware.

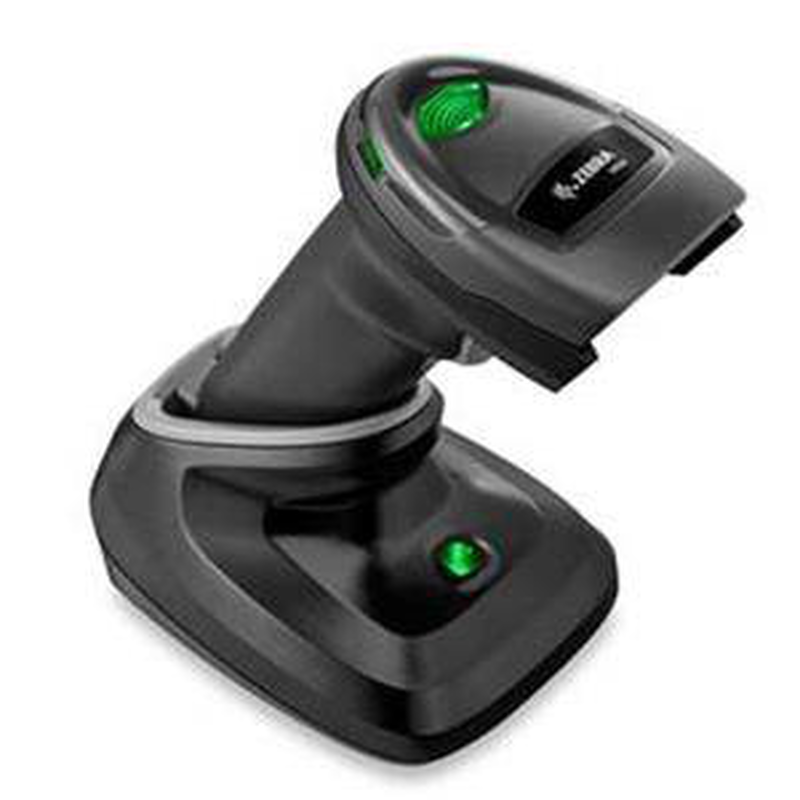

Know before you buy: The cradle included in this kit (CR2278-PC10004WW) is the standard presentation cradle. It also charges the scanner and can be used in hands-free mode. The scanner is pre-configured for USB HID out of the box — other interfaces (RS-232, KBW, IBM) require the appropriate cable and a settings change via 123Scan.
Bottom line: Zebra's most accessible cordless 2D scanner — enterprise-grade features, full-shift battery, and zero-complexity setup at a price that makes the upgrade from 1D corded scanning straightforward.
