Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7

Product image: Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7, , medium-null
Product image: Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7, , medium-null
Product image: Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7, , medium-null
Product image: Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7, , medium-null
Product image: Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7, , medium-null
ASUS
🔥Selling fast!

Asus tuf gaming b850-plus Wi-Fi AMD am5 atx motherboard ddr5 pcie 5.0 Wi-Fi 7

EXTRA -10%

from €348.91 to - 10% - 10% €314.02
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
–+
–+
Jinius Promo
EXTRA -10% applied in your cart! (Max €40 discount)
628
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From Singular Computers Systems LTD
In stock
Delivery options
Pick-up points / Lockers
Est. delivery: 10 Jun - 11 Jun
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 11 Jun - 15 Jun
Free

Description

Item No. 06b1d48e-fdd4-4a31-8769-94374a3d3170
Singular Selected ASUS TUF Gaming B850-Plus WiFi An ATX AM5 motherboard built for Ryzen 9000/8000/7000 with PCIe 5.0 on both the graphics slot and the primary M.2, DDR5 up to 8000+ MT/s and Wi-Fi 7 — TUF reliability without giving up future-proof connectivity. Socket AM5 PCIe 5.0 GPU + M.2 DDR5 8000+ MT/s Wi-Fi 7 The TUF Gaming B850-Plus WiFi takes ASUS's well-known TUF reliability formula and pairs it with the latest AMD B850 chipset features. With Ryzen 9000 or 7000 Series processors you get

Attributes

Motherboard Characteristics

  • Processor Socket: Socket AM5

Details

Singular Selected

ASUS TUF Gaming B850-Plus WiFi

An ATX AM5 motherboard built for Ryzen 9000/8000/7000 with PCIe 5.0 on both the graphics slot and the primary M.2, DDR5 up to 8000+ MT/s and Wi-Fi 7 — TUF reliability without giving up future-proof connectivity.
Socket AM5 PCIe 5.0 GPU + M.2 DDR5 8000+ MT/s Wi-Fi 7

The TUF Gaming B850-Plus WiFi takes ASUS's well-known TUF reliability formula and pairs it with the latestAMD B850 chipset features. With Ryzen 9000 or 7000 Series processors you get a full PCIe 5.0 x16 graphics slot and a PCIe 5.0 M.2 slot — meaning both your next-gen GPU and your fastest NVMe SSD run at top speed at the same time. Memory support reaches DDR5 8000+ MT/s (OC), USB 20GBps Type-C is on the rear panel, and Wi-Fi 7 plus 2.5 Gigabit Ethernet handle networking. The 14+2+1 power-stage VRM with 80A DrMOS is sized for the highest-core-count Ryzen 9 chips, and an 8+8-pin CPU power input gives the board real overclocking headroom.

Compatibility Note: Confirm AM5 CPU cooler compatibility (most AM4 coolers fit, some require a new bracket) and that your case supports the standard ATX form factor (30.5 × 24.4 cm). PCIe 5.0 on the GPU slot and the primary M.2 slot is only available with Ryzen 9000 or 7000 Series CPUs — Ryzen 8000G APUs run the GPU slot at PCIe 4.0. A BIOS update may be required out of the box for some CPUs; use BIOS FlashBack via USB if no compatible CPU is yet installed.
Best For
✓ Ryzen 9000 / 7000 gaming builds
✓ PCIe 5.0 GPU + PCIe 5.0 NVMe combos
✓ DDR5 enthusiasts using 7200+ EXPO kits
✓ Builders wanting Wi-Fi 7 and USB4 header
✓ Long-term, future-proof AM5 platforms
✓ AI/LLM workloads via AI Cache Boost

Key Features


14+2+1 Power Stages
DrMOS power stages rated up to 80A each, with dual 8-pin ProCool CPU power connectors, deliver clean and stable current to even the most demanding Ryzen 9 processors under sustained load.

PCIe 5.0 GPU + M.2
A PCIe 5.0 x16 graphics slot plus a PCIe 5.0 M.2 slot run at the same time on Ryzen 9000/7000 — ready for next-gen GPUs and the fastest NVMe SSDs without compromising one for the other.

DDR5 8000+ with EXPO
Four DIMM slots support up to 256GB DDR5, with overclocked speeds beyond 8000 MT/s on supported kits.AMD EXPO and ASUS AEMP make high-speed memory profiles a single-click operation.

Wi-Fi 7 + 2.5G Ethernet
On-board 2x2 Wi-Fi 7 (802.11be) with 160 MHz channels reaches up to 2.9GBps wireless, paired with Realtek 2.5 Gigabit Ethernet protected by TUF LANGuard for clean wired performance.

Technical Specifications

Part Number 90MB1J30-M0EAY0
EAN 4711387781609
Form Factor ATX (30.5 × 24.4 cm)
CPU Socket AMD AM5 — Ryzen 9000 / 8000 / 7000 Series
Chipset AMD B850
Power Stages 14+2+1 DrMOS, 80A each, 8+8-pin CPU power connectors
Memory 4× DDR5 DIMM, max 256GB, up to 8000+ MT/s (OC),AMD EXPO + AEMP, dual channel
GPU Slot 1× PCIe 5.0 x16 (Ryzen 9000/7000) — PCIe 4.0 x16 with Ryzen 8000G
Other Slots 1× PCIe 4.0 x16 (chipset, x4 mode), 2× PCIe 4.0 x1
M.2 Slots 3× M.2 (Key M) — 1× PCIe 5.0 x4 + 2× PCIe 4.0 x4 — all with heatsinks
SATA 4× SATA 6GB/s · RAID 0/1/5/10 support viaAMD RAIDXpert2 (Ryzen 9000)
Display OuTPUts 1× HDMI 2.1 (4K @ 60Hz), 1× DisplayPort 1.4 (8K @ 30Hz)

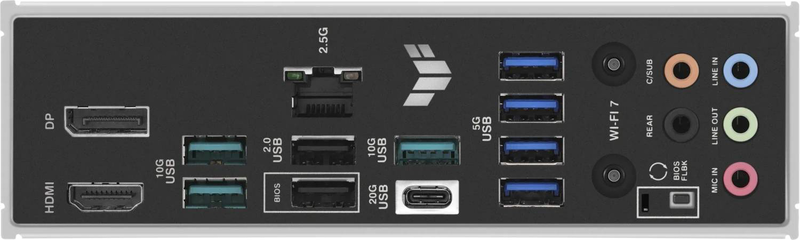

Rear USB 1× USB 20GBps Type-C, 3× USB 10GBps Type-A, 4× USB 5GBps Type-A, 2× USB 2.0
Front USB Headers 1× USB 10GBps Type-C, 1× USB 5GBps (2 ports), 2× USB 2.0 (4 ports), 1× USB4/Thunderbolt header
Networking Realtek 2.5 Gigabit Ethernet with TUF LANGuard, Wi-Fi 7 (802.11be) 2x2 up to 2.9GBps, Bluetooth 5.4
Audio Realtek ALC1220P 7.1 Surround, up to 32-bit/192 kHz playback, audio shielding, premium capacitors
RGB Headers 3× Addressable Gen 2 headers (Aura Sync)
DIY Features PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, BIOS FlashBack button, Q-LED diagnostics
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
In the Box Motherboard, 2× SATA 6GB/s cables, ASUS WiFi Q-Antenna, 2× M.2 rubber packages, TUF Gaming sticker, quick start guide

Frequently Asked Questions

What is the difference between B650 and B850?
The biggest practical difference is mandatory PCIe 5.0 support on the GPU slot with B850 (when paired with Ryzen 9000/7000), plus refined connectivity options. B650 boards typically run the GPU slot at PCIe 4.0. If you plan to use a next-gen PCIe 5.0 graphics card, B850 is the safer long-term choice.
Does it support Ryzen 9000 Series CPUs out of the box?
Yes. The TUF Gaming B850-Plus WiFi officially supportsAMD Ryzen 9000, 8000 and 7000 Series processors. Most boards ship with a current BIOS, but if a CPU isn't recognised you can flash the latest BIOS via the BIOS FlashBack button using only a USB stick — no CPU required.
How fast can the M.2 slots and memory go?
With Ryzen 9000 or 7000 the M.2_1 slot runs at PCIe 5.0 x4. M.2_2 and M.2_3 run at PCIe 4.0 x4. Memory supports DDR5 up to 8000+ MT/s (OC) on supported kits, with fullAMD EXPO support. Note that M.2_3 shares bandwidth with the secondary chipset PCIe x16 slot.
Does it have Thunderbolt or USB4?
There is an internal USB4/Thunderbolt header on the board, which can be used with a compatible add-in card. The rear panel itself does not include a built-in Thunderbolt port — the fastest rear port is USB 20GBps Type-C.
Singular Expert Insight
Choose this board if you want a future-proof AM5 platform with PCIe 5.0 on both the GPU and the primary M.2, DDR5 8000+ MT/s headroom and Wi-Fi 7 — at a price meaningfully below ROG Strix B850-E or X870E boards. If you are building a value-focused Ryzen 5 system with no plans for a PCIe 5.0 GPU, the older TUF Gaming B650-Plus WiFi (90MB1BZ0-M0EAY0) covers the essentials at a lower price. If you need premium audio, more rear USB and ROG aesthetics, step up to the ROG Strix B850-E Gaming WiFi.

Buyer's Guide

Buy it if
You are building a Ryzen 9000 or 7000 system that needs PCIe 5.0 on the GPU slot and a PCIe 5.0 NVMe drive at the same time, plus Wi-Fi 7, USB 20GBps Type-C and DDR5 8000+ MT/s headroom.
Skip it if
You only need a basic Ryzen 5 build with one M.2 drive and a current PCIe 4.0 GPU — a B650 board will do the same job for less. Skip it too if you need a built-in Thunderbolt 4 port on the rear I/O.
Also consider
ROG Strix B850-E Gaming WiFi for ROG audio and more rear USB, ASUS Prime B850-Plus WiFi for a slightly cheaper alternative, or the TUF Gaming B650-Plus WiFi if PCIe 5.0 GPU support is not required.
