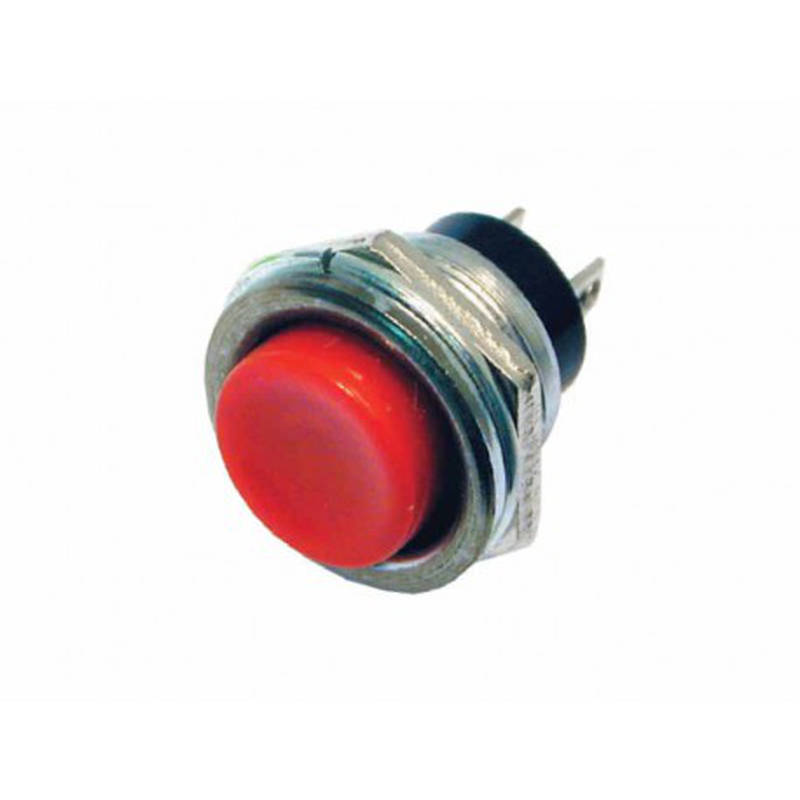

On-off push button switch
🔥Selling fast!
On-off push button switch
from
€1.40
to
- 18%
- 18%
€1.15
Only 1 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6265868&productId=8bf07231-feaa-491b-9760-5f3c100c9da8&quantity=1"}]
–+
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6265868&productId=8bf07231-feaa-491b-9760-5f3c100c9da8&quantity=1"}]
–+
Low stock
2
Points earned
Description
Item No.
8bf07231-feaa-491b-9760-5f3c100c9da8
- Contact load: 2A 250V / 4A 125V
- Contact resistance: 20mΩ max.
- Insulation resistance: 500VDC 100mΩ
- Dielectric strength: 1500VAC / 1 minute
- Working temperature range: -25 ~ + 85 ° C
- Service life: 50,000 cycles
- Number of contacts: 2
- Number of positions: 2 / ON-OFF momentary
- Button color / type: red / round
- Backlight: NO
- Mounting hole: 16mm
Attributes
Switches Characteristics
- Switch Type: Push
