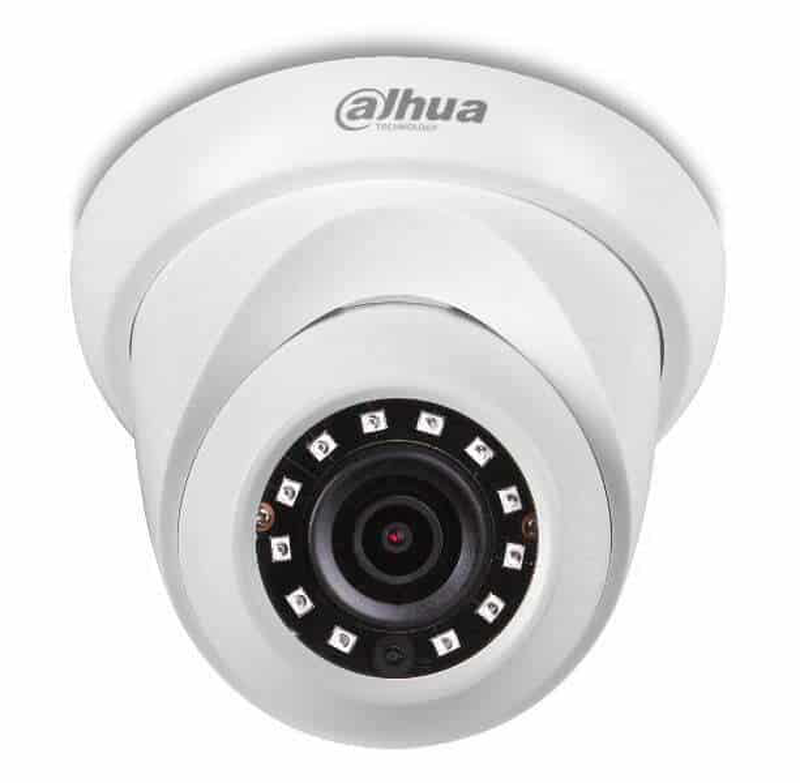

2MP Entry IR Fixed-Focal Eyeball Netwok Camera > 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition > Outputs max. 2MP (1920 × 1080) @25/30 fps > H.265 codec, high compression rate, ultra-low bit rate > Built-in efficient IR illuminator, and the max. illumination distance is 30 m > ROI, SMART H.264+/H.265+, flexible coding, applicable to various > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access > 12V DC/PoE power supply > IP67 protection Camera Image Sensor 1/2.8" CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 16 MB RAM 64 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.01 Lux @F2.0 S/N Ratio >56 dB Illumination Distance 30 m (98.4 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 12 (IR LED) Pan/Tilt/Rotation Range Pan: 0° to 355° Tilt: 0° to 78° Rotation: 0° to 360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture 2.8 mm: F2.0 3.6 mm: F2.0 Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° Iris Control Fixed Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m ( 25.3 ft) 3.9 m (12.8 ft) 3.6 mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m (32.5 ft) 5.0 m (16.4 ft) Video Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+/Smart H.264+ Video Frame Rate Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) Mirror Yes Privacy Masking 4 areas Alarm Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; Generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec User/Host 6 (Total bandwidth: 36 M) Storage FTP Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Client IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Power Power Supply 12V DC/PoE (802.3af) Power Consumption Basic power consumption:1.5W (12V DC); 3.3W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.3W (12V DC); 4.4W (PoE) Environment Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% Storage Temperature -40°C to +60°C (-40°F to +140°F) Protection IP67 Structure Casing Inner core: Metal Cover: Plastic Decoration ring: Plastic Pedestal: Plastic Product Dimensions 84.9 mm × Φ108 mm (3.3" × Φ4.3") Net Weight 0.26 kg (0.5 lb) Gross Weight 0.39 kg (0.8 lb)
