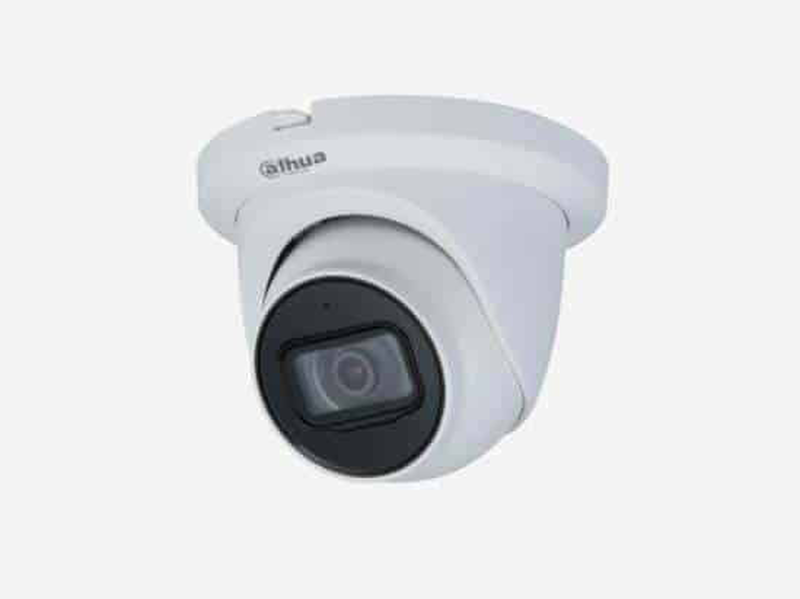

2MP WDR IR Eyeball Network Camera > 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition > Outputs max. 2MP (1920 × 1080) @25/30 fps > H.265 codec, high compression rate, ultra-low bit rate > Built-in IR LED, max. IR distance: 30 m > ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Intelligent detection: Intrusion, tripwire > Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection > Supports max. 256GB Micro SD card, built-in Mic > 12V DC/PoE power support > IP67 protection Camera Image Sensor 1/2.8”2Megapixel progressive CMOS Effective Pixels 1920 (H) ×1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.002 Lux @F1.6 IR Distance 30 m (98.4 ft) IR On/Off Control Auto/Manual IR LEDs Number 2 Pan/Tilt/Rotation Range Horizontal: 0°–360° Vertical: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F1.6 F1.6 Field of View 2.8 mm: Horizontal:106° Vertical: 56° Diagonal: 126° 3.6 mm: Horizontal:87° Vertical: 46° Diagonal: 104° Iris Type Fixed aperture Close Focus Distance 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.2 m (3.9 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m (25.3 ft) 3.9 m (12.8 ft) 3.6 mm 55.2 m (181.1 ft) 22.1 m (72.5 ft) 11.0 m (36.1 ft) 5.5 m (18.0 ft) Smart event General IVS Analytics Intrusion; tripwire Video Video Compression H.265; H.264; H.264B; MJPEG Smart Codec Yes Video Frame Rate Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart IR Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711A; G.711Mu; G.726; AAC Network Network RJ-45 (10/100 Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec User/Host 20 Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256GB); NAS Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12V DC/PoE (802.3af) Power Consumption < 6.5W Environment Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% Strorage Conditions -40°C to +60°C (-40°F to +140°F) Ingress Protection IP67 Structure Casing Metal Dimensions 100.9 mm × Φ109.9 mm (4.0" × Φ4.3") Net Weight 0.39 kg (0.9 lb) Gross Weight 0.56 kg (1.2 lb)
