Description

Item No. 71fbc5c8-bc10-48ce-90f4-6f5aa33915f6

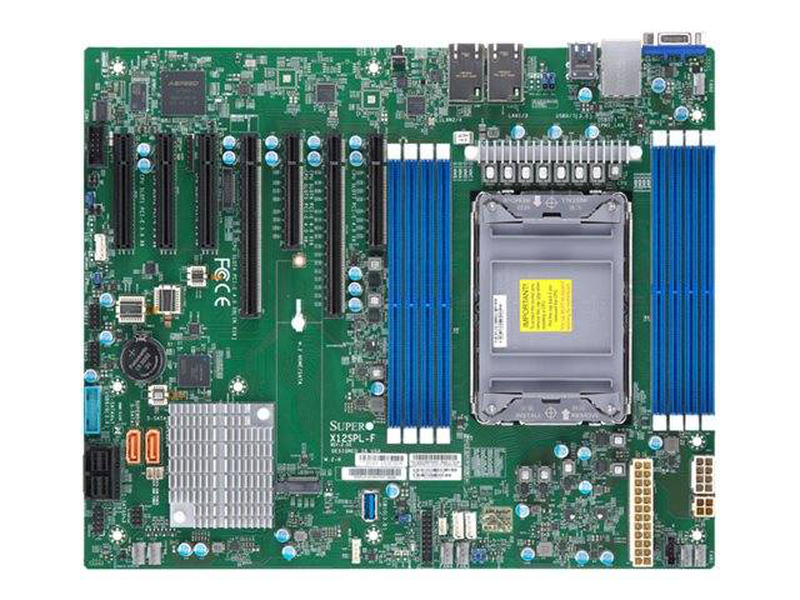

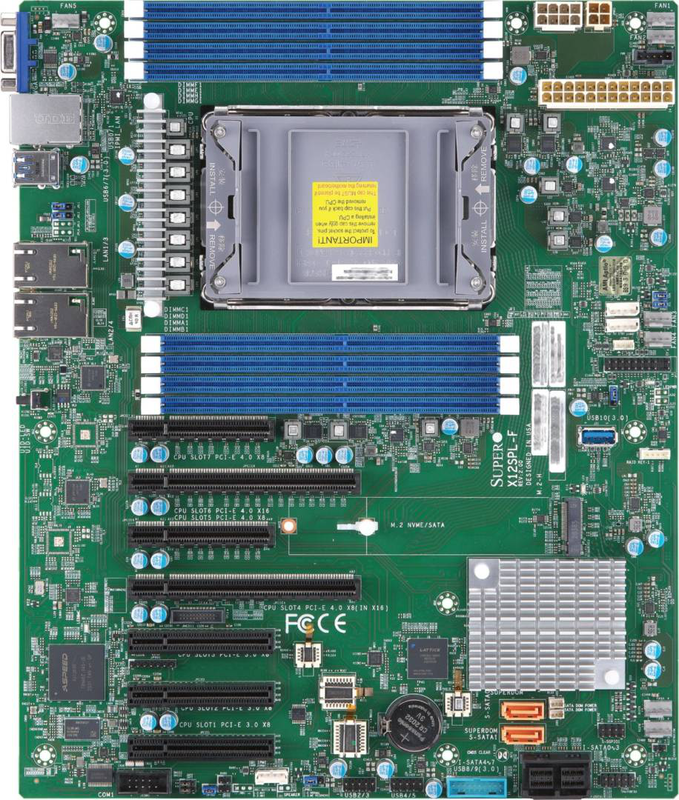

Supermicro X12SPL-F — Single-Socket Xeon Scalable Server Board LGA 4189 · Intel C621A8× DDR4 ECC up to 2TBPCIe 4.0 + 10× SATA3Dual GbE · IPMI 2.0 The Supermicro X12SPL-F is a single-socket ATX server motherboard built on the Intel C621A chipset and the LGA 4189 (Socket P+) platform, supporting 3rd Generation Intel Xeon Scalable processors with TDP up to 270W. Sold under Supermicro part number MBD-X12SPL-F-B (EAN 0672042428533), it provides eight DDR4 ECC DIMM slots (up to 2TB), abundant PCIe 4.

Attributes

Motherboard Characteristics

  • Processor Socket: Socket 4189

Details

Supermicro X12SPL-F — Single-Socket Xeon Scalable Server Board

LGA 4189 · Intel C621A8× DDR4 ECC up to 2TBPCIe 4.0 + 10× SATA3Dual GbE · IPMI 2.0

The Supermicro X12SPL-F is a single-socket ATX server motherboard built on the Intel C621A chipset and the LGA 4189 (Socket P+) platform, supporting 3rd Generation Intel Xeon Scalable processors with TDP up to 270W. Sold under Supermicro part number MBD-X12SPL-F-B (EAN 0672042428533), it provides eight DDR4 ECC DIMM slots (up to 2TB), abundant PCIe 4.0 expansion, ten SATA3 ports, an M.2 slot, dual Gigabit LAN and full IPMI 2.0 remote management — a dependable foundation for General-purpose and storage servers. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an LGA 4189 (Socket P+) server board supporting 3rd Generation Intel Xeon Scalable processors only — it is not compatible with desktop Intel CPUs. It requires DDR4 ECC RDIMM/LRDIMM (3DS) server memory (and supports Intel Optane PMem 200), not standard desktop UDIMM. Its ATX layout fits Supermicro and standard server/rackmount chassis (e.g. SC813M, SC825, SC835 series).

Best For

✓General-purpose single-socket Xeon servers
✓Storage servers needing many SATA drives (10× SATA3)
✓Memory-heavy workloads (up to 2TB DDR4)
✓Virtualization and infrastructure hosts
✓Remote-managed datacenter deployments
✓Builds in Supermicro/standard rackmount chassis

Key Features


3rd Gen Xeon Scalable platform
Socket LGA 4189 supports 3rd Generation Intel Xeon Scalable (Ice Lake-SP) processors up to 270W TDP, with the proven Intel C621A server chipset.

Massive ECC memory capacity
Eight DDR4 DIMM slots accept up to 2TB of ECC memory at 3200MHz, including RDIMM, 3DS LRDIMM and Intel Optane Persistent Memory 200 Series.

Extensive PCIe & storage
Multiple PCIe 4.0/3.0 x16 and x8 slots for accelerators and HBAs, an M.2 slot (SATA/PCIe 3.0 x4) and ten SATA3 ports with RAID 0/1/5/10.

Enterprise remote management
Onboard ASPEED BMC with IPMI 2.0 and a dedicated management LAN enable out-of-band monitoring, KVM-over-LAN and remote control; dual Gigabit LAN for data.

Technical Specifications

Identification
Part Number MBD-X12SPL-F-B
EAN / GTIN 0672042428533
Model Supermicro X12SPL-F
Brand Supermicro
Platform
Chipset Intel C621A
Socket LGA 4189 (Socket P+)
CPU Support 3rd Gen Intel Xeon Scalable (up to 270W TDP)
Form Factor ATX
Management ASPEED BMC, IPMI 2.0, dedicated LAN
Memory
Slots 8× DDR4 DIMM
Max Capacity 2TB
Speed DDR4 3200/2933/2666 MHz ECC
Types RDIMM, 3DS LRDIMM, Intel Optane PMem 200
Expansion & Storage
PCIe Slots 1× PCIe 4.0 x16, PCIe 4.0 x8 (in x16) + 2× PCIe 4.0 x8 + 3× PCIe 3.0 x8
M.2 1× M.2 (SATA / PCIe 3.0 x4, 2280/22110)
SATA 10× SATA3 6GB/s — RAID 0/1/5/10

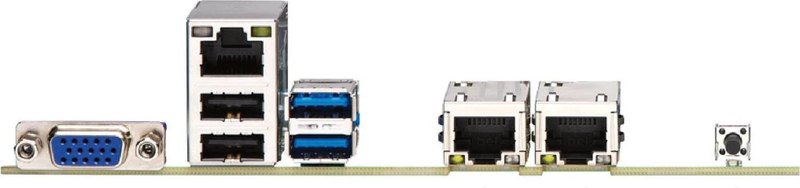

Connectivity & I/O
LAN 2× Gigabit LAN (RJ-45)
Management LAN Dedicated IPMI port
USB USB 3.2 Gen 1
Graphics Onboard VGA (BMC)
Other
Memory Type ECC server memory only (RDIMM/LRDIMM)
Colour Green
Operating System Windows Server / Linux server distributions

Frequently Asked Questions

Which processors does the Supermicro X12SPL-F support?
It supports 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP) on the single LGA 4189 (Socket P+) socket, with TDP up to 270W. Desktop Intel CPUs are not compatible.
What memory does it use?
It uses DDR4 ECC server memory across 8 DIMM slots, up to 2TB, supporting RDIMM, 3DS LRDIMM and Intel Optane PMem 200. Standard desktop non-ECC UDIMM is not supported.
How many drives can it connect?
The Intel C621A provides ten SATA3 6GB/s ports with RAID 0/1/5/10, plus an M.2 slot (SATA or PCIe 3.0 x4) — well suited to storage servers.
Does it support remote management?
Yes. It has an onboard ASPEED BMC with IPMI 2.0 and a dedicated management LAN port for out-of-band monitoring, KVM-over-LAN and remote control.
Singular Expert Insight
The X12SPL-F is a workhorse single-socket Ice Lake Xeon board aimed at General-purpose and storage servers — its ten SATA ports, eight ECC DIMM slots and IPMI management matter far more here than gaming features. Note it is a DDR4 / 3rd Gen Xeon platform; for the latest DDR5 Xeon orAMD EPYC, look at newer X13 (Sapphire Rapids) or EPYC server boards instead. Pair it with reliable enterprise server drives for dependable, high-endurance storage.

Buyer's Guide

Buy it if
You are building a single-socket 3rd Gen Xeon Scalable server needing many SATA drives, large ECC memory and IPMI management.
Skip it if
You need the latest DDR5 platform, dual sockets, or maximum core counts — choose an X13 Xeon orAMD EPYC board. Not for desktop use.
Also consider
A Supermicro X13 (Sapphire Rapids, DDR5) board for the newer Xeon platform, or anAMD EPYC board for higher core density.
