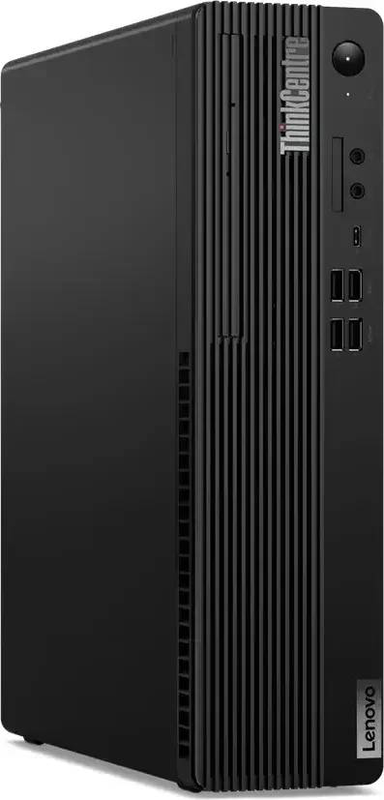

Lenovo thinkcentre m90s Gen 5 12v4s03a00 sff core i7-14700 20c 16GB ddr5 512GB nvme opal SSD q670 vpro win 11 pro black

Name: Lenovo thinkcentre m90s Gen 5 12v4s03a00 sff core i7-14700 20c 16GB ddr5 512GB nvme opal SSD q670 vpro win 11 pro black
Brand: LENOVO
SKU: 64a8268d-57da-4b02-87e8-f4534591e3da
Price: 1858.61 EUR
Availability: InStock

LENOVO

Lenovo thinkcentre m90s Gen 5 12v4s03a00 sff core i7-14700 20c 16GB ddr5 512GB nvme opal SSD q670 vpro win 11 pro black

€2,065.13 - 10% €1,858.61

Only 1 left!

Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with

Select Color: Black

Low stock

Primary Disk Capacity

Quantity

–+

From: Singular Computers Systems LTD

Buy more from this shop

Delivery to your door

FREE shipping on orders over €85.00 from Singular Computers Systems LTD

Est. delivery: 03 Aug - 05 Aug

Free

Description

Item No. 64a8268d-57da-4b02-87e8-f4534591e3da

Singular Selected Lenovo ThinkCentre M90s Gen 5 SFF (12V4S03A00) Compact 8.2L Lenovo business SFF built on the Intel Q670 vPro chipset with the 20-core / 28-thread Core i7-14700, 16GB DDR5, and a 512GB self-encrypting NVMe SSD. ISV-ready, MIL-STD-810H tested, EPEAT Gold-eligible, and TCO Certified Gen 9 — engineered for managed enterprise fleets. Core i7-14700 20C / 5.4GHz16GB DDR5 (max 128GB)512GB NVMe Opal 2.0SFF 8.2L Tool-less The Lenovo ThinkCentre M90s Gen 5 (12V4S03A00) is Lenovo's premiu

Attributes

Pc Characteristics

Primary Disk Capacity: 512GB

Details

Singular Selected

Lenovo ThinkCentre M90s Gen 5 SFF (12V4S03A00)

Compact 8.2L Lenovo business SFF built on the Intel Q670 vPro chipset with the 20-core / 28-thread Core i7-14700, 16GB DDR5, and a 512GB self-encrypting NVMe SSD. ISV-ready, MIL-STD-810H tested, EPEAT Gold-eligible, and TCO Certified Gen 9 — engineered for managed enterprise fleets.

Core i7-14700 20C / 5.4GHz16GB DDR5 (max 128GB)512GB NVMe Opal 2.0SFF 8.2L Tool-less

The Lenovo ThinkCentre M90s Gen 5 (12V4S03A00) is Lenovo's premium business Small Form Factor desktop, built on the Intel Q670 chipset with the high-thread Intel Core i7-14700 (8 P-cores + 12 E-cores, 20 cores / 28 threads, up to 5.4GHz Turbo, 33MB Smart Cache). This configuration pairs 16GB DDR5 in a single DIMM (3 free slots, expandable to 128GB across 4 UDIMM slots) with a 512GB Lenovo M.2 2280 PCIe 4.0 NVMe SSD with TCG Opal 2.0 self-encryption, all in an 8.2L tool-less SFF chassis (92.5 x 297.7 x 339.5 mm, ~5.3 kg). Pre-installed Windows 11 Pro 64-bit, discrete TPM 2.0 (FIPS 140-2 / TCG certified) and Lenovo's ThinkShield security stack provide enterprise-grade endpoint protection out of the box.

Configuration Note: The M90s Gen 5 platform offers WLAN (Wi-Fi 6 / Wi-Fi 6E with Bluetooth 5.2/5.3) as a configurable option — please confirm the WLAN status of this specific 12V4S03A00 build before ordering if wireless connectivity is required. Wired Gigabit Ethernet (Intel I219-LM) is always included. The chassis includes 3 free DDR5 DIMM slots and 1 free M.2 2280 SSD slot for future expansion.

Best For

✓ Enterprise office & managed fleets

✓ Heavy multitasking (20C/28T headroom)

✓ Software development & compilation

✓ Finance / accounting / ERP workloads

✓ Compact desks (8.2L SFF footprint)

✓ Public-sector tenders (EPEAT Gold, TCO 9.0)

Key Features

20-CoreIntel Core i7-14700

Intel 14th-gen Raptor Lake Refresh silicon with 8 Performance cores and 12 Efficient cores (20C/28T total), up to 5.4GHz P-core turbo and a 33MB Smart Cache — serious multi-thread throughput for compilation, virtualisation, large spreadsheets and database workloads, all driven by Intel UHD Graphics 770.

Q670 Platform with vPro Option

The M90s Gen 5 platform is built on the Intel Q670 chipset with Intel vPro Enterprise available for managed fleets — enabling Intel AMT, remote KVM, hardware-level security policies and out-of-band recovery (vPro support depends on the specific configuration / WLAN card).

512GB NVMe Opal 2.0 SSD

512GB Lenovo M.2 2280 PCIe 4.0 x4 NVMe SSD with TCG Opal 2.0 hardware self-encryption. The platform supports up to 2 M.2 SSDs plus an optional 2.5" HDD bay and a 3.5" HDD bay, with RAID 0/1 capability.

Tool-less 8.2L SFF Chassis

Compact 92.5 x 297.7 x 339.5 mm chassis (~5.3 kg) with tool-less access to side cover, memory, drives, ODD and expansion cards. Three low-profile PCIe slots (PCIe 4.0 x16 wired as x4, PCIe 4.0 x16, PCIe 3.0 x1) plus an optional vertical stand for under-monitor placement.

Technical Specifications

Part Number	12V4S03A00
EAN	0198156596574
Machine Type	12V4
Form Factor	Small Form Factor (SFF), 8.2L
Processor	Intel Core i7-14700 (14th Gen Raptor Lake Refresh), 20 cores / 28 threads (8 P-cores + 12 E-cores)
Max Turbo Frequency	Up to 5.4GHz (Intel Turbo Boost)
Cache	28MB L2 + 33MB Intel Smart Cache
Chipset	Intel Q670
Graphics	Integrated Intel UHD Graphics 770
Memory	16GB DDR5 (1x 16GB UDIMM)
Memory Slots	4x DDR5 UDIMM, dual-channel, max 128GB
Storage	512GB Lenovo M.2 2280 PCIe 4.0 x4 NVMe SSD, TCG Opal 2.0
Storage Expansion	Up to 2x M.2 2280 SSDs + 1x 3.5" SATA HDD + 1x 2.5" HDD (optional bay); RAID 0/1 supported
Expansion Slots	1x PCIe 4.0 x16 (x4 signal), low-profile + 1x PCIe 4.0 x16, low-profile + 1x PCIe 3.0 x1, low-profile (length ≤ 155mm, height ≤ 70mm)
M.2 Slots	3x M.2 (1 for WLAN, 2 for SSD)
Ethernet	Intel I219-LM Gigabit Ethernet, supports Wake-on-LAN
Wireless	Configurable (Realtek Wi-Fi 6 / Intel Wi-Fi 6 AX201 / Intel Wi-Fi 6E AX211 + Bluetooth 5.2/5.3) — confirm specific WLAN on this SKU
Front Ports	1x USB-C 3.2 Gen 2 (10GBps) with 15W charging, 2x USB-A 3.2 Gen 1 (5GBps), 2x USB-A 3.2 Gen 2 (10GBps), 3.5mm headphone/mic combo, 3.5mm microphone
Rear Ports	4x USB-A 3.2 Gen 1 (5GBps), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a, 1x RJ-45GBE, 3.5mm line-out
Flex IO	Optional configurable rear port (VGA / DP 1.2 / HDMI 2.1 / USB-C with DP)
Optical Drive	Configurable (DVD-ROM or DVD-Writer slim, or none)
Audio	Realtek ALC897Q-CG HD Audio + internal 1W speaker
Power Supply	258W / 260W / 310W Fixed (model-dependent), up to 90-92% efficiency, 100-240V autosensing
Security	Discrete TPM 2.0 (TCG / FIPS 140-2 certified), UEFI Secure Boot, self-healing BIOS Level 2, Smart USB Protection, Kensington Slot, padlock loop, optional E-lock and chassis intrusion switch
System Management	Intel vPro Enterprise option (configurable); Intel AMT
Mil-Spec Test	MIL-STD-810H passed (altitude, temperature, humidity, sand/dust, vibration, shock, solar radiation, salt fog)
Sustainability	85% PCC ABS bezel, 30% OBP + 60% PCC thermal shell, 90% PIC recycled EPE cushion, FSC-certified packaging
Certifications	TCO Certified 9.0, ErP Lot 3, RoHS, GREENGUARD, optional ENERGY STAR 8.0 / EPEAT Gold
Dimensions (WxDxH)	92.5 x 297.7 x 339.5 mm
Weight	~5.3 kg
Operating System	Windows 11 Pro 64-bit (preinstalled)
Keyboard / Mouse	Lenovo Calliope USB keyboard + Calliope USB mouse (typical bundle; please confirm for this SKU)
Colour	Black
Warranty	1-year onsite (extendable via Lenovo Premier Support)

Frequently Asked Questions

Does this configuration include Wi-Fi?

The ThinkCentre M90s Gen 5 platform offers Wi-Fi 6 / Wi-Fi 6E + Bluetooth as a configurable option (Realtek RTL8852BE, Intel AX201, or Intel AX211 with vPro support). The exact 12V4S03A00 specification can include or omit WLAN — please confirm before ordering. Wired Gigabit Ethernet (Intel I219-LM) is always included.

Is the Core i7-14700 vPro-eligible?

Yes. The Core i7-14700 supports Intel vPro Enterprise when paired with a vPro-eligible WLAN module (Intel AX211 with vPro) and the Q670 chipset enables AMT-based out-of-band management. Whether vPro is fully active depends on this specific build's WLAN configuration.

What memory and storage upgrades are possible?

Memory: 1 of 4 DDR5 UDIMM slots is occupied; three slots remain free with platform support up to 128GB DDR5 (modules clock at DDR5-3600 to DDR5-4400 depending on Intel memory support). Storage: 1 of 2 onboard M.2 2280 PCIe 4.0 x4 SSD slots is occupied; plus optional 3.5" SATA HDD bay (up to 2TB) and an optional 2.5" HDD bay.

What about display ouTPUts?

Onboard: 2x DisplayPort 1.4a + 1x HDMI 2.1 TMDS supporting up to 4 independent displays (the 4th via an optional Flex IO port: VGA, DP 1.2, HDMI 2.1 or USB-C with DP function). Maximum resolutions go up to 4096x2304@60Hz on DP. For more displays, a low-profile discrete card (e.g. Intel Arc A310 LP) can be added.

Singular Expert Insight

Choose the M90s Gen 5 if you want a 20-core / 28-thread vPro-capable business SFF with TCO 9.0 / EPEAT Gold credentials, Opal 2.0 self-encrypting SSD and three free DIMM slots in an 8.2L tool-less chassis. If you need on-device AI acceleration with a 13 TOPS NPU and the newerIntel Core Ultra Series 2 platform, look at the Lenovo ThinkCentre Neo 70q Gen 6 or the M75q Gen 6 family. For a larger tower with PCIe 5.0 expansion, the ThinkStation P3 Tower Gen 2 (e.g. 30HT006DGE) is the right tier.

Buyer's Guide

Buy it if

You need a 20C/28T Lenovo business SFF with vPro options, Opal 2.0 SSD, three free RAM slots, MIL-STD-810H and EPEAT Gold credentials — for managed enterprise fleets or public-sector tenders.

Skip it if

You need anIntel Core Ultra NPU for on-device Copilot+ AI, PCIe 5.0 expansion, or higher-power discrete GPUs — this 14th-gen platform has no NPU and the 258-310W SFF PSU caps GPU options to low-profile cards.

Also consider

Lenovo ThinkCentre M90t Gen 5 (Tower sibling, more expansion), HP Elite SFF 800 G9 A0YY0EA#ABD (vPro SFF with DVD-Writer), or ThinkStation P3 Tower Gen 2 30HT006DGE for workstation-class expansion.
