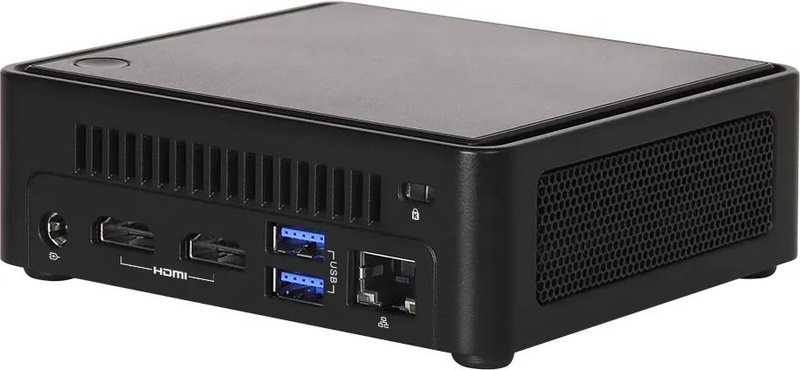

Asrock nuc box-155h barebone mini pc core ultra 7 155h arc no ram no SSD no os dual 2.5GBe Wi-Fi 6e 90pxgcd0-p0eay100

Product image: Asrock nuc box-155h barebone mini pc core ultra 7 155h arc no ram no SSD no os dual 2.5GBe Wi-Fi 6e 90pxgcd0-p0eay100-null
Product image: Asrock nuc box-155h barebone mini pc core ultra 7 155h arc no ram no SSD no os dual 2.5GBe Wi-Fi 6e 90pxgcd0-p0eay100-null
ASROCK
🔥Selling fast!

Asrock nuc box-155h barebone mini pc core ultra 7 155h arc no ram no SSD no os dual 2.5GBe Wi-Fi 6e 90pxgcd0-p0eay100

€812.85
Only 1 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
Low stock
–+
–+
1624
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Pick-up points / Lockers
Est. delivery: 03 Aug - 04 Aug
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. f7dec1c6-fca9-4038-8405-e2ad74d032a6
ASRock NUC BOX-155H — Core Ultra 7 Barebone Mini PC A compact 0.6-litre fanned barebone built on Intel Core Ultra 7 155H with Arc graphics, quad-display output, Thunderbolt 4 and dual 2.5GBE — ready for the RAM, SSD and OS of your choice. Core Ultra 7 155H · 6P+8E2× DDR5 SO-DIMM up to 96GBThunderbolt 4 + Quad DisplayDual 2.5GBE · Wi-Fi 6E The ASRock NUC BOX-155H (part number 90PXGCD0-P0EAY100, EAN 4711420962392) is a fanned barebone mini PC powered by the 14-core Intel® Core™ Ultra 7 155H (Mete

Details

ASRock NUC BOX-155H — Core Ultra 7 Barebone Mini PC

A compact 0.6-litre fanned barebone built onIntel Core Ultra 7 155H with Arc graphics, quad-display ouTPUt, Thunderbolt 4 and dual 2.5GBE — ready for the RAM, SSD and OS of your choice.
Core Ultra 7 155H · 6P+8E2× DDR5 SO-DIMM up to 96GBThunderbolt 4 + Quad DisplayDual 2.5GBE · Wi-Fi 6E
The ASRock NUC BOX-155H (part number 90PXGCD0-P0EAY100, EAN 4711420962392) is a fanned barebone mini PC powered by the 14-core Intel® Core™ Ultra 7 155H (Meteor Lake-H) processor with Intel Arc graphics, built for compact workstations, digital signage and edge deployments. As a barebone it ships without memory, storage or operating system, so you can specify exactly the DDR5, NVMe/SATA SSD and OS you need. Measuring just 117.5 × 110.0 × 49 mm with a VESA bracket in the box, it delivers Thunderbolt 4, quad-display ouTPUt and dual 2.5GBE in a 1 kg chassis. Typically in stock with fast delivery across Cyprus.
Before you buy — barebone: This unit does not include RAM, storage or an operating system. Add 1–2 DDR5 SO-DIMM modules (5600 MHz, up to 96GB / 48GB per DIMM), at least one M.2 PCIe Gen4 or SATA SSD, and a Windows 10/11 licence to complete the build. The Core Ultra 7 155H has an integrated NPU for AI acceleration, but Meteor Lake is not Microsoft Copilot+ certified (which requires a 40+ TOPS NPU). Ships with a 19V/120W adapter and VESA mount.

Best For

✓Space-saving office and home desktops (VESA-mount behind a monitor)
✓Digital signage and kiosks needing quad-display ouTPUt
✓Edge computing and light AI inference workloads
✓IT deployments requiring vPro remote management
✓Custom builds where you pick your own RAM, SSD and OS
✓Dual-network setups using the two 2.5GBE ports

Key Features


14-Core Core Ultra 7 155H
Six performance and eight efficient cores (22 threads) with Intel Arc graphics and an integrated NPU deliver strong multitasking and media performance in a tiny footprint.

Quad-Display & Thunderbolt 4
Drive up to four screens via 2× HDMI 2.1, DisplayPort 2.1 and 1.4a over USB-C, plus a 40GB/s USB4/Thunderbolt 4 port for fast docks and storage.

Dual 2.5GBE & Wi-Fi 6E
Two Intel 2.5 Gigabit LAN ports (I226) enable redundancy or network segregation, backed by Wi-Fi 6E and Bluetooth 5.3 wireless.

Business-Ready Manageability
Intel vPro, PTT firmware TPM 2.0 and VMD RAID 0/1 make it suitable for managed fleets and resilient storage configurations.

Technical Specifications

Identification
Part Number 90PXGCD0-P0EAY100
EAN / GTIN 4711420962392
Model ASRock NUC BOX-155H (Fanned Barebone)
Processor
CPU Intel Core Ultra 7 155H (Meteor Lake-H) — 6 P-cores + 8 E-cores, 22 threads, 24MB cache
Graphics Intel Arc graphics (integrated)
NPU Integrated for AI acceleration — not Copilot+ certified (requires 40+ TOPS)
Memory & Storage (not included)
Memory 2 × 262-pin DDR5 SO-DIMM, 5600 MHz, up to 96GB (48GB per DIMM), Dual Channel
M.2 Storage 1 × M.2 Key-M 2242/2280 PCIe Gen4x4 + 1 × M.2 Key-M 2242 PCIe Gen4x4
SATA 1 × SATA3 6.0GB/s
RAID Intel VMD RAID 0/1 (M.2 NVMe)
Connectivity
Wired LAN 2 × Intel 2.5GBE (I226LM + I226V)
Wireless Wi-Fi 6E 802.11ax + Bluetooth 5.3 (M.2 Key-E)
Front I/O 1 × USB4/Thunderbolt 4 (DP 2.1) + 1 × USB 3.2 Gen2x2 Type-C (DP 1.4a) + 1 × USB 3.2 Gen2 Type-A + audio jack
Rear I/O 2 × HDMI 2.1 + 2 × USB 3.2 Gen2 Type-A + 2 × 2.5GBE RJ-45 + DC jack
Displays Quad-display support
Audio Realtek ALC256 HD Audio
Platform & Physical
Management Intel vPro; Intel PTT — firmware TPM 2.0
Power 19V / 120W external adapter (included)
Cooling Fanned (active)
Dimensions 117.5 × 110.0 × 49 mm; Net weight 1.0 kg
Mounting VESA mount bracket (included)
OS Support Windows 10 / 11 64-bit (OS not included)
Certifications CE, FCC, TAA compliant

Frequently Asked Questions

Does the NUC BOX-155H come with RAM, storage or Windows?
No. It is a barebone system — you add your own DDR5 SO-DIMM memory, an M.2 or SATA SSD, and a Windows 10/11 licence. The power adapter and VESA bracket are included.
How much memory and storage can I install?
Up to 96GB of DDR5 5600 MHz across two SO-DIMM slots (48GB per DIMM), plus two M.2 PCIe Gen4x4 SSDs and one 2.5-inch SATA drive.
Is this a Copilot+ PC?
It has an integrated NPU for AI tasks, but the Meteor Lake platform is not certified as a Microsoft Copilot+ PC, which requires a 40+ TOPS NPU. It remains fully capable for everyday and professional workloads.
How many displays can it drive?
Up to four displays simultaneously via two HDMI 2.1 ports plus DisplayPort ouTPUt over its USB-C / Thunderbolt 4 connections.
Singular Expert Insight
The NUC BOX-155H hits a sweet spot for compact Meteor Lake builds: 14 cores, Thunderbolt 4, dual 2.5GBE and vPro in a 1 kg chassis. If you specifically need a Copilot+ AI PC, look at a Lunar Lake orAMD Ryzen AI mini instead, since Meteor Lake's NPU falls short of the 40 TOPS threshold. Because it is a barebone, budget for a fast DDR5 SO-DIMM kit and an NVMe SSD to finish the build.

Buyer's Guide

Buy it if
You want a tiny, VESA-mountable 14-core mini PC with Thunderbolt 4, quad display and dual 2.5GBE, and you prefer to choose your own RAM, SSD and OS.
Skip it if
You need a ready-to-run PC out of the box, or a certified Copilot+ AI machine with a 40+ TOPS NPU.
Also consider
A Lunar Lake NUC for Copilot+ AI, or the ASRock 4X4 BOX-AI350 (Ryzen AI 300) if you want a higher-TOPS NPU in a similar footprint.
