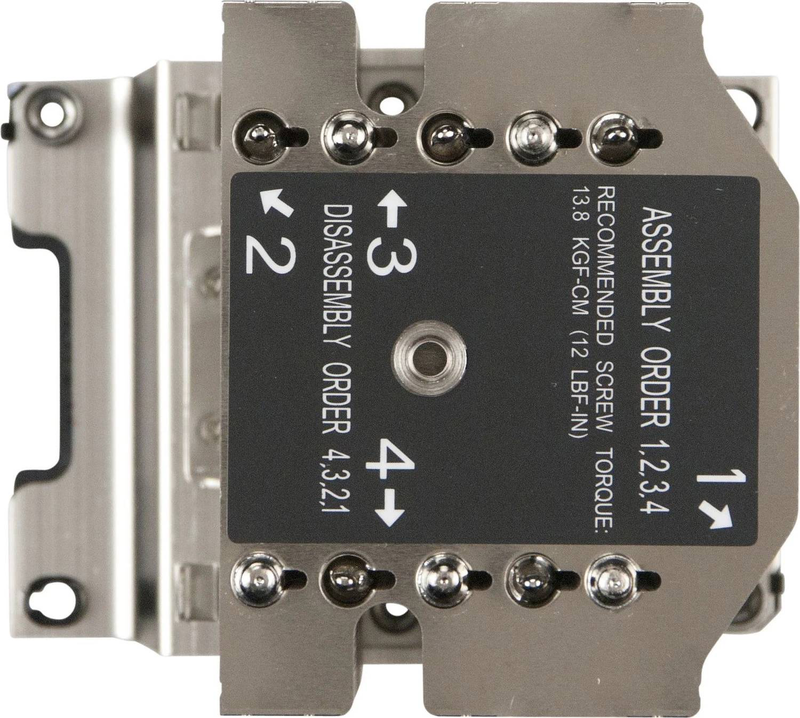

Supermicro SNK-P0070APS4 — 4U Active CPU Heatsink for Socket LGA3647-0
4U Active HeatsinkSocket LGA3647-0Up to 205W TDP92mm PWM Fan
The Supermicro SNK-P0070APS4 (part number SNK-P0070APS4) is a 4U active CPU heatsink engineered for Intel Xeon Scalable processors on Socket FCLGA3647-0 (narrow mounting). It combines a dense fin stack with a 92mm 4-pin PWM fan to keep server and workstation CPUs cool at up to 205W TDP inside 4U chassis. Typically in stock with fast delivery across Cyprus.
Compati
Attributes
Aoi Cooler Characteristics
- Supported CPU Sockets: Socket 3647
Details
Supermicro SNK-P0070APS4 — 4U Active CPU Heatsink for Socket LGA3647-0
4U Active HeatsinkSocket LGA3647-0Up to 205W TDP92mm PWM Fan
The Supermicro SNK-P0070APS4 (part number SNK-P0070APS4) is a 4U active CPU heatsink engineered for Intel Xeon Scalable processors on Socket FCLGA3647-0 (narrow mounting). It combines a dense fin stack with a 92mm 4-pin PWM fan to keep server and workstation CPUs cool at up to 205W TDP inside 4U chassis. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Designed specifically for Socket FCLGA3647-0 with narrow mounting, and validated for Supermicro X11 4U servers and workstations such as the X11DAi-N. It supports single and dual-processor systems and does not fit desktop LGA orAMD sockets. Confirm your chassis is 4U and uses narrow-ILM before ordering.
Best For
✓4U Supermicro X11 servers and workstations on LGA3647
✓Intel Xeon Scalable (Gen 1/2) processors
✓Single and dual-processor server configurations
✓High-TDP server CPUs up to 205W
✓Replacement or spare active heatsink for X11 systems
✓Data-centre and workstation thermal management
Key Features
4U Active Cooling Design
A tall 4U heatsink with a dedicated 92mm fan delivers active airflow directly over the CPU, suited to 4U servers and workstations where passive cooling alone is insufficient.
Socket LGA3647-0 for Xeon Scalable
Built for Intel's FCLGA3647-0 narrow-mounting socket and Xeon Scalable processors, matching the mounting and thermal requirements of X11 server platforms.
Up to 205W TDP Headroom
Rated to cool processors drawing up to 205W, giving thermal margin for high-core-count Xeon Scalable SKUs under sustained data-centre workloads.
92mm PWM Fan, 3800 RPM
The 92 x 92 x 25mm 12VDC fan spins at 3800 RPM under PWM control for responsive cooling, with a 108,798-hour MTBF rating for long service life in always-on systems.
Technical Specifications
| Identification | |
| Brand | Supermicro |
| Model | SNK-P0070APS4 |
| Part Number | SNK-P0070APS4 |
| EAN / GTIN | 0672042279531 |
| Type | 4U Active CPU Heatsink |
| Colour | Silver |
| Cooling | |
| Form Factor | 4U |
| CPU Socket | FCLGA3647-0 (narrow mounting) |
| TDP Support | Up to 205W |
| Processor Support | Intel Xeon Scalable (single/dual) |
| Fan | |
| Fan Size | 92 x 92 x 25mm |
| Fan Speed | 3800 RPM |
| Control | 4-Pin PWM |
| Voltage | 12.0 VDC |
| Noise Level | 38.0 dB(A) at rated speed |
| MTBF | 108,798 hrs |
| Compatibility | |
| Platform | Supermicro X11 (4U) |
| Example System | X11DAi-N |
| Configurations | Single / dual-processor |
| Compliance | |
| Compliance | RoHS and REACH |
| Warranty | |
| Warranty | 1-Year Warranty (Singular) |
Frequently Asked Questions
Which processors does the SNK-P0070APS4 support?
It is designed for Intel Xeon Scalable processors on Socket FCLGA3647-0 (narrow mounting) in single and dual-processor 4U server and workstation configurations.
Is it active or passive?
It is an active heatsink with an integrated 92mm 4-pin PWM fan rated at 3800 RPM, providing forced airflow suited to 4U chassis rather than relying on chassis fans alone.
Will it fit a standard desktop PC?
No. This is a server-grade 4U cooler for Socket LGA3647 and Supermicro X11 chassis. It does not fit desktop Intel LGA orAMD sockets or standard tower cases.
What TDP can it handle?
The heatsink is rated to cool CPUs drawing up to 205W, covering high-core-count Xeon Scalable processors under sustained server workloads.
Singular Expert Insight
The SNK-P0070APS4 is a purpose-built OEM cooler for Supermicro X11 4U servers and workstations on Socket LGA3647, not a desktop part. If you are servicing or building such a system, using Supermicro's own heatsink guarantees correct fit and airflow; for any other socket, choose the matching model. See our full CPU Coolers range, and complete server and workstation upgrades with reliable units from our PC Power Supplies selection.
Buyer's Guide
Buy it if
You are building or servicing a 4U Supermicro X11 server or workstation on Socket FCLGA3647-0 with an Intel Xeon Scalable CPU and need an active heatsink rated to 205W.
Skip it if
You have a desktop PC or a non-LGA3647 socket — this server cooler will not fit standard tower cases,AMD, or mainstream Intel desktop sockets.
Also consider
A 1U or 2U LGA3647 cooler if your chassis is shorter, or a desktop AIO or air cooler for non-server builds.
