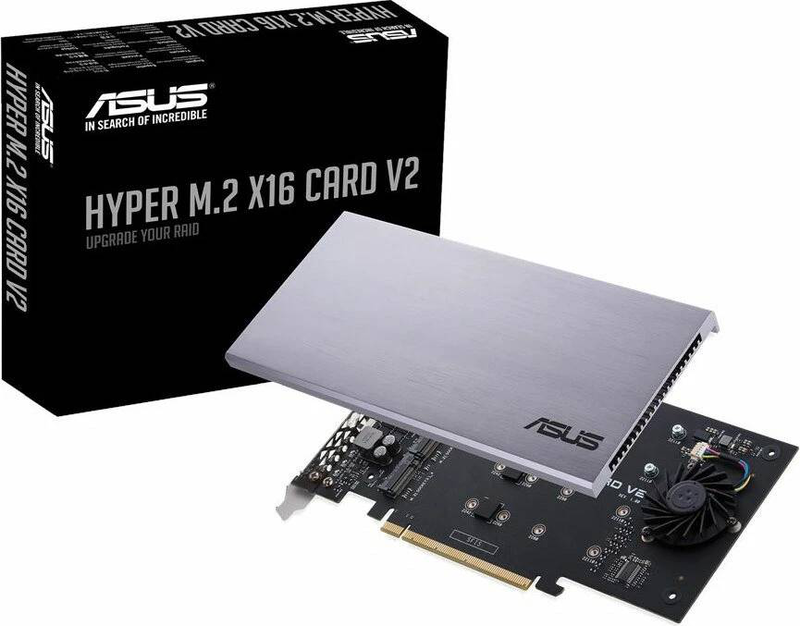

Asus hyper m.2 x16 card v2 pcie 3.0 x16 adapter for 4x m.2 nvme SSD up to 128GBps with heatsink and fan

Product image: Asus hyper m.2 x16 card v2 pcie 3.0 x16 adapter for 4x m.2 nvme SSD up to 128GBps with heatsink and fan-null
Product image: Asus hyper m.2 x16 card v2 pcie 3.0 x16 adapter for 4x m.2 nvme SSD up to 128GBps with heatsink and fan-null
Product image: Asus hyper m.2 x16 card v2 pcie 3.0 x16 adapter for 4x m.2 nvme SSD up to 128GBps with heatsink and fan-null
ASUS
🔥Selling fast!

Asus hyper m.2 x16 card v2 pcie 3.0 x16 adapter for 4x m.2 nvme SSD up to 128GBps with heatsink and fan

€57.37
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
In stock
–+
–+
114
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Pick-up points / Lockers
Est. delivery: 03 Aug - 04 Aug
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
€3.49

Description

Item No. 5803ddc6-041a-472a-92e1-41ad1dd549c6
ASUS Hyper M.2 X16 Card V2 PCIe 3.0 x164× M.2 NVMeUp to 128GBpsHeatsink + fan The ASUS Hyper M.2 X16 Card V2 (part number 90MC06P0-M0EAY0) is a PCIe 3.0 x16 expansion card that adds up to four M.2 NVMe SSDs to a single slot, delivering aggregate bandwidth of up to 128GBps for high-speed storage and RAID arrays. Built for enthusiasts and workstation users, it takes 2242, 2260, 2280 and 22110 drives and keeps them cool with a full-length heatsink and an active fan with a manual power switch. Ty

Details

ASUS Hyper M.2 X16 Card V2

PCIe 3.0 x164× M.2 NVMeUp to 128GBpsHeatsink + fan

The ASUS Hyper M.2 X16 Card V2 (part number 90MC06P0-M0EAY0) is a PCIe 3.0 x16 expansion card that adds up to four M.2 NVMe SSDs to a single slot, delivering aggregate bandwidth of up to 128GBps for high-speed storage and RAID arrays. Built for enthusiasts and workstation users, it takes 2242, 2260, 2280 and 22110 drives and keeps them cool with a full-length heatsink and an active fan with a manual power switch. Typically in stock with fast delivery across Cyprus.

Compatibility — please read before buying
To run more than one SSD, your motherboard must support PCIe bifurcation (splitting the x16 slot into x4/x4/x4/x4), or run an Intel VROC /AMD Ryzen Threadripper platform. On boards without bifurcation only the first drive is detected. The card accepts M.2 NVMe (PCIe) SSDs only — not M.2 SATA, and SSDs are sold separately. Fits PCIe x16 (and x8) slots.

Key Features


Four NVMe drives
Four M.2 Socket 3 (M-key) slots take 2242/2260/2280/22110 NVMe SSDs for massive, fast storage or NVMe RAID.

Up to 128GBps
A PCIe 3.0 x16 link provides up to 128GBps of aggregate bandwidth, with up to 14W of power delivered per drive.

Active cooling
A large heatsink cover, an active fan with a power switch and four status LEDs keep drives cool and prevent thermal throttling.

Technical Specifications

Identification
Part Number 90MC06P0-M0EAY0
EAN / GTIN 4718017104791
MPN Hyper M.2 X16 Card V2
Interface & Drives
Host interface PCIe 3.0 x16 (works in x8/x16 slots)
M.2 slots 4 × M.2 Socket 3 (M-key)
Drive type M.2 NVMe (PCIe) only
Supported sizes 2242 · 2260 · 2280 · 22110
Max bandwidth Up to 128GBps aggregate
Power per drive Up to 14 W
Platform Support
Requirement PCIe bifurcation (x4/x4/x4/x4) — or Intel VROC /AMD Threadripper
Cooling
Cooling Full-length heatsink + active fan (switchable) · 4 status LEDs
Colour Black

Frequently Asked Questions

Will the Hyper M.2 X16 Card V2 work with my motherboard?
It fits any PCIe x16 (or x8) slot, but to use more than one SSD the board must support PCIe bifurcation into x4/x4/x4/x4, or be an Intel VROC /AMD Threadripper platform. Check your motherboard manual for a "PCIe bifurcation" or "RAID on CPU" option.
Does it support M.2 SATA SSDs?
No. The card is NVMe (PCIe) only. M.2 SATA drives are not supported.
Are SSDs included?
No, the card is supplied without drives. You add up to four M.2 NVMe SSDs (2242 to 22110) separately.
This is PCIe 3.0 — do I need PCIe 4.0?
For PCIe 3.0 NVMe drives this card gives full speed. If you run PCIe 4.0 SSDs and want maximum throughput on a PCIe 4.0 board, choose the Hyper M.2 X16 Gen 4 card instead.
Singular Expert Insight
The V2 is the PCIe 3.0 version of ASUS’s Hyper M.2 card — ideal for adding bulk NVMe storage or building a fast NVMe RAID on a compatible board without spending on the Gen 4 model. If your platform runs PCIe 4.0 SSDs and you want every bit of bandwidth, step up to the Hyper M.2 X16 Gen 4 card. See related expansion options in our storage controllers and adapter cards range.

Buyer's Guide

Buy it if
You have a bifurcation-capable or Threadripper/VROC board and want to add up to four NVMe SSDs with proper active cooling.
Skip it if
Your motherboard has no PCIe bifurcation support, or you only need one extra M.2 drive — a simple single-slot adapter is enough.
Also consider
The ASUS Hyper M.2 X16 Gen 4 card if you run PCIe 4.0 SSDs and want maximum bandwidth.
