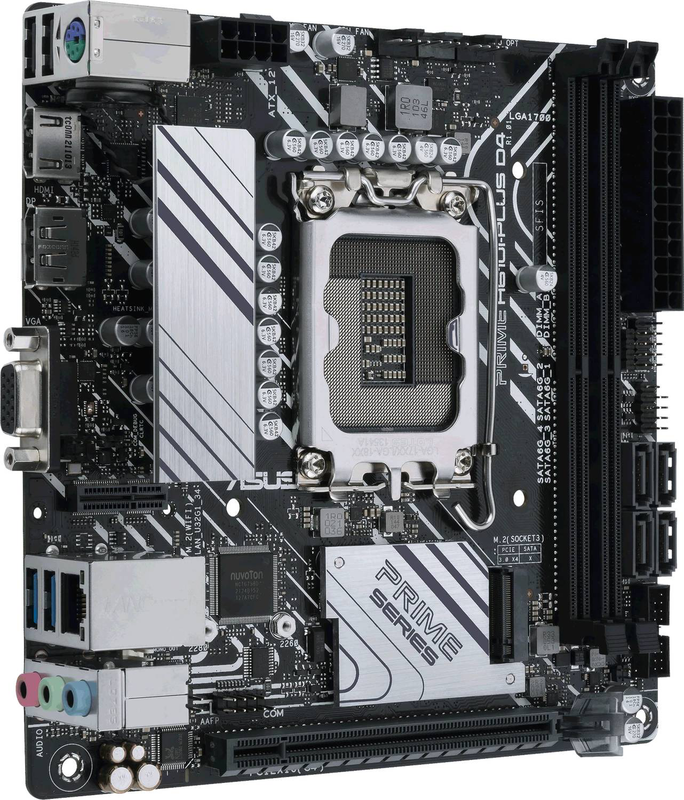

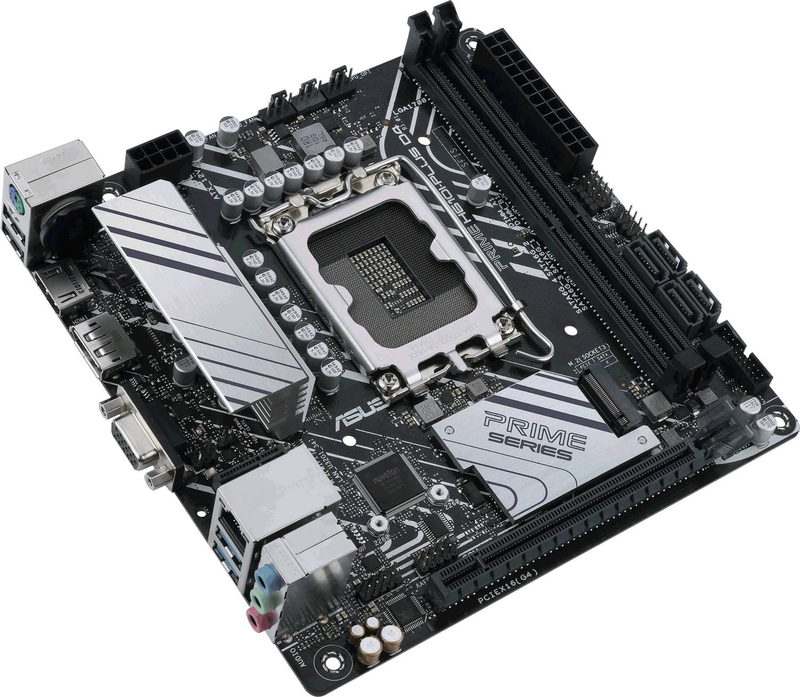

Product image: Asus prime h610i-plus d4-csm motherboard mini-itx lga1700 h610 ddr4 pcie 4.0 HDMI displayport vga, , medium-null
Product image: Asus prime h610i-plus d4-csm motherboard mini-itx lga1700 h610 ddr4 pcie 4.0 HDMI displayport vga, , medium-null
Product image: Asus prime h610i-plus d4-csm motherboard mini-itx lga1700 h610 ddr4 pcie 4.0 HDMI displayport vga, , medium-null
ASUS
🔥Selling fast!

Asus prime h610i-plus d4-csm motherboard mini-itx lga1700 h610 ddr4 pcie 4.0 HDMI displayport vga

EXTRA -10%

from €166.29 to - 10% - 10% €149.67
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
–+
–+
Jinius Promo
EXTRA -10% applied in your cart! (Max €40 discount)

Description

Item No. 0238fd22-ffbd-4bbc-8fa8-61e0bced1a88
Singular Selected ASUS PRIME H610I-PLUS D4-CSM A 17 x 17 cm mini-ITX commercial motherboard with DDR4, triple display output and CSM lifecycle support — built for compact office systems, NAS builds and SFF deployments. LGA1700 · 12th/13th GenDDR4 3200 · 64GBmini-ITXCSM Lifecycle The ASUS PRIME H610I-PLUS D4-CSM is a commercial-grade mini-ITX motherboard built around Intel’s H610 chipset and the LGA1700 socket. Officially it supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron process

Attributes

Motherboard Characteristics

  • Processor Socket: Socket 1700

Details

Singular Selected

ASUS PRIME H610I-PLUS D4-CSM

A 17 x 17 cm mini-ITX commercial motherboard with DDR4, triple display ouTPUt and CSM lifecycle support — built for compact office systems, NAS builds and SFF deployments.
LGA1700 · 12th/13th GenDDR4 3200 · 64GBmini-ITXCSM Lifecycle

The ASUS PRIME H610I-PLUS D4-CSM is a commercial-grade mini-ITX motherboard built around Intel’s H610 chipset and the LGA1700 socket. Officially it supports 12th and 13th GenIntel Core, Pentium Gold and Celeron processors. It’s aimed at compact office systems, small-form-factor NAS builds and embedded deployments — ASUS’ CSM (Corporate Stable Model) program adds extended product lifecycle support that is valuable for IT planning. The board provides two DDR4 DIMM slots up to 64GB at 3200MHz, a single M.2 slot (PCIe 3.0 x4), four SATA III ports, and three video ouTPUts (HDMI 2.1, DisplayPort 1.4 and VGA) for legacy display support. A vertical M.2 Key E slot is included for adding a Wi-Fi/Bluetooth module — the Wi-Fi module itself is sold separately. The 5+1+1 DrMOS power stage with VRM heatsink is sized for everyday productivity, not heavy gaming workloads.

Compatibility Note: LGA1700 socket only — officially supports 12th and 13th GenIntel Core, Pentium Gold and Celeron processors (verify the ASUS CPU support list for your exact CPU; 14th Gen support is not officially listed). DDR4 memory only — DDR5 modules are not compatible. Wi-Fi module is NOT included — the V-M.2 Key E slot is empty and a CNVi or PCIe Wi-Fi module must be purchased separately. No CPU overclocking support (H610 chipset). Mini-ITX form factor — please confirm chassis compatibility before purchase.
Best For
✓ Mini-ITX office & SFF builds
✓ Compact NAS systems
✓ Reusing existing DDR4 memory
✓ Builds with legacy VGA monitors
✓ Embedded / signage / kiosk PCs
✓ Commercial deployments needing CSM

Key Features


True Mini-ITX Form Factor
17.02 x 17.02 cm board fits the smallest standard ITX cases — ideal for living-room PCs, NAS builds and embedded deployments where space matters.

Triple Display OuTPUt
HDMI 2.1, DisplayPort 1.4 and VGA ouTPUts — drive multiple monitors from the iGPU, including legacy VGA displays still common in offices and POS systems.

DDR4 + Wi-Fi Ready Slot
Reuse existing DDR4 memory (max 64GB at 3200MHz) and add a Wi-Fi module via the included V-M.2 Key E vertical slot for future-proof networking.

CSM Commercial Reliability
ASUS Corporate Stable Model program brings extended product lifecycle support for predictable supply — valuable for IT departments and system integrators planning multi-year deployments.

Technical Specifications

Part Number 90MB1B20-M0EAYC
EAN 4711081755753
Form Factor Mini-ITX (17.02 cm x 17.02 cm)
Socket Intel LGA1700 — 12th / 13th Gen Core, Pentium Gold, Celeron
Chipset Intel H610
Power Phase 5+1+1 DrMOS power stages
Memory 2 x DIMM, max 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133, Dual Channel, XMP, Non-ECC
Expansion Slots 1 x PCIe 4.0 x16 (CPU)
Storage 1 x M.2 Key M, type 2260/2280 (PCIe 3.0 x4) + 4 x SATA III 6GB/s
Graphics OuTPUt 1 x HDMI 2.1 (4K@60Hz) + 1 x DisplayPort 1.4 (4K@60Hz) + 1 x D-Sub VGA — requires CPU with iGPU
LAN Realtek 1GB Ethernet
Wireless V-M.2 Key E (CNVi & PCIe) slot only — Wi-Fi module sold separately
Audio Realtek 7.1 Surround HD Audio Codec, 24-bit/192 kHz, Mono-out header with Amp IC
Rear USB 2 x USB 3.2 Gen 1 Type-A (5GBps) + 2 x USB 2.0 Type-A — no rear Type-C, no USB 10GBps
Front USB Headers 1 x USB 3.2 Gen 1 header (2 ports) + 1 x USB 2.0 header (2 ports)

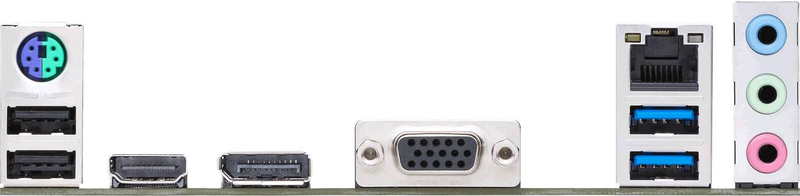

Rear I/O Extras 1 x PS/2 combo port, 3 x Audio jacks, V-M.2 Key E slot, COM header internal
Fan Headers 1 x 4-pin CPU + 1 x 4-pin CPU OPT + 1 x 4-pin Chassis
Protection Features ASUS 5X Protection III — DIGI+ VRM, LANGuard, OVP, SafeSlot Core, stainless-steel back I/O
CSM Program ASUS Corporate Stable Model — extended product lifecycle support for IT planning
In the Box Motherboard, 2 x SATA cables, I/O shield, M.2 screw package, V-M.2 Key E vertical bracket set, support DVD, user guide. Wi-Fi module not included.

Frequently Asked Questions

Is the Wi-Fi included with this motherboard?
No. The board has a vertical M.2 Key E slot designed for a Wi-Fi/Bluetooth module, but the module itself is sold separately. You can add an Intel CNVi-compatible Wi-Fi card or a PCIe-based one through this slot. The bracket and antenna mount come in the box.
Will it work with a 14th Gen Intel CPU?
ASUS officially lists support for 12th and 13th GenIntel Core processors only. 14th Gen CPUs use the same LGA1700 socket but are not officially confirmed for this CSM revision — check the ASUS CPU support list for your specific CPU before purchase.
Can I install DDR5 memory in this board?
No — this is the D4 (DDR4) version, accepting DDR4 modules only at speeds up to 3200MHz. For DDR5 in mini-ITX, look at the PRIME H610I-PLUS-CSM (without “D4” in the name).
Why does this board have a VGA port?
As a CSM (Corporate Stable Model) board it’s aimed at business use cases — many offices, schools, kiosks and POS systems still rely on legacy VGA monitors. The triple HDMI / DP / VGA ouTPUt makes drop-in replacements painless without buying adapters.
Singular Expert Insight
Choose the H610I-PLUS D4-CSM if you need a true 17 x 17 cm mini-ITX board for office/SFF/NAS builds, you already own DDR4 memory and you want CSM commercial lifecycle support. If you prefer DDR5 in the same form factor, choose the PRIME H610I-PLUS-CSM. If you need built-in Wi-Fi without buying a separate module, look at a B760-ITX board with onboard Wi-Fi 6. For LGA1851 (Core Ultra Series 2) builds, this board does not work — pick a B860I or H810I board instead.

Buyer's Guide

Buy it if
You are building a compact mini-ITX office, NAS or embedded system on a 12th/13th Gen Intel CPU, you already own DDR4 memory and need CSM commercial reliability with VGA legacy support.
Skip it if
You want DDR5, Wi-Fi 6 included out of the box, USB-C, dual M.2 slots, 14th Gen support confirmed, or you are building a gaming/enthusiast SFF system.
Also consider
PRIME H610I-PLUS-CSM for DDR5 in mini-ITX, or a B760-ITX board with built-in Wi-Fi 6 + dual M.2 + USB-C if you are building a more capable SFF system.
