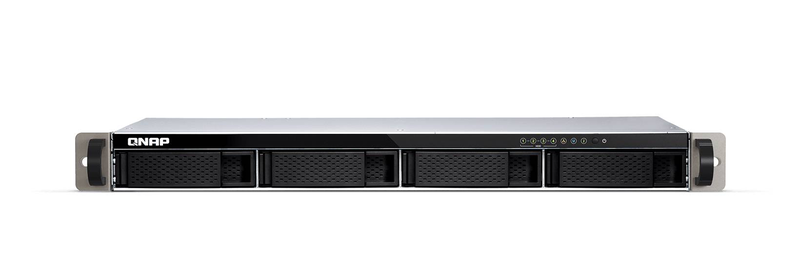

Product image: Qnap ts-433eu 4-bay short-depth 1u rackmount nas arm quad-core 4GB dual 2.5GBe diskless black ts-433eu-null
QNAP
🔥Selling fast!

Qnap ts-433eu 4-bay short-depth 1u rackmount nas arm quad-core 4GB dual 2.5GBe diskless black ts-433eu

€896.07
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
In stock
–+
–+
1792
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. 769fd4c1-8b34-4efe-8d49-f53ec5f64712
QNAP TS-433eU — Short-Depth 1U Rackmount NAS Short-Depth 1U (292mm)ARM Cortex-A55 Quad-CoreDual 2.5 Gigabit Ethernet4 SATA Bays The QNAP TS-433eU (EAN 4711103085943) is a four-bay short-depth 1U rackmount NAS with a quad-core ARM Cortex-A55 processor, 4GB of DDR4 memory and dual 2.5-Gigabit Ethernet. Its shallow 292mm depth makes it ideal for wall-mount cabinets and shallow racks where a full-depth server will not fit. It ships diskless and takes four 3.5"/2.5" SATA drives running QNAP QTS. Typ

Attributes

Hdd General Characteristics

  • Disk Type: USB3.0 | Ethernet | iSCSI

Details

QNAP TS-433eU — Short-Depth 1U Rackmount NAS

Short-Depth 1U (292mm)ARM Cortex-A55 Quad-CoreDual 2.5 Gigabit Ethernet4 SATA Bays

The QNAP TS-433eU (EAN 4711103085943) is a four-bay short-depth 1U rackmount NAS with a quad-core ARM Cortex-A55 processor, 4GB of DDR4 memory and dual 2.5-Gigabit Ethernet. Its shallow 292mm depth makes it ideal for wall-mount cabinets and shallow racks where a full-depth server will not fit. It ships diskless and takes four 3.5"/2.5" SATA drives running QNAP QTS. Typically in stock with fast delivery across Cyprus.

Before you buy — diskless, headless rackmount
Drives are not included; install up to four 3.5"/2.5" SATA HDDs or SSDs. This is an ARM-based, headless model: there is no HDMI ouTPUt and no virtualization (Virtualization Station). Memory is 4GB onboard and not expandable. Volumes support Single, JBOD and RAID 0/1/5/6/10. Confirm your rack depth (chassis depth is 292mm).

Best For

✓ Shallow racks & wall cabinets
✓ Centralised file storage & backup
✓ 2.5GBE small-office networks
✓ Surveillance recording (QVR)
✓ Private cloud & file sync
✓ Edge / branch-office storage

Key Features


Short-Depth 1U Rackmount
At just 292mm deep it fits shallow wall boxes and network cabinets where standard-depth rackmount NAS units cannot, freeing up rack space.

Quad-Core ARM + Dual 2.5GBE
A 2.0GHz quad-core ARM Cortex-A55 with two 2.5-Gigabit Ethernet ports (Port Trunking to 5GBps) keeps multi-user file access responsive.

Four Hot-Ready SATA Bays
Four 3.5"/2.5" SATA bays scale storage with RAID 0/1/5/6/10 protection, all managed through QNAP's mature QTS operating system.

Efficient & Compact
A 60W external adapter and three 40mm fans keep the unit cool and power-efficient for always-on edge deployments.

Technical Specifications

Identification
Part Number TS-433EU
EAN / GTIN 4711103085943
MPN TS-433eU
Processor & Memory
CPU ARM Cortex-A55 — quad-core, 64-bit
CPU Frequency 2.0 GHz
Memory 4GB DDR4 onboard (not expandable)
Storage
Drive Bays 4 x 3.5"/2.5" SATA 6GB/s
M.2 Slots None
RAID Levels Single, JBOD, RAID 0, 1, 5, 6, 10 + hot spare
File Systems EXT4
Connectivity
Network 2 x 2.5 Gigabit Ethernet (RJ-45), Port Trunking
USB 2 x USB 3.2 Gen 1 (5GBps)
Video OuTPUt None — headless
Power & Physical
Power Supply External 60W adapter
System Fans 3 x 40mm
Dimensions (H x W x D) 43.3 x 430 x 292.3 mm
Weight 4.01 kg (diskless)
Colour Black
Software & Warranty
Operating System QNAP QTS
Warranty 3 Years

Frequently Asked Questions

Does the TS-433eU come with drives?
No. It is sold diskless. You add up to four 3.5" or 2.5" SATA drives; NAS-rated drives are recommended for 24/7 rackmount operation.
Will it fit my rack?
It is a short-depth 1U unit just 292.3mm deep, designed for shallow wall-mount cabinets and racks. Check that your rack accommodates a ~292mm chassis.
Can it run virtual machines or ouTPUt to a display?
No. The TS-433eU is an ARM-based, headless NAS: it has no HDMI ouTPUt and does not support Virtualization Station. It is managed over the network via QTS.
What is the difference between the TS-433eU and the desktop TS-433?
The TS-433eU is a short-depth 1U rackmount; the TS-433 is the desktop tower version of the same class. Choose the eU for rack installations.
Singular Expert Insight
The TS-433eU solves a specific problem well: putting real 4-bay, dual-2.5GBE storage into shallow racks and wall boxes that cannot take a full-depth NAS. As an ARM model it is headless with fixed 4GB RAM, so it is best for file serving, backup and surveillance rather than virtualization. Fill it with dependable NAS-rated hard drives. If you need x86 power, HDMI or expandable memory, a desktop TS-464 is the alternative; for a deeper rack, the higher-spec TS-435eU steps up.

Buyer's Guide

Buy it if
You need Genuine 4-bay 2.5GBE storage in a shallow rack or wall cabinet, for file serving, backup or surveillance.
Skip it if
You need virtualization, HDMI ouTPUt, 10GBE or expandable memory — an x86 desktop or higher-tier rackmount fits better.
Also consider
The desktop QNAP TS-433 for non-rack use, or the TS-435eU for a faster short-depth 1U with more memory.
