Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black

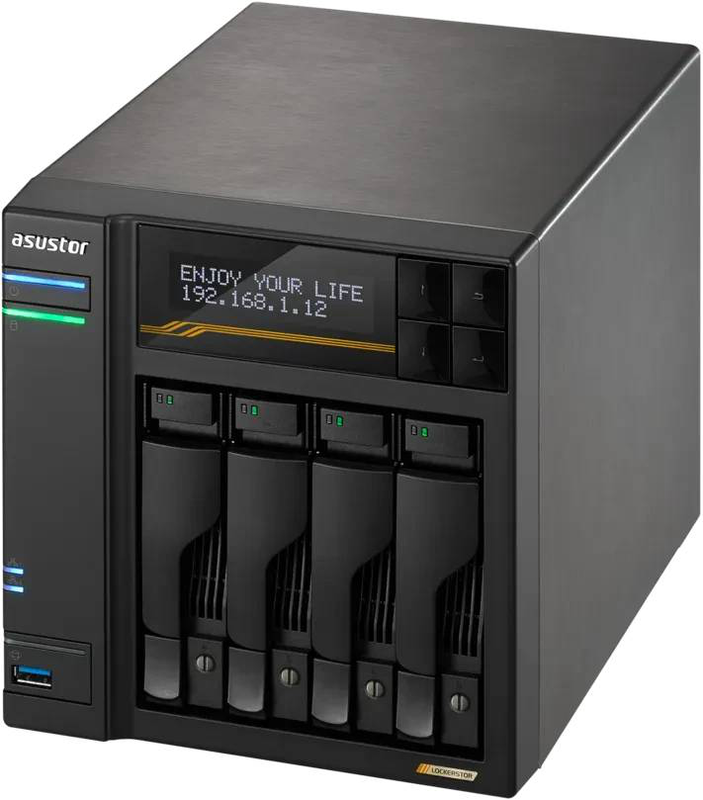

Product image: Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black-null

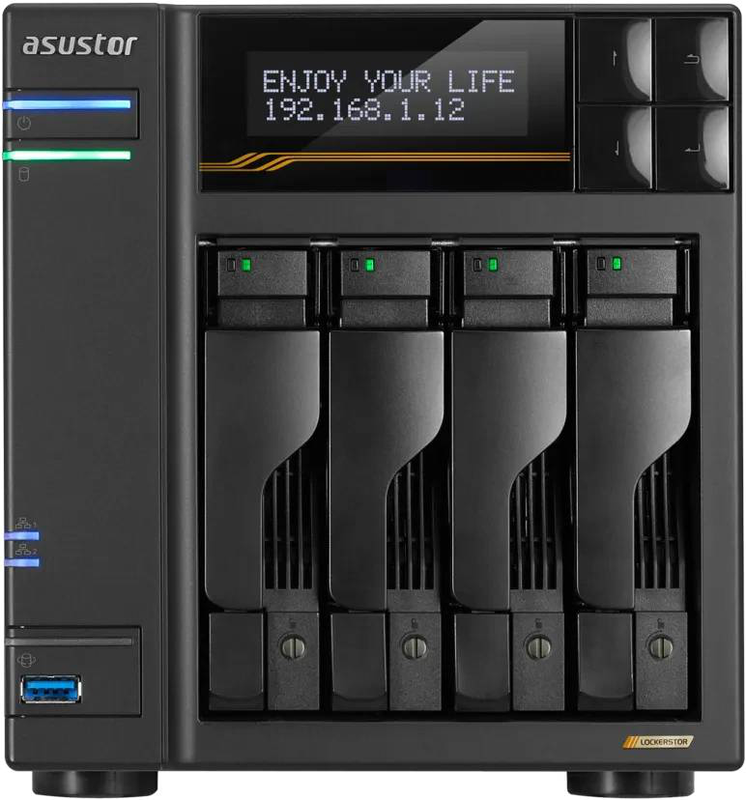

Product image: Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black-null

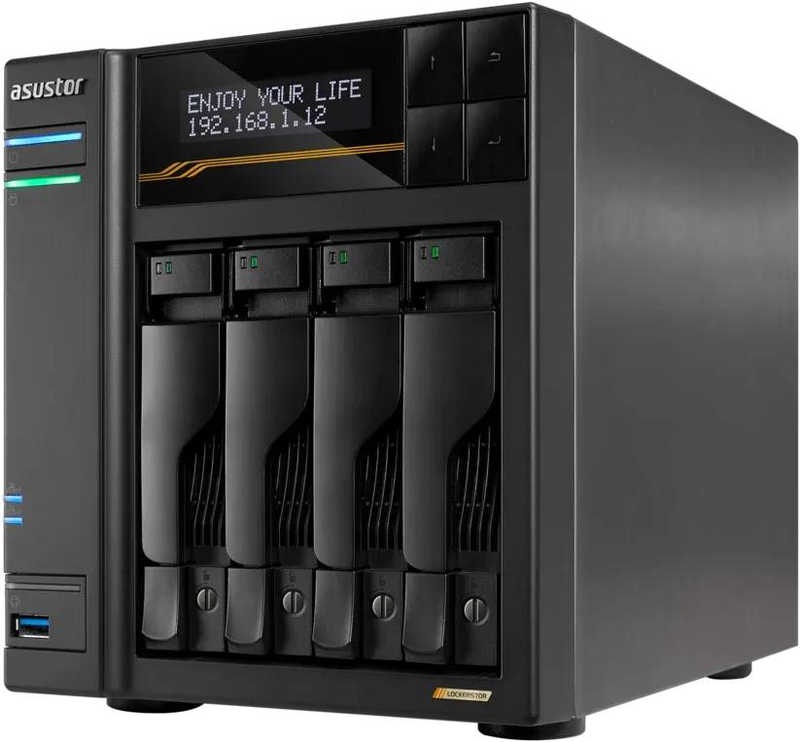

Product image: Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black-null
Product image: Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black-null
Product image: Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black-null
ASUS
🔥Selling fast!

Asustor lockerstor 4 Gen3 as6804t 4-bay nas AMD ryzen v3c14 16GB ecc ddr5 quad m.2 nvme dual 10GBe diskless black

€2,187.28
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
In stock
–+
–+
4374
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. 21c42ce3-9aa5-47bb-b410-842419361a21
Asustor Lockerstor 4 Gen3 AS6804T — 4-Bay Enterprise NAS AMD Ryzen V3C14 Quad-Core16GB ECC DDR5-48004x SATA + 4x M.2 NVMeDual 10GBE + Dual 5GBE The Asustor Lockerstor 4 Gen3 AS6804T is a diskless 4-bay desktop NAS built around a quad-core AMD Ryzen Embedded V3C14 processor with 16GB of ECC DDR5-4800 memory, designed for creative professionals, small businesses and IT enthusiasts who need fast, reliable network storage. Sold under part number 90-AS6804T00-MF30 (EAN 4710474831555), it pairs four

Attributes

Hdd General Characteristics

  • Disk Type: Ethernet | SATA | iSCSI | M.2 | USB3.1 | USB Type-C

Details

Asustor Lockerstor 4 Gen3 AS6804T — 4-Bay Enterprise NAS

AMD Ryzen V3C14 Quad-Core16GB ECC DDR5-48004x SATA + 4x M.2 NVMeDual 10GBE + Dual 5GBE

The Asustor Lockerstor 4 Gen3 AS6804T is a diskless 4-bay desktop NAS built around a quad-coreAMD Ryzen Embedded V3C14 processor with 16GB of ECC DDR5-4800 memory, designed for creative professionals, small businesses and IT enthusiasts who need fast, reliable network storage. Sold under part number 90-AS6804T00-MF30 (EAN 4710474831555), it pairs four 3.5"/2.5" SATA bays with four M.2 NVMe PCIe 4.0 slots and delivers dual 10GBE plus dual 5GBE networking for up to 30GBE of aggregate bandwidth. Typically in stock with fast delivery across Cyprus.

Before you buy — ships diskless
The AS6804T is supplied as an enclosure only; hard drives and M.2 NVMe SSDs are sold separately. For best reliability choose NAS-rated drives. Note there is no HDMI ouTPUt on this Gen3 model, and installing an add-in 10GBE card requires removing the M.2 daughterboard.

Best For

✓High-speed 10GBE file sharing and editing
✓Virtualization with VMware, Citrix and Hyper-V
✓NVMe caching or all-flash tiered storage
✓Business backups, snapshots and 3-2-1 plans
✓Surveillance for up to 72 camera channels
✓Private cloud, Docker and media serving

Key Features


AMD Ryzen Embedded V3C14
A quad-core 6nm processor running 2.3GHz base up to 3.8GHz turbo, delivering the CPU headroom for 10GBE transfers, virtual machines and demanding multi-user workloads.

ECC DDR5-4800 Memory
16GB of error-correcting DDR5 detects and repairs memory errors for enterprise-grade stability, and expands up to 64GB as your workload grows.

Four M.2 NVMe Slots
PCIe 4.0 x1 M.2 slots can be used for read/write caching or as fast flash storage volumes, doubling the throughput of the previous PCIe 3.0 Generation.

30GBE-Ready Networking + USB4
Dual 10GBE and dual 5GBE ports plus two USB4 (Type-C, 40GBps) connections make backups to external SSDs and network transfers exceptionally fast.

Technical Specifications

Identification
Part Number 90-AS6804T00-MF30
EAN / GTIN 4710474831555
MPN AS6804T
Processor & Memory
CPU AMD Ryzen Embedded V3C14 — quad-core 6nm, 2.3GHz base / 3.8GHz turbo
Memory 16GB ECC DDR5-4800 SO-DIMM — error-correcting, expandable to 64GB
Storage
Drive Bays 4x 3.5" / 2.5" SATA
M.2 Slots 4x M.2 for NVMe SSD — PCIe 4.0 x1, caching or storage
RAID Levels Single, JBOD, RAID 0/1/5/6/10, RAID 1/5 + spare
Snapshots Btrfs / iSCSI — up to 256 snapshots per volume
Connectivity
Ethernet 2x 10GBE (RJ45) + 2x 5GBE (RJ45)
USB 2x USB4 Type-C (40GBps) + 3x USB 3.2 Gen2x1 Type-A
Display OuTPUt None — headless, managed via ADM web interface
Physical & Power
Dimensions 185.5 (H) x 170 (W) x 230 (D) mm
Weight 3.2 kg
Power Supply 90W external adapter
Cooling 120mm rear exhaust fan + CPU heat-pipe and fin array
Software & Warranty
Operating System ADM 5.0 onwards
Security AES 256-bit folder encryption, firewall, WORM, 2-step verification
Condition New
Warranty 3 years

Frequently Asked Questions

Does the AS6804T come with hard drives?
No. The Lockerstor 4 Gen3 ships diskless as an enclosure. You add up to four SATA drives and up to four M.2 NVMe SSDs separately, choosing capacity and RAID level to suit your needs.
Can I use the M.2 slots for caching?
Yes. The four PCIe 4.0 M.2 slots can serve as SSD read/write cache to accelerate the SATA pool, or be configured as fast standalone flash storage volumes.
What is the difference between the AS6804T and the AS6704T Gen2?
The Gen3 AS6804T upgrades to anAMD Ryzen V3C14 CPU with ECC DDR5, adds dual 10GBE plus dual 5GBE networking and USB4, whereas the Gen2 AS6704T uses an Intel Celeron N5105 with dual 2.5GBE. The Gen3 also drops the HDMI ouTPUt.
Does it support virtual machines and Docker?
Yes. The AS6804T supports Virtualization (VMware, Citrix, Hyper-V ready) and Docker/Portainer apps, backed by iSCSI/IP-SAN and NFS for integration with existing IT environments.
Singular Expert Insight
The Lockerstor 4 Gen3 is the enthusiast sweet spot in ASUSTOR’s lineup: itsAMD Ryzen V3C14 and ECC DDR5 give it far more compute and dual 10GBE headroom than the Celeron-based Gen2 Nimbustor and Lockerstor models, while staying more affordable than the 6- and 8-bay Lockerstor Pro units. If you want to run the four M.2 slots as an all-flash tier rather than as cache, budget for four NVMe drives and pair them with fast NAS-rated hard drives in the SATA bays; browse the full range of NAS and RAID storage appliances to compare bay counts and network speeds.

Buyer’s Guide

Buy it if
You need 10GBE-class throughput, ECC reliability and room for both four SATA drives and four NVMe SSDs in one 4-bay unit.
Skip it if
You only need basic 1GBE backup for a couple of drives, or you require an HDMI ouTPUt for local media playback — the Gen3 has none.
Also consider
The AS6704T Gen2 for a lower-cost Celeron 4-bay, or the 6-bay Lockerstor 6 Gen3 if you need more capacity.
