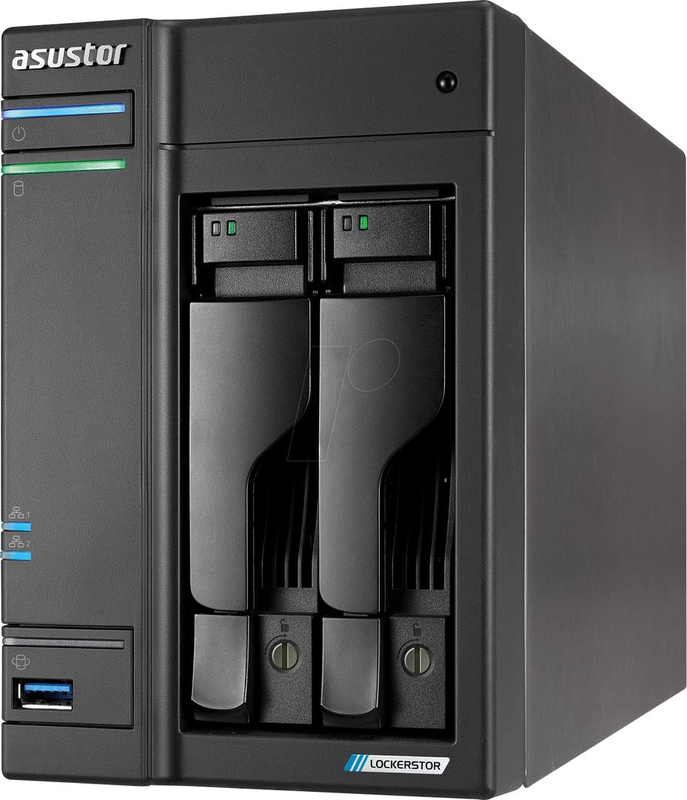

Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black

Product image: Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black-null
Product image: Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black-null
Product image: Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black-null
Product image: Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black-null
Product image: Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black-null
ASUS
🔥Selling fast!

Asustor lockerstor 2 Gen2 as6702t 2-bay nas intel celeron n5105 4GB ddr4 dual 2.5GBe quad m.2 nvme diskless black

€815.02
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
In stock
–+
–+
1630
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. 4add4820-e848-4302-b635-cd842b3adb81
Asustor Lockerstor 2 Gen2 AS6702T 2-Bay Diskless NAS Intel Celeron N5105 · quad-core4GB DDR4 (max 16GB)Dual 2.5GBE4x M.2 NVMe PCIe 3.0 The Asustor Lockerstor 2 Gen2 (AS6702T) is a 2-bay desktop NAS powered by a quad-core Intel Celeron N5105 processor with 4GB of DDR4 memory, built for home users, content creators, and small businesses who want fast, protected central storage. Identified by part number 90-AS6702T00-MD30, it stands out with dual 2.5GBE ports for speeds well beyond Gigabit and

Attributes

Hdd General Characteristics

  • Disk Type: Ethernet | iSCSI | M.2 | USB3.2

Details

Asustor Lockerstor 2 Gen2 AS6702T 2-Bay Diskless NAS

Intel Celeron N5105 · quad-core4GB DDR4 (max 16GB)Dual 2.5GBE4x M.2 NVMe PCIe 3.0

The Asustor Lockerstor 2 Gen2 (AS6702T) is a 2-bay desktop NAS powered by a quad-core Intel Celeron N5105 processor with 4GB of DDR4 memory, built for home users, content creators, and small businesses who want fast, protected central storage. Identified by part number 90-AS6702T00-MD30, it stands out with dual 2.5GBE ports for speeds well beyond Gigabit and four M.2 2280 NVMe slots (PCIe 3.0) that can be used for SSD caching, all-flash storage pools, or a mix of both. Running ASUSTOR Data Master (ADM), it delivers backup, multimedia, virtualization, and surveillance in one compact unit. Typically in stock with fast delivery across Cyprus.

Before You Buy — Diskless Unit
The AS6702T ships without drives — add your own 3.5"/2.5" SATA HDDs or SSDs, plus optional M.2 2280 NVMe SSDs. Consult the ASUSTOR compatibility list before buying drives. As a 2-bay unit its internal volumes support Single, JBOD, RAID 0 and RAID 1 only (RAID 5/6 need more bays). Reaching full 2.5GBE speed requires a 2.5GBE-capable switch/router and Cat 5e or better cabling; SMB Multichannel or link aggregation across both ports can push throughput even higher on a compatible network.

Best For

✓Centralized file storage and sharing for home or office
✓4K media streaming and Plex/multimedia serving
✓SSD caching or all-flash NVMe storage pools
✓PC, Mac and mobile backup with DataSync
✓Video surveillance (4 free camera channels)
✓Docker apps and light virtualization

Key Features


Quad-Core 10nm Performance
The Intel Celeron N5105 (2.0 GHz, up to 2.9 GHz turbo) with a built-in hardware encryption engine delivers around 31% more performance than previous Gemini Lake models, handling multitasking, 4K transcoding and encrypted shares with ease.

Dual 2.5GBE Networking
Two 2.5-Gigabit ports more than double Gigabit speeds and support SMB Multichannel and link aggregation, reaching roughly 591/482 MB/s read/write in testing for smooth multi-user access.

Four M.2 NVMe Slots
Four PCIe 3.0 M.2 2280 slots let you add SSD caching, full NVMe storage pools, or a mix — without giving up either 3.5"/2.5" drive bay. Tool-free latches make installation quick.

Modern Connectivity
Dual USB 3.2 Gen 2 ports (10GBps, one front and one rear) plus an HDMI 2.0b ouTPUt for external expansion and direct media playback, with Wake on LAN/WAN for energy savings.

Technical Specifications

Identification
Part Number 90-AS6702T00-MD30
EAN / GTIN 4710474831425
MPN AS6702T
Brand Asustor
Series Lockerstor 2 Gen2
Processor & Memory
CPU Intel Celeron N5105 — quad-core, 10nm
CPU Frequency 2.0 GHz base / 2.9 GHz turbo
Hardware Encryption Engine Yes (AES-256)
System Memory 4GB DDR4-2933 SO-DIMM
Maximum Memory 16GB
Storage
Drive Bays 2x SATA III (2.5" / 3.5")
M.2 Slots 4x M.2 2280 NVMe (PCIe 3.0) — cache or storage
RAID Types Single, JBOD, RAID 0, RAID 1
File Systems Btrfs, ext4
iSCSI 256 targets / 256 LUNs
Connectivity
LAN Ports 2x 2.5GBE RJ-45 (SMB Multichannel, WoL/WoW)
USB 2x USB 3.2 Gen 2 (10GBps) — 1 front, 1 rear
HDMI 1x HDMI 2.0b
Physical & Power
Dimensions (HxWxD) 163.5 x 108 x 230 mm
Weight 2 kg
Power 65W external AC adapter (~21W in operation)
Colour Black
Software & Warranty
Operating System ASUSTOR Data Master (ADM)
Surveillance 4 free camera licenses (up to 44 channels)
Warranty 3-year limited hardware

Frequently Asked Questions

Does the AS6702T come with drives?
No. It is a diskless enclosure — you supply your own SATA HDDs/SSDs and optional M.2 NVMe SSDs. Check the ASUSTOR compatibility list before purchasing drives.
Is the AS6702T suitable for a small business?
Yes. Dual 2.5GBE, a quad-core CPU with hardware encryption, RAID 1 protection, iSCSI, snapshots and license-free backup tools make it a strong fit for small offices and demanding home setups.
What is the difference between the AS6702T and the AS6704T?
Both share the same Celeron N5105 platform, dual 2.5GBE and four M.2 slots. The AS6702T has 2 drive bays (RAID 0/1), while the AS6704T has 4 bays and adds RAID 5/6/10 for more capacity and redundancy.
Can I add SSD cache and more RAM?
Yes. The four PCIe 3.0 M.2 slots support SSD caching or NVMe storage pools, and memory can be expanded up to 16GB DDR4 SO-DIMM for heavier multitasking.
Singular Expert Insight
The AS6702T is one of the best-value 2-bay NAS units for anyone who wants NVMe flexibility: four M.2 slots is unusually Generous at this size and lets you build an all-flash pool later without changing hardware. If you expect to outgrow two bays, the 4-bay AS6704T adds RAID 5/6 for the same CPU; if you only need basic Gigabit backup, a cheaper Drivestor model may suffice. Pair it with verified NAS hard drives for reliability, and compare the wider NAS and RAID storage appliances range to match bay count to your needs.

Buyer's Guide

Buy it if
You want a compact 2-bay NAS with dual 2.5GBE, a quad-core CPU and four M.2 NVMe slots for caching or all-flash pools.
Skip it if
You need RAID 5/6 redundancy, more than 2 SATA bays, or built-in 10GBE — a 4-bay or higher Lockerstor fits better.
Also consider
The 4-bay AS6704T for RAID 5/6, or a Drivestor model if Gigabit networking is enough for your needs.
