Ubiquiti UniFi U7 Pro XGS Access Point
Tri-band Wi-Fi 7 with a 10GBE uplink for high-density offices, venues and campus networks.
Wi-Fi 7Tri-Band 8-Stream10GBE UplinkPoE++ (802.3bt)500+ Clients

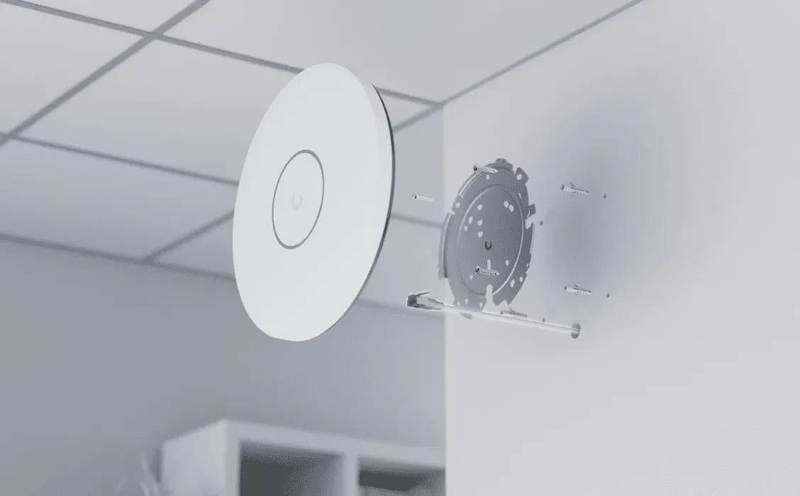

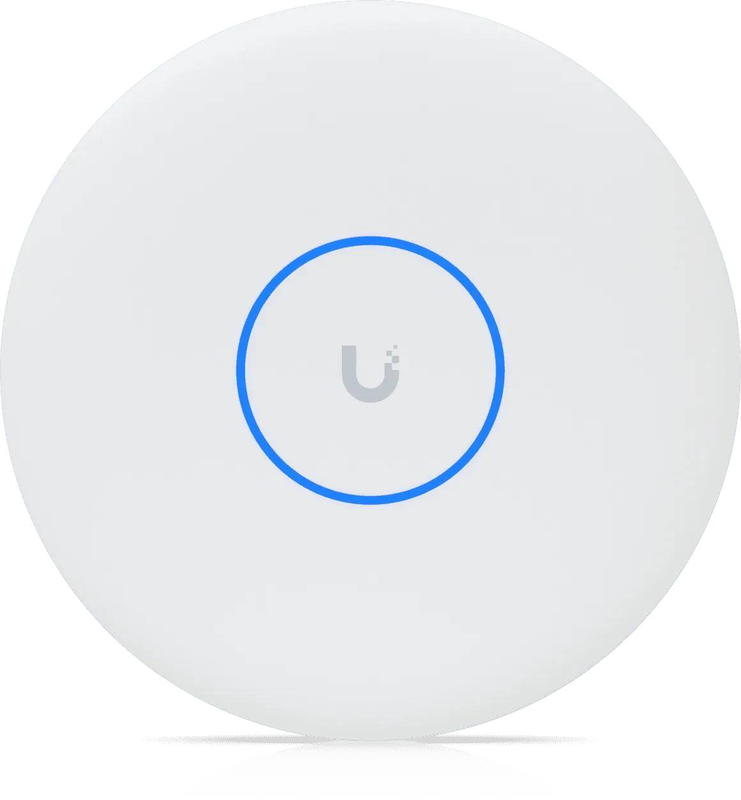

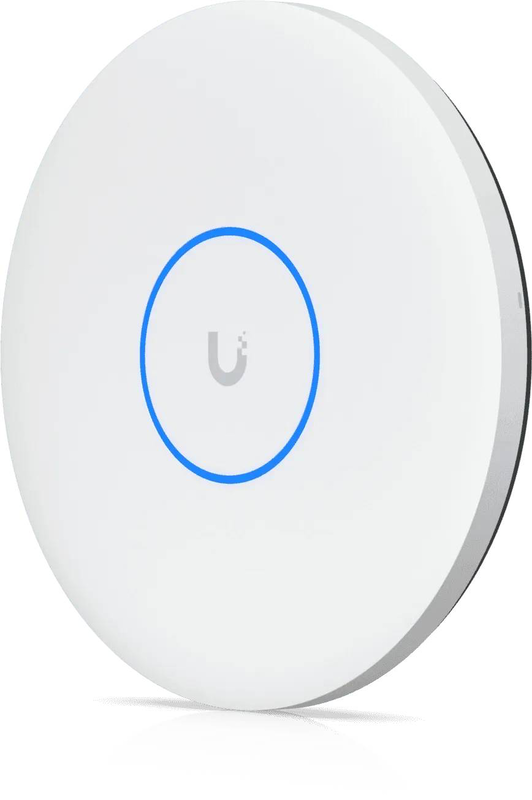

The UniFi U7 Pro XGS is a ceiling-mounted Wi-Fi 7 access point built for dense, high-throughput environments. It runs three concurrent radios — 2.4 GHz (2×2), 5 GHz (4×4) and 6 GHz (2×2) — for eight spatial streams in total, and adds Wi-Fi 7 features such as 4K-QAM and multi-link operation for higher real-world speeds and lower latency. A 10GBE uplink removes the wired bottleneck that limits older APs, so a single unit can serve 500+ connected clients across roughly 160 m². Powered by PoE++ (802.3bt) over one cable, it integrates directly into the UniFi Network application for zero-touch provisioning and centralised management.
Deployment note: The 10GBE uplink needs a PoE++ (802.3bt) source — use a UniFi Pro/Enterprise switch or a compatible 802.3bt injector. To use the 6 GHz band, clients must support Wi-Fi 6E/7. Managed via the UniFi Network application (self-hosted or cloud).
Best For
✓High-density offices, lecture halls and conference spaces
✓Venues and public areas with hundreds of concurrent clients
✓Networks with multi-gig internet that need a 10GBE AP uplink
✓Wi-Fi 6E/7 client fleets that can use the 6 GHz band
✓UniFi deployments wanting centralised, zero-touch management
✓Future-proofing an access layer for Wi-Fi 7
Key Features
Tri-Band Wi-Fi 7
Simultaneous 2.4 / 5 / 6 GHz radios with 4K-QAM and multi-link operation deliver higher throughput and lower latency than Wi-Fi 6.
8 Spatial Streams
A 4×4 stream count on 5 GHz plus 2×2 on 2.4 and 6 GHz maximises capacity for crowded environments.
10GBE Uplink
A multi-gig uplink eliminates the 1GBE bottleneck, letting the AP deliver its full aggregate wireless throughput to the wired network.
UniFi Managed
Zero-touch adoption and centralised control through the UniFi Network application, with real-time spectral analysis built in.
Technical Specifications
| Identification |
| Part Number |
U7-PRO-XGS |
| EAN / GTIN |
0810084698341 |
| MPN |
U7-Pro-XGS |
| Brand |
Ubiquiti UniFi |
| Wireless |
| Wi-Fi Standard |
802.11be (Wi-Fi 7), tri-band |
| Spatial Streams |
8 total — 2.4 GHz 2×2, 5 GHz 4×4, 6 GHz 2×2 |
| Capacity |
500+ connected clients |
| Coverage |
Up to 160 m² (1,750 ft²) |
| Connectivity |
| Uplink Port |

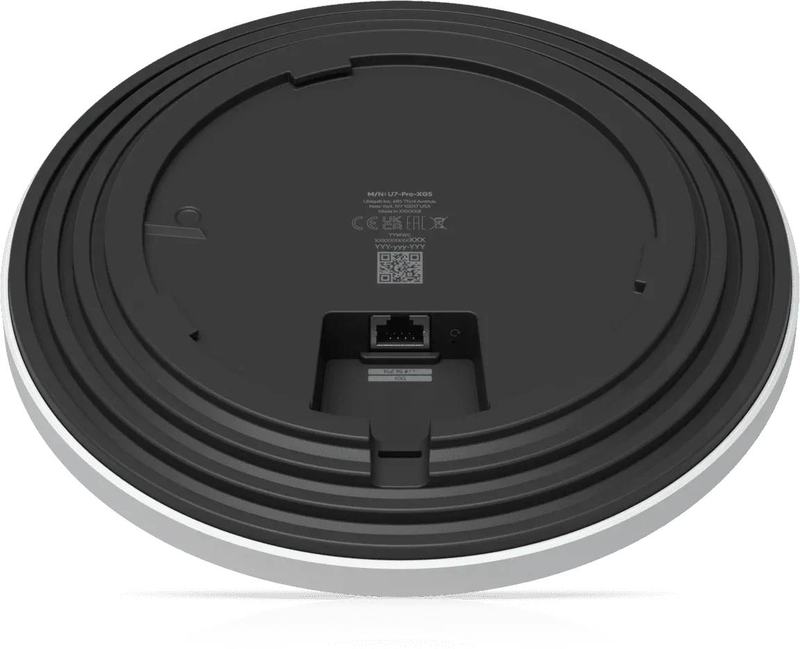

1× 10GBE (RJ-45) |
| Power over Ethernet |
PoE++ (IEEE 802.3bt) |
| Management |
UniFi Network application (self-hosted / cloud) |
| Physical |
| Mounting |

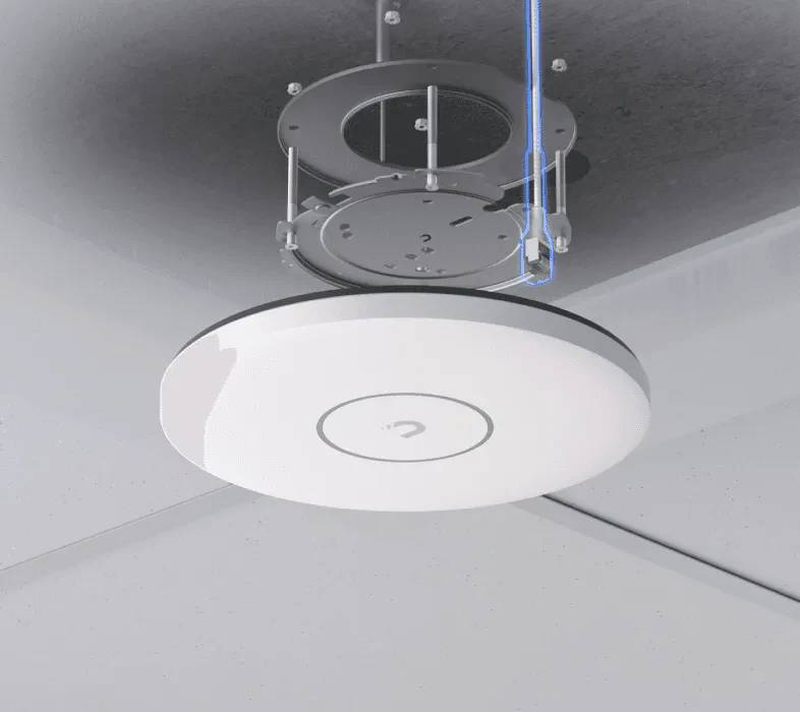

Ceiling / wall (indoor) |
| Colour |
White |
| General |
| Warranty |
1-Year Warranty (Singular) |
Frequently Asked Questions
What makes the U7 Pro XGS different from a standard Wi-Fi 7 AP?
Its 10GBE uplink. Most APs use a 1 or 2.5GBE port that caps throughput; the XGS pairs Wi-Fi 7 radios with a 10GBE port so wireless speed isn't bottlenecked at the wire.
What power does it need?
PoE++ (802.3bt). Use a UniFi Pro/Enterprise switch or an 802.3bt injector — standard PoE/PoE+ will not fully power the 10GBE model.
Do I need Wi-Fi 7 devices to benefit?
You gain capacity and the 10GBE uplink with any clients, but the 6 GHz band and full Wi-Fi 7 speeds require Wi-Fi 6E or Wi-Fi 7 client devices.
How is it managed?
Through the UniFi Network application with zero-touch adoption, whether self-hosted on a UniFi console or via UniFi cloud management.
Expert Insight
Wi-Fi 7 only shines when the wired side keeps up. Browse our full range of access points to plan coverage, and pair the U7 Pro XGS with a 10GBE PoE++ switch from our switches & bridges range to unlock its full throughput.
Buyer's Guide
Buy it if…
You need top-tier Wi-Fi 7 with a 10GBE uplink for high-density sites and already run (or plan) multi-gig wired.
Skip it if…
Your switch only offers 1GBE PoE/PoE+ or you have light client counts — a 2.5GBE Wi-Fi 6/7 AP is more cost-effective.
Also consider…
The U7 Pro (2.5GBE) for standard deployments, or the black U7 Pro XGS variant to match darker interiors.
