Hpe aruba ap-535 (rw) Wi-Fi 6 campus access point, 4x4 dual-band, up to 2.4GBps, dual mgig poe, ble 5, white

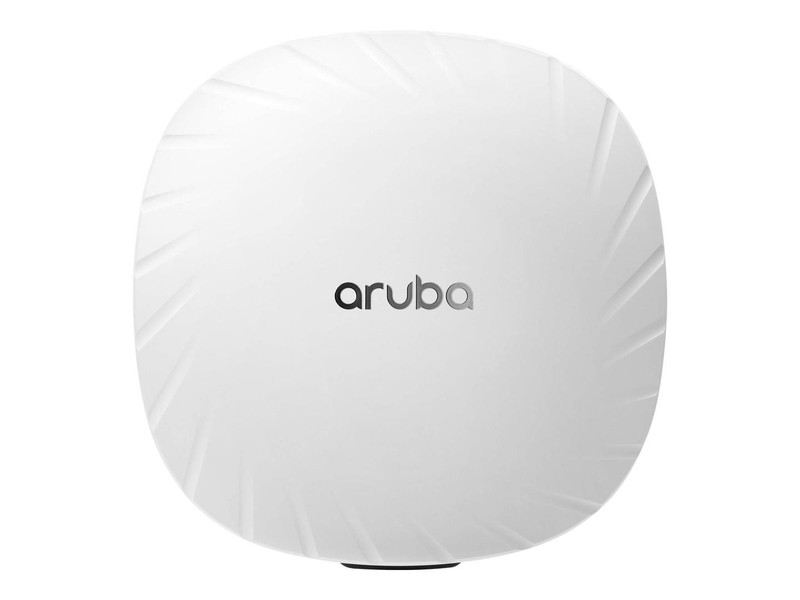

Product image: Hpe aruba ap-535 (rw) Wi-Fi 6 campus access point, 4x4 dual-band, up to 2.4GBps, dual mgig poe, ble 5, white-null
HEWLETT PACKARD
🔥Selling fast!

Hpe aruba ap-535 (rw) Wi-Fi 6 campus access point, 4x4 dual-band, up to 2.4GBps, dual mgig poe, ble 5, white

€1,384.35
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: White
In stock
–+
–+
2768
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Pick-up points / Lockers
Est. delivery: 31 Jul - 03 Aug
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. b28a6aa0-b59a-4089-b0a2-ca57051e6b5f
HPE Aruba AP-535 Wi-Fi 6 Campus Access Point Wi-Fi 6 4x4Up to 2.4GBpsDual Multigigabit PoEBLE 5 + Zigbee The HPE Aruba Networking AP-535 (part number JZ336A) is a high-performance dual-radio Wi-Fi 6 indoor campus access point for busy enterprise networks. With 4x4:4 MU-MIMO across 2.4 and 5 GHz it reaches up to 2.4GBps, and its two multigigabit Ethernet ports (HPE Smart Rate up to 5GBE) provide fast, aggregatable backhaul. Built-in Bluetooth 5 and Zigbee support IoT and location services, an

Details

HPE Aruba AP-535 Wi-Fi 6 Campus Access Point

Wi-Fi 6 4x4Up to 2.4GBpsDual Multigigabit PoEBLE 5 + Zigbee

The HPE Aruba Networking AP-535 (part number JZ336A) is a high-performance dual-radio Wi-Fi 6 indoor campus access point for busy enterprise networks. With 4x4:4 MU-MIMO across 2.4 and 5 GHz it reaches up to 2.4GBps, and its two multigigabit Ethernet ports (HPE Smart Rate up to 5GBE) provide fast, aggregatable backhaul. Built-in Bluetooth 5 and Zigbee support IoT and location services, and it is managed centrally through HPE Aruba Networking Central or a gateway/controller. Typically in stock with fast delivery across Cyprus.

Deployment note
The AP-535 is Wi-Fi 6 (802.11ax), dual-band 2.4 and 5 GHz with internal omni-directional antennas. It has two multigigabit ports (E0 HPE Smart Rate up to 5GBE plus a second mGig port) that can be aggregated; power it by PoE (Class 5 / IEEE 802.3at or higher for full function) or an optional AC adapter. It requires HPE Aruba Networking management: Central (cloud) or a gateway/controller with AP licensing.

Best For

✓High-density Wi-Fi 6 in offices, campuses and venues
✓Maximising capacity with 4x4:4 MU-MIMO
✓Fast, aggregatable multigigabit backhaul (up to 5GBE)
✓IoT and location services via built-in Bluetooth 5 and Zigbee
✓Sites standardising on HPE Aruba Central cloud management
✓Enterprises wanting proven Wi-Fi 6 without moving to 6 GHz

Key Features


4x4 Wi-Fi 6, up to 2.4GBps
802.11ax with 4x4:4 MU-MIMO across 2.4 and 5 GHz delivers up to 2.4GBps aggregate for demanding, high-density environments.

OFDMA & High Density
OFDMA — dividing airtime among many clients — and MU-MIMO keep performance steady when large numbers of devices connect at once.

Dual Multigigabit Uplinks
Two HPE Smart Rate ports (up to 5GBE) can be aggregated for high, resilient backhaul, powered over PoE for single-cable installation.

Built-in IoT & Central Management
Integrated Bluetooth 5 and Zigbee (802.15.4) support IoT and location services, while HPE Aruba Networking Central delivers cloud rollout, monitoring and security.

Technical Specifications

Identification
Part Number JZ336A (AP-535 RW)
EAN / GTIN 0190017232751
MPN JZ336A
Brand HPE Aruba Networking
Wireless
Wi-Fi Standard Wi-Fi 6 (802.11ax), dual-band 2.4 / 5 GHz
Aggregate Rate Up to 2.4GBps
Radio / MIMO 4x4:4 MU-MIMO, OFDMA
Antennas Internal omni-directional antennas
IoT Radios Bluetooth 5, Zigbee (802.15.4)
Connectivity
Ethernet 2 x multigigabit (HPE Smart Rate up to 5GBE), aggregatable, PoE
USB 1 x USB 2.0
Power & Management
Power PoE (Class 5 / IEEE 802.3at or higher) or optional AC adapter
Management HPE Aruba Networking Central (cloud) or gateway / controller
General
Deployment Indoor campus access point
Colour White
Warranty 1-Year Warranty (Singular)

Frequently Asked Questions

Is the AP-535 Wi-Fi 6 or Wi-Fi 6E?
It is Wi-Fi 6 (802.11ax), dual-band 2.4 and 5 GHz. It does not use the 6 GHz band; for 6 GHz you would choose a Wi-Fi 6E model such as the AP-635.
What multigigabit backhaul does it offer?
It has two multigigabit ports (HPE Smart Rate up to 5GBE) that can be aggregated, so the wired uplink is not limited to 1GBps and provides resilient, high-bandwidth backhaul.
Why choose 4x4 over a 2x2 access point?
4x4:4 provides more spatial streams and higher aggregate throughput (up to 2.4GBps) for very busy areas, making the AP-535 a strong choice for high-density Wi-Fi 6.
How is the AP-535 powered and managed?
By PoE (Class 5 / 802.3at or higher) or an optional AC adapter, and managed centrally through HPE Aruba Networking Central or a gateway/controller with appropriate licensing.
Singular Expert Insight
The AP-535 is a strong 4x4 Wi-Fi 6 campus AP for high density where 6 GHz is not yet needed, with dual multigigabit uplinks for fast backhaul. If your clients are Wi-Fi 6E-capable, the tri-band AP-635 adds the 6 GHz band; for mid-density a 2x2 AP is cheaper. Power it from a multi-gig PoE switch in our switches range, and compare our full access points range to match Generation and density to budget. For cloud-managed 4x4 Wi-Fi 6, this is a solid choice.

Buyer's Guide

Buy it if
You need high-density 4x4 Wi-Fi 6 with dual multigigabit PoE uplinks and cloud management for a campus or office where 6 GHz is not yet required.
Skip it if
You need the 6 GHz band (choose a Wi-Fi 6E AP-635), only require mid-density (a 2x2 AP is cheaper), or need an outdoor model.
Also consider
The Wi-Fi 6E AP-635 for 6 GHz, a 2x2 AP for mid-density, or an outdoor AP-575 for outside. Add a multi-gig PoE switch.
