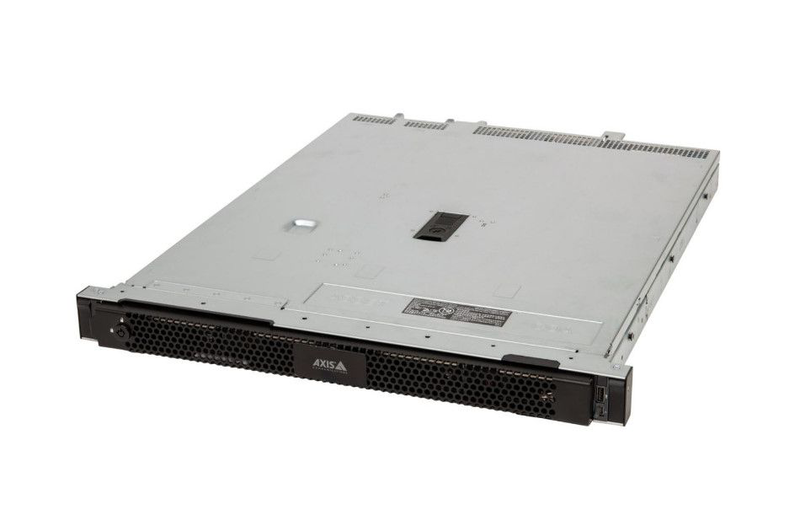

Axis camera station s1232 rack 1u recording server intel xeon 16GB 32TB 4x 8TB enterprise HDD raid 32 licenses taa

Product image: Axis camera station s1232 rack 1u recording server intel xeon 16GB 32TB 4x 8TB enterprise HDD raid 32 licenses taa-null
Product image: Axis camera station s1232 rack 1u recording server intel xeon 16GB 32TB 4x 8TB enterprise HDD raid 32 licenses taa-null
Product image: Axis camera station s1232 rack 1u recording server intel xeon 16GB 32TB 4x 8TB enterprise HDD raid 32 licenses taa-null
AXIS
🔥Selling fast!

Axis camera station s1232 rack 1u recording server intel xeon 16GB 32TB 4x 8TB enterprise HDD raid 32 licenses taa

€21,703.23
Only 1 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
Low stock
–+
–+
26703
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
Free

Description

Item No. 2962f836-f376-4d71-97f7-614de0e883ad
AXIS Camera Station S1232 Rack Recording Server Flexible, secure 1U surveillance recording server — 32TB 32TB (4× 8TB Enterprise HDD)Intel Xeon E · 16GB32 ACS LicensesRedundant PSU · RAID The AXIS Camera Station S1232 Rack is a secure, scalable 1U recording server built for professional video surveillance, powered by an Intel Xeon E processor with 16GB of memory and 32TB of hot-swappable enterprise-class storage (4 × 8TB). Supplied under part number 02538-001 (EAN 7331021080485), it comes

Details

AXIS Camera Station S1232 Rack Recording Server

Flexible, secure 1U surveillance recording server — 32TB
32TB (4× 8TB Enterprise HDD)Intel Xeon E · 16GB32 ACS LicensesRedundant PSU · RAID
The AXIS Camera Station S1232 Rack is a secure, scalable 1U recording server built for professional video surveillance, powered by an Intel Xeon E processor with 16GB of memory and 32TB of hot-swappable enterprise-class storage (4 × 8TB). Supplied under part number 02538-001 (EAN 7331021080485), it comes preloaded and preconfigured with AXIS Camera Station and 32 core camera licenses tied to the hardware, so integrators can start recording within minutes. Flexible RAID configurations, dual redundant power supplies and a FIPS 140-2 Level 2 certified TPM make it a dependable backbone for retail, enterprise and public-safety deployments. Typically in stock with fast delivery across Cyprus.
Before you buy: This is a recording server, not a live-viewing workstation — Axis recommends dedicated AXIS workstations for viewing footage. The 32 included AXIS Camera Station core licenses are tied to this hardware and can be topped up with additional licenses (sold separately). Storage ships as 24TB usable after the factory RAID 5 (32TB raw); RAID 0/1/5/6/10 are supported. Dell Ready Rails and two C13-to-C14 PDU power cords are included, but wall-plug power cords are not.

Best For

✓Mid-to-large video surveillance deployments
✓Retail, enterprise and public-safety recording
✓Sites needing up to 64 video channels at 4 MP
✓Turnkey installs with pre-licensed AXIS Camera Station
✓Secure storage with TPM and encrypted drives
✓24/7 operation with redundant power and RAID

Key Features


Preloaded & Pre-Licensed
Ships with AXIS Camera Station and 32 core camera licenses already configured — no separate VMS deployment, activation delays or licensing keys to hunt down.

Enterprise Storage with RAID
Four hot-swappable enterprise-class HDDs deliver 32TB (24TB usable after factory RAID 5), with support for RAID 0/1/5/6/10 to balance capacity and redundancy.

Scalable Performance
An Intel Xeon E CPU with 16GB RAM handles a recording bitrate up to 500 Mbit/s — qualified for 64 video channels at 4 MP / 30 fps and 128 doors in a retail scenario.

Built-in Security
A FIPS 140-2 Level 2 certified TPM 2.0 secures cryptographic keys, with support for encrypted OS and recording drives plus built-in operating-system recovery.

Technical Specifications

Identification
Part Number 02538-001
EAN / GTIN 7331021080485
Model AXIS Camera Station S1232 Rack 32TB
Processor & Memory
CPU Intel Xeon E processor
Memory 16GB (2 × 8GB)
Storage
Storage Configuration 32TB (4 × 8TB) hot-swap Enterprise HDD
Usable Capacity 24TB after factory RAID 5
RAID Support RAID 0 / 1 / 5 / 6 / 10 (factory: RAID 5)
OS Drive 480GB SSD with built-in recovery
Licensing & Scalability
Included Licenses 32 AXIS Camera Station core licenses (tied to hardware, upgradeable)
System Scalability Up to 64 video channels at 4 MP/30 fps; up to 500 Mbit/s; 128 doors
Connectivity
Network 2 × RJ-45 1GBE + dedicated iDRAC Ethernet port
USB / Ports USB 3.2 + USB 2.0 + VGA + serial (front & rear)
Remote Management iDRAC 9 (basic license)
Physical & Power
Form Factor 1U rackmount (Dell Ready Rails included)
Dimensions (D×W×H) 599 × 482 × 43 mm
Weight 12.7 kg
Power Supply 2 × 600 W hot-plug redundant PSU (100–240 V AC)
Power Consumption 127 W average / 158 W maximum
Security, Software & Warranty
Operating System Microsoft Windows 10 IoT Enterprise LTSC 2021
Security TPM 2.0 (FIPS 140-2 Level 2), encrypted OS & recording drives
Compliance TAA compliant
Warranty 5-year warranty + Keep Your Hard Drive + Next Business Day Onsite

Frequently Asked Questions

How many cameras does the S1232 Rack support?
It comes with 32 AXIS Camera Station core licenses included and is qualified for up to 64 video channels at 4 MP / 30 fps with a recording bitrate up to 500 Mbit/s. You can add more licenses (sold separately) as your camera count grows.
Does it come with hard drives and software installed?
Yes. Unlike a bare NAS, it ships with 4 × 8TB enterprise HDDs (32TB) pre-installed in RAID 5 and comes preloaded with AXIS Camera Station on Windows 10 IoT Enterprise LTSC 2021 — ready to configure and record out of the box.
Can I use the S1232 to view live video locally?
It is designed as a recording server, not a viewing station. Axis recommends using dedicated AXIS workstations or client PCs running AXIS Camera Station to view live and recorded footage, keeping the server focused on reliable ingest.
Is the S1232 Rack secure and compliant?
Yes. It features a FIPS 140-2 Level 2 certified TPM 2.0, support for encrypted OS and recording drives, and is TAA compliant, making it suitable for government, healthcare and enterprise environments with strict security requirements.
Singular Expert Insight
The S1232 Rack is the sweet spot of the AXIS S12 recorder line: server-grade Dell hardware with redundant power and RAID, bundled with 32 camera licenses so there is no VMS licensing to chase on day one. If your site is smaller, the 16TB variant (02537-001) or the S1216 covers fewer cameras at lower cost; if you need a deskside unit instead of a rack, the S1232 Tower is the direct alternative. For a pure file/media server rather than surveillance, a standard NAS is the better tool — but for turnkey, secure Axis recording, the S1232 Rack is hard to beat.

Buyer's Guide

Buy it if
You need a turnkey, secure 1U recording server for up to 64 cameras with 32 licenses, 32TB RAID storage, redundant power and a 5-year warranty.
Skip it if
You run only a handful of cameras, need a General-purpose file/media NAS, or want a deskside tower — a smaller recorder or the S1232 Tower fits better.
Also consider
The S1232 Rack 16TB (02537-001) for lower capacity, or the S1232 Tower for a non-rack deployment.
