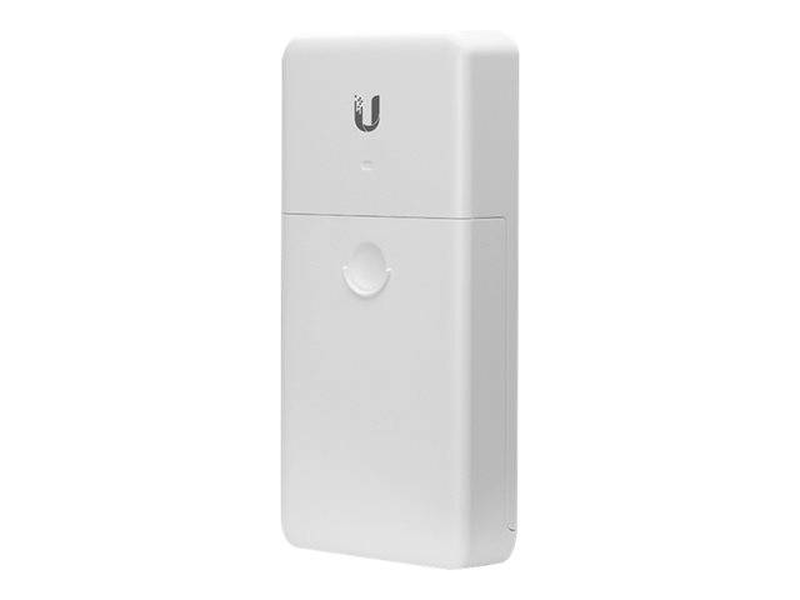

Product image: Ubiquiti n-sw nanoswitch outdoor 4 port gigabit switch 24v passive poe passthrough weatherproof white-null
Product image: Ubiquiti n-sw nanoswitch outdoor 4 port gigabit switch 24v passive poe passthrough weatherproof white-null
UBIQUITI
🔥Selling fast!

Ubiquiti n-sw nanoswitch outdoor 4 port gigabit switch 24v passive poe passthrough weatherproof white

from €54.86 to - 10% - 10% €49.37
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: White
In stock
–+
–+
98
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Pick-up points / Lockers
Est. delivery: 31 Jul - 03 Aug
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 03 Aug - 05 Aug
€3.49

Description

Item No. 60ebafe9-c940-486b-8116-a646a9982c74
UISP NanoSwitch — Outdoor 4-Port Gigabit Switch N-SW4× GbE · 4GBps non-blocking24V passive PoE passthroughOutdoor · -30 to 70°C · NDAA The Ubiquiti NanoSwitch (part number N-SW) is a weatherproof 4-port Gigabit switch for tower and rooftop sites: one port takes 24V passive PoE in, and the other three pass both data and 24V power through to airMAX radios, airCubes or cameras. With a 4GBps non-blocking line rate, ±24 kV ESD/EMP protection and a -30 to 70°C rating in a white polycarbonate shell,

Details

UISP NanoSwitch — Outdoor 4-Port Gigabit Switch

N-SW4× GbE · 4GBps non-blocking24V passive PoE passthroughOutdoor · -30 to 70°C · NDAA

The Ubiquiti NanoSwitch (part number N-SW) is a weatherproof 4-port Gigabit switch for tower and rooftop sites: one port takes 24V passive PoE in, and the other three pass both data and 24V power through to airMAX radios, airCubes or cameras. With a 4GBps non-blocking line rate, ±24 kV ESD/EMP protection and a -30 to 70°C rating in a white polycarbonate shell, it distributes a single PoE feed across a whole mast. Typically in stock with fast delivery across Cyprus.

Compatibility note: Powered by 24V passive 2-pair PoE (21.6–30V) — the recommended POE-24-30W-G adapter is not included. Passthrough is passive 24V only: connect devices rated for it (airMAX CPEs etc.), never standard 802.3af/at equipment. Total PoE budget 30 W across the three ouTPUt ports.

Key Features


One cable feeds four devices
A single 24V PoE run up the tower powers the NanoSwitch and up to three passthrough devices — no extra injectors or mains at height.

Full Gigabit, zero blocking
Four GbE ports with 4GBps total non-blocking capacity keep backhaul and CPE traffic at wire speed, with per-port speed/link/activity LEDs.

Built for the mast
White polycarbonate enclosure, -30 to 70°C operating range, 5–95% humidity tolerance and ±24 kV ESD/EMP protection; NDAA compliant.

Technical Specifications

Identification
Part Number N-SW
EAN / GTIN 0817882021708
MPN N-SW
Networking

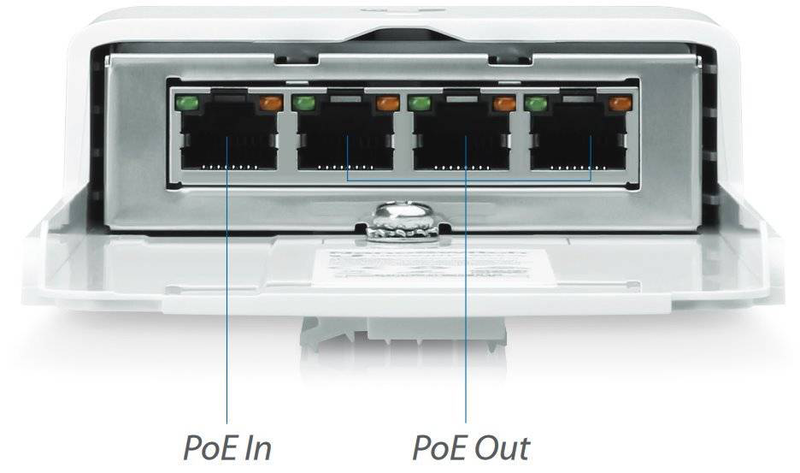

Ports 4× GbE RJ45 — 1 PoE-in, 3 PoE passthrough
Line rate 4GBps total, non-blocking
Power
Power method Passive 24V, 2-pair PoE-in (21.6–30V)
PoE passthrough 24V 2-pair, up to 1A (24 W) per port, 30 W total across 3 ports
Consumption 1.5 W typical (30 W max incl. passthrough)
Power supply POE-24-30W-G adapter — not included
Physical & Environment
Dimensions 196 × 93 × 32 mm
Weight 269 g
Enclosure White polycarbonate, outdoor
Operating temperature -30 to 70°C
Protection ±24 kV ESD/EMP · NDAA compliant

Frequently Asked Questions

Is the NanoSwitch managed?
No — it is a plug-and-play unmanaged switch. It simply extends one PoE feed to multiple mast-mounted devices at Gigabit speed.
Can it power standard 802.3af/at devices?
No. Passthrough is passive 24V on fixed pairs; connecting IEEE-PoE-only devices risks damage. It is designed for airMAX-class 24V equipment.
What power supply do I need?
Ubiquiti recommends the POE-24-30W-G Gigabit PoE adapter (sold separately) to cover the switch plus the full 30 W passthrough budget.
What do I need to know before buying?
Budget the three ouTPUt ports at 30 W combined, keep the feed voltage within 21.6–30V, and note it is unmanaged — VLANs and monitoring need an upstream managed switch.
Singular Expert Insight
The NanoSwitch solves the classic relay-site problem — two or three radios on one mast, one cable from below. It replaces a stack of injectors with a single weatherproof box. For managed outdoor switching with IEEE PoE, step up to a UniFi Flex; browse both in our network switches range.

Buyer’s Guide

Buy it if
you feed multiple 24V airMAX devices on one mast from a single PoE run — outdoor-rated, Gigabit, 30 W passthrough.
Skip it if
your devices need 802.3af/at/bt or management features — the UniFi Flex (USW-Flex) is the managed IEEE-PoE alternative.
Also consider
the USW-Flex managed outdoor switch, or the POE-24-30W-G adapter to power this NanoSwitch.
