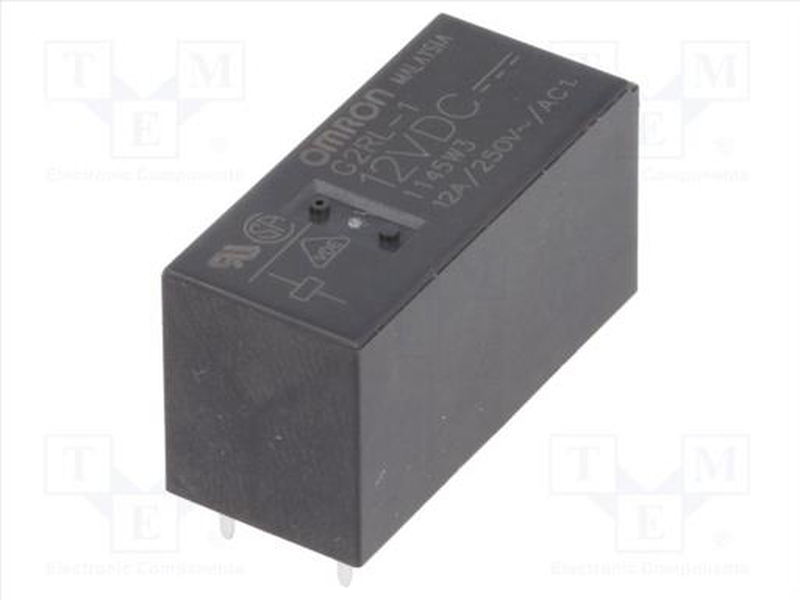

12v dc 12a/250vac relay 5pin
🔥Selling fast!
12v dc 12a/250vac relay 5pin
from
€5.75
to
- 17%
- 17%
€4.75
Only 1 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6263764&productId=56d1c45a-6e0a-4ab7-8cd2-b75b8372fe50&quantity=1"}]
–+
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=1&pid=6263764&productId=56d1c45a-6e0a-4ab7-8cd2-b75b8372fe50&quantity=1"}]
–+
8
Points earned
Low stock
Delivery options
Pick-up points / Lockers
Est. delivery: 18 May - 19 May
Free
Delivery to your door
FREE shipping on orders over €85.00 from Hadjistyllis Videotronics
Est. delivery: 18 May - 20 May
€3.49
Description
Item No.
56d1c45a-6e0a-4ab7-8cd2-b75b8372fe50
Manufacturer: OMRON
Relay type: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
AC contacts rating
at resistance load: 12 A / 250 VAC
DC contacts rating
at resistance load: 12 A / 24 VDC
Contact current max.: 12A
Switched voltage max: 440V AC, max 300V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Operate time: 15ms
Body dimensions: 29 x 12.7 x 15.7mm
Release time: 5ms
Operating temperature: -40...85°C
Relay series: G2RL
Contact resistance: 100mΩ
Terminal pitch: 3.5mm
Coil current: 33.3mA
Enclosure description: standard seal
Leads: for PCB
Attributes
Relay Characteristics
- Relay Type: Miniature
