240vac 10a 8pin relay electromagnetic
🔥Selling fast!

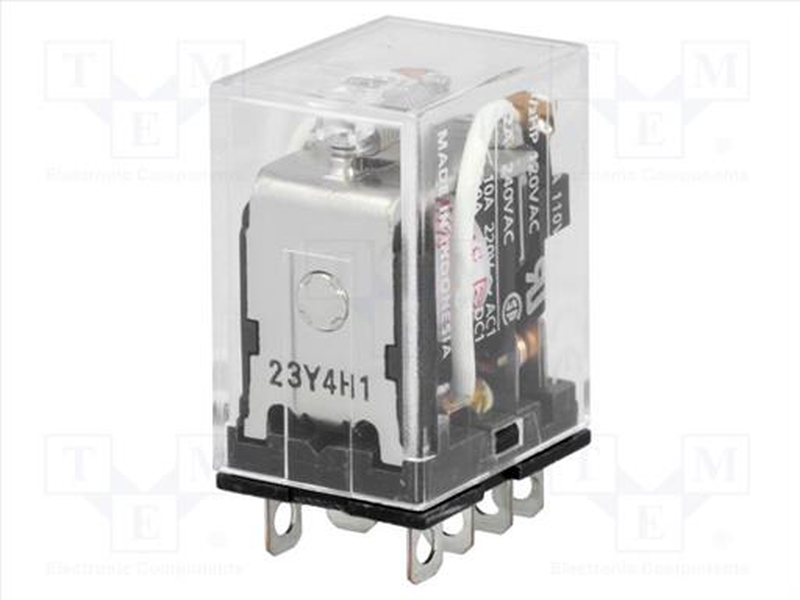

240vac 10a 8pin relay electromagnetic
from
€13.00
to
- 15%
- 15%
€11.00
Only 2 left!
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=2&pid=6266009&productId=b26a943b-a6f5-4240-87a2-0ffc89cd320c&quantity=1"},{"value":"2","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=2&pid=6266009&productId=b26a943b-a6f5-4240-87a2-0ffc89cd320c&quantity=2"}]
–+
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=2&pid=6266009&productId=b26a943b-a6f5-4240-87a2-0ffc89cd320c&quantity=1"},{"value":"2","url":"/on/demandware.store/Sites-Jinius-Site/en_GB/Product-OfferAvailability?p11Quantity=2&pid=6266009&productId=b26a943b-a6f5-4240-87a2-0ffc89cd320c&quantity=2"}]
–+
22
Points earned
Low stock
Delivery options
Pick-up points / Lockers
Est. delivery: 18 May - 19 May
Free
Delivery to your door
FREE shipping on orders over €85.00 from Hadjistyllis Videotronics
Est. delivery: 18 May - 20 May
€3.49
Description
Item No.
b26a943b-a6f5-4240-87a2-0ffc89cd320c
- Manufacturer: OMRON
- Type of relay: electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 240V AC
- AC contacts rating @R: 10A / 110V AC
- DC contacts rating @R: 10A / 24V DC
- Contact current max.: 10A
- Switched voltage: max. 125V DC,
max. 250V AC
- Relay variant: industrial
- Mounting: socket
- Coil voltage min.: 192V AC
- Relay series: LY2
- Operating temperature: -25...40°C
- Body dimensions: 28x21.5x36mm
- Coil resistance: 18.79kΩ
- Mechanical durability:
50000000 cycles
- Operate time: 25ms
- Release time: 25ms
- Contact resistance: 50mΩ
- Coil power consumption: 1.2VA
- Leads: 4,8x0,5mm connectors
- Switching capacity: 240W,
1100VA
- Related items: PT08-0,
PTF08A-E
Additional information
- Gross weight: 33.8 g
Attributes
Relay Characteristics
- Relay Type: Industrial
