Honeywell vuquest 3320g 2d area-imaging barcode scanner USB kit compact 77g reads phone screens 1d pdf417 2d black

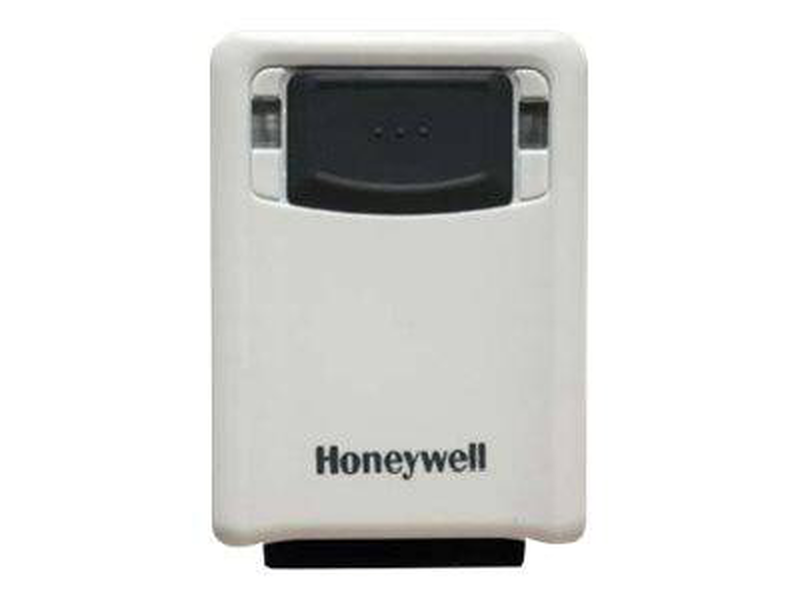

Product image: Honeywell vuquest 3320g 2d area-imaging barcode scanner USB kit compact 77g reads phone screens 1d pdf417 2d black-null
HONEYWELL
🔥Selling fast!

Honeywell vuquest 3320g 2d area-imaging barcode scanner USB kit compact 77g reads phone screens 1d pdf417 2d black

€437.33
or
Pay in 3, 6 or 9 interest-free monthly installments and 0 service fees with Fleksy image
Select Color: Black
In stock
–+
–+
874
Points earned
You can earn Antamivi points every time you make a payment using your Bank of Cyprus cards.
The number of Antamivi points and the corresponding amount of money displayed are indicative and may vary from time to time. Want to know more? Check out our FAQs here.
If you are an eligible member of the Bank of Cyprus loyalty scheme Pronomia, you will receive additional Antamivi points based on your assigned tier.
From: Singular Computers Systems LTD
Buy more from this shop
Delivery options
Pick-up points / Lockers
Est. delivery: 23 Jul - 24 Jul
Free
Delivery to your door
FREE shipping on orders over €85.00 from Singular Computers Systems LTD
Est. delivery: 24 Jul - 28 Jul
Free

Description

Item No. 08fc46c6-55a1-44e1-a599-b695d35622d4
Honeywell Vuquest 3320g — Pocket-Sized 2D Scanning for Modern Retail 1D / PDF / 2D + ScreensOnly 77 gLaser-Free AimingUSB Cable Included The Honeywell Vuquest 3320g (part number 3320G-4USB-0, EAN 4016139164137) is a remarkably compact area-imaging scanner — 73 x 51 x 26 mm and just 77 g — that reads every common barcode type: 1D, PDF417 and 2D codes like QR and DataMatrix, printed on paper or displayed on phone and computer screens. Powered by Adaptus Imaging 6.0, it decodes aggressively even o

Attributes

Details

Honeywell Vuquest 3320g — Pocket-Sized 2D Scanning for Modern Retail

1D / PDF / 2D + ScreensOnly 77 gLaser-Free AimingUSB Cable Included

The Honeywell Vuquest 3320g (part number 3320G-4USB-0, EAN 4016139164137) is a remarkably compact area-imaging scanner — 73 x 51 x 26 mm and just 77 g — that reads every common barcode type: 1D, PDF417 and 2D codes like QR and DataMatrix, printed on paper or displayed on phone and computer screens. Powered by Adaptus Imaging 6.0, it decodes aggressively even on reflective displays, with motion tolerance above 270 cm/s so codes scan on the move. This USB kit includes the 2.9 m straight USB cable; multi-interface support (USB, RS232, Keyboard Wedge) with auto-detection means it configures itself from the cable you plug in. Handheld, wearable or fixed-mounted at a kiosk — it fits wherever a full-size scanner will not. Typically in stock with fast delivery across Cyprus.

Compatibility Note
This is a corded scanner powered from the USB port. The scanner uses a 15-pin D-Sub cable connection — use Honeywell 3320g cables if replacing or extending. Decode capability depends on kit licence tier: this -4 variant reads 1D, PDF417 and 2D symbologies out of the box, with optional licences for extended features like OCR.

Best For

✓ Retail counters scanning phone coupons & wallets
✓ Kiosks and self-service — universal fixed mounting
✓ Ticketing and event entry (QR on screens)
✓ Pharmacies — PDF417 and DataMatrix on packs
✓ Light industrial stations via external I/O triggering
✓ Wearable or space-constrained checkout setups

Key Features


Reads Everything, Everywhere
1D, PDF417, QR, DataMatrix, postal codes — printed or on a screen. Adaptus 6.0 imaging handles highly reflective phone displays without specialty hardware.

Truly Compact
At 73 x 51 x 26 mm and 77 g it is among the smallest 2D scanners available, with a thumb-activated button and universal mounting for handheld, wearable or fixed use.

Customer-Friendly Aiming
Laser-free LED aiming removes eye-safety concerns at the counter, and the soft illumination avoids the harsh flash after-effects of typical imagers.

TotalFreedom 2.0 + External I/O
Load decoding and formatting plug-ins directly onto the scanner, and trigger external devices (beeper, photo eye, illumination) — capabilities normally found in industrial fixed scanners.

Technical Specifications

Identification
Part Number 3320G-4USB-0
EAN / GTIN 4016139164137
MPN 3320G-4USB-0
Brand / Series Honeywell Vuquest
Scan Performance
Scan Pattern Area image — 838 x 640 pixel array
Decode Capability Standard 1D, PDF, 2D, Postal symbologies (per kit licence)
Screen Reading Reads barcodes on phone, tablet and computer screens
Motion Tolerance >270 cm/s at focal point
Scan Angle 42.4° horizontal x 33° vertical; focal point 127 mm
Depth of Field (13 mil UPC-A) 39–435 mm
Depth of Field (10 mil Code 39) 26–330 mm
Depth of Field (6.7 mil PDF417) 36–178 mm
Depth of Field (10 mil DataMatrix) 47–216 mm
Resolution 1D: 5 mil (0.125 mm); 2D: 6.7 mil (0.170 mm)
Print Contrast 20% minimum reflectance difference
Pitch / Skew ±45° / ±65°
Connectivity
Host Interfaces Multi-interface: USB, RS232, Keyboard Wedge — automatic interface detection
Included Cable 2.9 m straight USB Type-A cable
Termination 15-pin D-Sub connector on scanner
Physical
Dimensions 73 x 51 x 26 mm
Weight 77 g
Electrical
Input Voltage 5 VDC ± 0.25 V, USB bus-powered
Operating Power 2.3 W (450 mA @ 5 V)
Standby Power 0.45 W (90 mA @ 5 V)
Environmental
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% to 95% RH, non-condensing
Drop Rating Withstands 1.5 m drops
Environmental Sealing IP53 — dust-protected and resistant to spraying water, not immersion
Light Levels 0–100,000 lux (works in direct sunlight)
In the Box & Warranty
Included Vuquest 3320g scanner, 2.9 m straight USB cable, documentation
Warranty 2-year factory warranty

Frequently Asked Questions

Can the Vuquest 3320g read QR codes from phone screens?
Yes — that is its speciality. Adaptus Imaging 6.0 reads barcodes on highly reflective mobile screens almost as if printed on paper, so loyalty apps, e-tickets and digital coupons scan first time without extra hardware.
Does it need drivers or a power supply?
No. It draws its 450 mA from the USB port and presents as a keyboard by default, typing scans into any application. RS232 and Keyboard Wedge modes are also supported, detected automatically from the connected cable.
Is the Vuquest 3320g suitable for fixed-mount kiosk use?
Yes. Universal mounting points, robust presentation-mode performance and external I/O for triggering beepers or photo eyes make it a Genuine fixed-mount option for kiosks and light industrial lines, at a fraction of industrial-scanner cost.
What should I know before buying the 3320g?
It is corded (USB) and IP53-rated — fine for retail and light industry, but for wasHDown or heavy drops look at ultra-rugged models. Decode tiers are licence-based: this -4 kit reads 1D, PDF417 and 2D out of the box, and features like OCR can be added later by licence.
Singular Expert Insight
Think of the 3320g as the anti-gun scanner: where the Honeywell Voyager 1250g is a full-size laser for printed 1D codes, the Vuquest is a palm-sized imager that handles the modern mix — QR on a phone, PDF417 on an ID, EAN on a box — and disappears into a kiosk when mounted. Its 77 g weight also makes it the pick for wearable setups. If your counter never sees a screen-displayed code, a laser scanner is cheaper; but for future-proof retail scanning in minimal space, the 3320g is hard to beat.

Buyer’s Guide

Buy it if
You need 1D + 2D + phone-screen scanning in the smallest possible package — 77 g — for counters, kiosks or wearable use, with the USB cable included.
Skip it if
You need wasHDown-proof ruggedness (IP53 only), cordless freedom, or you exclusively scan printed 1D codes — a laser scanner costs less.
Also consider
Honeywell Voyager 1250g for budget 1D laser scanning, Zebra DS2208 as a full-size 2D gun, or Zebra DS3678-SR for ultra-rugged cordless 2D.
