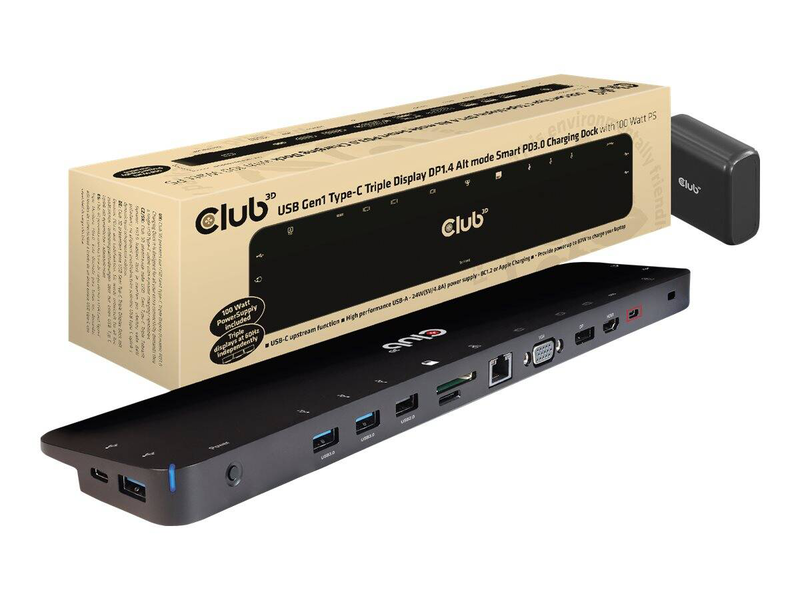

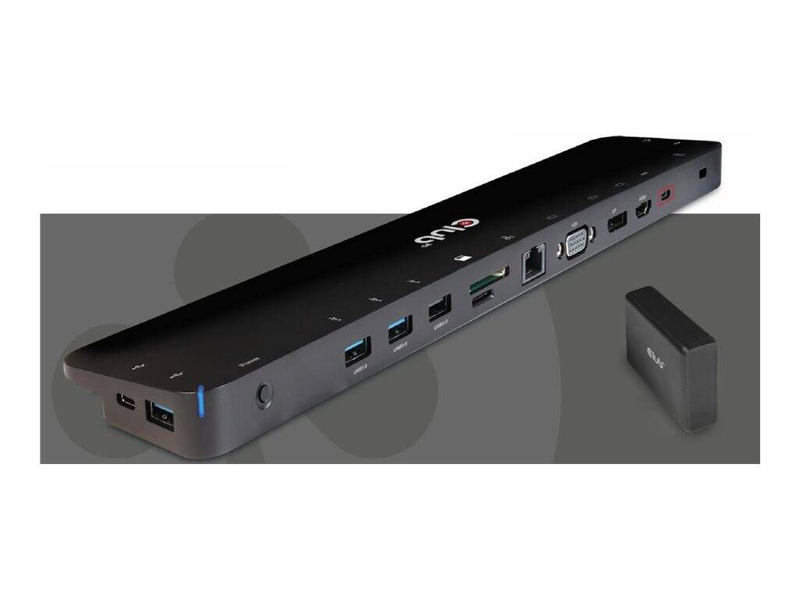

Club 3d csv-1565 USB-c triple display docking station vga HDMI displayport 4k 60hz 100w pd sd gigabit ethernet black

Product image: Club 3d csv-1565 USB-c triple display docking station vga HDMI displayport 4k 60hz 100w pd sd gigabit ethernet black-null
Product image: Club 3d csv-1565 USB-c triple display docking station vga HDMI displayport 4k 60hz 100w pd sd gigabit ethernet black-null
Product image: Club 3d csv-1565 USB-c triple display docking station vga HDMI displayport 4k 60hz 100w pd sd gigabit ethernet black-null
CLUB 3D
🔥Πωλείται γρήγορα!

Club 3d csv-1565 USB-c triple display docking station vga HDMI displayport 4k 60hz 100w pd sd gigabit ethernet black

€ 215.81
Aπομένουν μόνο 2!
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: Black
Χαμηλό απόθεμα
–+
–+
430
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 03 Αυγ - 04 Αυγ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 03 Αυγ - 05 Αυγ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 0809ccc9-f1a1-46a7-9d45-da02222f9602
Club 3D CSV-1565 — USB-C Triple Display DP1.4 Alt Mode PD Dock (100W) Triple Display (VGA/HDMI/DP)Single 4K 60Hz100W PD pass-throughGbE + SD The Club 3D CSV-1565 (part number CSV-1565) is a USB-C triple display docking station that expands a single USB-C port into VGA, HDMI and DisplayPort outputs, Gigabit Ethernet, five USB-A ports, an SD/microSD reader and 100W Power Delivery — built for multi-monitor office desks that mix modern and legacy displays. Thanks to DisplayPort 1.4 Alt Mode it driv

Χαρακτηριστικά

Λεπτομέρειες

Club 3D CSV-1565 — USB-C Triple Display DP1.4 Alt Mode PD Dock (100W)

Triple Display (VGA/HDMI/DP)Single 4K 60Hz100W PD pass-throughGbE + SD

The Club 3D CSV-1565 (part number CSV-1565) is a USB-C triple display docking station that expands a single USB-C port into VGA, HDMI and DisplayPort ouTPUts, Gigabit Ethernet, five USB-A ports, an SD/microSD reader and 100W Power Delivery — built for multi-monitor office desks that mix modern and legacy displays. Thanks to DisplayPort 1.4 Alt Mode it drives a single 4K display at 60Hz, a step up from the DP 1.2-based CSV-1564 models. Typically in stock with fast delivery across Cyprus.

Compatibility & display setup
Video uses native USB-C DisplayPort 1.4 Alt Mode with MST (Multi-Stream Transport) — no driver install. A single display runs up to 4K 60Hz, dual displays up to 4K 30Hz, and triple displays at Full HD, across its HDMI, DisplayPort and VGA ouTPUts. Because Apple does not support MST over USB-C, on macOS the ouTPUts mirror a single display. The host USB-C port must support DisplayPort Alt Mode (USB4 and Thunderbolt 3/4 compatible). The 100W Power Delivery is pass-through: connect your USB-C charger to the dock and it powers the laptop while running the ports (charger not included). VGA supports legacy monitors and projectors.

Best For

✓Triple-monitor productivity and office desks
✓Single 4K 60Hz sharp display setups
✓Mixing legacy VGA with HDMI / DP screens
✓Photographers pulling footage via SD/microSD
✓Wired Gigabit networking and USB peripherals
✓Charging the laptop through the dock (up to 100W)

Key Features


Triple Display, 4K 60Hz
HDMI 2.0, DisplayPort and VGA ouTPUts drive up to three monitors via MST — with a single display up to 4K 60Hz thanks to DisplayPort 1.4 Alt Mode.

Legacy + Modern Video
Few docks still carry VGA alongside HDMI and DisplayPort — connect older projectors and monitors as well as new 4K screens from one unit.

Full Hub + 100W
Five USB-A ports, a USB-C data port, an SD/microSD reader, Gigabit Ethernet, audio and 100W PD pass-through cover data, network and power.

Technical Specifications

Identification
Part Number CSV-1565
EAN / GTIN 8719214472702
MPN CSV-1565
Brand Club 3D
Video OuTPUt
Display Ports 1 x HDMI 2.0 + 1 x DisplayPort + 1 x VGA
Video Technology Native USB-C DisplayPort 1.4 Alt Mode with MST — driver-free
Max Resolution Single 4K 60Hz; dual 4K 30Hz; triple Full HD
OS Note Windows multi-display; macOS mirrors a single display (no USB-C MST)
Data & Storage
USB-A 3 x USB-A 5GBps + 2 x USB-A 480Mbps
USB-C 1 x USB-C 5GBps (data)
Card Reader SD + microSD (SD 3.0)
Network & Audio
Ethernet Gigabit Ethernet (RJ45, 1GBps)
Audio 3.5mm audio / microphone jack
Power & Host

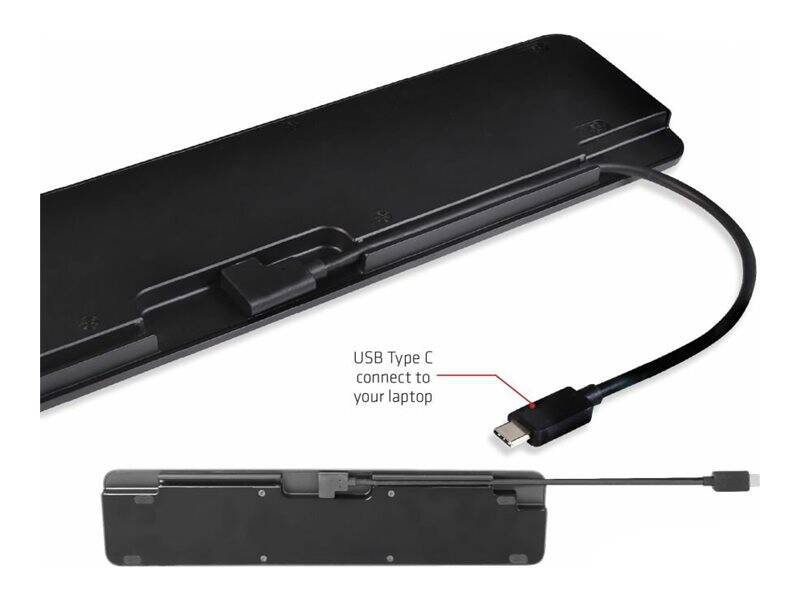

Host Connection USB-C 3.2 Gen 1 (5GBps) with DisplayPort 1.4 Alt Mode
Power Delivery 100W USB-C PD pass-through (from your USB-C charger; not included)
Physical
Security Kensington anti-theft lock slot
Colour Black
Warranty 1-Year Warranty (Singular)

Frequently Asked Questions

Can the CSV-1565 run three monitors at once?
Yes. Its HDMI, DisplayPort and VGA ouTPUts drive up to three displays via MST. Resolution scales with the count: a single display up to 4K 60Hz, two at 4K 30Hz, and three at Full HD. Your laptop must support DisplayPort MST over USB-C.
What is the difference from the CSV-1564?
The CSV-1565 uses DisplayPort 1.4 Alt Mode, so a single display reaches 4K 60Hz, whereas the CSV-1564 (W65/W100) is DisplayPort 1.2 and tops out at 4K 30Hz on a single screen. The CSV-1564 models bundle a charger; the CSV-1565 uses 100W pass-through.
Does it work on a Mac?
It connects to Macs with a USB-C DisplayPort Alt Mode port, but because Apple does not support MST over USB-C, macOS mirrors a single display rather than extending across three. On Windows it delivers full multi-monitor ouTPUt.
Does it charge my laptop?
It offers 100W USB-C Power Delivery pass-through: connect your own USB-C charger to the dock and it powers the laptop through the single cable. A charger is not included with this model.
Singular Expert Insight
A versatile triple-display dock that keeps legacy VGA alongside HDMI and DisplayPort, and steps up to 4K 60Hz single-display over DisplayPort 1.4 — a clear improvement on the DP 1.2 CSV-1564. As a native DP Alt Mode device it mirrors on macOS (Apple blocks USB-C MST), and the 100W PD is pass-through, so bring your own charger. For a bundled charger, the CSV-1564W100 is an option. Browse the full laptop docking stations range, and pair it with our PC monitors.

Buyer’s Guide

Buy it if
You want triple video including legacy VGA, a single 4K 60Hz screen, an SD reader, GbE and 100W pass-through on Windows.
Skip it if
You need dual 4K 60Hz, Mac multi-display, or a bundled charger — dual is 4K 30Hz, macOS mirrors, and no charger is included.
Also consider
The Club 3D CSV-1564W100 (bundled charger) or CSV-2541 for higher multi-display resolutions.
