Shuttle xpc slim dn11h7 ai pc barebone mini pc core ultra 7 155h arc graphics 4x 2.5GBe no ram no SSD no os black

Name: Shuttle xpc slim dn11h7 ai pc barebone mini pc core ultra 7 155h arc graphics 4x 2.5GBe no ram no SSD no os black
Brand: SHUTTLE
SKU: 5d828099-1a95-484a-a75a-b6e21ff9f588
Price: 1179.35 EUR
Availability: InStock

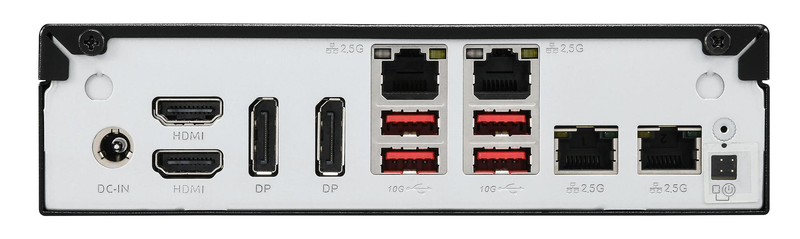

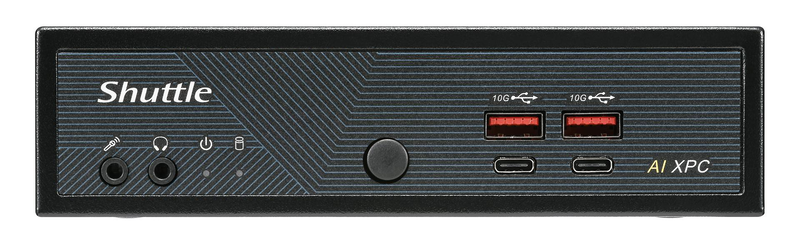

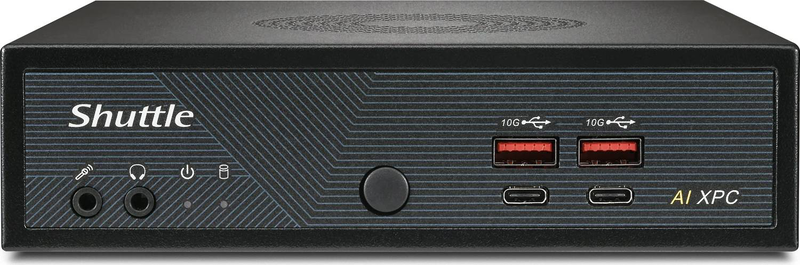

Product image: Shuttle xpc slim dn11h7 ai pc barebone mini pc core ultra 7 155h arc graphics 4x 2.5GBe no ram no SSD no os black-null

SHUTTLE

Shuttle xpc slim dn11h7 ai pc barebone mini pc core ultra 7 155h arc graphics 4x 2.5GBe no ram no SSD no os black

€ 1,179.35

Aπομένουν μόνο 1!

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Χαμηλό απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 03 Ιουλ - 06 Ιουλ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 06 Ιουλ - 08 Ιουλ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 5d828099-1a95-484a-a75a-b6e21ff9f588

Shuttle XPC slim DN11H7 — AI PC Barebone A 1.3-litre AI barebone with exceptional connectivity — four 2.5G LAN ports, quad 4K output and triple M.2 storage. Add memory, an SSD and an OS. Core Ultra 7 155HIntel Arc Graphics4x 2.5G LANAI up to 34 TOPS The Shuttle XPC slim DN11H7 is a 1.3-litre AI-PC barebone built around the Intel Core Ultra 7 155H processor with Intel Arc graphics and an on-chip NPU, designed for network video recorders, edge AI, firewall/router and multi-display roles where con

Λεπτομέρειες

Shuttle XPC slim DN11H7 — AI PC Barebone

A 1.3-litre AI barebone with exceptional connectivity — four 2.5G LAN ports, quad 4K ouTPUt and triple M.2 storage. Add memory, an SSD and an OS.

Core Ultra 7 155HIntel Arc Graphics4x 2.5G LANAI up to 34 TOPS

The Shuttle XPC slim DN11H7 is a 1.3-litre AI-PC barebone built around theIntel Core Ultra 7 155H processor with Intel Arc graphics and an on-chip NPU, designed for network video recorders, edge AI, firewall/router and multi-display roles where connectivity matters most. Supplied under part number DN11H7 (EAN 0887993007304), it ships without memory, storage or an operating system — the CPU, cooling and Wall/VESA mount are included, while you add the DDR5 memory, M.2 NVMe SSD and OS. Typically in stock with fast delivery across Cyprus.

Barebone — what you need to add

To complete the build you will need: DDR5 SO-DIMM memory (2 slots, up to 96GB total); one or more M.2-2280 SSDs — three slots are provided (1x NVMe-only + 2x SATA/NVMe); and an operating system (Windows 11 64-bit or Linux 64-bit). Wi-Fi is not fitted as standard — the M.2-2230 slot accepts an optional WLAN/Bluetooth module (Shuttle WLN-M1). The Wall/VESA mount is included.

Best For

✓Network video recorders (NVR)

✓Firewall / router / network server

✓Edge AI & data visualization

✓Quad-display digital signage

✓Image processing & multimedia

✓Industrial process control

Key Features

Four 2.5G LAN ports

Four independent 2.5 Gigabit Ethernet interfaces let you run physically separate networks at high bandwidth — ideal for NVR, firewall, router and multi-segment server roles.

Quad 4K display ouTPUt

Two HDMI 2.0b and two DisplayPort 1.4 ouTPUts drive up to four high-resolution displays at once for signage, monitoring walls and data visualization.

Triple M.2 storage + 96GB DDR5

Three M.2-2280 slots (one NVMe, two SATA/NVMe) plus two DDR5 SO-DIMM slots up to 96GB give this 1.3L barebone serious storage and memory headroom.

Core Ultra 7 155H with AI NPU

Intel’s Meteor Lake CPU combines performance cores, Arc graphics and a dedicated NPU for up to 34 TOPS of total system AI acceleration.

Technical Specifications

Identification
Part Number	DN11H7
EAN / GTIN	0887993007304
MPN	DN11H7
Series	Shuttle XPC slim DN11H (AI PC)
Processor & AI
Processor	Intel Core Ultra 7 155H — Meteor Lake, 16 cores (6 P + 8 E + 2 LP-E), 22 threads, up to 4.8GHz
Graphics	Intel Arc Graphics (integrated)
AI acceleration	On-chip NPU — up to 34 TOPS total system AI (CPU + GPU + NPU); an AI PC, not a Copilot+ device
Memory & Storage (not included)
Memory	2 x DDR5 SO-DIMM, up to 96GB total (user-supplied)
Storage	3 x M.2-2280 (1x NVMe + 2x SATA/NVMe) + 1 x M.2-2230 (Wi-Fi / expansion), user-supplied
Connectivity
Wired LAN	4 x 2.5 Gigabit Ethernet (RJ45)
Wireless	Optional — M.2-2230 slot for a WLAN/Bluetooth module (Shuttle WLN-M1, not included)
USB	6 x USB 3.2 Gen2 Type-A (10GBps) + 2 x USB 3.2 Gen2 Type-C (10GBps)
Display	2 x HDMI 2.0b + 2 x DisplayPort 1.4 — quad 4K display support
Other	Kensington lock; wired remote power-on header
Power, Chassis & OS
Power	External 120W adapter (19V, 6.32A); 100–240V AC input
Dimensions / Weight	190 x 165 x 43 mm (1.3 litres), 1.23kg — Wall/VESA mount included
Operating system	Not included (barebone) — supports Windows 11 (64-bit), Linux (64-bit)
Colour / Condition	Black / New

Frequently Asked Questions

What do I need to add to the DN11H7 before using it?

As a barebone it includes the Core Ultra 7 155H processor, cooling and Wall/VESA mount. You add DDR5 SO-DIMM memory (up to 96GB), one or more M.2-2280 SSDs, and an operating system (Windows 11 or Linux). Wi-Fi is optional via the M.2-2230 slot.

Does the DN11H7 include Wi-Fi?

Not as standard. It has four 2.5G wired LAN ports built in, and the spare M.2-2230 slot accepts an optional WLAN/Bluetooth module (Shuttle WLN-M1) if you need wireless.

How many networks and displays can it handle?

It offers four independent 2.5 Gigabit Ethernet ports for physically separate networks and drives up to four 4K displays via two HDMI 2.0b and two DisplayPort 1.4 ouTPUts.

Is the DN11H7 a Copilot+ PC?

No. It is an AI PC based on Intel Meteor Lake with up to 34 TOPS of total system AI, but its NPU sits below the 40+ TOPS threshold Microsoft requires for Copilot+ branding. It still accelerates local AI, vision and analytics workloads well.

Singular Expert Insight

What sets the DN11H7 apart from an ordinary mini PC is its connectivity: four 2.5G LAN ports plus triple M.2-2280 storage make it a natural fit for network video recorders, firewalls, routers and edge servers rather than a simple desktop. Because it is a barebone, you fit only the DDR5 memory and NVMe SSDs your project needs. If you want even more compute, the DN11H9 steps up to a Core Ultra 9; add the WLN-M1 module if wireless is required.

Buyer’s Guide

Buy it if

You need multi-network capability (NVR, firewall, router, edge server) or quad-4K ouTPUt in a 1.3L AI mini PC and want to pick your own DDR5, SSD and OS.

Skip it if

You need a certified Copilot+ PC (40+ TOPS NPU), or just a single-LAN office mini — the four-LAN design is more than a basic desktop needs.

Also consider

The DN11H9 (Core Ultra 9) for more compute, or add the Shuttle WLN-M1 module to this unit for Wi-Fi and Bluetooth.
