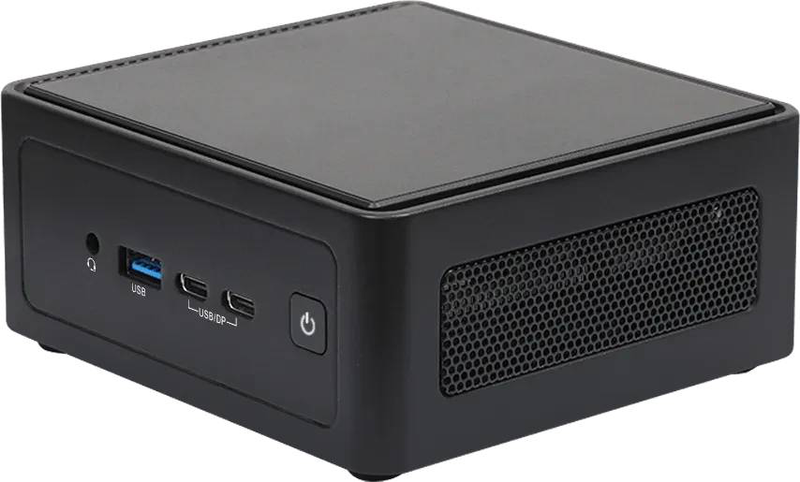

Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black

Product image: Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black-null
Product image: Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black-null
Product image: Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black-null
Product image: Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black-null
ASROCK
🔥Πωλείται γρήγορα!

Asrock nuc box-225h industrial barebone mini pc core ultra 5 225h arc 130t ddr5 vpro no ram no SSD no os black

€ 860.88
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: Black
Σε απόθεμα
–+
–+
1720
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 03 Αυγ - 04 Αυγ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 03 Αυγ - 05 Αυγ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: b2ce35e7-a4d5-4483-8cb0-b40c171cf446
ASRock Industrial NUC BOX-225H Barebone Mini PC An industrial Arrow Lake-H AI barebone with Intel Arc graphics and dual 2.5G LAN — add memory, an SSD and an OS. Core Ultra 5 225HIntel Arc 130T2x 2.5G LAN · TB4vPro · TAA The ASRock Industrial NUC BOX-225H is a fanned industrial barebone mini PC built around the Intel Core Ultra 5 225H (Arrow Lake-H) processor with Intel Arc 130T graphics and an on-chip NPU, designed for edge AI, digital signage and managed business deployments that need performa

Λεπτομέρειες

ASRock Industrial NUC BOX-225H Barebone Mini PC

An industrial Arrow Lake-H AI barebone with Intel Arc graphics and dual 2.5G LAN — add memory, an SSD and an OS.
Core Ultra 5 225HIntel Arc 130T2x 2.5G LAN · TB4vPro · TAA

The ASRock Industrial NUC BOX-225H is a fanned industrial barebone mini PC built around theIntel Core Ultra 5 225H (Arrow Lake-H) processor with Intel Arc 130T graphics and an on-chip NPU, designed for edge AI, digital signage and managed business deployments that need performance, dual networking and a small footprint. Supplied under part number 90PXGE60-P0EAY100 (EAN 4711420964150), it ships without memory, storage or an operating system — the CPU, Wi-Fi 6E module, 90W adapter and VESA bracket are included, while you add the DDR5 memory, M.2 NVMe SSD and OS. Typically in stock with fast delivery across Cyprus.

Barebone — what you need to add
To complete the build you will need: DDR5-6400 CSO-DIMM memory (2 slots, up to 96GB total / 48GB per module); one or more SSDs — two M.2 Key M slots run PCIe Gen4 x4, plus a SATA3 port, with Intel VMD RAID 0/1; and an operating system (Windows 10 or 11). The Wi-Fi 6E + Bluetooth module, 90W AC adapter and VESA mounting bracket are already included.

Best For

✓Edge AI & computer vision
✓Digital signage & kiosks
✓Multi-network / dual-LAN setups
✓24/7 industrial deployments
✓Managed business fleets (vPro)
✓Quad-display workstations

Key Features


Arrow Lake-H with Arc 130T & NPU
TheIntel Core Ultra 5 225H pairs 14 cores with Intel Arc 130T graphics and a dedicated NPU, accelerating modern AI, vision and analytics workloads at the edge.

Dual 2.5G LAN & Thunderbolt 4
Two independent Intel 2.5 Gigabit Ethernet ports plus a USB4 / Thunderbolt 4 port suit dual-network, NVR and high-bandwidth peripheral roles.

Quad-display ouTPUt
Two HDMI 2.1 ports plus DisplayPort 2.1 (USB4) and DisplayPort 1.4a (Type-C) drive up to four 4K displays from a compact chassis.

Industrial, managed & TAA-compliant
A 0–40°C fanned chassis with Intel vPro Essentials, firmware TPM (Intel PTT) and TAA compliance fits regulated and managed environments.

Technical Specifications

Identification
Part Number 90PXGE60-P0EAY100
EAN / GTIN 4711420964150
MPN NUC BOX-225H
Series ASRock Industrial NUC BOX (Arrow Lake-H, Fanned)
Processor, Graphics & AI
Processor Intel Core Ultra 5 225H — Arrow Lake-H, 14 cores (4 P-cores + 8 E-cores + 2 LP E-cores), 14 threads
Graphics Intel Arc 130T Graphics
AI acceleration On-chip Intel NPU — an AI PC, not a Copilot+ device
Memory & Storage (not included)
Memory 2 x DDR5-6400 CSO-DIMM, up to 96GB total / 48GB per DIMM, dual channel (user-supplied)
Storage 2 x M.2 Key M (PCIe Gen4 x4; one 2242/2280 + one 2242) + 1 x SATA3, Intel VMD RAID 0/1 (user-supplied)
Connectivity
Wireless Wi-Fi 6E (802.11ax) + Bluetooth 5.3 — M.2 module included
Wired LAN 2 x Intel I226 2.5 Gigabit Ethernet (vPro on LAN1)
Front ports 1 x USB4 / Thunderbolt 4 (DP 2.1), 1 x USB-C 3.2 Gen2x2 (DP 1.4a), 1 x USB-A 3.2 Gen2, audio jack
Rear ports 2 x HDMI 2.1, 2 x USB-A 3.2 Gen2, 2 x 2.5G LAN, DC-in
Display support Quad-display — 2 x HDMI 2.1 + DisplayPort 2.1 (via USB4) + DisplayPort 1.4a (via Type-C), up to 4K@60Hz
Security, Power & Chassis
Security & management Intel PTT (firmware TPM), Intel vPro Essentials, Intel VMD RAID 0/1; TAA compliant
Power 12–24V DC-in; 19V / 90W external adapter (Core Ultra 5) — included
Operating temperature 0°C ~ 40°C — industrial continuous-use rating
Dimensions / Weight 117.5 x 110.0 x 49 mm, 1.0kg — VESA-mountable, fanned
In the box 19V/90W AC adapter, VESA mount bracket
Operating system Not included (barebone) — supports Windows 10 / 11
Colour / Condition Black / New

Frequently Asked Questions

What do I need to add to the NUC BOX-225H before using it?
As a barebone it includes the Core Ultra 5 225H processor, cooling, Wi-Fi 6E module, 90W adapter and VESA bracket. You add DDR5-6400 CSO-DIMM memory (up to 96GB), one or more M.2 / SATA SSDs, and an operating system such as Windows 10 or 11.
How many displays can it drive at once?
Up to four. Two come from the rear HDMI 2.1 ports and two more from the USB4 (DisplayPort 2.1) and USB-C (DisplayPort 1.4a) ouTPUts, all up to 4K at 60Hz.
Does it support business management and secure procurement?
Yes. It offers Intel vPro Essentials for remote management, firmware TPM (Intel PTT) for security, and is TAA compliant for government and enterprise procurement, with an on-chip NPU for local AI workloads.
What is the difference between the NUC BOX-225H and NUC BOX-255H?
They share the same industrial chassis and ports. This model uses the Core Ultra 5 225H with a 90W adapter, while the NUC BOX-255H steps up to the Core Ultra 7 255H (more cores, 120W) for heavier workloads.
Singular Expert Insight
The NUC BOX-225H is an industrial unit, not a consumer NUC: a fanned 0–40°C chassis with Arrow Lake-H performance, Arc 130T graphics, a local AI NPU, dual 2.5G LAN, vPro Essentials and TAA compliance — ideal for edge AI, signage and managed fleets. Because it is a barebone, you fit only the DDR5 memory and NVMe SSD your project needs. If you want more compute, the NUC BOX-255H (Core Ultra 7 255H) is the higher-tier option.

Buyer’s Guide

Buy it if
You need an industrial edge-AI or signage mini with Arc graphics, dual 2.5G LAN and vPro / TAA, and want to choose your own DDR5, SSD and OS.
Skip it if
You need a certified Copilot+ PC (40+ TOPS NPU) or just a basic office desktop — this is a higher-end industrial platform.
Also consider
The NUC BOX-255H (Core Ultra 7 255H, 120W) for more cores, or the DDR4 NUCS BOX-1360P/D4 for a lower-cost build.
