GIGABYTE

Gigabyte b760 gaming x Gen5 motherboard atx lga1700 intel b760 ddr5 pcie 5.0 2.5G lan

Name: Gigabyte b760 gaming x Gen5 motherboard atx lga1700 intel b760 ddr5 pcie 5.0 2.5G lan
Brand: GIGABYTE
SKU: 9566a30b-61bd-4402-9a03-3a025130b8a5
Price: 166.24 EUR
Availability: InStock

€ 184.71 - 10% € 166.24

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Ποσότητα

–+

Από Singular Computers Systems LTD

Σε απόθεμα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 21 Μαϊ - 22 Μαϊ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 21 Μαϊ - 25 Μαϊ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 9566a30b-61bd-4402-9a03-3a025130b8a5

Singular Selected Gigabyte B760 Gaming X Gen5 ATX Motherboard A practical LGA1700 ATX board that adds PCIe 5.0 x16 to the affordable B760 platform — a smart upgrade path for 12th, 13th and 14th Gen Intel builds with DDR5. LGA1700 · B760 DDR5 7600 MT/s (OC) PCIe 5.0 x16 GPU 2.5G LAN The Gigabyte B760 Gaming X Gen5 is an ATX motherboard built on the Intel B760 Express chipset and the LGA1700 socket, supporting 12th, 13th and 14th Generation Intel Core, Pentium Gold and Celeron processors. The hea

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

Singular Selected

Gigabyte B760 Gaming X Gen5 ATX Motherboard

A practical LGA1700 ATX board that adds PCIe 5.0 x16 to the affordable B760 platform — a smart upgrade path for 12th, 13th and 14th Gen Intel builds with DDR5.

LGA1700 · B760 DDR5 7600 MT/s (OC) PCIe 5.0 x16 GPU 2.5G LAN

The Gigabyte B760 Gaming X Gen5 is an ATX motherboard built on the Intel B760 Express chipset and the LGA1700 socket, supporting 12th, 13th and 14th GenerationIntel Core, Pentium Gold and Celeron processors. The headline feature is a PCIe 5.0 x16 GPU slot, paired with four DDR5 DIMMs reaching 7600 MT/s (OC), three PCIe 4.0 M.2 NVMe slots and Realtek 2.5GBE — a balanced foundation for a gaming or productivity build that wants Gen5 graphics bandwidth without paying for Z-series VRMs.

Compatibility Note: Requires an LGA1700 Intel CPU (12th/13th/14th Gen). This is the non-WiFi revision — no onboard Wi-Fi or Bluetooth. M.2 SSD slots are PCIe 4.0 (not Gen5); the Gen5 designation refers to the primary PCIe x16 GPU slot. CPU is required for graphics ouTPUt (no graphics chips on the board).

Best For

✓ Gaming PCs with PCIe 5.0 GPUs

✓ 12th/13th/14th Gen Intel builds

✓ DDR5 system upgrades

✓ Multi-NVMe storage builds

Key Features

PCIe 5.0 x16 for the GPU

Doubles the per-lane bandwidth of PCIe 4.0 to 32 GT/s, giving next-gen graphics cards the headroom they need on a B-series platform.

DDR5 up to 7600 MT/s (OC)

Four DDR5 DIMM slots, dual-channel, supporting up to 256GB. XMP profile support for one-click memory overclocking.

3 x M.2 PCIe 4.0 NVMe

Three full PCIe 4.0 x4 M.2 sockets plus four SATA 6GB/s connectors, with M.2 Thermal Guard to keep high-speed SSDs from throttling.

2.5GBE + Modern USB

Realtek 2.5GBE wired networking, USB 3.2 Gen 2 Type-A and a rear USB Type-C port for fast peripherals and external storage.

Technical Specifications

Part Number	B760 GAMING X Gen5
EAN	4719331872120
Form Factor	ATX
CPU Socket	LGA1700 (Intel 12th, 13th, 14th Gen Core / Pentium Gold / Celeron)
Chipset	Intel B760 Express
Memory	4 x DDR5 DIMM, dual-channel, up to 7600 MT/s (OC), 256GB max, XMP supported
PCIe Slots	1 x PCIe 5.0 x16 + 2 x PCIe 3.0 x16 (x1 mode)
Storage	3 x M.2 PCIe 4.0 x4 (22110/2280) + 4 x SATA3 6GB/s (RAID 0/1/5/10)
Graphics OuTPUt	1 x HDMI 2.1 + 1 x DisplayPort 1.2 (requires CPU with iGPU)

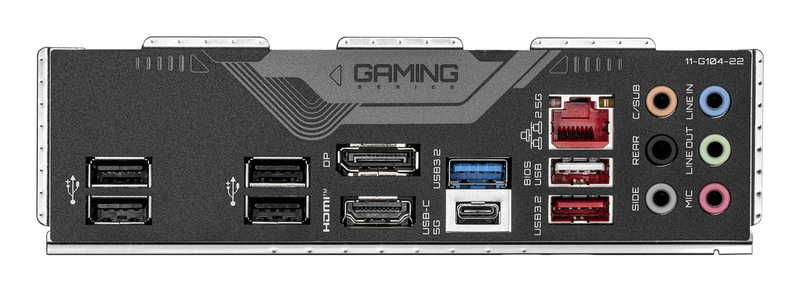

Rear USB	1 x USB 3.2 Gen 2 Type-A + 1 x USB 3.2 Gen 1 Type-C + 1 x USB 3.2 Gen 1 Type-A + 4 x USB 2.0
Front USB Headers	1 x USB 3.2 Gen 2 Type-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
LAN	Realtek 2.5GBE
Wireless	Not included
Audio	Realtek 7.1-CH HD Audio with S/PDIF Out
Special Features	Q-Flash Plus, M.2 Thermal Guard, PCIe UD Slot, Smart Fan 6

Frequently Asked Questions

Are the M.2 SSD slots PCIe Gen5?

No. The "GEN5" designation refers to the primary PCIe x16 GPU slot. All three M.2 sockets run at PCIe 4.0 x4. PCIe 5.0 NVMe SSDs will work but at Gen4 speeds.

Does it have onboard Wi-Fi or Bluetooth?

No. This is the non-WiFi revision. If you need built-in wireless, look at the B760 Gaming X WIFI6E Gen5 instead, which adds Intel Wi-Fi 6E and Bluetooth 5.3.

Which Intel CPUs are supported?

Intel 12th, 13th and 14th Generation Core processors, plus Pentium Gold and Celeron CPUs on the LGA1700 socket. Always check Gigabyte’s official CPU support list for your specific BIOS revision.

Can I use this with DDR4 memory?

No — this revision is DDR5-only. For a DDR4 board with the same Gen5 GPU slot, see the B760 Gaming X DDR4 Gen5 model.

Singular Expert Insight

Choose this board if you’re building or upgrading a 12th/13th/14th Gen Intel system that wants PCIe 5.0 GPU bandwidth and DDR5 on a sensible budget. If your priority is a Gen5 NVMe slot, look at a B760 / Z790 board that explicitly advertises M.2 Gen5 — here only the GPU lane is Gen5. If you also need built-in Wi-Fi 6E and Bluetooth, the B760 Gaming X WIFI6E Gen5 is the right step up.

Buyer's Guide

Buy it if

You want a B760 ATX board for an LGA1700 build with PCIe 5.0 GPU support, DDR5 and three PCIe 4.0 M.2 slots at a budget-friendly price.

Skip it if

You need built-in Wi-Fi/Bluetooth, a PCIe Gen5 M.2 slot for the latest NVMe SSDs, or you’re still on DDR4 memory.

Also consider

B760 Gaming X WIFI6E Gen5 for built-in Wi-Fi 6E + Bluetooth, or a Z790 board if you want CPU overclocking and Gen5 NVMe support.
