Asus rog strix b860-f gaming Wi-Fi 7 atx lga1851 ddr5 motherboard

Product image: Asus rog strix b860-f gaming Wi-Fi 7 atx lga1851 ddr5 motherboard-null
Product image: Asus rog strix b860-f gaming Wi-Fi 7 atx lga1851 ddr5 motherboard-null
Product image: Asus rog strix b860-f gaming Wi-Fi 7 atx lga1851 ddr5 motherboard-null
ASUS
🔥Πωλείται γρήγορα!

Asus rog strix b860-f gaming Wi-Fi 7 atx lga1851 ddr5 motherboard

από € 399.04 σε - 10% - 10% € 359.14
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: Black
–+
–+
718
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από Singular Computers Systems LTD
Σε απόθεμα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 21 Μαϊ - 22 Μαϊ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 21 Μαϊ - 25 Μαϊ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: d038575a-e698-4b45-896a-ef1b7834375c
Singular Selected ASUS ROG Strix B860-F Gaming WiFi A premium B860 ATX board for Intel Core Ultra Series 2 — ROG Strix DNA with PCIe 5.0, four M.2 slots, Thunderbolt 4, Wi-Fi 7 and end-to-end memory tuning. PCIe 5.0 x164x M.2 (1x Gen5)Thunderbolt 4Wi-Fi 7 + 2.5GBE The ASUS ROG Strix B860-F Gaming WiFi is a full-size ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket. It pairs the Intel B860 chipset with a 12+1+2+1 80A DrMOS power stage design, four DDR5 DIMM slots

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

  • Θύρα Επεξεργαστή: Socket 1851

Λεπτομέρειες

Singular Selected

ASUS ROG Strix B860-F Gaming WiFi

A premium B860 ATX board forIntel Core Ultra Series 2 — ROG Strix DNA with PCIe 5.0, four M.2 slots, Thunderbolt 4, Wi-Fi 7 and end-to-end memory tuning.
PCIe 5.0 x164x M.2 (1x Gen5)Thunderbolt 4Wi-Fi 7 + 2.5GBE

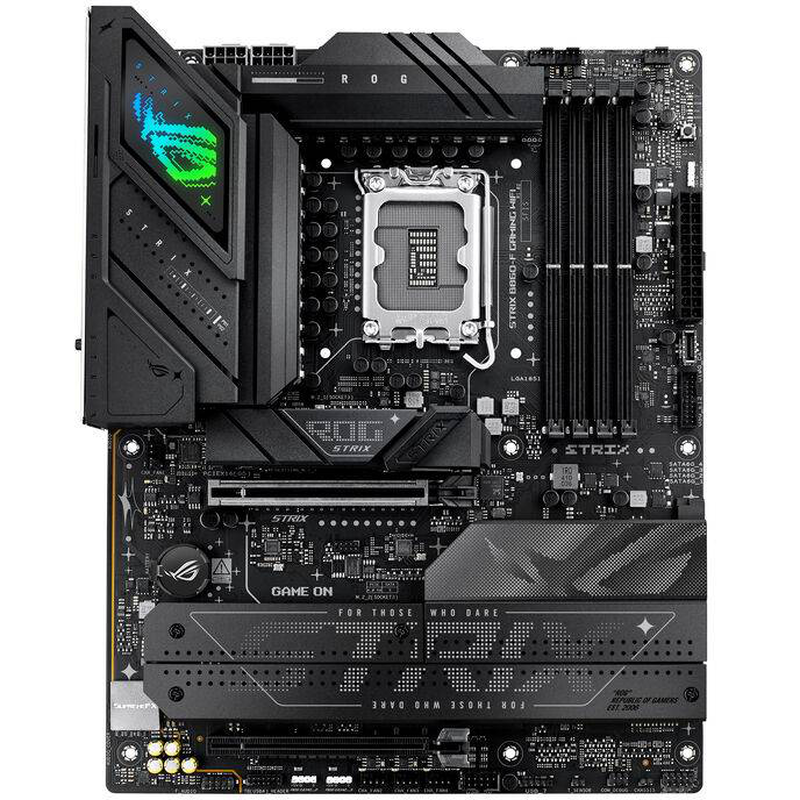

The ASUS ROG Strix B860-F Gaming WiFi is a full-size ATX motherboard forIntel Core Ultra (Series 2) processors on the LGA1851 socket. It pairs the Intel B860 chipset with a 12+1+2+1 80A DrMOS power stage design, four DDR5 DIMM slots (up to 256GB at 9066+ MT/s O.C. with CUDIMM support), a reinforced PCIe 5.0 x16 SafeSlot, four M.2 slots — including one PCIe 5.0 x4 wired to the CPU rated up to 16GB/s — and four SATA 6GB/s ports. Connectivity covers Realtek 2.5GBE Ethernet, 2x2 Wi-Fi 7 (802.11be) with Bluetooth 5.4, and a Thunderbolt 4 / USB4 Type-C port at 40GBps. ROG Strix styling adds Aura Sync RGB, premium audio with Dolby Atmos and ASUS' suite of memory tuning features (DIMM Fit Pro, AEMP III, NPU Boost).

Compatibility Note: LGA1851 socket only — supportsIntel Core Ultra Series 2 processors. Older 12th/13th/14th Gen LGA1700 CPUs are not compatible. DDR5 memory only — DDR4 cannot be used. The B860 chipset does not support Intel 200S Boost or full CPU overclocking — choose Z890 if you need those features.
Best For
✓Intel Core Ultra Series 2 gaming builds without CPU overclocking
✓ Builders who want ROG Strix features at a B860 price
✓ DDR5 enthusiasts pushing memory to 9000+ MT/s
✓ Creators using a single Thunderbolt 4 display / eGPU

Key Features


12+1+2+1 80A DrMOS Power
A digital VRM with 12-phase VCORE 80A DrMOS, dual 8-pin EPS, ProCool connectors and MicroFine alloy chokes. Strong enough to feed even the Core Ultra 9 285K at stock — though the B860 chipset itself doesn't permit full CPU overclocking.

PCIe 5.0 + 4x M.2 Storage
A reinforced PCIe 5.0 x16 SafeSlot with Q-Release Slim for next-gen GPUs, plus four M.2 slots — one PCIe 5.0 x4 from the CPU (rated up to 16GB/s) and three PCIe 4.0 x4 from the chipset, all under substantial heatsinks.

DDR5 9066+ MT/s + AEMP III
Four DDR5 DIMM slots support up to 256GB with overclocking up to 9066+ MT/s and CUDIMM support. ASUS-exclusive AEMP III, DIMM Fit Pro and a built-in clock Generator isolate CPU base clock from memory for tighter overclocking headroom.

Thunderbolt 4 + Wi-Fi 7 + ROG Audio
A Thunderbolt 4 / USB4 Type-C port (40GBps, dual 4K display support), 2x2 Wi-Fi 7 with Bluetooth 5.4, ROG SupremeFX audio with Savitech amp and Dolby Atmos, plus Aura Sync RGB lighting.

Technical Specifications

Part Number 90MB1JG0-M0EAY0
EAN 4711387806951
Form Factor ATX
Colour Theme Black with ROG Strix accents and Aura Sync RGB
CPU Socket Intel LGA1851 (Intel Core Ultra Series 2)
Chipset Intel B860
VRM 12+1+2+1 power stages, 80A DrMOS, dual 8-pin EPS, ProCool, MicroFine alloy chokes
Memory 4x DDR5 DIMM, up to 256GB, dual channel, up to 9066+ MT/s (O.C.), XMP, CUDIMM, AEMP III, DIMM Fit Pro
Expansion Slots 1x PCIe 5.0 x16 SafeSlot + 1x PCIe 4.0 x16 (x4 mode) + 2x PCIe slots (chipset)
M.2 Storage 4x M.2 — 1x PCIe 5.0 x4 (CPU, up to 16GB/s) + 3x PCIe 4.0 x4 (chipset, up to 8GB/s)
SATA 4x SATA 6GB/s
Wireless 2x2 Wi-Fi 7 802.11be (2.4 / 5 / 6 GHz, 160MHz, up to 2.9GBps) + Bluetooth 5.4 · Q-Antenna
LAN Realtek 2.5GBE Ethernet

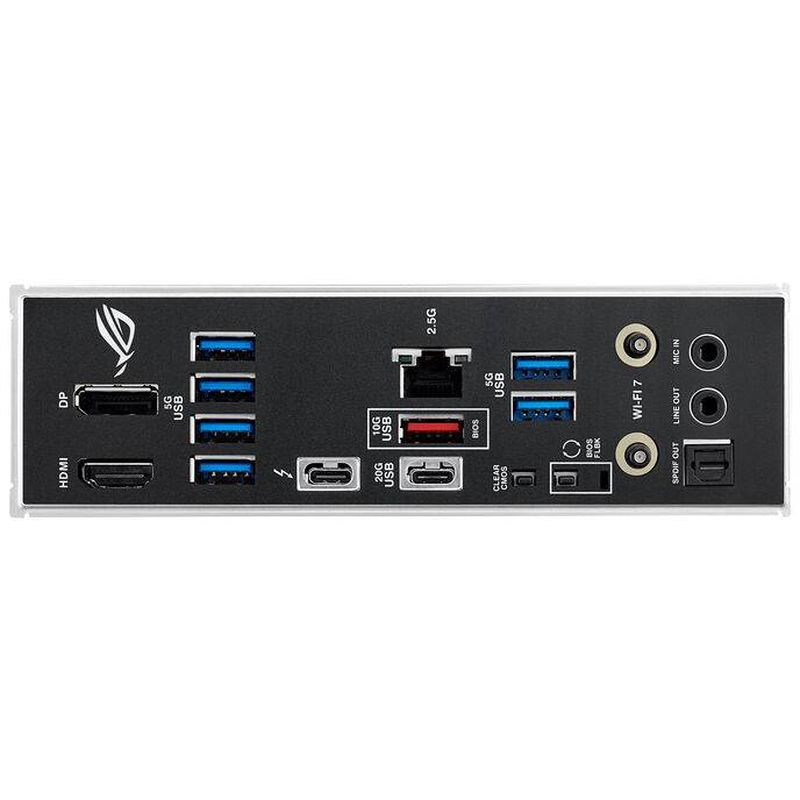

Thunderbolt 1x Thunderbolt 4 / USB4 Type-C (40GBps with DisplayPort)
USB USB4 Type-C + USB 3.2 Gen 2 + USB 3.2 Gen 1 + USB-C 3.2 Gen 2x2 (rear + front)
Display OuTPUts 1x HDMI 2.1 + 1x DisplayPort + DisplayPort over Thunderbolt 4
Audio ROG SupremeFX 7.1-channel HD Audio with Savitech amplifier and Dolby Atmos
RGB / Lighting Aura Sync RGB with Addressable Gen 2 RGB headers
DIY Features PCIe Q-Release Slim, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-LED, Q-Dashboard, pre-mounted I/O shield
AI / Tuning NPU Boost, AI Networking II, AI Advisor, AEMP III, DIMM Fit Pro, built-in clock Generator (BCLK isolation)

Frequently Asked Questions

Which CPUs are supported?
Intel Core Ultra Series 2 processors on the LGA1851 socket — including the Core Ultra 9 285K. Older LGA1700 CPUs are not compatible. Always check ASUS' official CPU support list and required BIOS version.
Can I overclock my CPU on this board?
No — the Intel B860 chipset does not support full CPU multiplier overclocking and lacks Intel 200S Boost. You can still overclock memory aggressively (up to 9066+ MT/s) and tune the NPU. If you need full CPU overclocking, choose a Z890 board instead.
How many M.2 SSDs can I install?
Four M.2 NVMe SSDs total — one PCIe 5.0 x4 wired to the CPU (rated up to 16GB/s) and three PCIe 4.0 x4 from the chipset (up to 8GB/s). Plus four SATA 6GB/s ports for additional drives.
How does the B860-F compare to the Z890-F?
The B860-F shares most features — same I/O design, Wi-Fi 7, Thunderbolt 4, 4x M.2. The main differences are an 80A SPS VRM (vs 110A on Z890-F) and the B860 chipset's lack of CPU overclocking support. For non-overclocked builds, it offers Z890-tier features at a lower price.
Singular Expert Insight
Choose the B860-F if you want ROG Strix premium features (audio, RGB, memory tuning) on Intel's lower-tier B860 chipset for a Core Ultra Series 2 build that doesn't need CPU overclocking. If you do plan to overclock or want stronger VRM, step up to the ROG Strix Z890-F. If price is the priority, the TUF Gaming B860-Plus WiFi covers the basics for less.

Buyer's Guide

Buy it if
You want ROG Strix premium features (audio, RGB, memory tuning) on a B860 board for a non-overclockedIntel Core Ultra Series 2 build with PCIe 5.0, Thunderbolt 4 and four M.2 slots.
Skip it if
You plan to overclock your CPU, need 5GBE LAN, dual Thunderbolt 4 or 5+ M.2 slots — step up to ROG Strix Z890-F or higher Z890 boards instead.
Also consider
ASUS ROG Strix Z890-F Gaming WiFi (full Z890 with 110A VRM) or ASUS TUF Gaming B860-Plus WiFi for a more value-focused B860 alternative.
