Asus tuf gaming z790-plus Wi-Fi 6e atx lga1700 ddr5 motherboard

Product image: Asus tuf gaming z790-plus Wi-Fi 6e atx lga1700 ddr5 motherboard-null
ASUS
🔥Πωλείται γρήγορα!

Asus tuf gaming z790-plus Wi-Fi 6e atx lga1700 ddr5 motherboard

από € 389.14 σε - 10% - 10% € 350.23
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: Black
–+
–+
700
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από Singular Computers Systems LTD
Σε απόθεμα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 21 Μαϊ - 22 Μαϊ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 21 Μαϊ - 25 Μαϊ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: cd6c6c23-3ea1-458f-b943-6e99ad17426d
Singular Selected ASUS TUF Gaming Z790-Plus WiFi A mainstream Z790 ATX board with TUF Gaming durability for Intel 12th/13th/14th Gen Core CPUs — PCIe 5.0, four M.2 slots, USB 3.2 Gen 2x2 and Wi-Fi 6E. PCIe 5.0 x164x M.2USB 20GBps Type-CWi-Fi 6E + 2.5GBE The ASUS TUF Gaming Z790-Plus WiFi is a full-size ATX motherboard for Intel 12th, 13th and 14th Gen Core processors on the LGA1700 socket. Built on the Intel Z790 chipset with a 16+1 DrMOS 60A power stage design and dual 8-pin EPS connectors, it

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

  • Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

Singular Selected

ASUS TUF Gaming Z790-Plus WiFi

A mainstream Z790 ATX board with TUF Gaming durability for Intel 12th/13th/14th Gen Core CPUs — PCIe 5.0, four M.2 slots, USB 3.2 Gen 2x2 and Wi-Fi 6E.
PCIe 5.0 x164x M.2USB 20GBps Type-CWi-Fi 6E + 2.5GBE

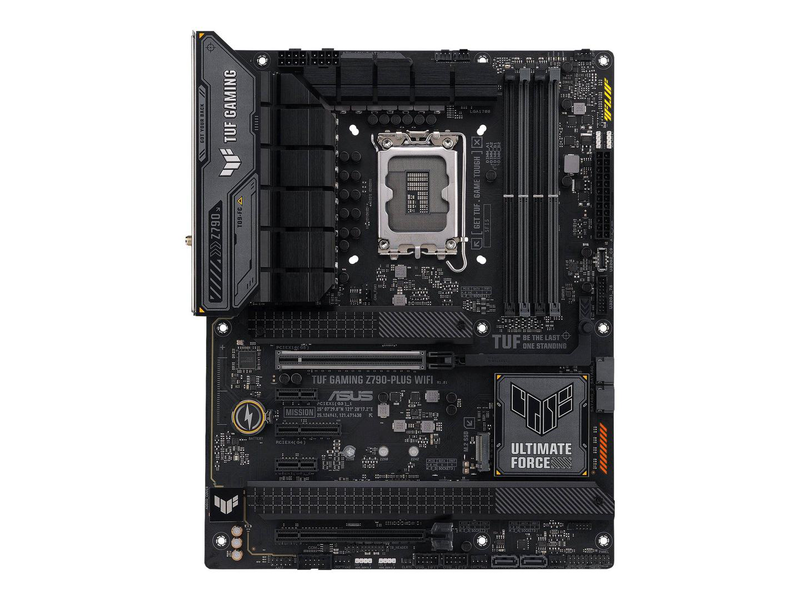

The ASUS TUF Gaming Z790-Plus WiFi is a full-size ATX motherboard for Intel 12th, 13th and 14th Gen Core processors on the LGA1700 socket. Built on the Intel Z790 chipset with a 16+1 DrMOS 60A power stage design and dual 8-pin EPS connectors, it pairs four DDR5 DIMM slots (up to 192GB at 7200+ MT/s O.C.) with a reinforced PCIe 5.0 x16 SafeSlot, four M.2 slots — all PCIe 4.0 x4, with the fourth supporting SATA mode — and four SATA 6GB/s ports. Connectivity covers Intel 2.5GBE Ethernet with TUF LANGuard, 2x2 Wi-Fi 6E (802.11ax) with Bluetooth 5.3, USB 3.2 Gen 2x2 Type-C front and rear, plus an onboard Thunderbolt 4 / USB4 header for compatible add-in cards.

Compatibility Note: LGA1700 socket — supports Intel 12th, 13th and 14th Gen Core CPUs. Newer Core Ultra Series 2 (LGA1851) processors are NOT compatible. DDR5 memory only — DDR4 is not supported (look at the TUF Gaming Z790-Plus WiFi D4 variant for DDR4). A BIOS update may be required to boot 13th or 14th Gen processors out of the box.
Best For
✓ Mainstream Intel 12th/13th/14th Gen gaming builds
✓ Builders who value TUF durability over RGB-heavy boards
✓ DDR5 memory enthusiasts (up to 7200+ MT/s O.C.)
✓ Storage-flexible builds with 4 M.2 slots

Key Features


16+1 DrMOS 60A Power Stages
A digital VRM with 16-phase VCORE 60A DrMOS, dual 8-pin EPS, ProCool connectors, TUF chokes and TUF metallic capacitors keeps even Core i9-14900K stable at stock and with sensible overclocking on Z790's mature platform.

PCIe 5.0 + 4x M.2 Storage
A reinforced PCIe 5.0 x16 SafeSlot for next-gen GPUs, plus four M.2 slots — one PCIe 4.0 x4 from the CPU and three PCIe 4.0 x4 from the chipset (M.2_4 also supports SATA-mode drives), all under M.2 heatsinks with M.2 Q-Latch tooling.

DDR5 Up to 7200+ MT/s
Four DDR5 DIMM slots support up to 192GB with overclocked profiles up to 7200+ MT/s. Two-DIMM populations are recommended for the highest memory speeds; SafeDIMM slots and ASUS Q-DIMM tooling simplify install.

USB 20GBps + Wi-Fi 6E + 2.5GBE
USB 3.2 Gen 2x2 Type-C (20GBps) on both rear and front panel, 2x2 Wi-Fi 6E with Bluetooth 5.3, Intel I225-V 2.5GBE Ethernet with TUF LANGuard surge protection, plus a Thunderbolt 4 header for compatible add-in cards.

Technical Specifications

Part Number 90MB1D80-M1EAY0
EAN 4711387014509
Form Factor ATX
Colour Theme Black / Gray with TUF Gaming geometric accents and Aura Sync RGB
CPU Socket Intel LGA1700 (12th / 13th / 14th Gen Core, Pentium Gold, Celeron)
Chipset Intel Z790 Express
VRM 16+1 stages, 60A DrMOS, Digi+ VRM, dual 8-pin EPS, ProCool connectors, TUF chokes
Memory 4x DDR5 DIMM, up to 192GB, dual channel, up to 7200+ MT/s (O.C.), XMP, AEMP
Expansion Slots 1x PCIe 5.0 x16 SafeSlot + 1x PCIe 4.0 x16 (x4 mode) + 1x PCIe 4.0 x4 + 2x PCIe 3.0 x1
M.2 Storage 4x M.2 — 1x PCIe 4.0 x4 (CPU) + 3x PCIe 4.0 x4 (chipset, M.2_4 also supports SATA mode)
SATA 4x SATA 6GB/s, RAID 0/1/5/10
Wireless 2x2 Wi-Fi 6E 802.11ax (2.4 / 5 / 6 GHz) + Bluetooth 5.3
LAN Intel I225-V 2.5GBE with TUF LANGuard and TurboLAN
Thunderbolt Onboard Thunderbolt 4 / USB4 header (for ThunderboltEX 4 add-in card, sold separately)
USB (Rear) 1x USB 3.2 Gen 2x2 Type-C (20GBps) + USB 3.2 Gen 2 Type-C + USB 3.2 Gen 2 Type-A + multiple USB 3.2 Gen 1 + USB 2.0 ports
USB (Front) 1x USB 3.2 Gen 2 Type-C connector + 1x USB 3.2 Gen 1 header (2 ports) + 2x USB 2.0 headers (4 ports)
Display OuTPUts 1x HDMI 2.1 + 1x DisplayPort 1.4 (CPU integrated graphics required)
Audio Realtek 7.1-channel HD Audio (8-channel) with DTS Audio Processing
RGB / Lighting Aura Sync RGB · 3x Addressable Gen 2 RGB headers + 1x 4-pin Aura RGB header
DIY Features M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, BIOS FlashBack, pre-mounted I/O shield
Cooling Enlarged VRM heatsinks, M.2 + PCH heatsinks, Fan Xpert 4 with AI Cooling II, hybrid fan headers

Frequently Asked Questions

Which CPUs are supported?
Intel 12th, 13th and 14th Gen Core, Pentium Gold and Celeron processors on the LGA1700 socket. A BIOS update may be required to boot 13th or 14th Gen CPUs out of the box. The newer Core Ultra Series 2 (LGA1851) is not compatible — choose a Z890 or B860 board for those.
Does it support DDR4 memory?
No — this board is DDR5 only. It supports up to 192GB across four DIMM slots, with overclocked profiles up to 7200+ MT/s. If you need DDR4 support, look at the TUF Gaming Z790-Plus WiFi D4 variant.
Does it support Thunderbolt 4 out of the box?
No — there is an onboard Thunderbolt 4 / USB4 header but no native rear Thunderbolt 4 ports. To enable Thunderbolt 4, you need to add the ASUS ThunderboltEX 4 expansion card (sold separately).
How many M.2 SSDs can I install?
Four M.2 NVMe SSDs total — one PCIe 4.0 x4 from the CPU and three PCIe 4.0 x4 from the chipset, with the fourth M.2 slot also supporting SATA-mode drives. Note: Z790 boards do not include native PCIe 5.0 M.2 like the latest Z890 lineup.
Singular Expert Insight
Choose this if you already own or plan to use Intel 12th/13th/14th Gen LGA1700 CPUs and want a TUF-grade Z790 board with PCIe 5.0, four M.2 slots and DDR5 support at the more accessible end of the Z790 range. If you want to start a fresh build today, consider Z890 boards on the LGA1851 platform withIntel Core Ultra Series 2 and Wi-Fi 7. For DDR4 reuse, choose the Z790-Plus WiFi D4 variant.

Buyer's Guide

Buy it if
You're building or upgrading an Intel 12th/13th/14th Gen LGA1700 system and want TUF Gaming durability with PCIe 5.0, DDR5, four M.2 slots, USB 20GBps and Wi-Fi 6E at a sensible price.
Skip it if
You want the latestIntel Core Ultra Series 2 (LGA1851), need Wi-Fi 7, PCIe 5.0 M.2 storage, native rear Thunderbolt 4 ports, or have DDR4 memory you want to reuse.
Also consider
ASUS TUF Gaming Z790-Plus WiFi D4 (DDR4 variant) or step up to TUF Gaming Z890-Plus WiFi for the new LGA1851 platform with Wi-Fi 7 and Thunderbolt 4.
