Περιγραφή

Αριθμός προϊόντος: 12c14baf-a9fa-43e4-829c-db92d87c8706

Gigabyte B760M D3HP DDR5 — Four-DIMM LGA 1700 Micro-ATX LGA 1700 · Intel B7604× DDR5 up to 256GBPCIe 4.0 x16 + Dual M.2Triple Display · GbE The Gigabyte B760M D3HP (DDR5) is a micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under Gigabyte part number B760M D3HP (EAN 4719331864347), it offers four DDR5 slots (up to 256GB), a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slots, four SATA ports and

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

Gigabyte B760M D3HP DDR5 — Four-DIMM LGA 1700 Micro-ATX

LGA 1700 · Intel B7604× DDR5 up to 256GBPCIe 4.0 x16 + Dual M.2Triple Display · GbE

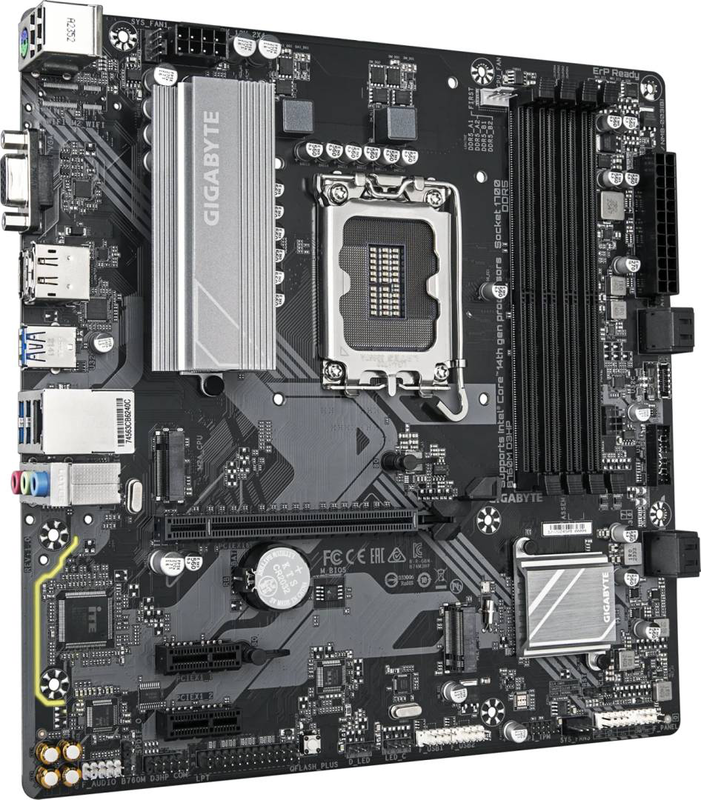

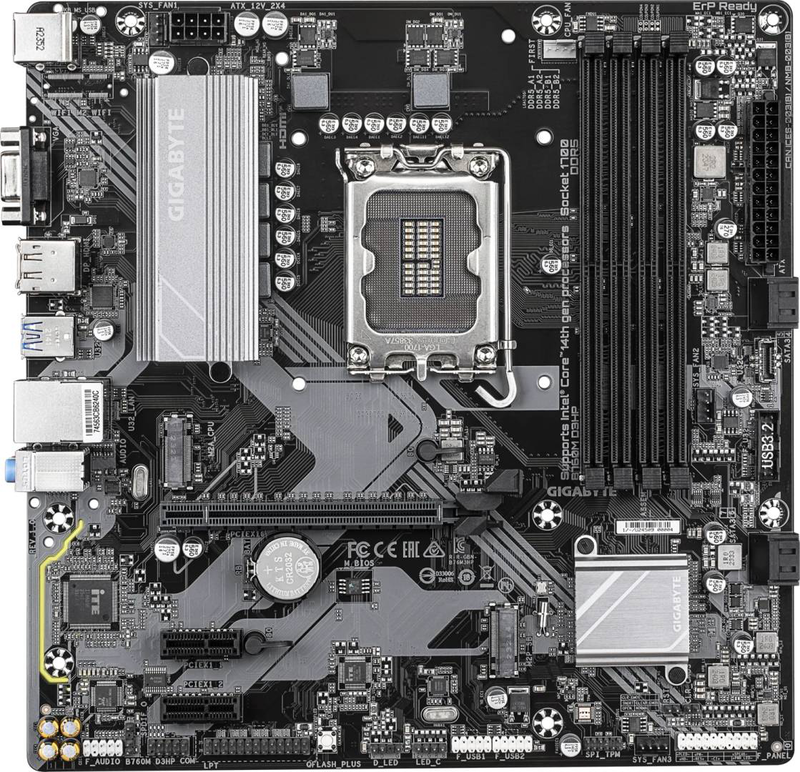

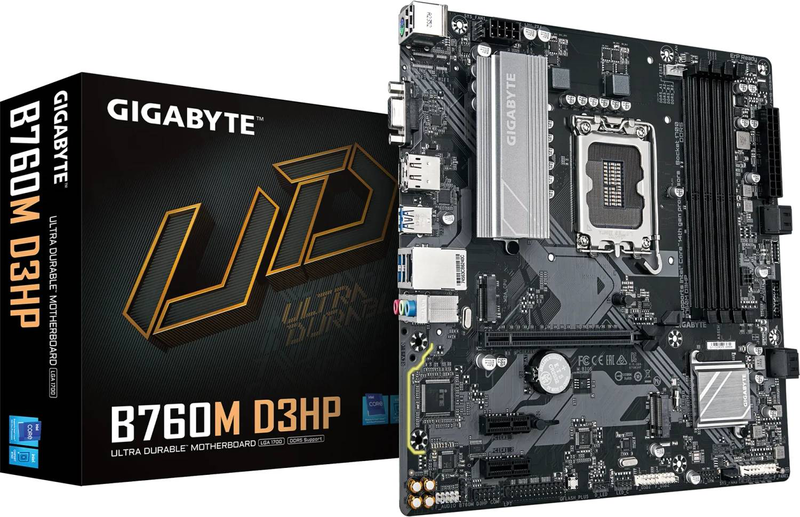

The Gigabyte B760M D3HP (DDR5) is a micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th GenerationIntel Core processors. Sold under Gigabyte part number B760M D3HP (EAN 4719331864347), it offers four DDR5 slots (up to 256GB), a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slots, four SATA ports and triple display ouTPUt — a roomy, value-focused base for productivity and mainstream gaming builds. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying

This is an LGA 1700 board supporting 12th/13th/14th GenIntel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR5 version (no DDR4), with four DIMM slots (max 256GB). Graphics/storage run at PCIe 4.0.

Best For

✓Mainstream and gaming LGA 1700 builds

✓High-capacity DDR5 (up to 256GB) workloads

✓Multi-monitor productivity setups

✓Dual NVMe + four SATA storage

✓Compact Micro-ATX cases

✓Pairing with 12th–14th Gen Core i5/i7 CPUs

Key Features

Four-DIMM DDR5

Four DDR5 DIMM slots support up to 256GB of dual-channel memory at 5600 MT/s — more capacity than typical two-slot entry boards.

Dual PCIe 4.0 M.2 + 4× SATA

Two PCIe 4.0 x4 M.2 slots (one CPU, one chipset, 2280) plus four SATA 6GB/s ports with RAID 0/1/5/10 for flexible storage.

Triple display ouTPUt

HDMI (up to 4K), DisplayPort and D-Sub (VGA) let you drive multiple monitors from integrated graphics — ideal for productivity.

PCIe 4.0 + smart networking

A PCIe 4.0 x16 slot for graphics, GbE LAN with network bandwidth management for low latency, and rear USB-C plus USB 3.2 Gen 1 connectivity.

Technical Specifications

Identification
Part Number	B760M D3HP
EAN / GTIN	4719331864347
Brand	Gigabyte
Platform
Chipset	Intel B760
Socket	LGA 1700
CPU Support	12th/13th/14th GenIntel Core
Form Factor	Micro-ATX
Memory
Slots	4× DDR5 DIMM (Dual-Channel)
Max Capacity	256GB (64GB per DIMM)
Speed	DDR5 up to 5600 MT/s
Expansion & Storage
PCIe Slot	1× PCIe 4.0 x16
M.2	2× M.2 PCIe 4.0 x4 (2280) — one CPU, one chipset
SATA	4× SATA 6GB/s — RAID 0/1/5/10
Connectivity & I/O
LAN	GbE LAN (RJ-45)
Display Out	1× HDMI (4K) + 1× DisplayPort + 1× D-Sub (VGA)
Rear USB	USB-C + 3× USB 3.2 Gen 1 + 2× USB 2.0
Audio	HD Audio
Other
Colour	Black
Operating System	Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the Gigabyte B760M D3HP?

It supports 12th, 13th and 14th GenerationIntel Core processors on the LGA 1700 socket. It is not compatible with the newer LGA 1851 Core Ultra CPUs.

Does it use DDR4 or DDR5?

This is the DDR5 version — four DDR5 DIMM slots support up to 256GB at 5600 MT/s. A separate DDR4 variant exists if you need DDR4.

How many monitors can it drive?

Using integrated graphics it offers HDMI, DisplayPort and VGA ouTPUts, supporting a multi-monitor setup directly from the motherboard.

How many drives can I install?

Two M.2 NVMe SSDs (both PCIe 4.0 x4, 2280) plus up to four SATA 6GB/s drives, with RAID 0/1/5/10 support on SATA.

Singular Expert Insight

The B760M D3HP DDR5 stands out among value boards for its four DDR5 DIMM slots and triple display ouTPUt — useful for memory-heavy or multi-monitor productivity builds on the LGA 1700 platform. If you want a PCIe 5.0 graphics slot, the B760M Gaming X Gen5 steps up; for built-in Wi-Fi, the B760M D3HP WIFI6 adds wireless. For the latest Core Ultra platform, the B860M D3HP is the LGA 1851 equivalent. Add a fast internal NVMe SSD for best results.

Buyer's Guide

Buy it if

You want a roomy four-DIMM LGA 1700 board with up to 256GB DDR5, dual M.2 and triple display ouTPUt for productivity or mainstream gaming.

Skip it if

You want PCIe 5.0, built-in Wi-Fi or the latest Core Ultra platform — choose a Gen5 board, the D3HP WIFI6, or the B860M D3HP.

Also consider

The Gigabyte B760M D3HP WIFI6 (Wi-Fi) or B860M D3HP (newer LGA 1851 platform with PCIe 5.0).
