Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black

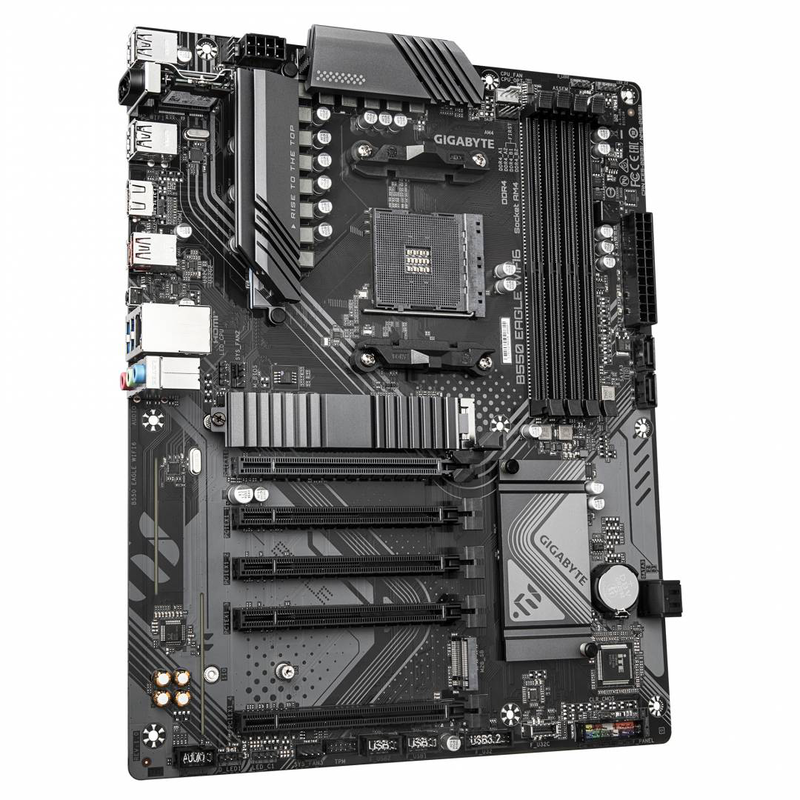

Product image: Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black-null

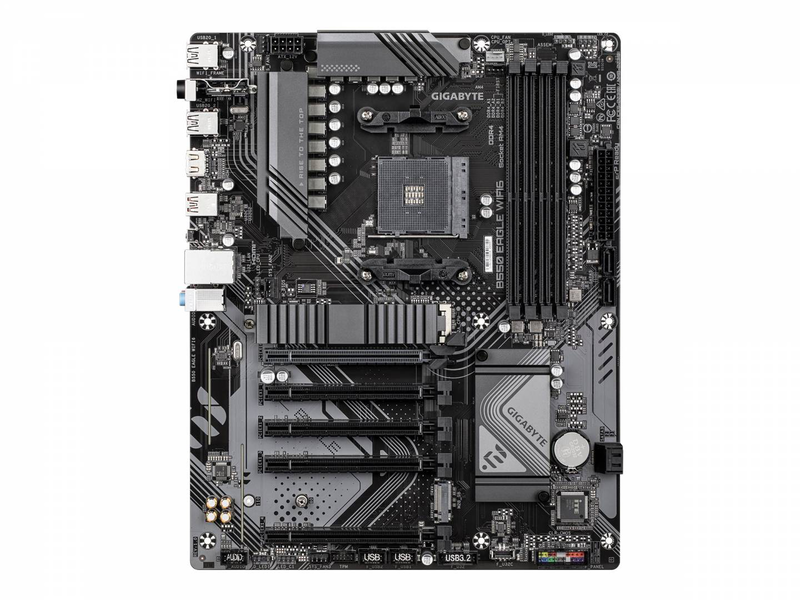

Product image: Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black-null

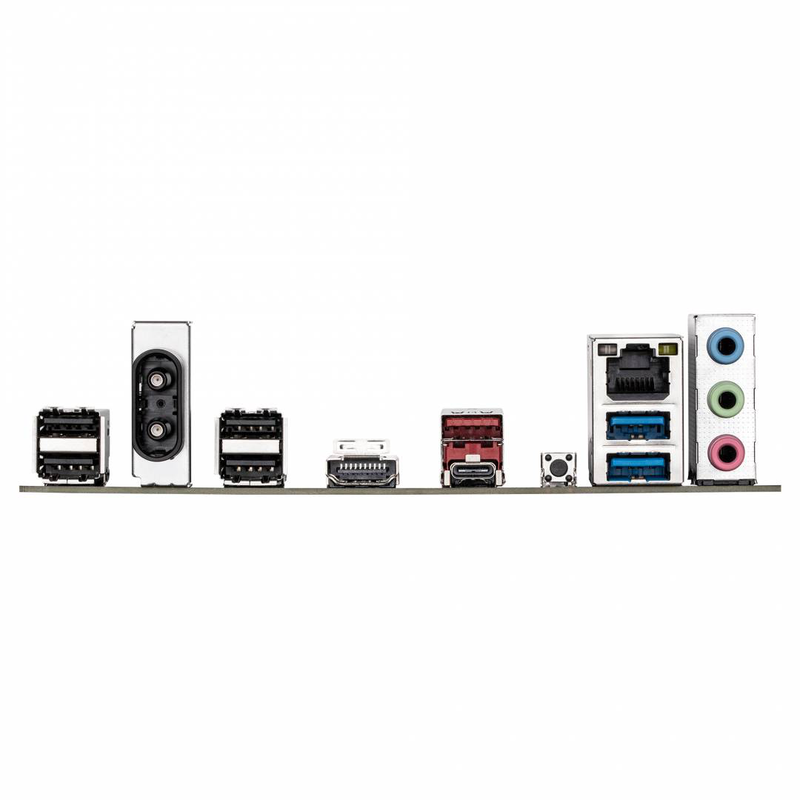

Product image: Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black-null

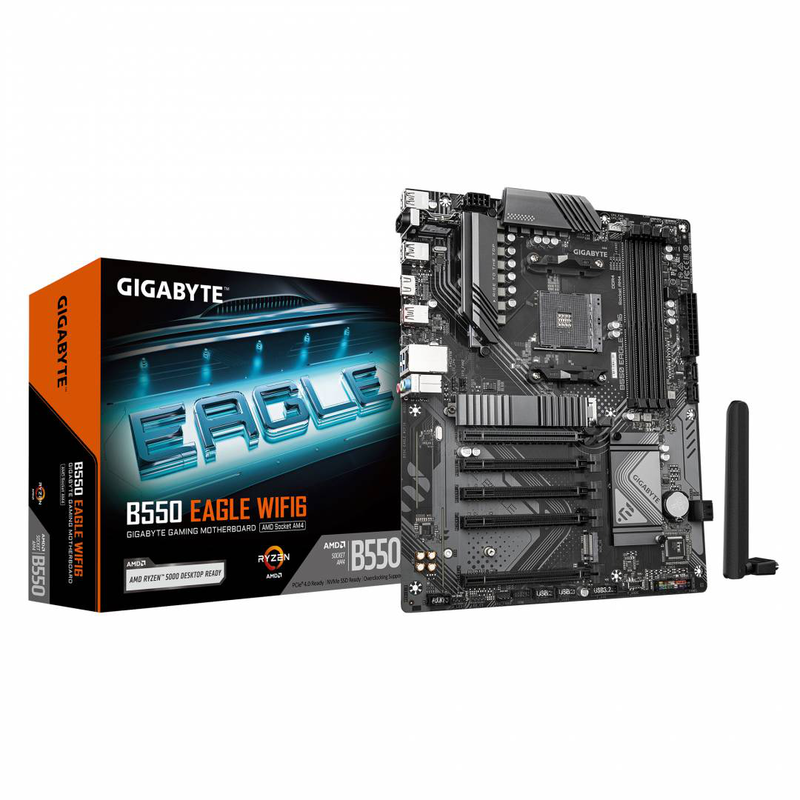

Product image: Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black-null
GIGABYTE
🔥Πωλείται γρήγορα!

Gigabyte b550 eagle Wi-Fi 6 atx motherboard socket am4 AMD b550 ddr4 pcie 4.0 dual m.2 Wi-Fi 6GBe USB-c black

από € 158.75 σε - 10% - 10% € 142.87
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: Black
Σε απόθεμα
–+
–+
284
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 26 Ιουν - 29 Ιουν
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 29 Ιουν - 01 Ιουλ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 53807800-4c13-4fd5-9592-3e5eac2eeb03
Gigabyte B550 Eagle WiFi 6 — Full-ATX AMD AM4 with Wi-Fi AMD AM4 · B5504× DDR4 up to 128GBPCIe 4.0 + Dual M.2Wi-Fi 6 · GbE · USB-C The Gigabyte B550 Eagle WiFi 6 is a full-size ATX motherboard built on the AMD B550 chipset and the Socket AM4 platform, supporting AMD Ryzen 5000, 4000 G-Series and 3000 processors. Sold under Gigabyte part number B550 EAGLE WIFI6 (EAN 4719331868406), it offers four DDR4 slots (up to 128GB), a PCIe 4.0 x16 graphics slot, dual M.2 (one PCIe 4.0), four SATA ports, bu

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

  • Θύρα Επεξεργαστή: Socket AM4

Λεπτομέρειες

Gigabyte B550 Eagle WiFi 6 — Full-ATXAMD AM4 with Wi-Fi

AMD AM4 · B5504× DDR4 up to 128GBPCIe 4.0 + Dual M.2Wi-Fi 6 · GbE · USB-C

The Gigabyte B550 Eagle WiFi 6 is a full-size ATX motherboard built on theAMD B550 chipset and the Socket AM4 platform, supportingAMD Ryzen 5000, 4000 G-Series and 3000 processors. Sold under Gigabyte part number B550 EAGLE WIFI6 (EAN 4719331868406), it offers four DDR4 slots (up to 128GB), a PCIe 4.0 x16 graphics slot, dual M.2 (one PCIe 4.0), four SATA ports, built-in Wi-Fi 6 and a 10+3 phase VRM — a roomy, value-focused base forAMD gaming and productivity builds. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an AMD Socket AM4 board on the B550 chipset, supporting Ryzen 5000 / 4000G / 3000 processors — it is not compatible with Intel CPUs orAMD AM5 (Ryzen 7000+). It uses DDR4 memory only (not DDR5). The onboard wireless is Wi-Fi 6 (2.4/5GHz) — some listings label it 6E, but the module operates on the 2.4/5GHz bands, not 6GHz. PCIe 4.0 requires a Ryzen 5000 or 3000 CPU.

Best For

✓AMD Ryzen 5000 / 3000 gaming and productivity builds
✓Reusing existing AM4 CPUs and DDR4 memory
✓Builds needing built-in Wi-Fi
✓PCIe 4.0 graphics + Gen4 NVMe storage
✓Full-ATX cases with expansion room
✓Value AM4 upgrades

Key Features


Built-in Wi-Fi 6
Integrated Realtek Wi-Fi 6 (802.11ax, 2.4/5GHz) with Bluetooth 5.3 plus GbE LAN deliver convenient wireless and wired networking.

PCIe 4.0 + dual M.2
A PCIe 4.0 x16 slot for graphics, plus a PCIe 4.0 x4 M.2 (CPU, up to 22110) and a PCIe 3.0 x4 M.2 (chipset), with four SATA ports.

Four-DIMM DDR4
Four DDR4 DIMM slots support up to 128GB (ECC/non-ECC) at 3200 MHz with XMP for capacity and flexibility.

Robust power + easy BIOS
A 10+3 phase VRM, RGB Fusion lighting, PCIe EZ-Latch and Q-Flash Plus (BIOS update without a CPU) make building easier.

Technical Specifications

Identification
Part Number B550 EAGLE WIFI6
EAN / GTIN 4719331868406
Model Gigabyte B550 Eagle WiFi 6
Brand Gigabyte
Platform
Chipset AMD B550
Socket AMD AM4
CPU Support Ryzen 5000 / 4000G / 3000
Form Factor ATX
VRM 10+3 phase
Memory
Slots 4× DDR4 DIMM (Dual-Channel)
Max Capacity 128GB
Speed DDR4 3200 MHz, ECC/non-ECC, XMP
Expansion & Storage
PCIe Slots 1× PCIe 4.0 x16 + additional PCIe slots
M.2 1× PCIe 4.0 x4 M.2 (CPU, 22110/2280) + 1× PCIe 3.0 x4 M.2 (chipset)
SATA 4× SATA 6GB/s
Connectivity & I/O
Wi-Fi Wi-Fi 6 (2.4/5GHz, RTL8851BE) + Bluetooth 5.3
LAN Realtek GbE LAN (RJ-45)
Display Out 1× HDMI (CPU with integrated graphics)
Rear USB 1× USB-C (Gen1), USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
Other
Note Onboard wireless is Wi-Fi 6 (2.4/5GHz), not Wi-Fi 6E
Lighting RGB Fusion
Colour Black
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the Gigabyte B550 Eagle WiFi 6?
It supportsAMD Ryzen 5000, 4000 G-Series and 3000 processors on Socket AM4. It does not support Intel CPUs orAMD AM5 (Ryzen 7000+) processors.
Is the Wi-Fi 6 or 6E?
It is Wi-Fi 6 (Realtek RTL8851BE, 2.4/5GHz with Bluetooth 5.3). Despite some listings labelling it 6E, the module does not use the 6GHz band.
Does it use DDR4 or DDR5?
DDR4 only. Four DDR4 DIMM slots (ECC/non-ECC) support up to 128GB at 3200 MHz. DDR5 is not supported on the AM4 platform.
How many drives can I install?
Two M.2 SSDs (one PCIe 4.0, one PCIe 3.0) plus up to four SATA 6GB/s drives.
Singular Expert Insight
The B550 Eagle WiFi 6 is a dependable value AM4 board with built-in Wi-Fi — PCIe 4.0 graphics and storage, four DDR4 slots and a solid 10+3 VRM make it ideal for Ryzen 5000 builds or upgrades reusing existing AM4 CPUs and DDR4 memory. Just note the wireless is Wi-Fi 6 (not 6E). If you want the newer AM5 platform with DDR5 and PCIe 5.0, a B650 board is the route. Pair it with a fast PCIe Gen4 internal SSD in the CPU M.2 slot.

Buyer's Guide

Buy it if
You are building or upgrading anAMD Ryzen 5000/3000 system on AM4, reusing DDR4, and want built-in Wi-Fi with PCIe 4.0 and dual M.2.
Skip it if
You want the newer AM5 platform with DDR5/PCIe 5.0, Wi-Fi 6E, or an Intel build — choose a B650 (AM5) or Intel board.
Also consider
AnAMD B650 (AM5, DDR5) board for the newer platform, or the ASRock B550 Pro4 for more SATA ports.
