Asrock b760m pro rs micro-atx motherboard lga 1700 intel b760 ddr5 pcie 5.0 x16 triple m.2 2.5GBe USB-c HDMI dp black

Name: Asrock b760m pro rs micro-atx motherboard lga 1700 intel b760 ddr5 pcie 5.0 x16 triple m.2 2.5GBe USB-c HDMI dp black
Brand: ASROCK
SKU: 66938d2e-abe2-4b93-890d-05831015cf2c
Price: 142.82 EUR
Availability: InStock

Product image: Asrock b760m pro rs micro-atx motherboard lga 1700 intel b760 ddr5 pcie 5.0 x16 triple m.2 2.5GBe USB-c HDMI dp black-null

ASROCK

Asrock b760m pro rs micro-atx motherboard lga 1700 intel b760 ddr5 pcie 5.0 x16 triple m.2 2.5GBe USB-c HDMI dp black

€ 158.70 - 10% € 142.82

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 26 Ιουν - 29 Ιουν

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 29 Ιουν - 01 Ιουλ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 66938d2e-abe2-4b93-890d-05831015cf2c

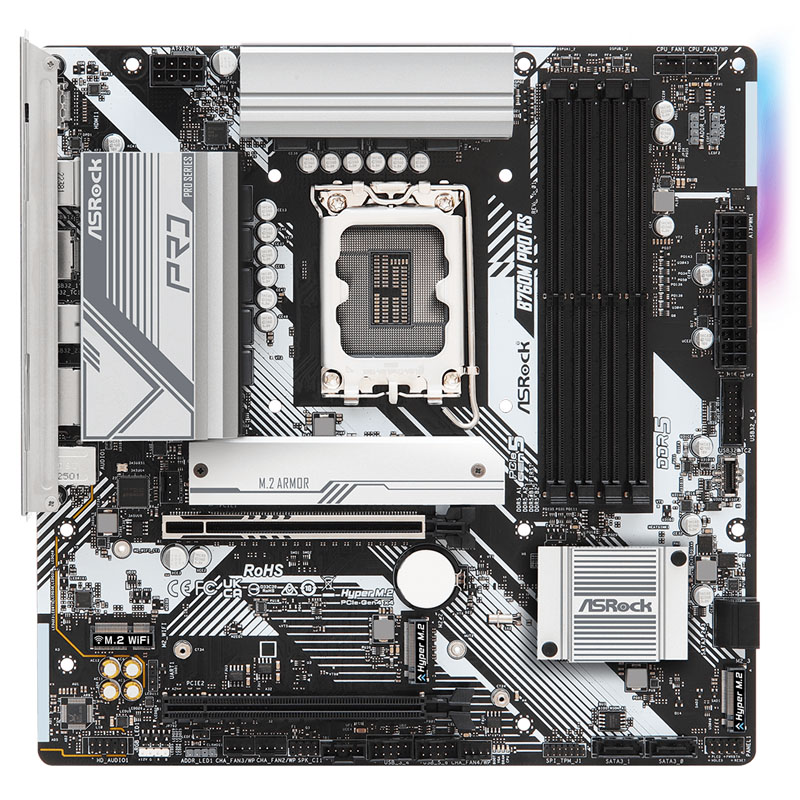

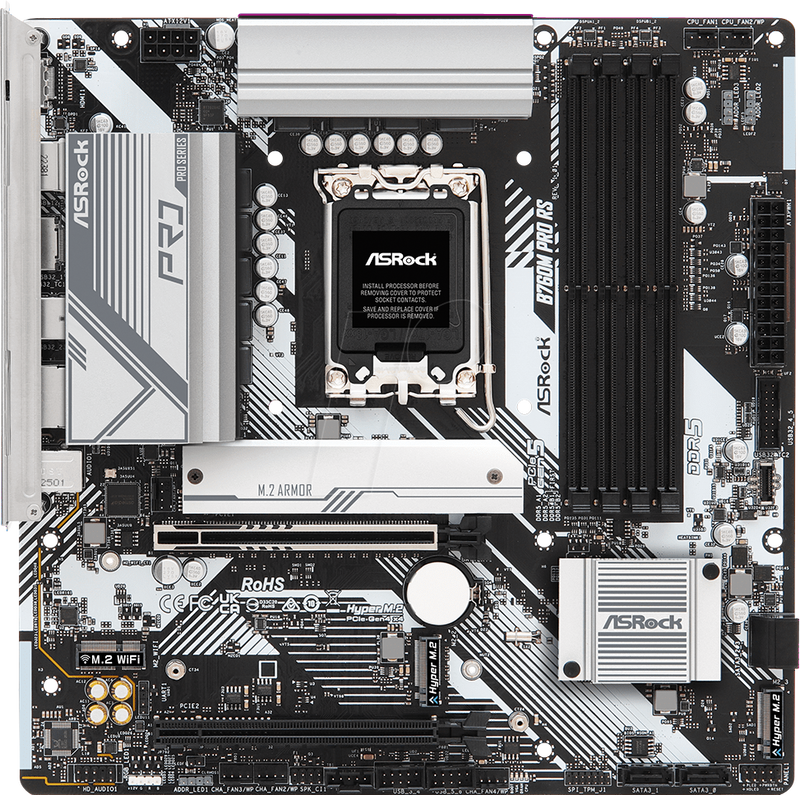

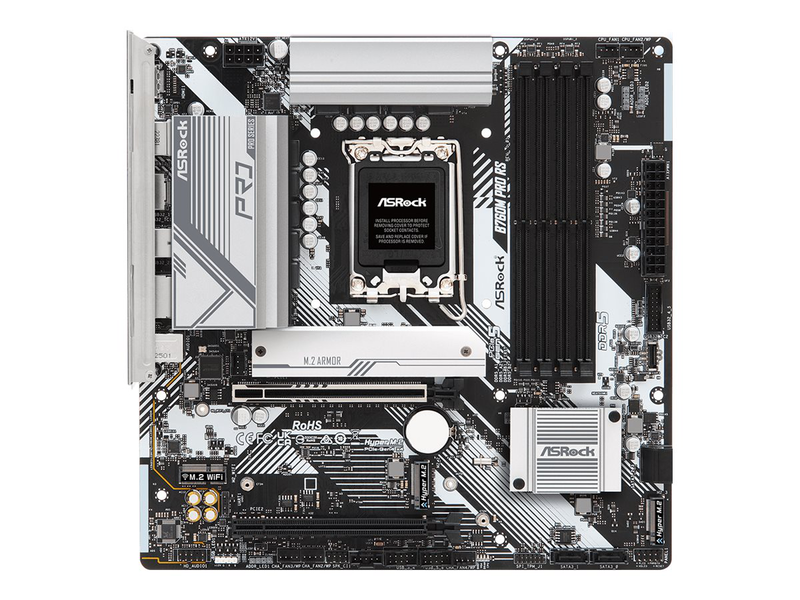

ASRock B760M Pro RS — Micro-ATX LGA 1700 with PCIe 5.0 LGA 1700 · Intel B7604× DDR5 up to 7200+ MT/s OCPCIe 5.0 x16 + Triple M.2Dragon 2.5GBE · USB-C The ASRock B760M Pro RS is a well-equipped micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under ASRock part number 90-MXBLH0-A0UAYZ (EAN 4710483942723), it offers a PCIe 5.0 x16 graphics slot, four DDR5 slots (up to 256GB), three Gen4 M.2 slots, f

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

ASRock B760M Pro RS — Micro-ATX LGA 1700 with PCIe 5.0

LGA 1700 · Intel B7604× DDR5 up to 7200+ MT/s OCPCIe 5.0 x16 + Triple M.2Dragon 2.5GBE · USB-C

The ASRock B760M Pro RS is a well-equipped micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th GenerationIntel Core processors. Sold under ASRock part number 90-MXBLH0-A0UAYZ (EAN 4710483942723), it offers a PCIe 5.0 x16 graphics slot, four DDR5 slots (up to 256GB), three Gen4 M.2 slots, four SATA ports, fast Dragon 2.5GBE networking and a USB-C port — strong value for mainstream and gaming builds in a compact form factor. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying

This is an LGA 1700 board supporting 12th/13th/14th GenIntel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR5 version (no DDR4), with four DIMM slots (max 256GB). The PCIe 5.0 bandwidth applies to the x16 graphics slot; the three M.2 slots run at PCIe Gen4.

Best For

✓Mainstream and gaming LGA 1700 builds

✓PCIe 5.0 graphics with triple-NVMe storage

✓High-capacity DDR5 (up to 256GB)

✓Compact Micro-ATX cases

✓Fast Dragon 2.5GBE networking

✓USB-C peripheral connectivity

Key Features

PCIe 5.0 x16 graphics slot

The primary x16 slot runs at PCIe 5.0, giving full bandwidth for current and next-generation graphics cards on a value micro-ATX board.

Triple Gen4 M.2 + 4× SATA

Three PCIe Gen4 M.2 slots and four SATA 6GB/s ports provide excellent, fast storage flexibility — unusually Generous for a micro-ATX board.

Fast, high-capacity DDR5

Four DDR5 DIMM slots support up to 256GB and overclocked speeds of 7200+ MHz for responsive gaming and multitasking.

Dragon 2.5GBE + USB-C

Realtek Dragon 2.5GBE LAN for fast networking, plus a rear USB 3.2 Gen 1 Type-C port and HDMI/DisplayPort ouTPUts.

Technical Specifications

Identification
Part Number	90-MXBLH0-A0UAYZ
EAN / GTIN	4710483942723
Model	ASRock B760M Pro RS
Brand	ASRock
Platform
Chipset	Intel B760
Socket	LGA 1700
CPU Support	12th/13th/14th GenIntel Core
Form Factor	Micro-ATX
Memory
Slots	4× DDR5 DIMM (Dual-Channel)
Max Capacity	256GB
Speed	DDR5 up to 7200+ MHz (OC)
Expansion & Storage
PCIe Slots	1× PCIe 5.0 x16 + 1× PCIe 3.0 x16 (@x4)
M.2	3× M.2 PCIe Gen4 x4
SATA	4× SATA3 6GB/s

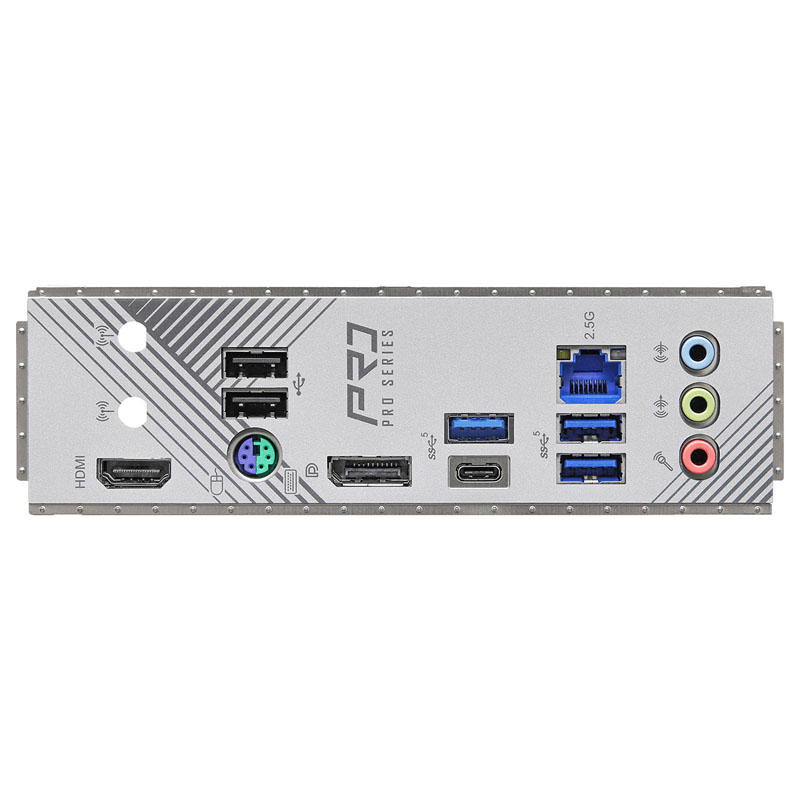

Connectivity & I/O
LAN	Realtek Dragon 2.5GBE LAN (RJ-45)
Display Out	1× HDMI + 1× DisplayPort 1.4 (integrated graphics)
Rear USB	1× USB 3.2 Gen 1 Type-C + 3× USB 3.2 Gen 1 Type-A + 2× USB 2.0
Audio	HD Audio
Other
Note	PCIe 5.0 applies to the x16 graphics slot; M.2 storage runs at Gen4
Colour	Black
Operating System	Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the ASRock B760M Pro RS?

It supports 12th, 13th and 14th GenerationIntel Core processors on the LGA 1700 socket. It is not compatible with the newer LGA 1851 Core Ultra CPUs.

Is the M.2 storage PCIe 5.0?

No. The PCIe 5.0 applies to the x16 graphics slot. The three M.2 slots run at PCIe Gen4 — still fast for NVMe SSDs.

How much memory does it support?

Four DDR5 DIMM slots support up to 256GB at overclocked speeds of 7200+ MHz. DDR4 is not supported on this model.

How many drives can I install?

Three M.2 NVMe SSDs (all Gen4) plus up to four SATA 6GB/s drives — Generous storage for a micro-ATX board.

Singular Expert Insight

The B760M Pro RS packs a lot into a micro-ATX board — a PCIe 5.0 x16 slot, triple Gen4 M.2, four DDR5 slots, 2.5GBE and USB-C, with Gen4 (not Gen5) M.2 the only trade-off. If you want built-in Wi-Fi, the B760M Pro RS WiFi adds wireless; for a full-ATX layout the B760 Pro RS is the bigger sibling. For the latest Core Ultra platform, an LGA 1851 B860 board is the move. Add a fast PCIe Gen4 internal SSD for best storage performance.

Buyer's Guide

Buy it if

You want a feature-rich micro-ATX LGA 1700 board with PCIe 5.0 graphics, triple M.2, four DDR5 slots, 2.5GBE and USB-C for gaming or productivity.

Skip it if

You want built-in Wi-Fi, a full-ATX layout, Gen5 M.2 or the latest Core Ultra platform — choose a WiFi variant, the B760 Pro RS, or an LGA 1851 board.

Also consider

The ASRock B760M Pro RS WiFi (Wi-Fi) or B760 Pro RS (full ATX), or an LGA 1851 B860 board.
