Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white

Product image: Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white-null
Product image: Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white-null
Product image: Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white-null
Product image: Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white-null
Product image: Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white-null
MSI
🔥Πωλείται γρήγορα!

Msi mpg b860i edge ti Wi-Fi mini-itx motherboard lga 1851 intel b860 ddr5 pcie 5.0 thunderbolt 4 Wi-Fi 7 white

από € 267.69 σε - 10% - 10% € 240.93
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: White
Σε απόθεμα
–+
–+
480
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 26 Ιουν - 29 Ιουν
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 29 Ιουν - 01 Ιουλ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 850952e2-e15b-4972-8c2f-35271010727c
MSI MPG B860I Edge Ti WiFi — Mini-ITX Powerhouse for Intel Core Ultra LGA 1851 · Intel B860DDR5 up to 8600+ MT/sPCIe 5.0 + Dual M.2Wi-Fi 7 · Thunderbolt 4 · 5G LAN The MSI MPG B860I Edge Ti WiFi is a premium Mini-ITX (170×170mm) motherboard built around the Intel B860 chipset and the LGA 1851 socket, designed for compact, high-performance builds running Intel Core Ultra Series 2 (Arrow Lake) processors. Sold under MSI part number 7E43-001R (EAN 4711377350174), it pairs a flagship-class 8+1+1+1

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

  • Θύρα Επεξεργαστή: Socket 1851

Λεπτομέρειες

MSI MPG B860I Edge Ti WiFi — Mini-ITX Powerhouse forIntel Core Ultra

LGA 1851 · Intel B860DDR5 up to 8600+ MT/sPCIe 5.0 + Dual M.2Wi-Fi 7 · Thunderbolt 4 · 5G LAN

The MSI MPG B860I Edge Ti WiFi is a premium Mini-ITX (170×170mm) motherboard built around the Intel B860 chipset and the LGA 1851 socket, designed for compact, high-performance builds runningIntel Core Ultra Series 2 (Arrow Lake) processors. Sold under MSI part number 7E43-001R (EAN 4711377350174), it pairs a flagship-class 8+1+1+1 Duet Rail power system with PCIe 5.0, Gen5 M.2 storage, Wi-Fi 7 and Thunderbolt 4 — everything a small-form-factor enthusiast needs on a single 17cm board. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an LGA 1851 board and supports onlyIntel Core Ultra Series 2 (Arrow Lake) desktop CPUs — it is not compatible with 12th/13th/14th Gen LGA 1700 processors. It uses DDR5 UDIMM memory only (2 slots, no DDR4), and its Mini-ITX footprint requires an ITX-compatible case. The bundled Wi-Fi 7 module is pre-installed in the M.2 Key-E slot.

Best For

✓Compact small-form-factor (SFF) gaming and creator builds
✓Intel Core Ultra Series 2 (Arrow Lake) systems
✓Builders who want PCIe 5.0 GPU + Gen5 NVMe storage
✓High-speed DDR5 memory overclocking (8600+ MT/s)
✓Fast networking with Wi-Fi 7 and 5G wired LAN
✓Thunderbolt 4 / USB4 device connectivity

Key Features


Flagship VRM in an ITX form
An 8+1+1+1 Duet Rail Power System with 110A Smart Power Stages delivers clean, stable power toIntel Core Ultra processors, even under sustained load in a small chassis.

PCIe 5.0 + Gen5 M.2
A PCIe 5.0 x16 slot for next-gen graphics plus an M.2_1 slot running PCIe 5.0 x4 from the CPU — with a second M.2 (PCIe 4.0 x4 / SATA) and 2× SATA 6G for extra drives.

DDR5 Memory Boost
Two DDR5 UDIMM slots support up to 128GB and overclocked speeds of 8600+ MT/s (1DPC 1R), with XMP 3.0 and CUDIMM support for tuned performance.

Next-gen connectivity
Intel Killer BE1750x Wi-Fi 7 with Bluetooth 5.4, Intel Killer E5000B 5G LAN, and a rear Thunderbolt 4 port (40GBps, DisplayPort 2.1, up to 8K) cover every modern device.

Technical Specifications

Identification
Part Number 7E43-001R
EAN / GTIN 4711377350174
MPN MPG B860I EDGE TI WIFI (7E43-001R)
Series MSI MPG (Edge Ti)
Platform
Chipset Intel B860
Socket LGA 1851
CPU Support Intel Core Ultra Processors (Series 2) — Arrow Lake desktop
Form Factor Mini-ITX, 170 × 170 mm
Memory
Slots 2× DDR5 UDIMM (Dual-Channel)
Max Capacity 128GB
Speed Up to 8600+ MT/s (OC, 1DPC 1R) — 4800 MT/s JEDEC
Features XMP 3.0, CUDIMM support, Non-ECC un-buffered
Expansion & Storage
PCIe Slot 1× PCIe 5.0 x16 (from CPU)
M.2 M.2_1 PCIe 5.0 x4 (CPU) + M.2_2 PCIe 4.0 x4 / SATA (chipset), both 2280
SATA 2× SATA 6GB/s — RAID 0/1
Connectivity
Wi-Fi Intel Killer BE1750x Wi-Fi 7 — up to 5.8GBps, MLO, 320MHz
Bluetooth Bluetooth 5.4
LAN 1× Intel Killer E5000B 5G LAN
Thunderbolt 1× Thunderbolt 4 (rear) — 40GBps, USB4, DisplayPort 2.1 (UHBR20), up to 8K

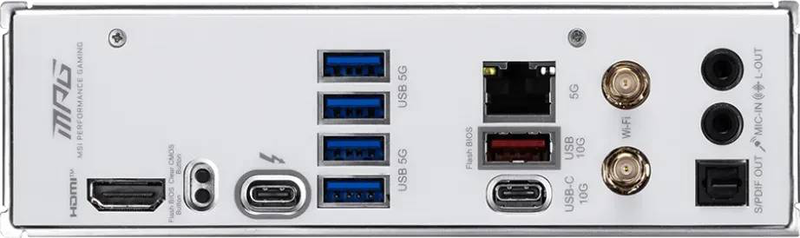

Rear & Front I/O
USB (Rear) 4× USB 5GBps Type-A, 1× USB 10GBps Type-A, 1× USB 10GBps Type-C, 1× Thunderbolt 4 Type-C
USB (Front headers) 1× USB 10GBps Type-C, 2× USB 5GBps Type-A, 2× USB 2.0
Display Out 1× HDMI 2.1 (FRL, up to 8K 60Hz) + Type-C DisplayPort (iGPU only)
Audio Realtek ALC897, 7.1-channel HD Audio + Optical S/PDIF
Other
TPM Onboard TPM 2.0 pin header
RGB 1× JARGB_V2 (Addressable Gen2) + 1× JRGB
Colour White
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs does the MSI MPG B860I Edge Ti WiFi support?
It supportsIntel Core Ultra Series 2 (Arrow Lake) desktop processors on the LGA 1851 socket. It does not support older LGA 1700 chips (12th/13th/14th Gen Core).
Does it use DDR4 or DDR5 memory?
DDR5 only. It has two DDR5 UDIMM slots supporting up to 128GB and overclocked speeds of 8600+ MT/s with XMP 3.0; DDR4 modules will not fit or work.
Does it support PCIe 5.0 graphics cards and Gen5 SSDs?
Yes. The PCIe x16 slot runs at PCIe 5.0 from the CPU, and the primary M.2_1 slot supports PCIe 5.0 x4 NVMe SSDs. A second M.2 slot adds PCIe 4.0 / SATA storage.
What case do I need for this motherboard?
This is a Mini-ITX board (170×170mm), so it fits any Mini-ITX compatible case. Its compact size makes it ideal for small-form-factor builds.
Singular Expert Insight
Within MSI's B860 mini-ITX range, the Edge Ti WiFi sits at the top — its 110A Duet Rail VRM, Thunderbolt 4 and 5G LAN go well beyond entry boards like the B860M-class options, making it the better choice if you plan to run a high-end Core Ultra CPU and PCIe 5.0 graphics in a small case. If you don't need Thunderbolt or 5G networking, a standard B860 board will save money. To finish a compact build, pair it with a fast PCIe Gen5 internal SSD and a suitable SFX power supply.

Buyer's Guide

Buy it if
You want a feature-packed Mini-ITX board for anIntel Core Ultra build with PCIe 5.0, Gen5 M.2, Wi-Fi 7 and Thunderbolt 4 in a 17cm footprint.
Skip it if
You have an LGA 1700 CPU or DDR4 memory, or you need a full-size ATX board with more PCIe/M.2 slots and DIMM capacity.
Also consider
A standard B860 or Z890 ITX board if you want to save money or need higher-end overclocking and extra connectivity headroom.
