Gigabyte b760m d3hp ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 dual m.2 HDMI dp vga gbe black

Name: Gigabyte b760m d3hp ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 dual m.2 HDMI dp vga gbe black
Brand: GIGABYTE
SKU: a3cd8e37-8e4d-413c-81cd-4d2ebb807c1b
Price: 114.99 EUR
Availability: InStock

Product image: Gigabyte b760m d3hp ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 dual m.2 HDMI dp vga gbe black-null

GIGABYTE

Gigabyte b760m d3hp ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 dual m.2 HDMI dp vga gbe black

€ 127.77 - 10% € 114.99

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 26 Ιουν - 29 Ιουν

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 29 Ιουν - 01 Ιουλ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: a3cd8e37-8e4d-413c-81cd-4d2ebb807c1b

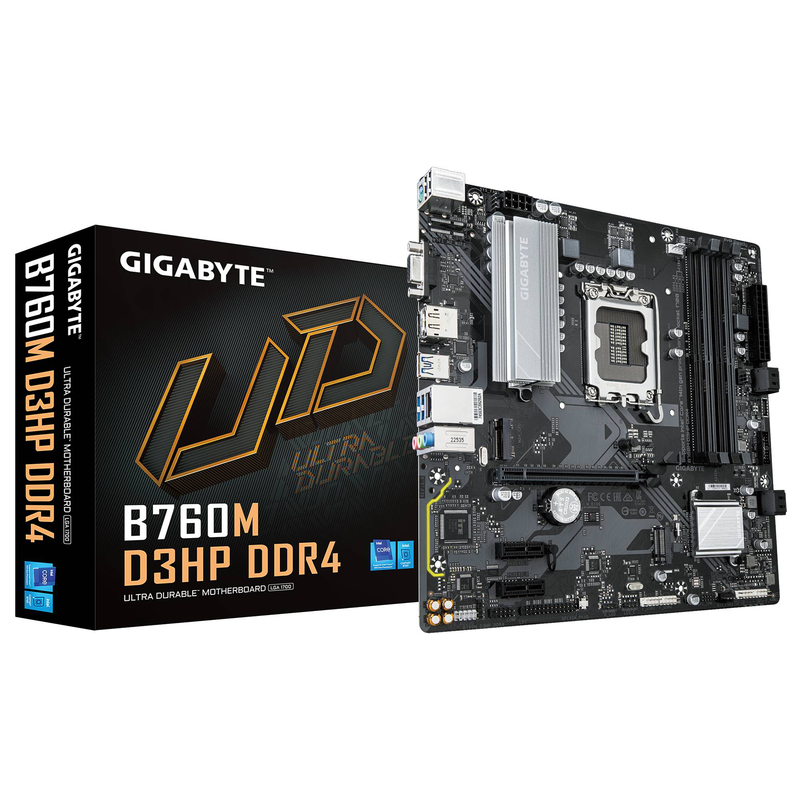

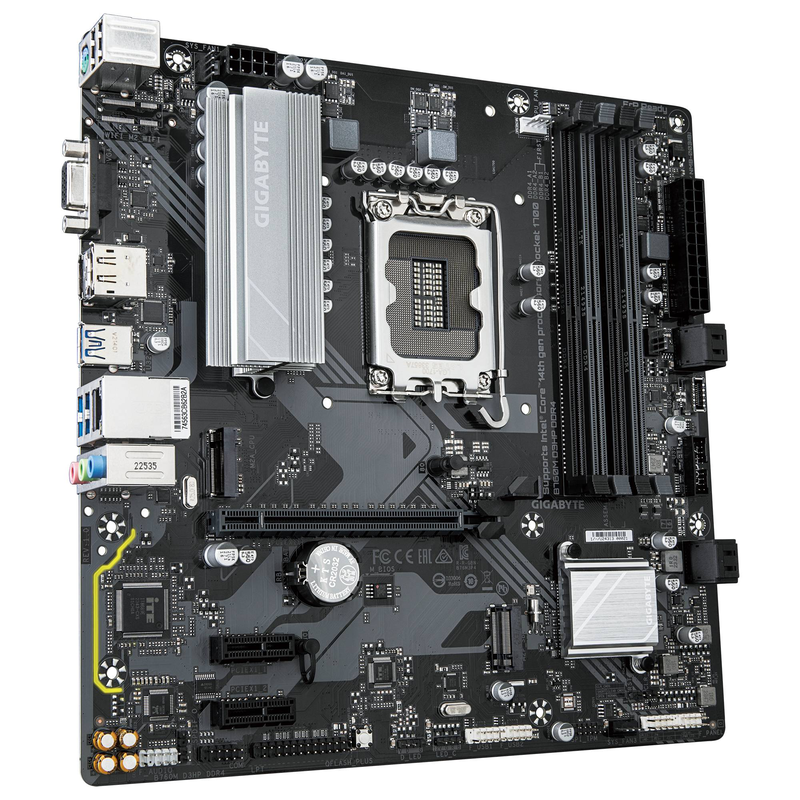

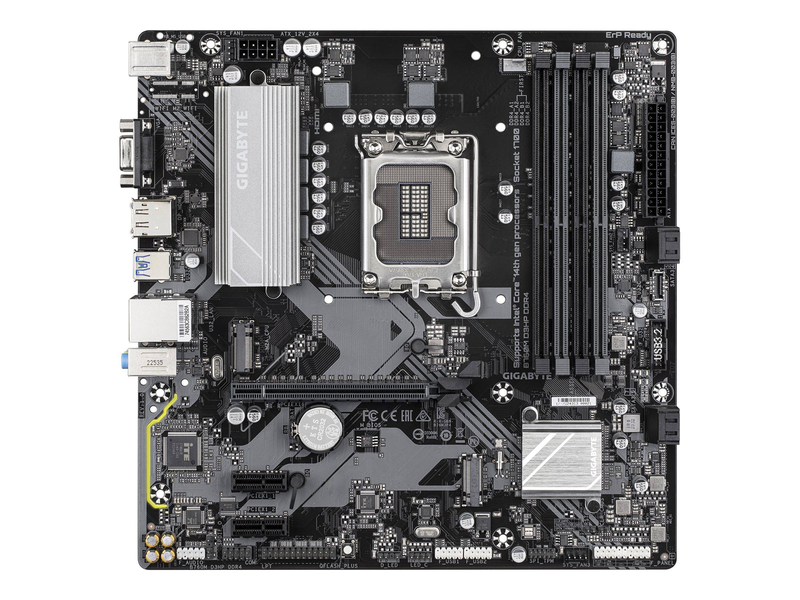

Gigabyte B760M D3HP DDR4 — Four-DIMM LGA 1700 Micro-ATX LGA 1700 · Intel B7604× DDR4 up to 128GBPCIe 4.0 x16 + Dual M.2Triple Display · GbE The Gigabyte B760M D3HP DDR4 is a micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under Gigabyte part number B760M D3HP DDR4 (EAN 4719331862848), it uses cost-saving DDR4 memory across four slots alongside a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slot

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

Gigabyte B760M D3HP DDR4 — Four-DIMM LGA 1700 Micro-ATX

LGA 1700 · Intel B7604× DDR4 up to 128GBPCIe 4.0 x16 + Dual M.2Triple Display · GbE

The Gigabyte B760M D3HP DDR4 is a micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th GenerationIntel Core processors. Sold under Gigabyte part number B760M D3HP DDR4 (EAN 4719331862848), it uses cost-saving DDR4 memory across four slots alongside a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slots, four SATA ports and triple display ouTPUt — a roomy, value-focused base for productivity and mainstream builds. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying

This is an LGA 1700 board supporting 12th/13th/14th GenIntel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR4 version, so it uses DDR4 memory only (not DDR5), across four DIMM slots. Graphics/storage run at PCIe 4.0.

Best For

✓Productivity and mainstream LGA 1700 builds

✓Reusing existing DDR4 memory

✓Multi-monitor productivity setups

✓High-capacity DDR4 (four DIMM slots)

✓Dual NVMe + four SATA storage

✓Pairing with 12th–14th Gen Core i5/i7 CPUs

Key Features

Four-DIMM DDR4

Four DDR4 DIMM slots support large dual-channel memory configurations at speeds up to 5333 MHz (OC), letting you reuse existing memory affordably.

Dual PCIe 4.0 M.2 + 4× SATA

Two PCIe 4.0 x4 M.2 slots (2280) plus four SATA 6GB/s ports with RAID support for flexible, fast storage.

Triple display ouTPUt

HDMI, DisplayPort and D-Sub (VGA) ouTPUts let you drive multiple monitors from integrated graphics — ideal for productivity.

Reliable everyday platform

A PCIe 4.0 x16 slot for graphics, GbE LAN with network bandwidth management and multiple USB 3.2 Gen 1 ports cover everyday needs.

Technical Specifications

Identification
Part Number	B760M D3HP DDR4
EAN / GTIN	4719331862848
Brand	Gigabyte
Platform
Chipset	Intel B760
Socket	LGA 1700
CPU Support	12th/13th/14th GenIntel Core
Form Factor	Micro-ATX
Memory
Slots	4× DDR4 DIMM (Dual-Channel)
Max Capacity	128GB
Speed	DDR4 up to 5333 MHz (OC)
Expansion & Storage
PCIe Slot	1× PCIe 4.0 x16
M.2	2× M.2 PCIe 4.0 x4 (2280)
SATA	4× SATA 6GB/s — RAID 0/1/5/10
Connectivity & I/O
LAN	GbE LAN (RJ-45)

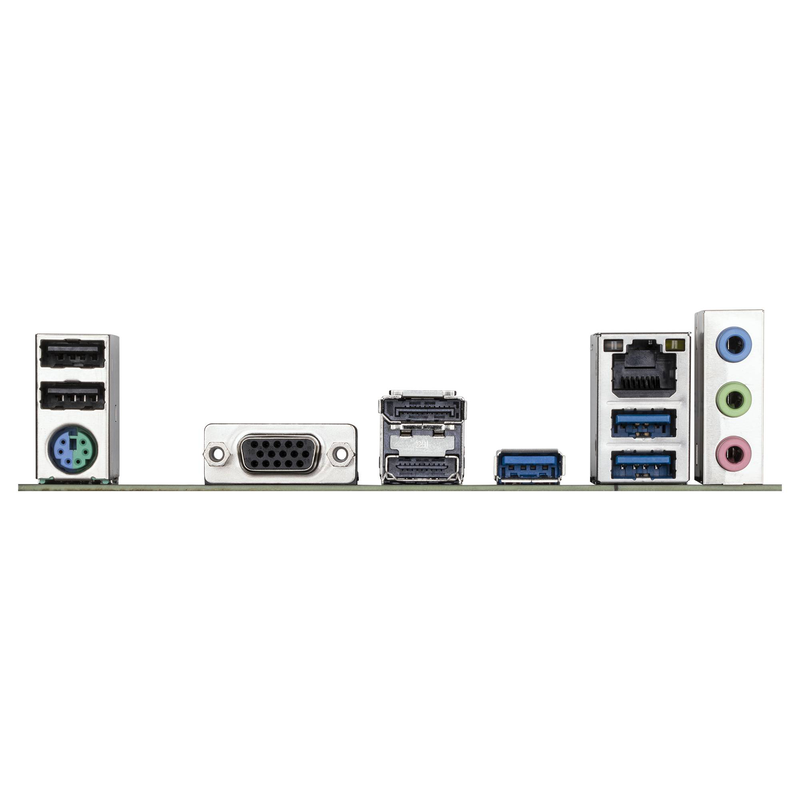

Display Out	1× HDMI + 1× DisplayPort + 1× D-Sub (VGA)
Rear USB	USB 3.2 Gen 1 + USB 2.0
Audio	HD Audio
Other
Colour	Black
Operating System	Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the Gigabyte B760M D3HP DDR4?

It supports 12th, 13th and 14th GenerationIntel Core processors on the LGA 1700 socket. It is not compatible with the newer LGA 1851 Core Ultra CPUs.

Does it use DDR4 or DDR5?

This is the DDR4 version — four DDR4 DIMM slots support large memory configurations at up to 5333 MHz (OC). It does not accept DDR5 (a DDR5 variant exists).

How many monitors can it drive?

Using integrated graphics it offers HDMI, DisplayPort and VGA ouTPUts, supporting a multi-monitor setup directly from the motherboard.

How many drives can I install?

Two M.2 NVMe SSDs (both PCIe 4.0 x4, 2280) plus up to four SATA 6GB/s drives, with RAID support on SATA.

Singular Expert Insight

The B760M D3HP DDR4 pairs four DDR4 DIMM slots with triple display ouTPUt, making it a strong value pick for memory-flexible or multi-monitor productivity builds that reuse existing DDR4. If you want DDR5, the B760M D3HP (DDR5) is the sibling; for a PCIe 5.0 graphics slot, the B760M Gaming X Gen5 steps up. For the latest Core Ultra platform, the B860M D3HP is the LGA 1851 equivalent. Add a fast internal NVMe SSD for best results.

Buyer's Guide

Buy it if

You want a four-DIMM LGA 1700 board reusing DDR4 memory, with dual M.2 and triple display ouTPUt for productivity or mainstream use.

Skip it if

You want DDR5, PCIe 5.0, Wi-Fi or the latest Core Ultra platform — choose the DDR5 D3HP, a Gen5 board, or the B860M D3HP.

Also consider

The Gigabyte B760M D3HP (DDR5) or B860M D3HP (newer LGA 1851 platform).
