Gigabyte b760m h ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 x16 dual m.2 HDMI vga gbe lan black

Name: Gigabyte b760m h ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 x16 dual m.2 HDMI vga gbe lan black
Brand: GIGABYTE
SKU: a7684f23-5b8a-4e10-86eb-3ddc5b44c9c5
Price: 106.79 EUR
Availability: InStock

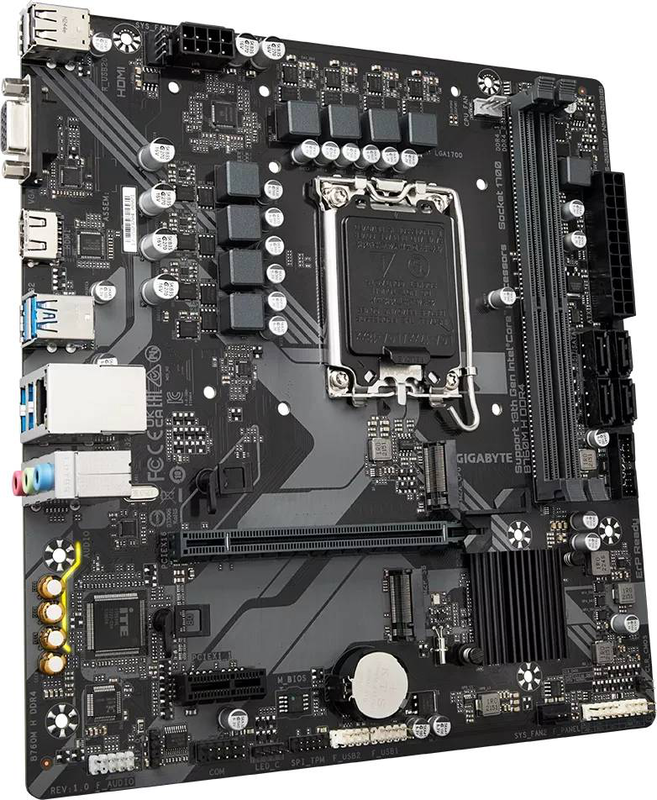

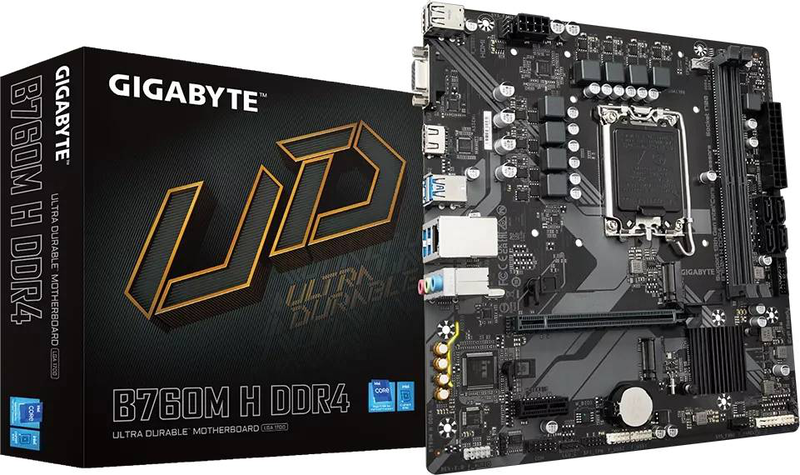

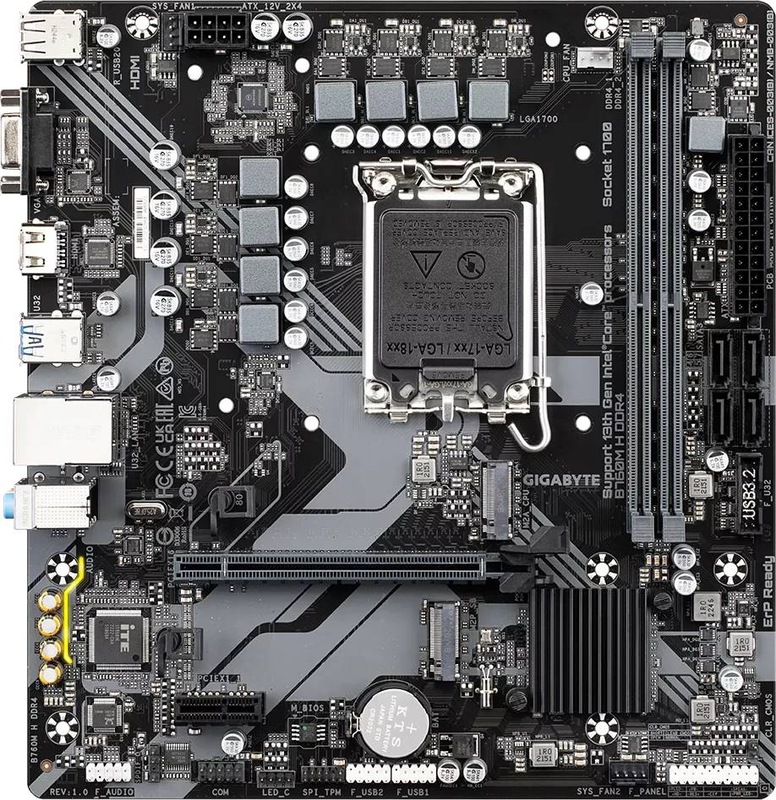

Product image: Gigabyte b760m h ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 x16 dual m.2 HDMI vga gbe lan black-null

GIGABYTE

Gigabyte b760m h ddr4 micro-atx motherboard lga 1700 intel b760 pcie 4.0 x16 dual m.2 HDMI vga gbe lan black

€ 118.65 - 10% € 106.79

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 26 Ιουν - 29 Ιουν

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 29 Ιουν - 01 Ιουλ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: a7684f23-5b8a-4e10-86eb-3ddc5b44c9c5

Gigabyte B760M H DDR4 — Budget LGA 1700 Micro-ATX LGA 1700 · Intel B7602× DDR4 up to 64GBPCIe 4.0 x16 + Dual M.2HDMI · VGA · GbE The Gigabyte B760M H DDR4 is a budget-friendly micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under Gigabyte part number B760M H DDR4 (EAN 4719331854645), it uses cost-saving DDR4 memory alongside a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slots, four SATA ports

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

Gigabyte B760M H DDR4 — Budget LGA 1700 Micro-ATX

LGA 1700 · Intel B7602× DDR4 up to 64GBPCIe 4.0 x16 + Dual M.2HDMI · VGA · GbE

The Gigabyte B760M H DDR4 is a budget-friendly micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th GenerationIntel Core processors. Sold under Gigabyte part number B760M H DDR4 (EAN 4719331854645), it uses cost-saving DDR4 memory alongside a PCIe 4.0 x16 graphics slot, dual PCIe 4.0 M.2 slots, four SATA ports and both HDMI and VGA ouTPUts — a dependable base for everyday, office and entry-level builds. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying

This is an LGA 1700 board supporting 12th/13th/14th GenIntel Core (and Pentium Gold/Celeron) CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR4 version, so it uses DDR4 memory only (not DDR5), with two DIMM slots. Graphics/storage run at PCIe 4.0.

Best For

✓Budget LGA 1700 office and home builds

✓Reusing existing DDR4 memory

✓Entry-level builds with a dedicated GPU

✓Compact Micro-ATX systems

✓Dual NVMe + four SATA storage

✓Pairing with 12th–14th Gen Core i3/i5 CPUs

Key Features

Broad Intel CPU support

The LGA 1700 socket and Intel B760 chipset support 12th, 13th and 14th GenerationIntel Core, Pentium Gold and Celeron processors.

Cost-saving DDR4

Two DDR4 DIMM slots support up to 64GB of dual-channel memory at 3200 MT/s, letting you reuse existing memory and keep build costs low.

Dual PCIe 4.0 M.2 + 4× SATA

Two PCIe 4.0 x4 M.2 slots (one CPU, one chipset, 2280) plus four SATA 6GB/s ports with RAID 0/1/5/10 for flexible storage.

Flexible display ouTPUt

Onboard HDMI and D-Sub (VGA) ouTPUts connect modern and legacy monitors from integrated graphics, with multiple USB 3.2 Gen 1 ports.

Technical Specifications

Identification
Part Number	B760M H DDR4
EAN / GTIN	4719331854645
Brand	Gigabyte
Platform
Chipset	Intel B760
Socket	LGA 1700
CPU Support	12th/13th/14th GenIntel Core, Pentium Gold, Celeron
Form Factor	Micro-ATX
Memory
Slots	2× DDR4 DIMM (Dual-Channel)
Max Capacity	64GB
Speed	DDR4 3200 MT/s
Expansion & Storage
PCIe Slot	1× PCIe 4.0 x16
M.2	2× M.2 PCIe 4.0 x4 (2280) — one CPU, one chipset
SATA	4× SATA 6GB/s — RAID 0/1/5/10
Connectivity & I/O
LAN	GbE LAN (RJ-45)
Display Out	1× HDMI + 1× D-Sub (VGA) — integrated graphics
Rear USB	4× USB 3.2 Gen 1 + 2× USB 2.0
Audio	HD Audio (3 jacks)
Other
Colour	Black
Operating System	Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the Gigabyte B760M H DDR4?

It supports 12th, 13th and 14th GenerationIntel Core, Pentium Gold and Celeron processors on the LGA 1700 socket. It is not compatible with the newer LGA 1851 Core Ultra CPUs.

Does it use DDR4 or DDR5?

This is the DDR4 version — two DDR4 DIMM slots support up to 64GB at 3200 MT/s. It does not accept DDR5 (a separate DDR5 variant exists).

Can I connect an older VGA monitor?

Yes. Alongside HDMI, the board includes a D-Sub (VGA) ouTPUt for legacy displays when using integrated graphics.

How many drives can I install?

Two M.2 NVMe SSDs (both PCIe 4.0 x4, 2280) plus up to four SATA 6GB/s drives, with RAID 0/1/5/10 support on SATA.

Singular Expert Insight

The B760M H DDR4 is a value-first board for LGA 1700 systems — it pairs cost-saving DDR4 with dual Gen4 M.2, four SATA and legacy VGA ouTPUt, making it ideal for budget office and home builds reusing existing memory. If you want DDR5 (and higher speeds), the B760M H V2 is the DDR5 sibling; for a PCIe 5.0 graphics slot, the B760M Gaming X Gen5 steps up. For the latest Core Ultra platform, an LGA 1851 board is the move. Add an affordable internal NVMe SSD for a snappy build.

Buyer's Guide

Buy it if

You want an affordable LGA 1700 board reusing DDR4 memory for an office, home or entry build, with dual M.2, four SATA and HDMI/VGA ouTPUt.

Skip it if

You want DDR5, PCIe 5.0, 2.5GBE or the latest Core Ultra platform — choose the B760M H V2 (DDR5), a Gen5 board, or an LGA 1851 board.

Also consider

The Gigabyte B760M H V2 (DDR5) or B760M Gaming X Gen5 (PCIe 5.0) for more capability.
