Περιγραφή

Αριθμός προϊόντος: 90238b7b-d892-48d7-a5e0-64500ad41ed4

ASUS Pro B760M-CT-CSM — Secure Business Micro-ATX LGA 1700 · Intel B7604× DDR5 up to 192GBPCIe 4.0 + Dual M.2TPM · Quad Display · GbE The ASUS Pro B760M-CT-CSM is a business-focused micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under ASUS part number 90MB1DY0-M1EAYC (EAN 4711387019610), it combines four DDR5 slots, dual PCIe 4.0 M.2 storage, onboard TPM security and quad display output with co

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket 1700

Λεπτομέρειες

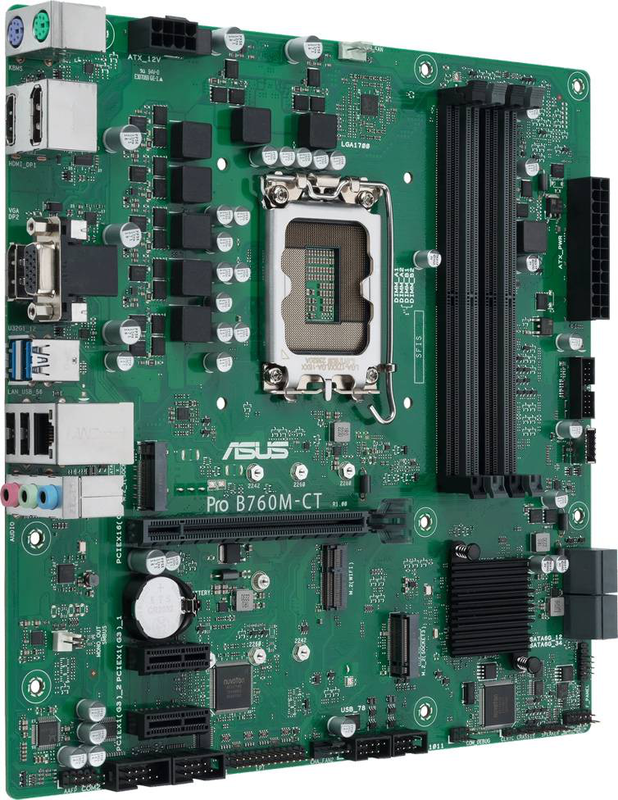

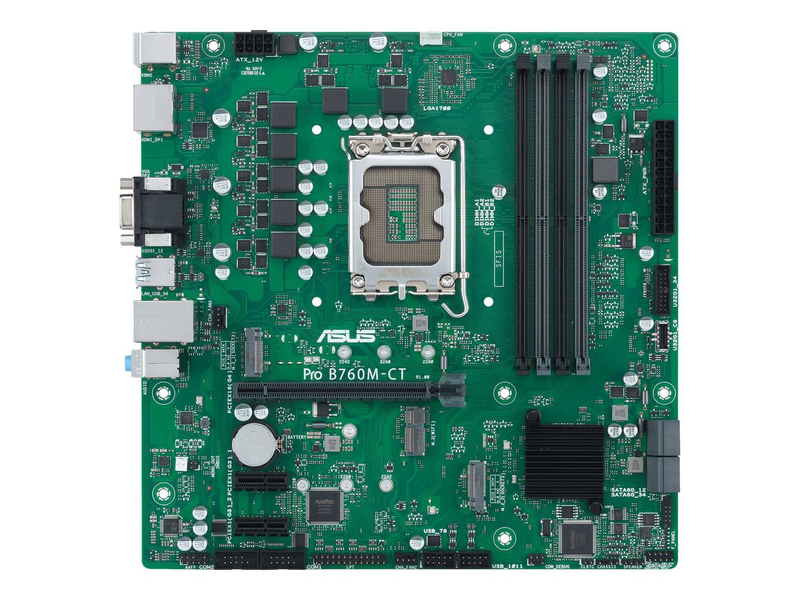

ASUS Pro B760M-CT-CSM — Secure Business Micro-ATX

LGA 1700 · Intel B7604× DDR5 up to 192GBPCIe 4.0 + Dual M.2TPM · Quad Display · GbE

The ASUS Pro B760M-CT-CSM is a business-focused micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th GenerationIntel Core processors. Sold under ASUS part number 90MB1DY0-M1EAYC (EAN 4711387019610), it combines four DDR5 slots, dual PCIe 4.0 M.2 storage, onboard TPM security and quad display ouTPUt with commercial-grade reliability and manageability features for corporate deployments. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying

This is an LGA 1700 board supporting 12th/13th/14th GenIntel Core (and Pentium Gold/Celeron) CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. It uses DDR5 memory only (no DDR4), up to 192GB across four slots. As a CSM commercial board it adds business security and manageability features.

Best For

✓Corporate and business LGA 1700 desktops

✓Multi-monitor office workstations (quad display)

✓IT-managed fleets needing TPM security

✓Dual NVMe + four SATA storage

✓High-capacity DDR5 (up to 192GB) workloads

✓Commercial deployments needing stable hardware

Key Features

Business security & manageability

Onboard TPM, Q-LED Core diagnostics, SMBUS header and CSM commercial features deliver the security and IT manageability corporate fleets require.

Quad display ouTPUt

Two DisplayPort ouTPUts plus HDMI and VGA drive up to four monitors from integrated graphics — ideal for office and trading desks.

Four-DIMM DDR5

Four DDR5 DIMM slots support up to 192GB at speeds up to 6200 MT/s (OC) with XMP — strong capacity for professional workloads.

Flexible storage & Wi-Fi ready

Two PCIe 4.0 x4 M.2 slots and four SATA 6GB/s ports for storage, plus an M.2 Key-E slot ready for an optional Wi-Fi module.

Technical Specifications

Identification
Part Number	90MB1DY0-M1EAYC
EAN / GTIN	4711387019610
Model	ASUS Pro B760M-CT-CSM
Brand	ASUS
Platform
Chipset	Intel B760
Socket	LGA 1700
CPU Support	12th/13th/14th GenIntel Core, Pentium Gold, Celeron
Form Factor	Micro-ATX
Program	CSM — commercial / Corporate Stable Model
Memory
Slots	4× DDR5 DIMM (Dual-Channel)
Max Capacity	192GB
Speed	4800 – 6200 MT/s (OC), XMP
Expansion & Storage
PCIe	PCIe 4.0 expansion
M.2	2× M.2 PCIe 4.0 x4 (Key M, up to 80mm) + 1× M.2 Key-E (Wi-Fi)
SATA	4× SATA 6GB/s
Connectivity & I/O
LAN	GbE LAN (RJ-45)
Display Out	2× DisplayPort + 1× HDMI + 1× VGA (quad display)
USB	2× USB 3.2 Gen 1, 2× USB 2.0 (rear) + front USB-C
Security	Onboard TPM, Q-LED Core, SMBUS header
Other
Colour	Black
Operating System	Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the ASUS Pro B760M-CT-CSM?

It supports 12th, 13th and 14th GenerationIntel Core, Pentium Gold and Celeron processors on the LGA 1700 socket. It is not compatible with the newer LGA 1851 Core Ultra CPUs.

What makes this a business motherboard?

As an ASUS Pro CSM commercial board it adds onboard TPM security, Q-LED diagnostics, an SMBUS header and extended availability — designed for IT-managed corporate fleets.

How many monitors can it drive?

Using integrated graphics it offers two DisplayPort ouTPUts plus HDMI and VGA, supporting up to four monitors directly from the motherboard.

Does it use DDR4 or DDR5?

DDR5 only. Four DDR5 DIMM slots support up to 192GB at speeds up to 6200 MT/s (OC). DDR4 is not supported.

Singular Expert Insight

The Pro B760M-CT-CSM is built for the office rather than gaming — its value lies in onboard TPM security, quad display ouTPUt and commercial manageability, while still offering four DDR5 slots and dual M.2. If you want the LGA 1851 Core Ultra equivalent, the Pro B860M-C-CSM is the step up; consumers focused on gaming should look at a standard B760 board. Pair it with a reliable internal NVMe SSD for fast, dependable storage.

Buyer's Guide

Buy it if

You want a secure, manageable micro-ATX board for business LGA 1700 desktops with TPM, quad display ouTPUt and dual M.2.

Skip it if

You want gaming features, PCIe 5.0, 2.5GBE or the latest Core Ultra platform — choose a consumer B760 or LGA 1851 board.

Also consider

The ASUS Pro B860M-C-CSM (newer LGA 1851 business platform) or a consumer B760 board for gaming.
