Asrock x870e taichi ocf am5 atx overclocking motherboard Wi-Fi 7 5G lan

Name: Asrock x870e taichi ocf am5 atx overclocking motherboard Wi-Fi 7 5G lan
Brand: ASROCK
SKU: 07e5d2a4-76d0-47b6-ad88-f12f7a309c7a
Price: 619.11 EUR
Availability: InStock

€ 687.90 - 10% € 619.11

Aπομένουν μόνο 2!

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Ποσότητα

–+

Από Singular Computers Systems LTD

Χαμηλό απόθεμα

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 11 Ιουν - 15 Ιουν

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 07e5d2a4-76d0-47b6-ad88-f12f7a309c7a

Singular Selected ASRock X870E Taichi OCF AM5 ATX Overclocking Motherboard A specialist AM5 overclocking motherboard for high-end Ryzen builds, combining AMD X870E, two DDR5 DIMM slots, dual PCIe 5.0 x16, Wi-Fi 7, 5G LAN, USB4 and six M.2 sockets. AMD X870EOCF OverclockingWi-Fi 76× M.2 The ASRock X870E Taichi OCF is designed for enthusiasts and overclockers who want a focused AMD AM5 platform for Ryzen 9000, 8000 and 7000 series processors. Unlike mainstream boards, it uses two DDR5 DIMM slots

Χαρακτηριστικά

Χαρακτηριστικά Μητρικής Κάρτας

Θύρα Επεξεργαστή: Socket AM5

Λεπτομέρειες

Singular Selected

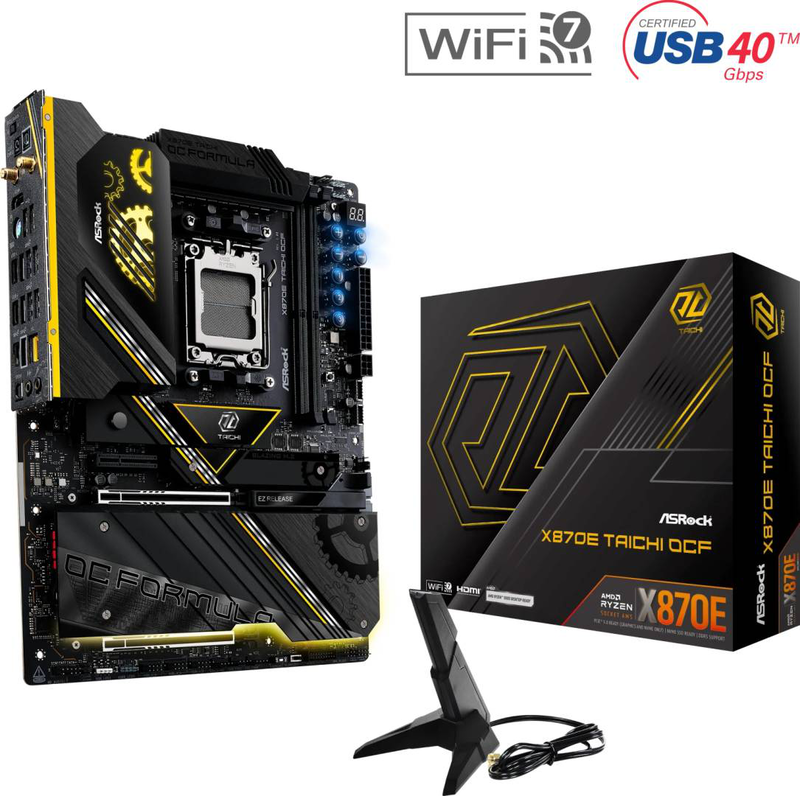

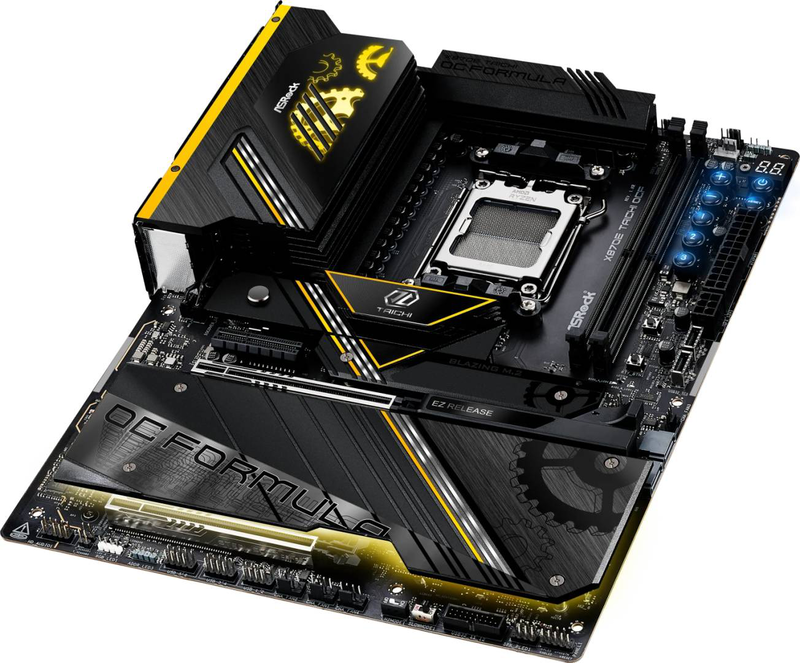

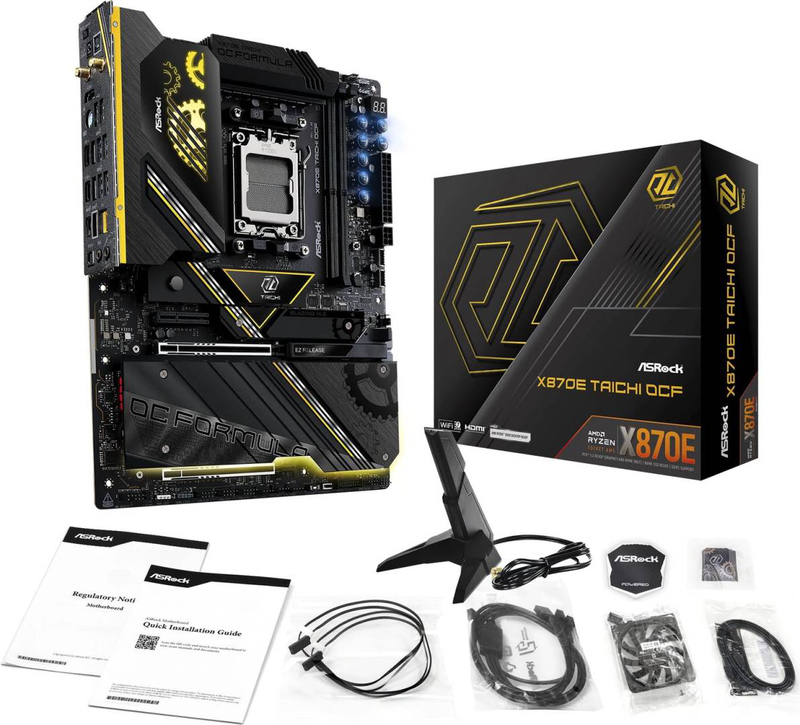

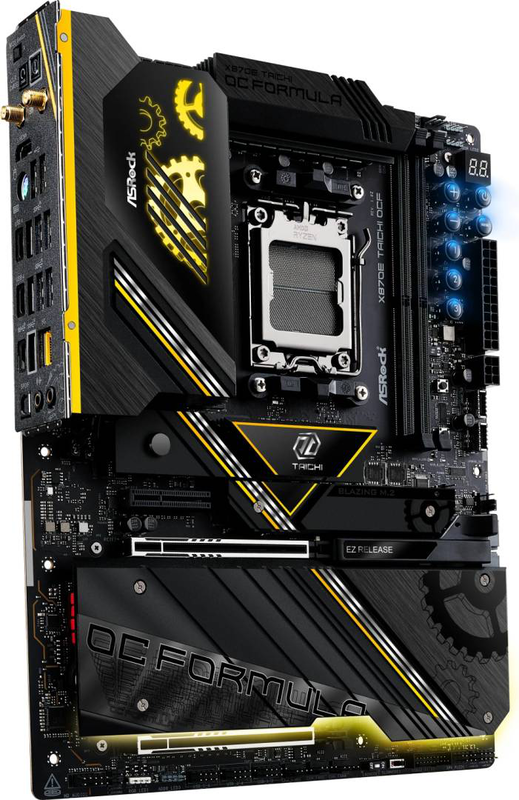

ASRock X870E Taichi OCF AM5 ATX Overclocking Motherboard

A specialist AM5 overclocking motherboard for high-end Ryzen builds, combiningAMD X870E, two DDR5 DIMM slots, dual PCIe 5.0 x16, Wi-Fi 7, 5G LAN, USB4 and six M.2 sockets.

AMD X870EOCF OverclockingWi-Fi 76× M.2

The ASRock X870E Taichi OCF is designed for enthusiasts and overclockers who want a focusedAMD AM5 platform for Ryzen 9000, 8000 and 7000 series processors. Unlike mainstream boards, it uses two DDR5 DIMM slots for memory tuning, a strong 22+2+1 phase power design, dual PCIe 5.0 x16 slots, six M.2 sockets, Wi-Fi 7, 5G LAN and advanced overclocking tools, making it a strong choice for high-end Ryzen performance builds and benchmarking-focused systems.

Compatibility Note: Please confirm CPU, BIOS, DDR5 memory, case, cooling and storage compatibility before purchase. This OCF model is overclocking-focused with two DDR5 DIMM slots, and PCIe, M.2, USB4 and Wi-Fi 7 behavior may vary depending on the installed Ryzen processor, BIOS configuration, operating system and regional wireless regulations.

Best For

✓ Ryzen AM5 overclocking builds

✓ High-end benchmarking systems

✓ Dual PCIe 5.0 expansion setups

✓ Wi-Fi 7, 5G LAN and USB4 users

Key Features

OCF Overclocking Platform

The OCF design is aimed at serious tuning, with two DDR5 DIMM slots, Hyper BCLK Engine support, physical OC controls and a layout built for enthusiasts pushing Ryzen performance.

Strong AM5 Power Design

A 22+2+1 phase power design with 110A SPS is built for high-end Ryzen processors and performance-focused AM5 systems that need strong, stable power delivery.

PCIe 5.0 and Six M.2 Sockets

Dual PCIe 5.0 x16 slots and six M.2 sockets give advanced builders extensive high-speed expansion and storage flexibility for GPUs, Gen5 SSDs and large NVMe setups.

Premium Connectivity

Wi-Fi 7, Bluetooth 5.4, Realtek 5GBE LAN, dual rear USB4 Type-C ports and front USB-C 20GBps support make the board suitable for modern high-performance desktop workflows.

Technical Specifications

Model	ASRock X870E Taichi OCF
SKU / EAN	90-MXBTG0-A0UAYZ / 4711581492509
Socket / Chipset	AMD AM5 /AMD X870E
CPU Support	AMD Ryzen 9000, 8000 and 7000 Series Processors
Memory	2× DDR5 DIMM, dual-channel, ECC and non-ECC unbuffered support, up to 128GB, XMP andAMD EXPO support
Power Design	22+2+1 phase power design, 110A SPS
Expansion Slots	2× PCIe 5.0 x16 slots supporting x16 or x8/x8 modes with compatible Ryzen processors + 1× PCIe 4.0 x4 slot
Storage	2× Blazing M.2 PCIe Gen5x4, 2× Hyper M.2 PCIe Gen4x4, 1× M.2 PCIe Gen4x2, 1× Ultra M.2 PCIe Gen3x4 and 2× SATA3 6.0GB/s connectors
RAID Support	RAID 0, RAID 1 and RAID 10 for SATA and M.2 NVMe storage devices
Ethernet	Realtek RTL8126 5 Gigabit LAN
Wireless	802.11be Wi-Fi 7 2×2, 2.4GHz / 5GHz / 6GHz, Bluetooth 5.4

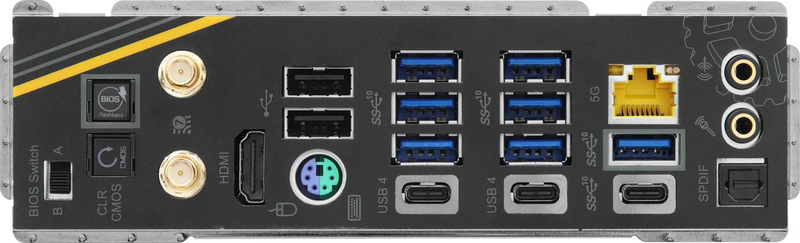

Rear USB	2× USB4 Type-C 40GBps, 1× USB 3.2 Gen2 Type-C, 7× USB 3.2 Gen2 Type-A, 2× USB 2.0 ports
Front USB	2× USB 3.2 Gen2x2 Type-C, 2× USB 3.2 Gen1 and 6× USB 2.0 via internal headers
Graphics OuTPUts	1× HDMI 2.1 up to 4K 120Hz + 2× USB4 Type-C display ouTPUts up to 8K 30Hz, CPU integrated graphics required
Audio	Realtek ALC4082 5.1-channel HD audio codec, ESS SABRE9219 DAC, WIMA audio capacitors, Nahimic Audio
Form Factor	ATX, 30.5cm × 24.4cm

Frequently Asked Questions

Is this motherboard mainly for overclocking?

Yes. The X870E Taichi OCF is an overclocking-focused AM5 motherboard with two DDR5 DIMM slots, a strong 22+2+1 power design and dedicated OC tools for advanced tuning.

How many M.2 SSDs can it support?

It supports six M.2 sockets in total, including two PCIe Gen5x4 M.2 slots. Some PCIe, M.2 and USB4 bandwidth behavior may change depending on CPU and configuration.

Does it support Wi-Fi 7?

Yes, it includes Wi-Fi 7 and Bluetooth 5.4. Wi-Fi 7 support requires Windows 11 and may vary depending on regional 6GHz wireless regulations.

Singular Expert Insight

Choose this model if you specifically want an AM5 board for advanced memory tuning, overclocking and high-speed storage, with six M.2 sockets and dual PCIe 5.0 x16 expansion. If you want a simpler gaming build with four DIMM slots, the standard X870E Taichi or another ATX X870E board may be easier to configure.

Buyer’s Guide

Buy it if

You are building a high-end Ryzen AM5 overclocking system and want X870E, two DDR5 DIMM slots, dual PCIe 5.0 x16, Wi-Fi 7, 5G LAN, USB4 and six M.2 sockets.

Skip it if

You want a simpler plug-and-play gaming board, four DDR5 DIMM slots or a lower-cost AM5 platform, because this OCF model is built for specialist overclocking use.

Also consider

Consider the standard ASRock X870E Taichi if you prefer four DDR5 DIMM slots, or a B850/X870 board if overclocking tools and six M.2 sockets are not required.
