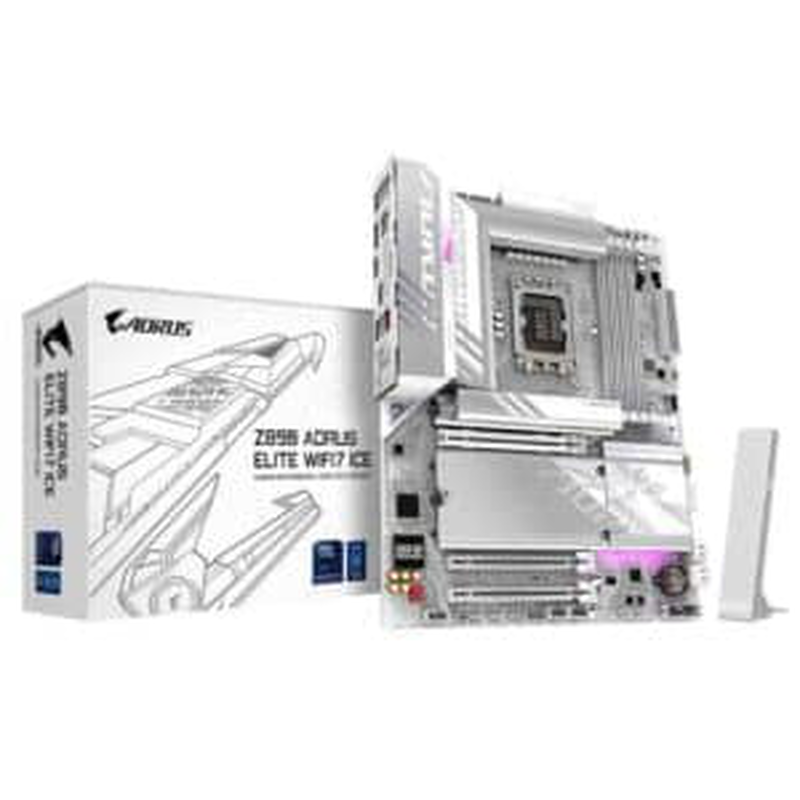

Z890 AORUS ELITE MOTHERBOARD, WIFI-7 ICE S1851, DDR5, ATX, WHITE, GIGABYTE Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processors: Intel Core Ultra (Series 2) Supported processor slots: LGA 1851 Maximum internal memory supported by processor: 256GB Supported memory: DDR5 SDRAM Number of memory slots: 4 Memory type: DIMM Memory channels: Two-Channels ECC compatibility: Non-ECC Supported memory speed: 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MHz Supported memory clock speed (Max.): 8800MHz RAM memory maximum: 256GB Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB Supported storage drives: HDD & SSD Supported storage drive interfaces: M.2, SATA III Maximum supported number of HDDs: 8 Number of supported storage drives: 4 RAID support: YES RAID level: 0,1,5,10 Built-in graphics adapter: NO DirectX: 12.0 Number of USB 2.0 ports: 2 USB 3.2 Gen1 (3.1 Gen1) ports: 1 USB 3.2 Gen2 (3.1 Gen2) ports: 1 SATA III Connectors: 4 Total number of SATA ports: 4 ATX power connector ( 24-pin): YES EPS power connector (8-pin): YES Number of EPS power connections (4-pin): 2 TPM connector: YES 12V power connection: YES RGB LED pin header: YES Number of USB 2.0 ports: 4 USB 3.2 Gen1 (3.1Gen1) Number of Type-A ports: 3 USB 3.2 Gen2 (3.1Gen2) Number of Type-A ports: 2 Number of Ethernet LAN ports (RJ-45): 1 Number of HDMI ports: 1 Number of Displayport connections: 2 Microphone input: YES S/PDIF output: YES Number of Thunderbolt ports: 1 Ethernet / Lan: YES Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: YES Top WLAN standard: Wi-Fi 7 (802.11be) WLAN standards: Wi-Fi 7 (802.11be) WLAN controller model: MediaTek MT7925 Bluetooth: YES Bluetooth version: 5.4 Motherboard chipset: INTEL Z890 Audio chip: Realtek ALC1220 Audio channels: 7.1 channels Product color: Black PC Health monitoring: Fan, temperature, voltage Component for: PC Motherboard form factor: ATX Motherboard chipset family: Intel Supports Windows operating systems: Windows 11 x64 PCI Express x16 slots (Gen 4.x): 2 PCI Express x16 slots (Gen 5.x): 1 Number of M.2 (M) Slots: 4 BIOS type: UEFI AMI BIOS memory size: 256mBps ACPI version: 5.0 Clear CMOS jumber: YES Clear CMOS button: YES Desktop management interface (DMI) version: 2.7 System Management BIOS (SMBIOS) Version: 2.7 Country of origin: China Battery weight: 3g Lithium weight per battery: 0.07g Number of battery cells: 1 Battery technology: Lithium Manganese Dioxide (LiMn02) Battery type: CR2032 Width: 305mm Depth: 244mm Height: 35mm Weight: 2.87kg
