Ubiquiti nanostation m2 nsm2 Airmax cpe 2.4GHz 11dbi 2x2 mimo outdoor wireless bridge 150 mbps white

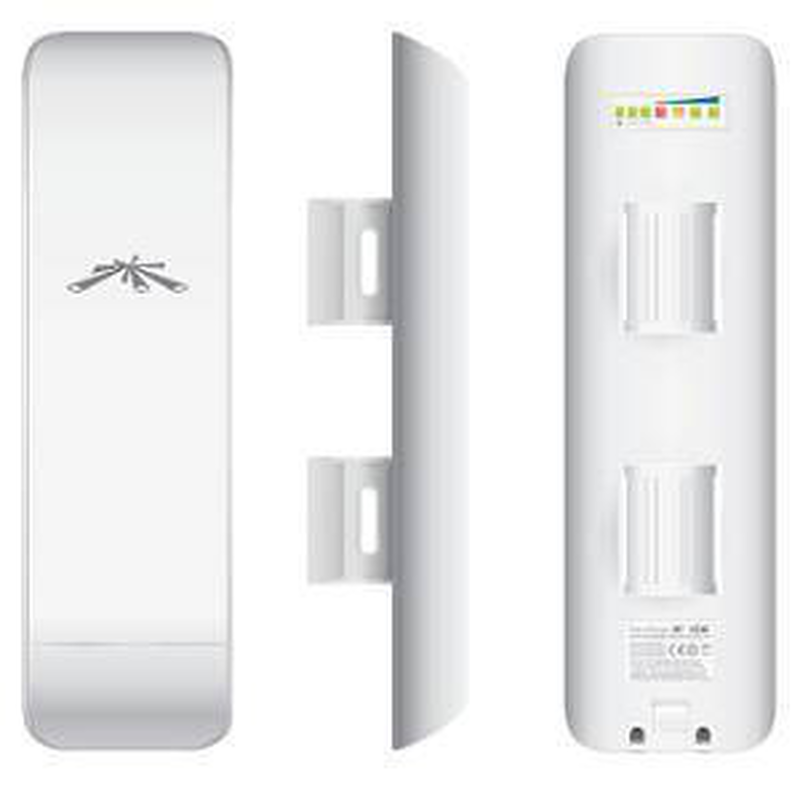

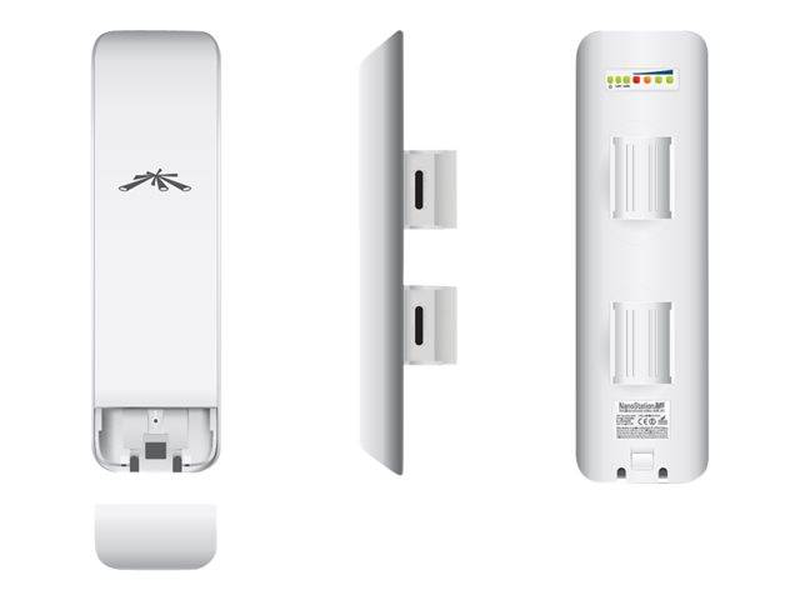

Product image: Ubiquiti nanostation m2 nsm2 Airmax cpe 2.4GHz 11dbi 2x2 mimo outdoor wireless bridge 150 mbps white-null
Product image: Ubiquiti nanostation m2 nsm2 Airmax cpe 2.4GHz 11dbi 2x2 mimo outdoor wireless bridge 150 mbps white-null
Product image: Ubiquiti nanostation m2 nsm2 Airmax cpe 2.4GHz 11dbi 2x2 mimo outdoor wireless bridge 150 mbps white-null
UBIQUITI
🔥Πωλείται γρήγορα!

Ubiquiti nanostation m2 nsm2 Airmax cpe 2.4GHz 11dbi 2x2 mimo outdoor wireless bridge 150 mbps white

€ 126.91
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: White
Σε απόθεμα
–+
–+
252
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 03 Αυγ - 04 Αυγ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 03 Αυγ - 05 Αυγ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 5e271eae-817c-4ad3-a922-00ab9649576c
Ubiquiti NanoStation M2 — airMAX 2.4 GHz CPE 150+ Mbps real throughput11 dBi antenna13+ km linksPtP / PtMP The Ubiquiti NanoStation M2 (NSM2) is the classic 2.4 GHz airMAX CPE — a weather-resistant outdoor radio with an integrated 11 dBi dual-polarity antenna that builds point-to-point and point-to-multipoint wireless links spanning kilometres, delivering 150+ Mbps of real TDMA throughput. Its second Ethernet port offers software-enabled PoE passthrough for powering an IP camera at the far end.

Λεπτομέρειες

Ubiquiti NanoStation M2 — airMAX 2.4 GHz CPE

150+ Mbps real throughput11 dBi antenna13+ km linksPtP / PtMP

The Ubiquiti NanoStation M2 (NSM2) is the classic 2.4 GHz airMAX CPE — a weather-resistant outdoor radio with an integrated 11 dBi dual-polarity antenna that builds point-to-point and point-to-multipoint wireless links spanning kilometres, delivering 150+ Mbps of real TDMA throughput. Its second Ethernet port offers software-enabled PoE passthrough for powering an IP camera at the far end. Order part number NSM2 for the model described here. Typically in stock with fast delivery across Cyprus.

Compatibility note: airMAX TDMA performance requires airMAX gear on both ends of the link — it pairs with other M-series (or airMAX AC via compatibility modes) radios, not with standard home Wi-Fi. Powered by 24V passive PoE (adapter included); the 2.4 GHz band trades speed for reach and foliage penetration versus 5 GHz models.

Key Features


airMAX TDMA Protocol
Time-slot scheduling eliminates hidden-node collisions, so a tower AP can serve many NanoStation clients while keeping per-client throughput predictable.

11 dBi Dual-Polarity Antenna
The integrated cross-polarised panel focuses the 2.4 GHz signal for links beyond 13 km line-of-sight, with 2x2 MIMO for 150+ Mbps of usable capacity.

Secondary PoE Port
Two 10/100 ports: the second offers software-enabled PoE passthrough — power a camera or a second device at a remote site over one uplink.

Technical Specifications

Identification
Part Number NSM2
EAN / GTIN 0810354022517
MPN NSM2
Wireless
Band 2.4 GHz — better foliage penetration and reach than 5 GHz, at lower speed
Protocol airMAX (MIMO TDMA)
Antenna Integrated 11 dBi (10.4–11.2 dBi), dual-polarity 2x2
Throughput 150+ Mbps real outdoor throughput
Range 13+ km line-of-sight
Hardware
CPU / Memory 400 MHz Atheros MIPS, 32 MB SDRAM, 8 MB flash
Ports 2x 10/100 Ethernet — secondary with software-enabled PoE passthrough
Power 24V passive PoE (adapter included)
Placement Outdoor (weather-resistant) or indoor, pole/wall mount
Modes
Topologies Point-to-Point (PtP) and Point-to-MultiPoint (PtMP), AP or station

Frequently Asked Questions

Can the NanoStation M2 replace my home Wi-Fi router?
No — it is a directional outdoor bridge/CPE for building-to-building or ISP subscriber links, not an omnidirectional home AP. Pair it with a router or an airCube indoors.
What is the difference between the NSM2 and the NSM5?
Frequency band: the NSM2 runs at 2.4 GHz (longer reach, more interference, ~150 Mbps), the NSM5 at 5 GHz (cleaner spectrum, higher speed, 16 dBi antenna). For new PtP links, 5 GHz is usually the better choice unless trees or distance dictate 2.4 GHz.
Do I need two units for a link?
For a point-to-point bridge, yes — one at each end. In PtMP subscriber networks, one airMAX AP (e.g. a Rocket with sector antenna) serves many NanoStations in station mode.
Singular Expert Insight
Fifteen years on, the NanoStation M2 survives in the catalogue because 2.4 GHz still does things 5 GHz cannot — punch through olive groves and reach far-flung village clients. For clean line-of-sight links, its NSM5 sibling or the newer airMAX AC LiteBeam family gives several times the speed for similar money. Browse the alternatives in our wireless bridges section and the indoor side in access points.

Buyer’s Guide

Buy it if
You need a 2.4 GHz outdoor link through partial obstructions, or you are matching existing airMAX M-series infrastructure.
Skip it if
You have clear line of sight and want maximum speed — 5 GHz airMAX AC hardware (LiteBeam AC, NanoBeam AC) delivers far more throughput.
Also consider
The NSM5 (5 GHz, 16 dBi) for faster PtP, or the modern UISP Wave / airMAX AC line for new multi-client deployments.
