TP-LINK

Tp-link eap603-outdoor ax1800 indoor/outdoor Wi-Fi 6 access point

Name: Tp-link eap603-outdoor ax1800 indoor/outdoor Wi-Fi 6 access point
Brand: TP-LINK
SKU: 2246db29-98ba-44f8-a780-901d657f44b2
Price: 115.00 EUR
Availability: InStock

€ 115.00

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: White

Χαμηλό απόθεμα

Ποσότητα

–+

Από: Bionic

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 29 Ιουλ - 30 Ιουλ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Bionic

Εκτ. παράδοση: 29 Ιουλ - 31 Ιουλ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 2246db29-98ba-44f8-a780-901d657f44b2

TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point

Χαρακτηριστικά

Χαρακτηριστικά Wi-Fi & Δικτύωσης

Ταχύτυτα Θυρών LAN: Indoor /~n Outdoor
Αριθμός Αντένων: 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas, 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
Αριθμός Θυρών LAN: 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in 1× Grounding Termina

Λεπτομέρειες

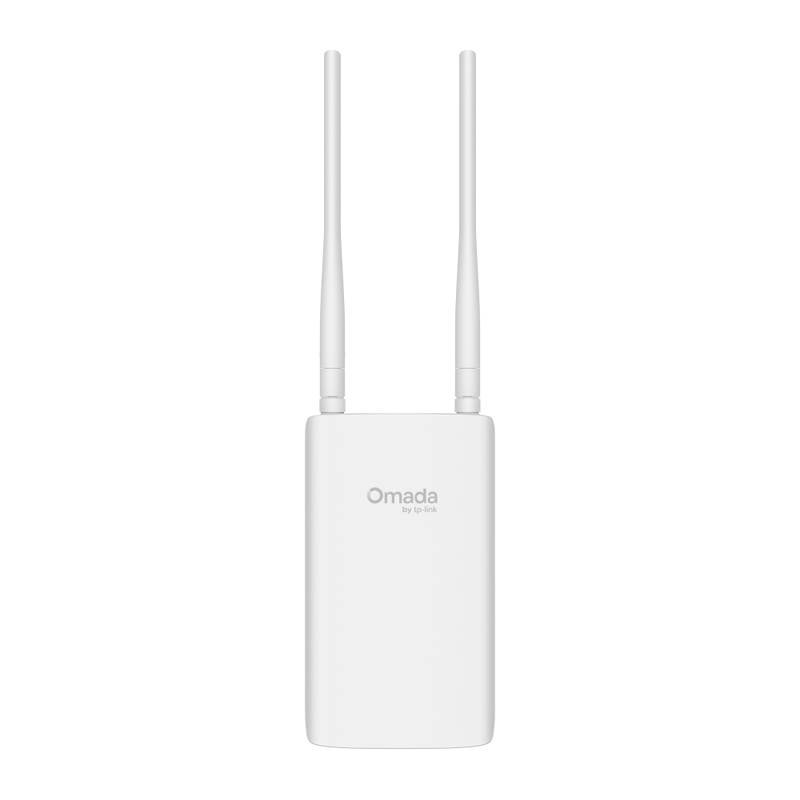

TP-Link Omada EAP603-Outdoor - AX1800 Wi-Fi 6 Outdoor Access Point

Wi-Fi 6 (802.11ax)AX1800 Dual-BandIP66 WeatherproofExternal Antennas

The TP-Link Omada EAP603-Outdoor is an AX1800 dual-band Wi-Fi 6 (802.11ax) indoor/outdoor access point with external omnidirectional antennas, delivering up to 1.8GBps and long-range coverage of up to around 300 metres for gardens, car parks and campus grounds. Identified by part number EAP603-Outdoor, it ships with a passive PoE adapter, is weatherproof (IP66 wall / IP65 pole) for -30 to 70 C, and is managed through Omada SDN. Typically in stock with fast delivery across Cyprus.

Compatibility & Power

Weatherproof to IP66 on a wall mount (IP65 on a pole), the EAP603-Outdoor is powered by 802.3at (PoE+) or the bundled 48V passive PoE adapter that is included in the box - handy where no PoE switch is available. Its single wired port is Gigabit (1GBE), which comfortably serves the AX1800 dual-band radios. External omnidirectional antennas (2x4 dBi / 2x5 dBi) give broad long-range coverage and can be replaced with higher-gain antennas. It is dual-band 2.4/5 GHz Wi-Fi 6 (no 6 GHz), and is managed by Omada SDN or standalone.

Best For

✓Long-range outdoor coverage up to ~300 m

✓Gardens, car parks, campuses and yards

✓Sites without PoE switching (adapter included)

✓Deployments wanting replaceable external antennas

✓Harsh climates from -30 to 70 C

✓Pole or wall mounting outdoors

Key Features

AX1800 Long-Range Wi-Fi 6

2x2 radios on 2.4 and 5 GHz deliver up to 1.8GBps and coverage of up to around 300 metres line-of-sight, with OFDMA and MU-MIMO for efficient outdoor use.

External Omni Antennas

Removable external omnidirectional antennas (2x4 dBi / 2x5 dBi) give broad coverage and can be swapped for higher-gain antennas to shape the signal.

Weatherproof with Included PoE Adapter

IP66 (wall) / IP65 (pole) sealing and a -30 to 70 C range, plus a bundled passive PoE adapter so you can deploy without a PoE switch.

Omada SDN Management

Run standalone or manage centrally through Omada SDN (cloud, hardware or software controller), alongside your indoor Omada access points.

Technical Specifications

Identification
Part Number	EAP603-Outdoor
EAN / GTIN	1210002605731
MPN	EAP603-Outdoor
Wireless
Wi-Fi Standard	Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax)
Aggregate Rate	AX1800 - up to 1.8GBps
2.4 GHz	Up to 574 Mbps
5 GHz	Up to 1201 Mbps
Bands	Dual-band (2.4 / 5 GHz)
Spatial Streams	2x2 per band
Coverage	Up to ~300 m line-of-sight
Key Technologies	OFDMA, MU-MIMO, seamless roaming, mesh
Antennas & Enclosure
Antennas	External omni - 2x4 dBi (2.4G), 2x5 dBi (5G)
Enclosure	IP66 (wall) / IP65 (pole)
Operating Temperature	-30 to 70 C
Hardware & Power

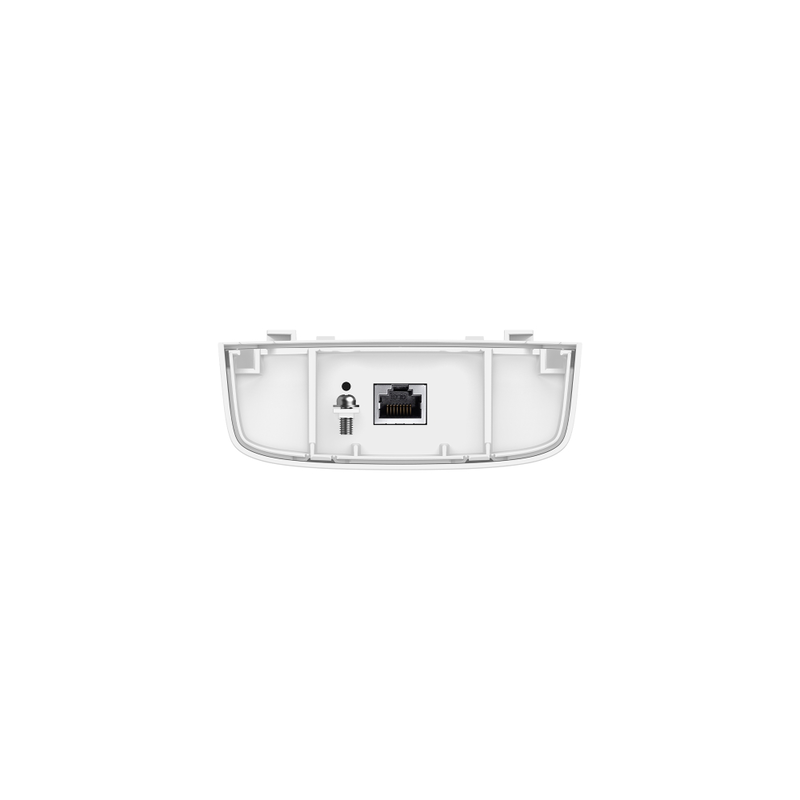

Wired Port	1x Gigabit Ethernet (RJ45)
PoE	802.3at (PoE+) or 48V passive PoE (adapter included)
Max Power Draw	15.8 W
Mounting	Pole / wall (kits included)
Management & Warranty
Management	Omada SDN - controller / app / cloud, or standalone
Warranty	1-Year Warranty (Singular)

Frequently Asked Questions

Does the EAP603-Outdoor need a PoE switch?

Not necessarily - it includes a 48V passive PoE adapter in the box, so you can power it from a mains socket. It also accepts 802.3at PoE+ from a PoE switch or injector if you prefer.

How far does it reach?

With its external omnidirectional antennas it is designed for long-range outdoor coverage of up to around 300 metres line-of-sight, making it suited to yards, car parks and campus grounds.

Can I fit higher-gain antennas?

Yes. Its external antennas are removable, so you can replace the standard 2x4 dBi / 2x5 dBi omni antennas with higher-gain or directional antennas to shape coverage for your site.

Does it support 6 GHz, Wi-Fi 7 or a 2.5G port?

No. It is a dual-band Wi-Fi 6 (AX1800) outdoor AP with a gigabit port. For 6 GHz, Wi-Fi 7 or a 2.5G outdoor uplink, step up to a model such as the EAP772-Outdoor.

Singular Expert Insight

The EAP603-Outdoor is TP-Link's long-range outdoor value pick: external antennas and up to ~300 m reach, weatherproof sealing and a bundled PoE adapter make it easy to deploy in yards and car parks without extra kit. It is AX1800 with a gigabit uplink; for higher speed, 2.5G or 6 GHz outdoors look at the EAP772-Outdoor in our Access Points range. Power it from a PoE switch in our network switches selection.

Buyer's Guide

Buy it if

You need long-range outdoor Wi-Fi 6 with external antennas

You may not have a PoE switch - the passive PoE adapter is included

You are extending an Omada network outdoors on a budget

Skip it if

You need a 2.5G uplink or 6 GHz outdoors - choose the EAP772-Outdoor

You need the highest immersion sealing (IP68) - consider the EAP650-Outdoor

Coverage is purely indoors - an indoor AP is cheaper

Also consider

EAP650-Outdoor - AX3000 IP68 outdoor Wi-Fi 6

EAP772-Outdoor - tri-band Wi-Fi 7 outdoor with 2.5G and 6 GHz

A PoE+ switch or injector to power the AP
