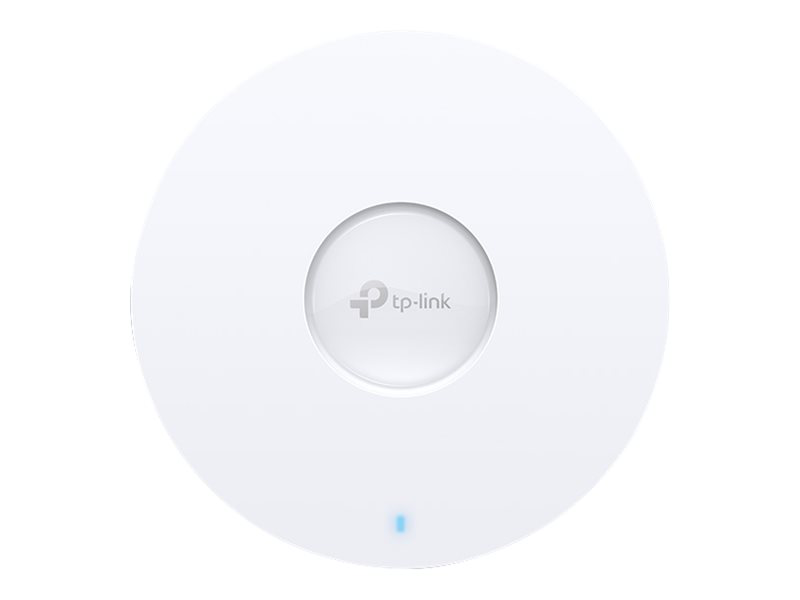

Product image: Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn-null

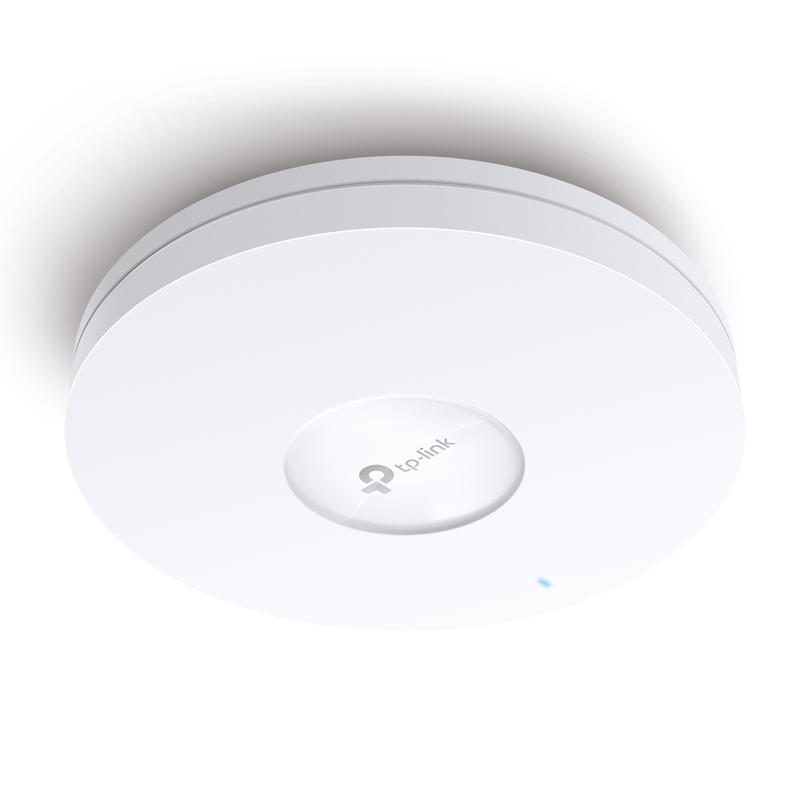

Product image: Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn-null

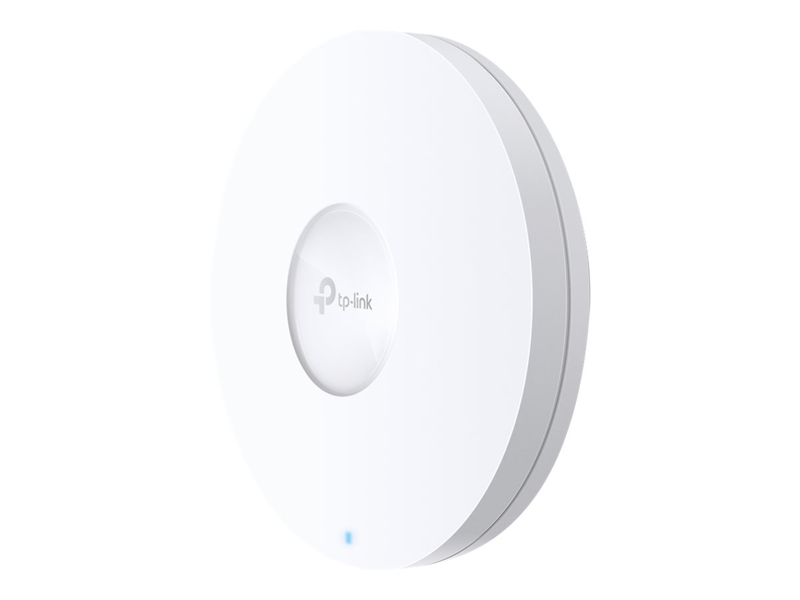

Product image: Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn-null

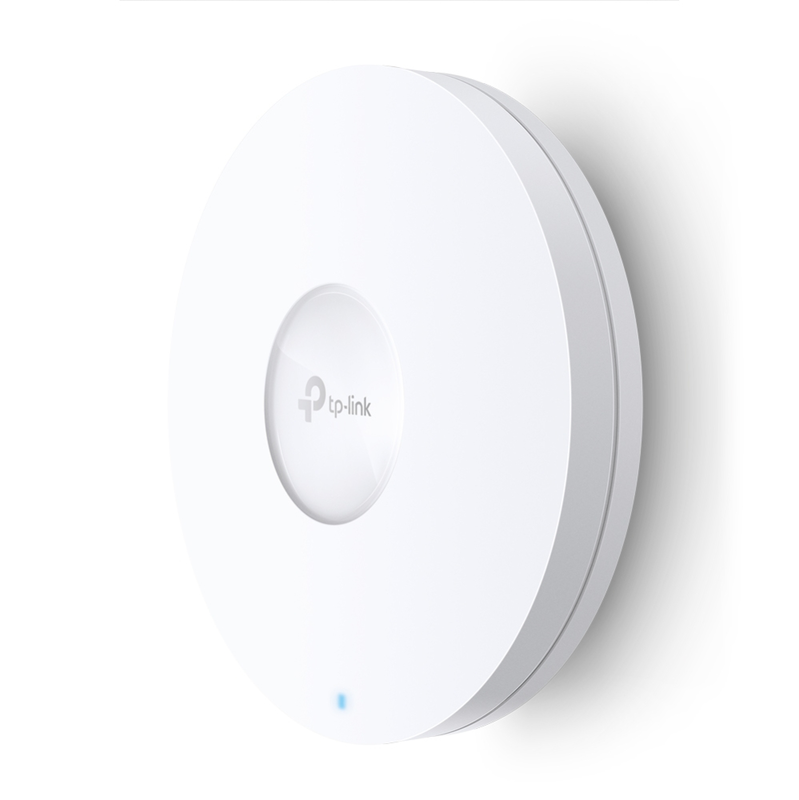

Product image: Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn-null
Product image: Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn-null
TP-LINK
🔥Πωλείται γρήγορα!

Tp-link omada eap660 HD Wi-Fi 6 access point ax3600 dual-band 4x4 8-stream 2.5G poe+ high-density omada sdn

€ 286.12
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το Fleksy image
Επιλογή Χρώμα: White
Σε απόθεμα
–+
–+
572
Points earned
Μπορείτε να κερδίζετε βαθμούς Ανταμοιβή κάθε φορά που πραγματοποιείτε μια πληρωμή με τις κάρτες της Τράπεζας Κύπρου.
Ο αριθμός των βαθμών Ανταμοιβή και το αντίστοιχο ποσό χρημάτων που εμφανίζονται είναι ενδεικτικά και μπορεί να διαφέρουν κατά καιρούς. Θέλετε να μάθετε περισσότερα; Ελέγξτε τις Συχνές Ερωτήσεις μας εδώ.
Εάν είστε δικαιούχο μέλος του σχεδίου επιβράβευσης Pronomia της Τράπεζας Κύπρου, θα λαμβάνετε επιπλέον βαθμούς Ανταμοιβή ανάλογα με την βαθμίδα σας.
Από: Singular Computers Systems LTD
Περισσότερα από αυτό το κατάστημα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 31 Ιουλ - 03 Αυγ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD
Εκτ. παράδοση: 03 Αυγ - 05 Αυγ
Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 125b5e42-d2f4-4e45-9dd4-f995ea851926
TP-Link Omada EAP660 HD - AX3600 High-Density Wi-Fi 6 Access Point Wi-Fi 6 (802.11ax)AX3600 4x42.5G PoE+1000+ Clients The TP-Link Omada EAP660 HD is a high-density AX3600 dual-band Wi-Fi 6 (802.11ax) ceiling access point with 4x4 radios on both bands, delivering up to 3.6GBps of combined throughput and supporting 1,000+ concurrent connections for busy offices, schools, auditoriums and event spaces. Identified by part number EAP660 HD, it pairs a 2.5G PoE+ uplink with 1024-QAM, OFDMA and full O

Λεπτομέρειες

TP-Link Omada EAP660 HD - AX3600 High-Density Wi-Fi 6 Access Point

Wi-Fi 6 (802.11ax)AX3600 4x42.5G PoE+1000+ Clients
The TP-Link Omada EAP660 HD is a high-density AX3600 dual-band Wi-Fi 6 (802.11ax) ceiling access point with 4x4 radios on both bands, delivering up to 3.6GBps of combined throughput and supporting 1,000+ concurrent connections for busy offices, schools, auditoriums and event spaces. Identified by part number EAP660 HD, it pairs a 2.5G PoE+ uplink with 1024-QAM, OFDMA and full Omada SDN management. Typically in stock with fast delivery across Cyprus.
Compatibility & Power
The EAP660 HD is powered by 802.3at (PoE+) from a compatible PoE+ switch or injector, or by a 12V/2A DC adapter - neither injector nor DC adapter is included. Its single 2.5G Ethernet port auto-negotiates up to 2.5GBps, so a Multi-Gig switch port lets the 4x4 radios reach full throughput. It is a dual-band 2.4/5 GHz Wi-Fi 6 unit and does not use the 6 GHz band, so all clients connect on 2.4 or 5 GHz. Centralised control uses an Omada controller (hardware, software or cloud), or it can run standalone via the Omada app.

Best For

✓High-density venues - auditoriums and event spaces
✓Busy offices, classrooms and lecture halls
✓Sites needing 1000+ concurrent connections
✓Deployments with 2.5G Multi-Gig switching
✓Estates standardising on Omada SDN
✓Ceiling or T-bar mounting in professional spaces

Key Features


AX3600 4x4 High-Density Wi-Fi 6
Four spatial streams on each band - 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz - plus 1024-QAM and OFDMA support 1,000+ concurrent connections in packed spaces.

2.5G PoE+ Uplink
A single 2.5GBps port clears the gigabit bottleneck and carries data and power over one 802.3at PoE+ cable, with 12V DC also supported.

Built for Crowds
MU-MIMO, OFDMA and high-gain internal antennas keep performance steady when hundreds of devices connect at once - the core of a high-density (HD) design.

Omada SDN Management
Zero-touch provisioning, seamless roaming and central monitoring through the Omada controller, app or cloud dashboard.

Technical Specifications

Identification
Part Number EAP660 HD
EAN / GTIN 6935364089719
MPN EAP660 HD
Wireless
Wi-Fi Standard Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax)
Aggregate Rate AX3600 - up to 3.6GBps
2.4 GHz Up to 1148 Mbps (4x4)
5 GHz Up to 2402 Mbps (4x4)
Bands Dual-band (2.4 / 5 GHz)
Spatial Streams 8-stream total (4x4 per band)
Concurrent Clients 1,000+
Key Technologies 1024-QAM, OFDMA, MU-MIMO, BSS Colouring
Hardware & Power
Wired Port 1x 2.5GBE (RJ45)
PoE 802.3at (PoE+)
DC Input 12V/2A (adapter not included)
Max Power Draw 21.5 W
Antennas 2.4 GHz 4x6 dBi, 5 GHz 4x6.5 dBi (internal)
Physical & Environment
Dimensions 220 x 220 x 32.5 mm
Mounting Ceiling / wall / junction box / T-bar (kit included)
Management & Warranty
Management Omada SDN - controller / app / cloud, or standalone
Warranty 1-Year Warranty (Singular)

Frequently Asked Questions

What does 'HD' mean on the EAP660 HD?
HD stands for high density. Its 4x4 radios, 1024-QAM and OFDMA let it handle 1,000+ concurrent connections, so it is designed for crowded spaces such as auditoriums, lecture halls and event venues rather than small offices.
What switch does the EAP660 HD need for full speed?
A switch with a 2.5G Multi-Gig PoE+ port. The single port auto-negotiates up to 2.5GBps and PoE+ (802.3at) powers the unit; a PoE+ switch or injector is not included, and a 12V DC adapter is an alternative.
Does the EAP660 HD support 6 GHz or Wi-Fi 7?
No. It is a dual-band Wi-Fi 6 (AX3600) access point on 2.4 and 5 GHz. It excels at high-density Wi-Fi 6; for 6 GHz or Wi-Fi 7 you would choose a newer tri-band model such as the EAP772.
Can it run without a hardware controller?
Yes. A single unit can run standalone through the Omada app, while larger deployments benefit from centralised Omada SDN via an OC200/OC300 hardware controller, the software controller or Omada Cloud.
Singular Expert Insight
The EAP660 HD is TP-Link's go-to Wi-Fi 6 unit for crowds: its 4x4 radios on both bands and 1,000+ client capacity are what set it apart from ordinary 2x2 access points, and the 2.5G port keeps the wired side up to speed. It stays dual-band (no 6 GHz), so if you want Wi-Fi 7 or 6 GHz, look at the EAP772 in our Access Points range. Feed it from a 2.5G Multi-Gig PoE+ port in our network switches for full throughput.

Buyer's Guide

Buy it if

You need to serve very high client counts (1000+) in one area
You have, or will add, 2.5G Multi-Gig PoE+ switching
You run Omada SDN and want proven high-density Wi-Fi 6

Skip it if

You need the 6 GHz band or Wi-Fi 7 - choose a newer tri-band AP
Your site is small - a 2x2 Wi-Fi 6 AP would be cheaper
You need an outdoor-rated unit

Also consider

EAP772 - BE11000 Wi-Fi 7 ceiling model with 6 GHz
A 2.5G / Multi-Gig PoE+ switch to feed the AP
An Omada hardware controller (OC200/OC300) for large sites
