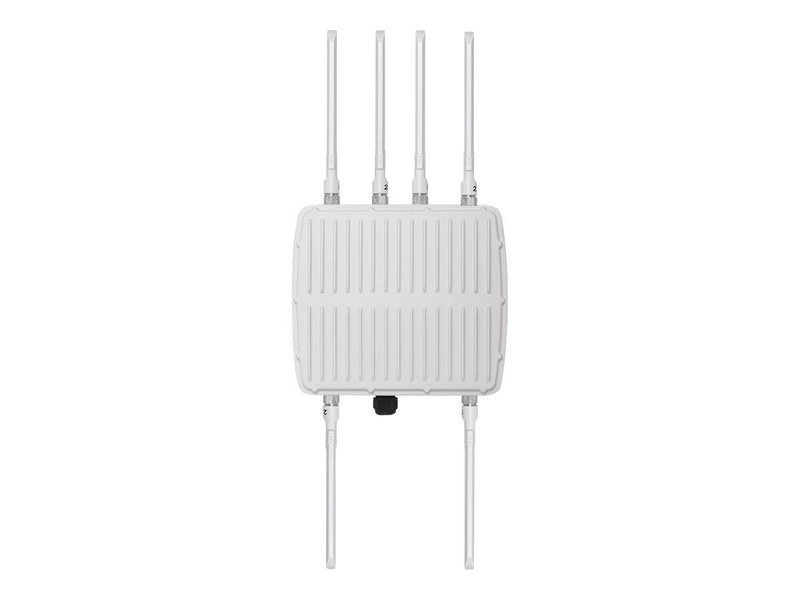

Edimax OAP1750 Outdoor Access Point
Rugged AC1750 dual-band Wi-Fi 5 coverage for courtyards, car parks, campuses and warehouses — built to survive the weather.
AC1750 (1.75GBps)Dual-Band Wi-Fi 56× Detachable AntennasGigabit PoE+IP68 Weatherproof
The Edimax OAP1750 is a hardened outdoor access point that delivers concurrent 2.4 GHz (up to 450 Mbps) and 5 GHz (up to 1300 Mbps) 802.11ac connectivity — a combined 1.75GBps of throughput. Six detachable omni-directional antennas push a strong, wide signal across open outdoor spaces, while a fanless IP68-rated enclosure shrugs off rain, dust and temperature swings. A single Gigabit port carries both data and power over one Ethernet run using standard 802.3at PoE+, so it drops into hard-to-reach mounting points with no separate power supply.
Deployment note: Designed for outdoor and semi-outdoor installations. Pair it with an 802.3at PoE+ switch or the bundled PoE injector, and use the detachable antennas to fine-tune coverage for pole, wall or high-mount positions.
Best For
✓Outdoor Wi-Fi across car parks, courtyards, marinas and campuses
✓Warehouse and yard coverage where indoor APs can't reach
✓Point-of-interest hotspots for cafés, hotels and public areas
✓Extending an existing network to detached buildings
✓Installers who need PoE-only mounting with no local power
✓Environments exposed to rain, dust and wide temperature ranges
Key Features
AC1750 Dual-Band
Concurrent 2.4 GHz + 5 GHz radios deliver up to 1.75GBps aggregate, keeping legacy and modern clients fast at the same time.
6× Detachable Omni Antennas
High-gain external antennas broadcast a wide, even signal outdoors and can be swapped for directional models to shape coverage.
IP68 Weatherproof
A sealed, fanless enclosure resists rain, dust and humidity for reliable year-round operation in harsh conditions.
Gigabit PoE+
One Cat5e/6 run delivers both data and 802.3at power, simplifying installation on poles, walls and rooftops.
Technical Specifications
| Identification |
| Part Number |
OAP1750 |
| EAN / GTIN |
4717964701022 |
| MPN |
OAP1750 |
| Brand |
Edimax |
| Wireless |
| Wi-Fi Standard |
802.11ac (Wi-Fi 5), dual-band |
| Data Rate |
Up to 1750 Mbps (450 Mbps @ 2.4 GHz + 1300 Mbps @ 5 GHz) |
| Antennas |
6× detachable external omni-directional |
| MIMO |
3×3 dual-band |
| Connectivity |
| Wired Port |
1× Gigabit Ethernet (RJ-45) |
| Power over Ethernet |
802.3at PoE+ |
| Physical & Environmental |
| Enclosure Rating |
IP68 weatherproof, fanless |
| Mounting |
Pole / wall mount |
| Colour |
Grey |
| General |
| Warranty |
1-Year Warranty (Singular) |
Frequently Asked Questions
Can the OAP1750 be installed outdoors?
Yes. It has an IP68-rated, fanless weatherproof enclosure built for permanent outdoor mounting on poles or walls, and tolerates rain, dust and wide temperature ranges.
How is it powered?
Through a single Gigabit Ethernet cable using standard 802.3at PoE+, so no separate mains power is needed at the mounting point. Use a PoE+ switch or injector.
What Wi-Fi speeds does it support?
It is an AC1750-class dual-band access point: up to 450 Mbps on 2.4 GHz plus up to 1300 Mbps on 5 GHz, for a combined 1.75GBps.
Are the antennas replaceable?
Yes. The six omni-directional antennas are detachable, so you can swap in directional or higher-gain antennas to tailor coverage for a specific site.
Expert Insight
Outdoor coverage is only as good as the network behind it. Browse our full range of access points to plan indoor-to-outdoor roaming, and pair the OAP1750 with a PoE-capable switch from our switches & bridges category for clean single-cable installs.
Buyer's Guide
Buy it if…
You need reliable, weatherproof Wi-Fi coverage across an outdoor area with PoE-only cabling.
Skip it if…
You only need indoor coverage or require the higher throughput of Wi-Fi 6/6E for dense client counts.
Also consider…
An indoor ceiling AP for interior spaces, or a Wi-Fi 6 outdoor model if you have many concurrent users.
