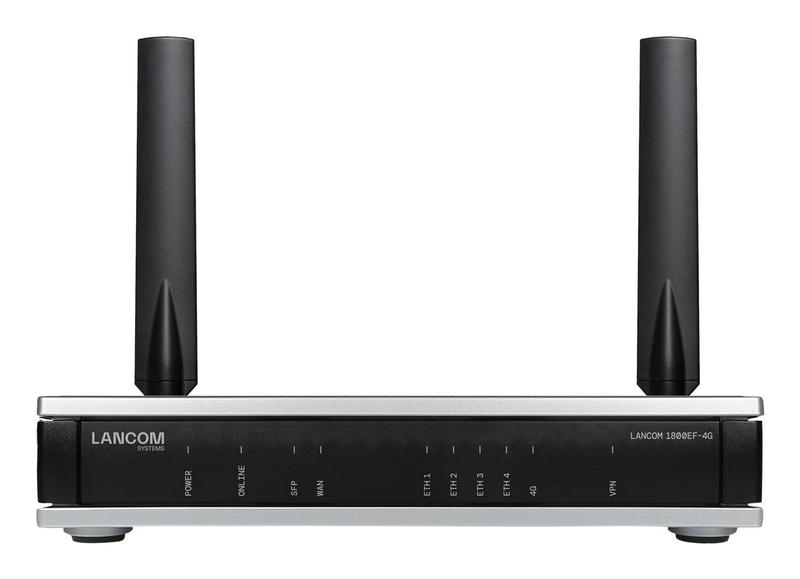

Lancom 1800ef-4G sd-wan router fibre sfp + 4G lte backup 5x gigabit ethernet ipsec vpn wall-mount grey

Name: Lancom 1800ef-4G sd-wan router fibre sfp + 4G lte backup 5x gigabit ethernet ipsec vpn wall-mount grey
Brand: LANCOM SYSTEMS
SKU: bc1899b2-fa15-49d8-b456-3bd2c142183f
Price: 1274.51 EUR
Availability: InStock

€ 1,416.12 - 10% € 1,274.51

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Grey

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 31 Ιουλ - 03 Αυγ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 03 Αυγ - 05 Αυγ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: bc1899b2-fa15-49d8-b456-3bd2c142183f

LANCOM 1800EF-4G Fibre + 4G SD-WAN VPN Router Fibre SFP (FTTH) + Ethernet WANLTE Advanced Cat6 4G Backup5× Gigabit EthernetIPsec VPN · Made in Germany The LANCOM 1800EF-4G (article number 62164) is a business SD-WAN gateway that combines fibre, Ethernet and 4G connectivity for highly available site networking. Aimed at branches and businesses moving to fibre, it offers a fibre SFP port for FTTH, flexible Gigabit Ethernet WAN options and an LTE Advanced modem for automatic backup — all secured w

Λεπτομέρειες

LANCOM 1800EF-4G Fibre + 4G SD-WAN VPN Router

Fibre SFP (FTTH) + Ethernet WANLTE Advanced Cat6 4G Backup5× Gigabit EthernetIPsec VPN · Made in Germany

The LANCOM 1800EF-4G (article number 62164) is a business SD-WAN gateway that combines fibre, Ethernet and 4G connectivity for highly available site networking. Aimed at branches and businesses moving to fibre, it offers a fibre SFP port for FTTH, flexible Gigabit Ethernet WAN options and an LTE Advanced modem for automatic backup — all secured with IPsec VPN and the German-engineered LCOS operating system. Typically in stock with fast delivery across Cyprus.

Before you buy

This is the EF (Ethernet/Fibre) model without a built-in DSL modem: it connects to fibre via the SFP port (GPON/AON transceiver sold separately) or to an external modem over Gigabit Ethernet. 4G backup requires a compatible SIM and data plan (not included). Two SMA connectors accept the supplied LTE dipole antennas or LANCOM AirLancer antennas. It runs LANCOM Operating System (LCOS).

Best For

✓Businesses and branches moving to fibre (FTTH)

✓Sites needing highly available WAN with 4G backup

✓Flexible deployments using fibre or external modems

✓Secure site-to-site IPsec VPN

✓Wall-mounted installation in small comms spaces

✓Networks standardised on LANCOM LCOS

Key Features

Fibre & flexible WAN

A fibre SFP port enables direct FTTH connection (GPON/AON module separate), while Gigabit Ethernet and up to three switchable WAN ports provide flexible internet options and redundancy.

LTE Advanced 4G backup

An integrated LTE Advanced (Cat6) modem provides up to 300 Mbps down / 50 Mbps up as a fast automatic backup, keeping the site online if the primary link fails.

SD-WAN & IPsec VPN

As an SD-WAN gateway it includes five integrated IPsec VPN channels for secure, encrypted site-to-site connectivity, managed centrally with LANCOM tools.

Robust, German-engineered

A robust synthetic housing with rear connectors, wall-mount and Kensington-lock support runs the secure LCOS operating system, engineered in Germany with strong data-protection focus.

Technical Specifications

Identification
Part Number	62164
EAN / GTIN	4044144621642
MPN	62164 (LANCOM 1800EF-4G)
Product Type	SD-WAN gateway (fibre + Ethernet + 4G)
WAN & Cellular
Fibre	SFP port for FTTH (GPON/AON module sold separately)
Ethernet WAN	Gigabit Ethernet; up to 3 ports switchable as WAN
Cellular	LTE Advanced (Cat6) — up to 300 Mbps down / 50 Mbps up
SIM	SIM slot — active data plan required (not included)
Antennas	2× SMA (supplied LTE dipole; AirLancer compatible)
LAN & Ports
Ethernet	1× Gigabit + 4× 10/100/1000 Mbps (switch by default)
Security & Software
VPN	5× IPsec VPN channels
SD-WAN	LANCOM SD-WAN
Operating System	LANCOM Operating System (LCOS)
Physical & General
Dimensions	210 × 45 × 140 mm
Mounting	Wall-mount; Kensington lock
Environment	0–40°C, 0–95% RH non-condensing
Origin	Made in Germany
Colour	Grey

Frequently Asked Questions

Does the 1800EF-4G have a DSL modem?

No. This is the EF (Ethernet/Fibre) model without a built-in DSL modem. It connects to fibre via its SFP port (transceiver sold separately) or to an external modem over Gigabit Ethernet, with 4G as backup.

How does the 4G backup work?

It has an integrated LTE Advanced (Cat6) modem that automatically takes over if the primary wired or fibre link fails, providing up to 300 Mbps download to keep the site connected. A SIM and data plan are required.

Can I connect it directly to fibre?

Yes. The SFP port allows a direct FTTH connection using a separately available GPON or AON transceiver module, avoiding the need for a separate ISP modem.

Is it suitable for business VPN?

Yes. It is an SD-WAN gateway with five integrated IPsec VPN channels and the secure LCOS operating system, designed for encrypted site-to-site business connectivity.

Singular Expert Insight

Choose the 1800EF-4G when you are moving a business site to fibre and want flexible WAN options with reliable 4G backup and IPsec VPN in one German-engineered gateway. If you still rely on a DSL line, a LANCOM VDSL model (such as the 1803VAW) with a built-in modem is a better fit; if you need integrated Wi-Fi, add access points. Add security appliances from our networking security range.

Buyer’s Guide

Buy it if

You are deploying a business site on fibre or Ethernet and want flexible WAN, LTE Advanced 4G backup and IPsec VPN in a compact, German-made SD-WAN gateway.

Skip it if

You still use a DSL line or need built-in Wi-Fi — a LANCOM VDSL model or a Wi-Fi router will suit better.

Also consider

On DSL? Consider the LANCOM 1803VAW. Need integrated 5G backup instead of 4G? Look at the 1800EF-5G.
