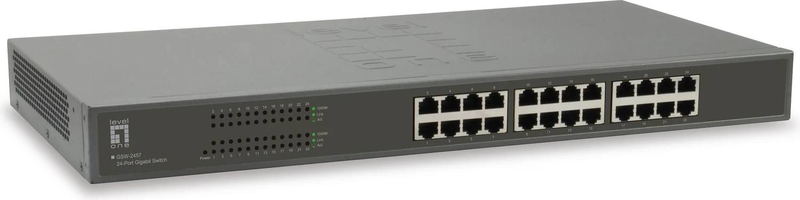

Levelone gsw-2457 24-port gigabit ethernet unmanaged switch 10/100/1000 mbps rj-45 48GBps rackmount 1u fanless black

Name: Levelone gsw-2457 24-port gigabit ethernet unmanaged switch 10/100/1000 mbps rj-45 48GBps rackmount 1u fanless black
Brand: LEVELONE
SKU: 0f36d3df-06d6-4ffc-b4c6-5df2c64c048f
Price: 169.78 EUR
Availability: InStock

LEVELONE

Levelone gsw-2457 24-port gigabit ethernet unmanaged switch 10/100/1000 mbps rj-45 48GBps rackmount 1u fanless black

€ 188.64 - 10% € 169.78

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 03 Αυγ - 04 Αυγ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 03 Αυγ - 05 Αυγ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 0f36d3df-06d6-4ffc-b4c6-5df2c64c048f

LevelOne GSW-2457 24-Port Gigabit Unmanaged Switch24 × Gigabit Ports48GBps Backplane802.1p QoSFanless 1U RackmountThe LevelOne GSW-2457 is a 24-port Gigabit Ethernet unmanaged switch that delivers a high-performance, low-cost upgrade to a full 1000 Mbps network, ideal for busy offices and server rooms that need to connect many wired devices at once. With a 48GBps non-blocking backplane and 24 auto-sensing RJ-45 ports, it moves large files and heavy traffic smoothly while staying completely plu

Λεπτομέρειες

LevelOne GSW-2457 24-Port Gigabit Unmanaged Switch

24 × Gigabit Ports48GBps Backplane802.1p QoSFanless 1U Rackmount

The LevelOne GSW-2457 is a 24-port Gigabit Ethernet unmanaged switch that delivers a high-performance, low-cost upgrade to a full 1000 Mbps network, ideal for busy offices and server rooms that need to connect many wired devices at once. With a 48GBps non-blocking backplane and 24 auto-sensing RJ-45 ports, it moves large files and heavy traffic smoothly while staying completely plug-and-play.

Identified by part number GSW-2457, the switch ships in a fanless, silent black metal 1U chassis with an internal power supply and an included 19-inch rackmount kit, so it slots straight into a professional rack. Typically in stock with fast delivery across Cyprus.

Good to know before you buy

This is an unmanaged switch — it works instantly with no setup and has built-in 802.1p traffic prioritisation, but offers no VLANs, web management or remote configuration. It does not supply PoE, so IP cameras or access points need their own power. It uses an internal universal power supply (power cord included, no external adapter). For full Gigabit speeds, use Cat 5e, Cat 6 or Cat 7 cabling.

Best For

✓Offices and server rooms connecting many wired devices

✓Upgrading a network backbone to full Gigabit speed

✓Racks needing a quiet, fanless 1U switch

✓Linking PCs, servers, NAS and printers at 1000 Mbps

✓Transferring large files with 10K jumbo frame support

✓Plug-and-play deployments where no configuration is wanted

Key Features

24 Gigabit Ports, Wire Speed

Twenty-four 10/100/1000 Mbps RJ-45 ports with auto-negotiation and Auto-MDI/MDI-X bring Gigabit speed to every device and remove the need for crossover cables.

48GBps Non-Blocking Backplane

A store-and-forward architecture with a 48GBps switching capacity forwards packets across all 24 ports simultaneously without bottlenecks.

Built-in QoS

IEEE 802.1p — class-of-service priority tagging lets time-sensitive traffic like voice and video take precedence for smoother performance.

10K Jumbo Frames & 8K MAC

10KB jumbo frame support plus a 512KB packet buffer and 8K MAC address table keep large transfers fast and reliable on busy networks.

Technical Specifications

Identification
Part Number	GSW-2457
EAN / GTIN	4015867143124
MPN	GSW-2457
Brand	LevelOne
Ports & Performance
Ports	24 × 10/100/1000 Mbps RJ-45
Switch Type	Unmanaged — plug-and-play, no configuration
Switching Capacity / Backplane	48GBps non-blocking
Forwarding Rate	1,488,000 pps per Gigabit port
Forwarding Method	Store-and-forward
MAC Address Table	8K, auto-learning & auto-aging
Buffer Memory	512 KB
Jumbo Frame	10 KB — larger packets for higher transfer efficiency
QoS	IEEE 802.1p — class-of-service priority
Flow Control	IEEE 802.3x (full duplex)
Auto Functions	Auto-negotiation, Auto-MDI/MDI-X
Standards & Certifications
IEEE Standards	802.1p, 802.3, 802.3u, 802.3ab, 802.3x
Certifications	FCC, CE
Cabling	Cat 5e/6/7 (Gigabit), Cat 5 (Fast Ethernet)
Power
Power Input	100–240V AC, 50–60Hz, 0.6A (internal PSU)
Power Consumption	18.6W max
Physical & Environment
Dimensions (L×W×H)	440 × 180 × 44 mm (1U)
Weight	1.7 kg
Cooling	Fanless (silent)
Colour	Black (metal housing)
Mounting	19-inch rack (rackmount kit included)
Operating Temperature	0–45°C, 10–90% humidity (non-condensing)
In the Box	Switch, rackmount kit, power cord, Quick Installation Guide

Frequently Asked Questions

Does the GSW-2457 need any configuration?

No. It is an unmanaged plug-and-play switch — connect your cables and power cord and it works immediately. There is no web interface or software setup.

Does the GSW-2457 supply PoE power?

No. This model does not provide Power over Ethernet. IP cameras, VoIP phones or access points will need their own power source or a separate PoE switch.

Is the GSW-2457 suitable for a 19-inch rack?

Yes. It is a 1U-height (44mm), full 19-inch-wide switch with an included rackmount kit and an internal power supply, built for professional office and server-room racks.

What is the difference between the GSW-2457 and a managed switch?

The GSW-2457 is plug-and-play with hardware 802.1p prioritisation but no configurable VLANs, QoS rules or remote management. A managed switch adds those configurable controls at a higher price and with setup required.

Singular Expert Insight

The GSW-2457 is a cost-effective way to bring 24 Gigabit ports to a rack without paying for management you may not use. Its fanless metal 1U chassis and internal power supply make it quiet and rack-clean, while built-in 802.1p prioritisation gives a little extra control over voice and video traffic. If you later need VLAN segmentation, port-level QoS or PoE for cameras, step up to a managed or PoE model in our network switches range; to add Wi-Fi to the wired backbone, pair it with an access point. For high-density, fuss-free wired expansion, it is excellent value.

Buyer’s Guide

Buy it if

You need 24 Gigabit ports in a quiet fanless 1U rack switch, want zero configuration, and value built-in 802.1p prioritisation and low cost.

Skip it if

You need PoE to power cameras or access points, or require configurable VLANs, port QoS rules or remote management — this switch offers none of these.

Also consider

A managed 24-port switch for VLANs and traffic control, or a 24-port PoE+ model if you plan to power many IP cameras, phones or wireless access points.
