TP-LINK

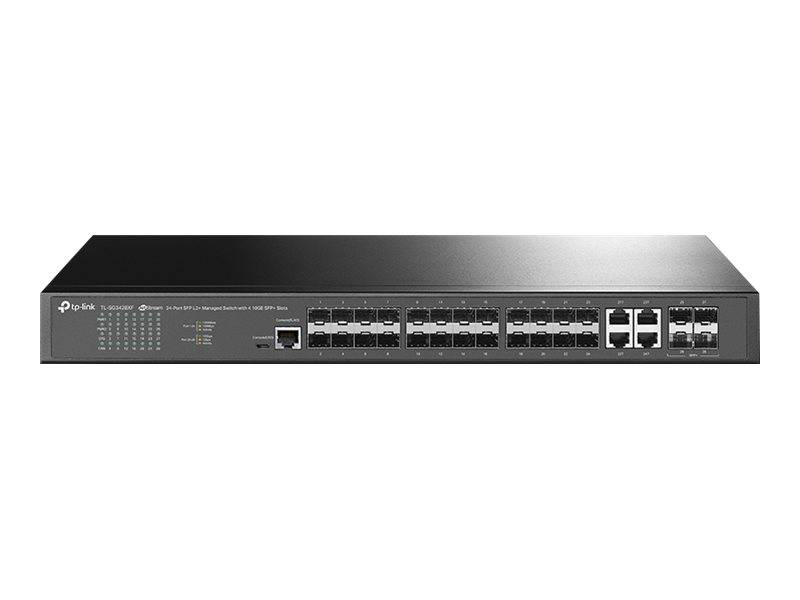

Tp-link jetstream tl-sg3428xf v1.6 managed switch | 24-port l2+ rack-mountable | 20x sfp + 4x 10g sfp+

Name: Tp-link jetstream tl-sg3428xf v1.6 managed switch | 24-port l2+ rack-mountable | 20x sfp + 4x 10g sfp+
Brand: TP-LINK
SKU: 08c82279-232e-4b86-ad0b-faa5ce82768f
Price: 723.58 EUR
Availability: InStock

€ 803.98 - 10% € 723.58

Aπομένουν μόνο 1!

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Ποσότητα

–+

Από Singular Computers Systems LTD

Χαμηλό απόθεμα

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 10 Ιουν - 12 Ιουν

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 08c82279-232e-4b86-ad0b-faa5ce82768f

TP-Link JetStream TL-SG3428XF V1.6 Managed Switch - 24-Port L2+ Rack-Mountable The TP-Link JetStream TL-SG3428XF V1.6 is a 24-port L2+ managed rack-mountable switch for business networks that need flexible fibre and uplink connectivity. It combines 20 Gigabit SFP ports, 4 combo Gigabit SFP/RJ-45 ports and 4 10G SFP+ uplink ports, with managed features and internal power supply in a 1U rack design. Technical Specifications Specification Detail Product Type Switch - 24 ports - L2+ - Managed Por

Λεπτομέρειες

TP-Link JetStream TL-SG3428XF V1.6 Managed Switch - 24-Port L2+ Rack-Mountable

The TP-Link JetStream TL-SG3428XF V1.6 is a 24-port L2+ managed rack-mountable switch for business networks that need flexible fibre and uplink connectivity. It combines 20 Gigabit SFP ports, 4 combo Gigabit SFP/RJ-45 ports and 4 10G SFP+ uplink ports, with managed features and internal power supply in a 1U rack design.

Technical Specifications

Specification	Detail
Product Type	Switch - 24 ports - L2+ - Managed
Ports	20 x Gigabit SFP \| 4 x combo Gigabit SFP/RJ-45 \| 4 x 10 Gigabit SFP+ uplink
Enclosure Type	Rack-mountable
Rack Height	1U
Data Transfer Rate	1GBps
Switching Capacity	128GBps
Packet Forwarding Rate	95.23 Mpps
Packet Buffer Size	12 Mbit
MAC Address Table Size	16K entries
Jumbo Frame Support	9KB
Priority Queues	8
Static IPv4 Routes	16
Static IPv6 Routes	16
Static Routes	48
ARP Entries	128
Maximum Aggregation Groups	8
Ports per Aggregation Group	8
Layer 2 Multicast Filtering Profiles	256
Layer 2 Multicast Filtering Entries per Profile	16
VLAN Groups	4000
MAC VLAN Address Entries	30
VLAN Templates	16
IP MAC Port Binding Entries	512
IPv4 Source Guard Entries	100
IPv6 MAC Port Binding Entries	512
IPv6 Source Guard Entries	100
Port Security Entries	64
Routing Protocols	IGMPv2 \| IGMP \| IGMPv3 \| static IPv4 routing \| static IPv6 routing \| MLDv2 \| MLD \| MSTP \| RSTP \| STP
Management Protocols	SNMP 1 \| RMON 1 \| RMON 2 \| SNMP \| RMON 3 \| RMON 9 \| Telnet \| SNMP 3 \| SNMP 2c \| HTTP \| HTTPS \| TFTP \| SSH \| SSH-2 \| CLI \| ICMP \| DHCP \| RSTP \| TACACS+ \| RADIUS
Security	SSL 3.0 \| TLS 1.2
Authentication Method	Secure Shell (SSH) \| RADIUS \| TACACS+ \| Secure Shell v.2 (SSH2)
Features	Flow control \| IGMP snooping \| port mirroring \| store and forward \| Broadcast Storm Control \| Multicast Storm Control \| Unicast Storm Control \| firmware upgradable \| SNTP support \| STP support \| RSTP support \| MSTP support \| Quality of Service (QoS) \| DHCP server \| MLD snooping \| Cable Diagnostics Function \| bandwidth control \| DHCP relay \| Port Security \| Management Information Base (MIB) \| Multicast VLAN Registration (MVR) \| Dynamic VLAN Support (GVRP) \| port isolation \| Class of Service (CoS) \| Strict Priority (SP) \| tagged VLAN \| Generic VLAN Registration Protocol (GVRP) \| Denial of Service (DoS) \| 802.1x authentication \| cloud managed \| DiffServ Code Point (DSCP) support \| MAC and IP-based ACLs support \| Time-controlled ACLs support \| system log \| IP source guard \| ARP inspection \| Bridge protocol data unit (BPDU) \| Link Aggregation \| Management Information Base (MIB) II \| dual image support \| Software Defined Networking (SDN) \| fast leave \| Authentication, Authorization and Accounting (AAA) \| 1 fan \| Voice VLAN \| Private VLAN \| Guest VLAN \| proxy ARP \| Zero-touch provisioning (ZTP) \| Energy-Efficient Ethernet (EEE) \| BPDU Filter \| Weighted Round Robin (WRR) \| Head-of-line (HOL) Blocking Prevention \| loopback detection \| MAC Access Bypass (MAB) \| queue scheduling support \| schedule reboot \| DSCP prioritisation \| DHCPv6 snooping
Compliant Standards	IEEE 802.1D \| IEEE 802.1Q \| IEEE 802.1p \| IEEE 802.3x \| IEEE 802.3ad (LACP) \| IEEE 802.1w \| IEEE 802.1x \| IEEE 802.1s \| IEEE 802.1ab (LLDP)
RAM	512 MB
Flash Memory	32 MB
Status Indicators	Status
Interfaces	20 x 1000Base-X SFP \| 4 x 1000Base-T / 1000Base-X RJ-45/SFP \| 4 x 10GBase-X SFP+ uplink \| 1 x console RJ-45 \| 1 x micro-USB console \| 20 x 1000Base-X SFP ¦ 4 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x micro-USB console
Power	Internal power supply
Installed Qty	2
Max Supported Qty	2
Power Redundancy	Yes
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Stand by	17.6 Watt
Package Contents	Rubber feet
Rack Mounting Kit	Included
OS Required	UNIX \| Apple MacOS \| Novell NetWare \| Linux \| Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11
Width	44 cm
Depth	22 cm
Height	4.4 cm
Measurements	440 x 220 x 44 mm
Gross Weight	4.12 kg
Country of Origin	CN
Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS
SKU / EAN	TL-SG3428XF \| 4897098688212

SINGULAR RECOMMENDS

For who

For organisations that need a rack-mountable managed switch with fibre ports, 10G uplinks and a flexible L2+ feature set for network control.

Real reason to buy it

It combines 20 SFP ports, 4 combo SFP/RJ-45 ports and 4 10G SFP+ uplinks in a managed 1U switch, giving you flexible business network expansion.

Know before

This is a fibre-focused managed switch with SFP, combo and SFP+ ports; the confirmed data does not include copper access port counts beyond the combo ports. The package lists rubber feet and a rack mounting kit.
