Esp32-cam development board
🔥Πωλείται γρήγορα!
Esp32-cam development board
EXTRA -10%
€ 17.50
Aπομένουν μόνο 3!
ή
Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=1"},{"value":"2","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=2"},{"value":"3","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=3"}]
–+
[{"value":"1","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=1"},{"value":"2","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=2"},{"value":"3","url":"/on/demandware.store/Sites-Jinius-Site/el_CY/Product-OfferAvailability?p11Quantity=3&pid=6537781&productId=70f7ec62-9a86-42dc-b34a-da85c4e6ced5&quantity=3"}]
–+
Jinius Promo
EXTRA -10% έκπτωση στο καλάθι! (Μέγιστη έκπτωση €40)
34
Points earned
Χαμηλό απόθεμα
Επιλογές μεταφορικών
Σημεία / Θυρίδες παραλαβής
Εκτ. παράδοση: 19 Μαρ - 20 Μαρ
Δωρεάν
Παράδοση στην πόρτα σου
Δωρεάν αποστολή για παραγγελίες άνω των € 65.00 από το Antoniadis Electronics-Educational
Εκτ. παράδοση: 19 Μαρ - 23 Μαρ
€ 1.99
Περιγραφή
Αριθμός προϊόντος:
70f7ec62-9a86-42dc-b34a-da85c4e6ced5

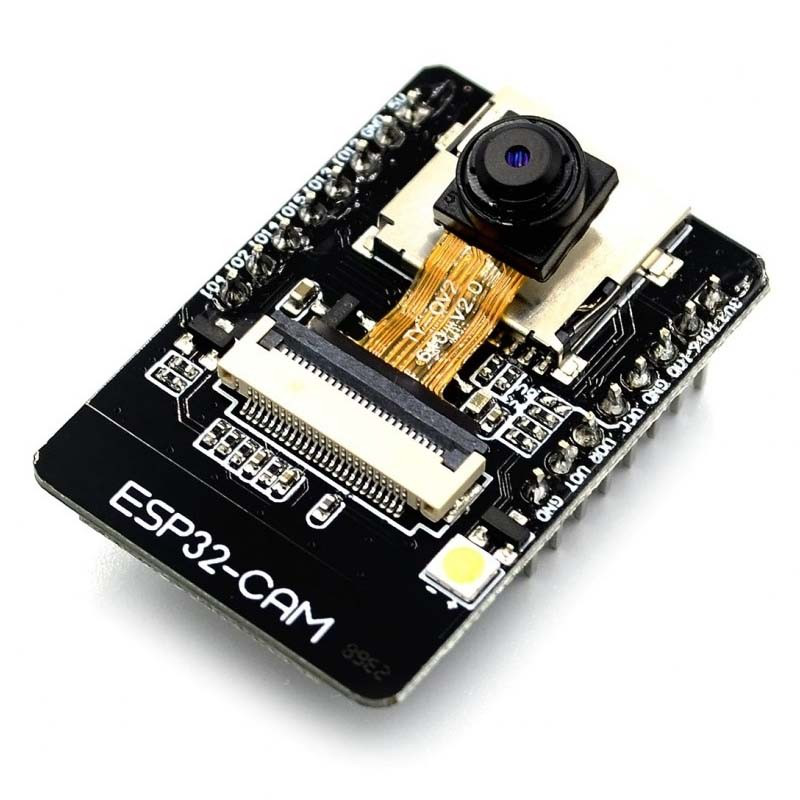

The ESP32-CAM is a small-size, low-power consumption camera module based on ESP32. It comes with an OV2640 camera and provides an onboard TF card slot.
The ESP32-CAM can be widely used in intelligent IoT applications such as wireless video monitoring, WiFi image upload, QR identification, and so on.
The ESP32-CAM suit for IOT applications such as:
- Smart home devices image upload
- Wireless monitoring
- Intelligent agriculture
- QR wireless identification
- facial recognition
- The connection to 5V is required for the programming.
- Please make sure that the input power of the module is at least 5V 2A, otherwise, the picture may have water lines.
SPECIFICATIONS
- WIFI module: ESP-32S
- Processor: ESP32-D0WD
- Built-in Flash: 32Mbit
- RAM: Internal 512KB + External 4M PSRAM
- Antenna: Onboard PCB antenna
- WiFi protocol: IEEE 802.11 b/g/n/e/i
- Bluetooth: Bluetooth 4.2 BR/EDR and BLE
- WIFI mode: Station / SoftAP / SoftAP+Station
- Security: WPA/WPA2/WPA2-Enterprise/WPS
- Output image format: JPEG (OV2640 support only), BMP, GRAYSCALE
- Supported TF card: up to 4G
- Peripheral interface: UART/SPI/I2C/PWM
- IO port: 9
- UART baudrate rate: default 115200bps
- Power supply: 5V
- Operating temperature: -20 ℃ ~ 85 ℃
- Storage environment: -40 ℃ ~ 90 ℃, <90%RH
- Transmitting power:
- 802.11b: 17 ±2dBm(@11Mbps)
- 802.11g: 14 ±2dBm(@54Mbps)
- 802.11n: 13 ±2dBm(@HT20,MCS7)
- Receiving sensitivity:
- CCK,1Mbps: -90 dBm
- CCK,11Mbps: -85 dBm
- 6Mbps(1/2 BPSK): -88 dBm
- 54Mbps(3/4 64-QAM): -70 dBm
- HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm
- Power consumption:
- Flash off: 180mA@5V
- Flash on and brightness max: 310mA@5V
- Deep-Sleep: as low as 6mA@5V
- Modern-Sleep: as low as 20mA@5V
- Light-Sleep: as low as 6.7mA@5V
- Dimensions: 40.5mm x 27mm x 4.5mm
Χαρακτηριστικά
Χαρακτηριστικά Πλακετών Esp
- Πλακέτα ESP: ESP32
Λεπτομέρειες
The ESP32-CAM is a small-size, low-power consumption camera module based on ESP32. It comes with an OV2640 camera and provides an onboard TF card slot.
The ESP32-CAM can be widely used in intelligent IoT applications such as wireless video monitoring, WiFi image upload, QR identification, and so on.
The ESP32-CAM suit for IOT applications such as:
- Smart home devices image upload
- Wireless monitoring
- Intelligent agriculture
- QR wireless identification
- facial recognition
- The connection to 5V is required for the programming.
- Please make sure that the input power of the module is at least 5V 2A, otherwise, the picture may have water lines.
SPECIFICATIONS
- WIFI module: ESP-32S
- Processor: ESP32-D0WD
- Built-in Flash: 32Mbit
- RAM: Internal 512KB + External 4M PSRAM
- Antenna: Onboard PCB antenna
- WiFi protocol: IEEE 802.11 b/g/n/e/i
- Bluetooth: Bluetooth 4.2 BR/EDR and BLE
- WIFI mode: Station / SoftAP / SoftAP+Station
- Security: WPA/WPA2/WPA2-Enterprise/WPS
- OuTPUt image format: JPEG (OV2640 support only), BMP, GRAYSCALE
- Supported TF card: up to 4G
- Peripheral interface: UART/SPI/I2C/PWM
- IO port: 9
- UART baudrate rate: default 115200bps
- Power supply: 5V
- Operating temperature: -20 ℃ ~ 85 ℃
- Storage environment: -40 ℃ ~ 90 ℃, <90%RH
- Transmitting power:
- 802.11b: 17 ±2dBm(@11Mbps)
- 802.11g: 14 ±2dBm(@54Mbps)
- 802.11n: 13 ±2dBm(@HT20,MCS7)
- Receiving sensitivity:
- CCK,1Mbps: -90 dBm
- CCK,11Mbps: -85 dBm
- 6Mbps(1/2 BPSK): -88 dBm
- 54Mbps(3/4 64-QAM): -70 dBm
- HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm
- Power consumption:
- Flash off: 180mA@5V
- Flash on and brightness max: 310mA@5V
- Deep-Sleep: as low as 6mA@5V
- Modern-Sleep: as low as 20mA@5V
- Light-Sleep: as low as 6.7mA@5V
- Dimensions: 40.5mm x 27mm x 4.5mm
ΔΥΝΑΤΟΤΗΤΕΣ
- Onboard ESP32-S module, supports WiFi + Bluetooth
- OV2640 camera with flash
- Onboard TF card slot, supports up to 4G TF card for data storage
- Supports WiFi video monitoring and WiFi image upload
- Supports multi sleep modes, deep sleep current as low as 6mA
- Control interface is accessible via pinheader, easy to be integrated and embedded into user products
