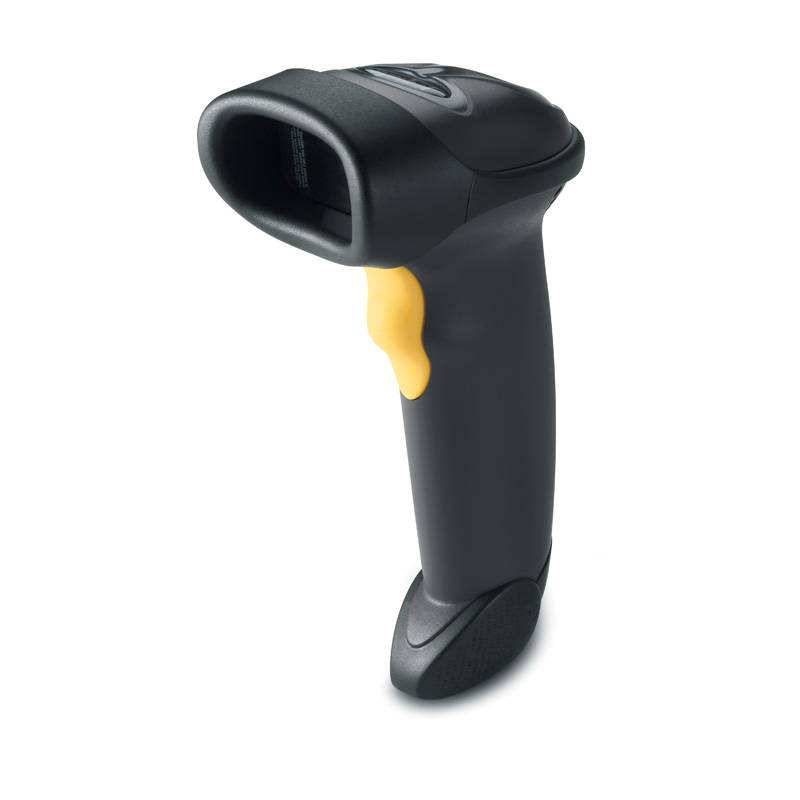

Zebra symbol ls2208 ls2208-7azu0100zr 1d laser barcode scanner USB kit with cable no stand black

Name: Zebra symbol ls2208 ls2208-7azu0100zr 1d laser barcode scanner USB kit with cable no stand black
Brand: MOTOROLA
SKU: 1adc0cad-a3d5-4c91-ba07-d417d05f7396
Price: 73.04 EUR
Availability: InStock

€ 73.04

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 03 Αυγ - 04 Αυγ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 03 Αυγ - 05 Αυγ

€ 3.49

Περιγραφή

Αριθμός προϊόντος: 1adc0cad-a3d5-4c91-ba07-d417d05f7396

Zebra LS2208 — Best-Selling 1D Laser Scanner, USB Cable Kit 100 Scans per SecondRange up to 43 cmUSB Kit — Cable Included5-Year Warranty The Zebra Symbol LS2208 (part number LS2208-7AZU0100ZR, EAN 5052179230585) is Zebra’s best-selling corded 1D laser barcode scanner, in the streamlined USB kit: the twilight-black LS2208-SR20007R scanner plus a 2.1 m straight USB cable (CBA-U01-S07ZAR) — no stand, ideal for handheld-only counters and fleet purchases. Its aggressive 650 nm laser captures 100 sca

Χαρακτηριστικά

Λεπτομέρειες

Zebra LS2208 — Best-Selling 1D Laser Scanner, USB Cable Kit

100 Scans per SecondRange up to 43 cmUSB Kit — Cable Included5-Year Warranty

The Zebra Symbol LS2208 (part number LS2208-7AZU0100ZR, EAN 5052179230585) is Zebra’s best-selling corded 1D laser barcode scanner, in the streamlined USB kit: the twilight-black LS2208-SR20007R scanner plus a 2.1 m straight USB cable (CBA-U01-S07ZAR) — no stand, ideal for handheld-only counters and fleet purchases. Its aggressive 650 nm laser captures 100 scans per second with a wide working range — everyday 13 mil UPC codes from contact up to 43 cm — and is backed by a 5-year warranty. Typically in stock with fast delivery across Cyprus.

Compatibility & Usage Note

The LS2208 reads printed 1D barcodes only — as a laser scanner it cannot read QR/2D codes or barcodes displayed on phone screens. No stand in this kit: the hands-free Intellistand (20-61019-02R) is sold separately, or choose the LS2208-SR20007R-UR kit which includes it. Other interface cables (RS-232, Keyboard Wedge, IBM) are sold separately.

Best For

✓ Retail point-of-sale & supermarket checkout

✓ Handheld-only scanning — no counter space for a stand

✓ Fleet purchases standardising on the LS2208

✓ School book & library circulation desks

✓ Light warehouse receiving and inventory

✓ High-frequency all-day scanning environments

Key Features

Wide 43 cm Working Range

Contact to 17 in./43 cm on 100% UPC/EAN symbols and up to 76 cm on large 40 mil codes — workers scan items without stretching or repositioning, keeping queues moving.

Lean USB Kit

Scanner plus 2.1 m USB cable — nothing you don’t need. Add the Intellistand later if presentation scanning becomes useful; the scanner auto-detects it.

Legendary Durability

Patented single-board construction, frictionless liquid-polymer scan element and scratch-resistant tempered-glass window; tested to multiple 1.5 m / 5 ft drops to concrete.

Advanced Data Formatting

ADF modifies scanned data before it reaches the host, so barcodes drop into your POS in exactly the format you need — no costly host software changes.

Technical Specifications

Identification
Part Number	LS2208-7AZU0100ZR
EAN / GTIN	5052179230585
MPN	LS2208-7AZU0100ZR
Series	Zebra (Symbol) LS2208, standard range
Kit Contents
Scanner	LS2208-SR20007R (twilight black)
Cable	CBA-U01-S07ZAR — 2.1 m straight USB
Stand	Not included — Intellistand 20-61019-02R sold separately
Reading Performance
Scanner Type	Bi-directional 1D laser
Light Source	650 nm visible laser diode — CDRH Class II / IEC Class 2
Scan Rate	100 scans per second (50 Hz scan element)
Min Print Contrast	20% reflective difference
Read Angles	Roll ±30° + Pitch ±65° + Skew ±60°
Typical Working Range
Code 39 — 5 mil	6.0 to 15.25 cm
Code 39 — 7.5 mil	3.8 to 25.4 cm
Code 39 — 10 mil	2.5 to 36.2 cm
UPC/EAN 100% — 13 mil	0 to 43.0 cm
Code 39 — 20 mil	0 to 58.5 cm
Code 39 — 40 mil	0 to 76.0 cm
Decoding Capability
1D Symbologies	UPC/EAN (+Supplementals), UPC/EAN 128, Code 39 (Full ASCII, TriOptic), Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, Chinese 2 of 5
Interface
This Kit	USB (plug-and-play keyboard emulation)
Scanner Supports	USB + RS-232 + Keyboard Wedge + IBM 468x/9x — universal cable compatibility
Electrical
Voltage & Current	5 VDC ±10% @ 130 mA typical (175 mA max)
Power Source	Host power or external power supply
Environmental
Drop Resistance	Functions normally after repeated 1.5 m / 5 ft drops to concrete
Sealing	IP30 — protected against solid objects, no water protection
ESD Protection	15 kV air + 8 kV contact discharge
Operating Temperature	0 to 50 °C
Storage Temperature	-40 to 70 °C
Humidity	5 – 95% non-condensing
Ambient Light	Tolerant of indoor lighting and direct sunlight (86,111 lux)
Physical
Dimensions	15.2 x 6.3 x 8.4 cm (H x W x D)
Weight	150 g
Colour	Twilight Black
Warranty
Warranty	5-year factory warranty

Frequently Asked Questions

Does the Zebra LS2208 work with my POS software?

Yes. Connected via the included USB cable it appears as a keyboard — every scanned barcode types directly into any Windows, macOS or Linux POS, ERP or spreadsheet field with no drivers. Advanced Data Formatting can reshape the data before it reaches your software.

Can the LS2208 read barcodes from a phone screen?

No. The LS2208 uses a laser, which cannot read codes off illuminated displays or any 2D/QR codes. For mobile loyalty cards or e-coupons choose the Zebra LI2208 linear imager or DS2208 2D imager.

What is the difference between LS2208-7AZU0100ZR and LS2208-SR20007R-UR?

Both are black USB kits with the same scanner and cable; the -UR kit adds the hands-free Intellistand. Choose the 7AZU0100ZR when you scan handheld only, or add the stand (20-61019-02R) later if needs change.

What do I need to know before buying the LS2208-7AZU0100ZR?

The kit contains scanner and 2.1 m USB cable — no stand. It is USB bus-powered, one cable for data and power, and shares universal cables with the DS2208 2D imager, protecting your accessory investment if you upgrade later.

Singular Expert Insight

This cable-only kit is the most economical way to put Zebra’s best-selling laser on the counter, and the smart default for fleets that scan handheld. The stand-included -UR variant costs a bit more but pays off wherever items are presented to a fixed scanner. If customers show barcodes on phones, the LI2208 imager reads screens for a modest premium; and since the DS2208 2D imager reuses these same cables, the upgrade path to QR scanning is already covered.

Buyer’s Guide

Buy it if

You scan printed 1D labels handheld all day + you want Zebra’s proven best-seller at the leanest kit price + 43 cm reach and a 5-year warranty matter + you may add a stand or upgrade to DS2208 later using the same cables.

Skip it if

You want hands-free presentation scanning out of the box (choose LS2208-SR20007R-UR with stand) + you need to scan phone screens or QR/2D codes + you need IP-rated sealing against dust and liquids.

Also consider

Zebra LS2208-SR20007R-UR — same kit plus Intellistand. Zebra LI2208 — 1D imager that reads phone screens, 76 cm range. Zebra DS2208 — full QR/2D upgrade using the same cables.
