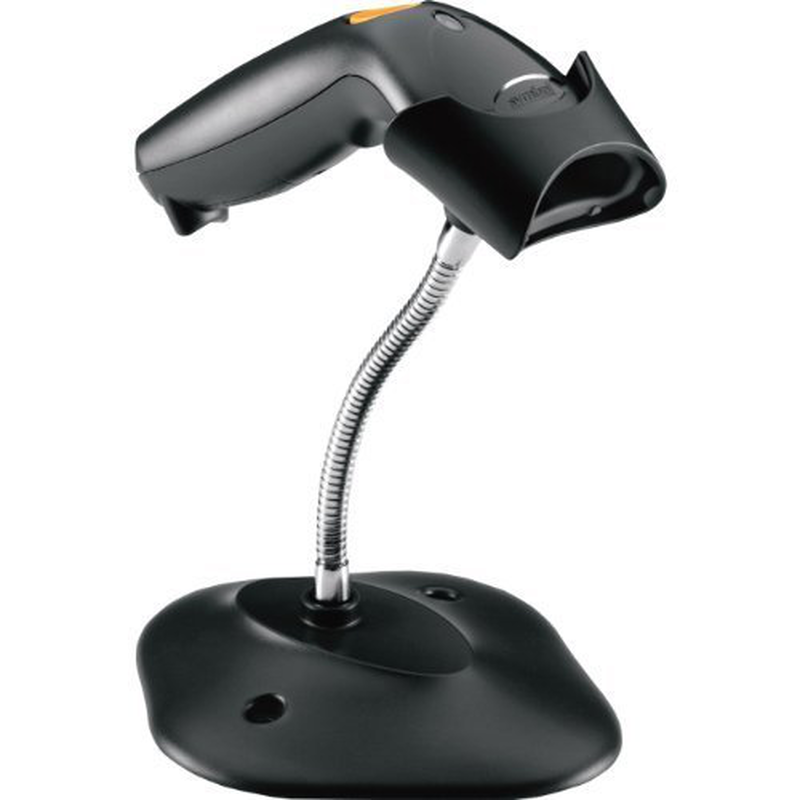

Zebra symbol ls1203 ls1203-7azu0100er 1d laser barcode scanner USB kit with cable and stand black

Name: Zebra symbol ls1203 ls1203-7azu0100er 1d laser barcode scanner USB kit with cable and stand black
Brand: MOTOROLA
SKU: 3e68a6b1-6add-4ac3-8fe2-9d5ced590152
Price: 92.46 EUR
Availability: InStock

€ 92.46

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 03 Αυγ - 04 Αυγ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 03 Αυγ - 05 Αυγ

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 3e68a6b1-6add-4ac3-8fe2-9d5ced590152

Zebra LS1203 — Affordable 1D Laser Barcode Scanner, USB Kit 100 Scans per Second1D Laser 650 nmUSB Kit — Cable + Stand1.5 m Drop Resistance The Zebra Symbol LS1203 (part number LS1203-7AZU0100ER, EAN 3609740039034) is a corded handheld 1D laser barcode scanner kit built for small retail businesses that want fast, accurate scanning at an entry-level price. This EMEA USB kit includes the twilight-black LS1203 scanner, a 2.1 m USB cable (CBA-U01-S07ZAR) and a hands-free stand, so it works plug-and

Χαρακτηριστικά

Λεπτομέρειες

Zebra LS1203 — Affordable 1D Laser Barcode Scanner, USB Kit

100 Scans per Second1D Laser 650 nmUSB Kit — Cable + Stand1.5 m Drop Resistance

The Zebra Symbol LS1203 (part number LS1203-7AZU0100ER, EAN 3609740039034) is a corded handheld 1D laser barcode scanner kit built for small retail businesses that want fast, accurate scanning at an entry-level price. This EMEA USB kit includes the twilight-black LS1203 scanner, a 2.1 m USB cable (CBA-U01-S07ZAR) and a hands-free stand, so it works plug-and-play at any point of sale. The bi-directional 650 nm laser reads 100 scans per second with a choice of triggered or Auto-Scan continuous mode. Typically in stock with fast delivery across Cyprus.

Compatibility & Usage Note

The LS1203 reads printed 1D barcodes only — as a laser scanner it cannot read QR/2D codes or barcodes displayed on phone screens. The scanner body supports USB, RS-232 and Keyboard Wedge, and this kit ships with the USB cable; other interface cables are sold separately.

Best For

✓ Small retail shops, boutiques & gift stores

✓ Point-of-sale checkout with printed barcodes

✓ Back-room inventory and stock management

✓ Libraries, pharmacies and video/game stores

✓ Hands-free presentation scanning via included stand

✓ Budget deployments needing a proven brand

Key Features

Complete Plug-and-Play Kit

Scanner, 2.1 m USB cable and stand in one box. Connect to any Windows POS and scanned codes type straight into your software as keyboard input — no drivers, no training.

Accurate 100 scans/s Laser

The bi-directional 650 nm laser captures everyday UPC/EAN codes from contact up to 21.5 cm, and larger 26 mil codes up to 26 cm, with Auto-Scan continuous mode for hands-free use.

Single-Board Durability

Zebra’s patented single circuit board construction removes the most common failure points, and the unit withstands multiple 1.5 m / 5 ft drops to concrete.

Multi-Interface Body

USB, RS-232 and Keyboard Wedge support are built into the scanner itself — swap the cable and it works with tomorrow’s POS system too, protecting your investment.

Technical Specifications

Identification
Part Number	LS1203-7AZU0100ER
EAN / GTIN	3609740039034
MPN	LS1203-7AZU0100ER
Series	Zebra (Symbol) LS1203
Kit Contents
Scanner	LS1203 (twilight black)
Cable	CBA-U01-S07ZAR — 2.1 m straight USB
Stand	Hands-free stand included
Reading Performance
Scanner Type	Bi-directional 1D laser
Light Source	650 nm visible laser diode — IEC Class 1, safe for continuous use
Scan Rate	100 scans per second
Min Print Contrast	30% reflectance
Read Angles	Roll ±30° + Pitch ±65° + Skew ±60°
Typical Working Range
Code 39 — 5 mil	0.5 to 12.5 cm
Code 39 — 10 mil	0 to 21.5 cm
UPC/EAN 100% — 13 mil	0 to 21.5 cm
UPC 200% — 26 mil	0 to 26.0 cm
Decoding Capability
1D Symbologies	UPC/EAN (+Supplementals), UPC/EAN 128, Code 39 (Full ASCII, TriOptic), Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, Chinese 2 of 5
Interface
This Kit	USB (plug-and-play keyboard emulation)
Scanner Supports	USB + RS-232 + Keyboard Wedge — cable defines interface
Electrical
Voltage & Current	5 VDC ±10% @ 100 mA (standby <35 mA)
Power Source	Host (USB) powered — no power supply needed
Environmental
Drop Resistance	Withstands multiple 1.5 m / 5 ft drops to concrete
ESD Protection	15 kV air + 8 kV contact discharge
Operating Temperature	0 to 50 °C
Storage Temperature	-40 to 70 °C
Humidity	5 – 95% non-condensing
Ambient Light	Tolerant of indoor lighting and direct sunlight (86,111 lux)
Physical
Dimensions	18.0 x 6.2 x 6.0 cm
Weight	122 g (without cable)
Colour	Twilight Black
Warranty
Warranty	3-year factory warranty

Frequently Asked Questions

Does the Zebra LS1203 work with my POS software?

Yes. Connected via the included USB cable it appears as a keyboard — every scanned barcode types directly into any Windows, macOS or Linux POS, ERP or spreadsheet field with no drivers or setup.

Can the LS1203 read barcodes from a phone screen?

No. The LS1203 uses a laser, which cannot read codes off illuminated displays or any 2D/QR codes. For mobile loyalty cards or e-coupons choose a linear or area imager such as the Zebra LI2208 or DS2208.

What is the difference between the LS1203 and the LS2208?

Both are 100 scans/s 1D laser scanners. The LS2208 offers double the working range (up to 43 cm on 13 mil UPC), IP30 sealing and a 5-year warranty, while the LS1203 is lighter (122 g), cheaper and carries a 3-year warranty — ideal where scanning stays close-range.

What do I need to know before buying the LS1203-7AZU0100ER?

This EMEA kit is complete: scanner, 2.1 m USB cable and stand. It is USB bus-powered, so one cable handles both data and power. Choose triggered scanning or Auto-Scan continuous mode for hands-free use in the stand.

Singular Expert Insight

The LS1203 is Zebra’s entry point into professional scanning — a proven design for small shops that scan printed codes at the counter. If your volume grows or you need to scan from a greater distance, the LS2208 gives a wider working range and a 5-year warranty for a modest premium; if customers show barcodes on phones, step up to the LI2208 linear imager which reads screens and reaches 76 cm. For pure value on printed 1D codes, the LS1203 remains the sensible pick.

Buyer’s Guide

Buy it if

You want a complete, brand-name USB scanning kit at the lowest price + your barcodes are printed labels scanned at close range + you value plug-and-play setup with zero training + the included stand covers presentation scanning.

Skip it if

You need to scan barcodes from phone screens or any QR/2D codes + your application needs range beyond ~25 cm + you want a 5-year warranty or IP-rated sealing — look at the LS2208 or LI2208 instead.

Also consider

Zebra LS2208 — same laser tech, 43 cm range, 5-year warranty. Zebra LI2208 — linear imager, reads phone screens, 76 cm range. Zebra DS2208 — adds full QR/2D support for a little more.
